NSN 5975-01-544-1884 52002472, 01-544-1884, 015441884
Product Details | ELECTRICAL EQUIPMENT DRAWER
5975-01-544-1884 An item designed to slide in and out of a CABINET, ELECTRICAL EQUIPMENT or RACK, ELECTRICAL EQUIPMENT and used to mount and/or store electrical/electronic equipment. It does not include the electrical/electronic equipment, but may include wires, cables, terminal boards, connectors, etc.
Part Alternates: 52002472, 5975-01-544-1884, 01-544-1884, 5975015441884, 015441884
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 04 OCT 2006 | 01-544-1884 | 29922 ( DRAWER, ELECTRICAL EQUIPMENT ) |
Drawings & Photos | NSN 5975-01-544-1884
Cross Reference | NSN 5975-01-544-1884
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 52002472 | 24995 | BECKLIN HOLDINGS, INC. DBA ECS CASE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5975-01-544-1884
Related Products | NSN 5975-01-544-1884
Technical Data | NSN 5975-01-544-1884
| Characteristic | Specifications |
|---|---|

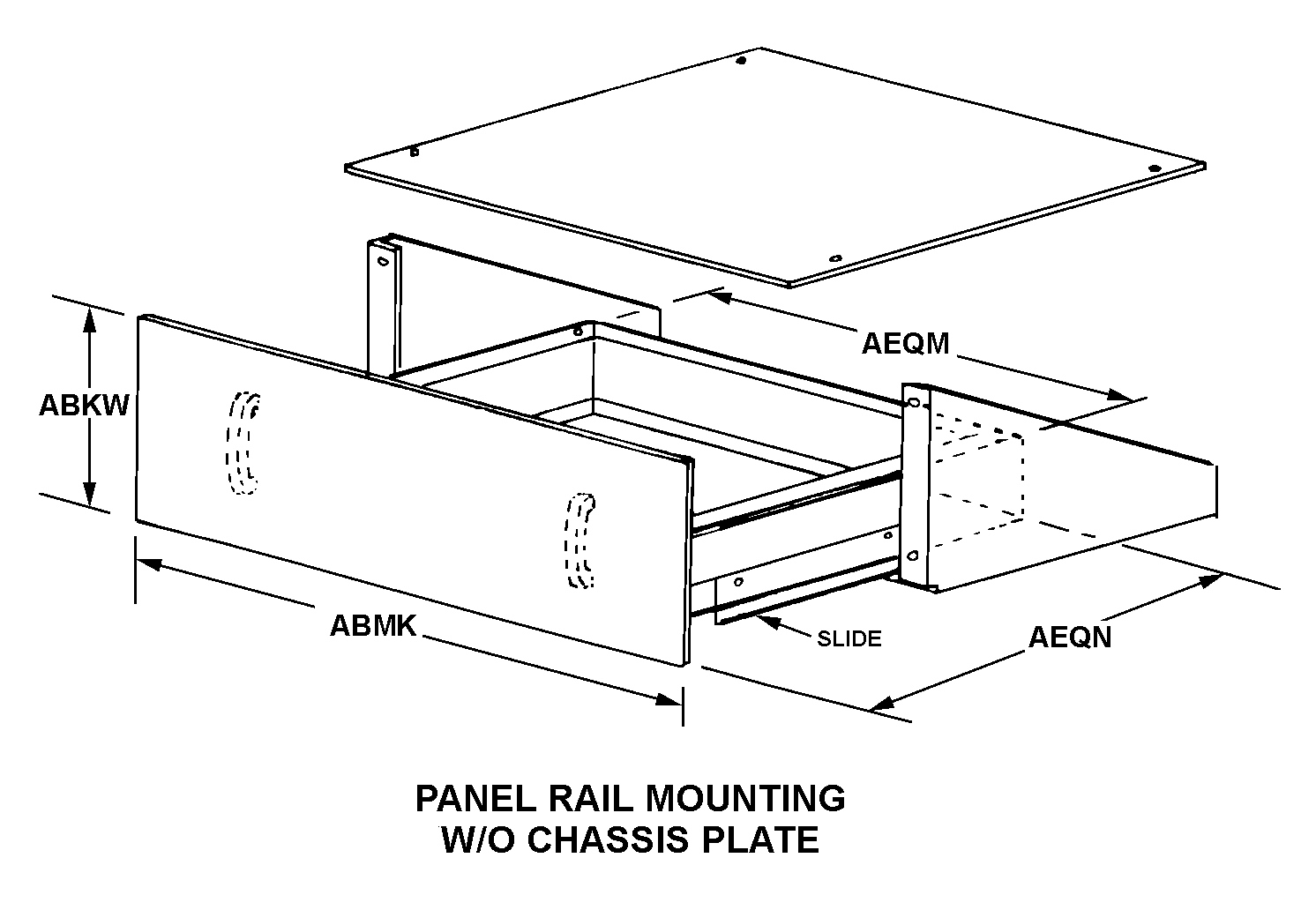

| STYLE DESIGNATOR | D3 PANEL RAIL MOUNTING W/O CHASSIC PLATE |
| OVERALL HEIGHT | 22.500 INCHES NOMINAL |
| OVERALL WIDTH | 22.470 INCHES NOMINAL |
| DRAWER INSIDE DEPTH | 32.500 INCHES NOMINAL |
| SLIDE MECHANISM TYPE | RAIL |
| III END ITEM IDENTIFICATION | AUDIO MATRIX INTERCOM SYSTEM |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | DRAWER, 4 UNIT WITH RAILS |
Restrictions/Controls & Freight Information | NSN 5975-01-544-1884
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 057610 | DRAWERS BENCH STEEL/STEEL AND WOOD |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 712 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | 3 | Electrostatic Sensitive Device (ESD), subject to damage caused by electrostatic discharge. (See DoD 4500.32-R, Volume 1, Appendix A, Section I for additional information on ESD devices). |
Management | NSN 5975-01-544-1884
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
