NSN 5975-01-543-9304 16E1348205, 16E1348-205, 01-543-9304
Product Details | ELECTRICAL EQUIPMENT MOUNTING BASE
5975-01-543-9304 A tray or racklike item designed to provide a supporting surface to which electrical/electronic equipment may be secured when installed in aircraft, vehicles, or other types of mobile equipment. It may be equipped with shock or vibration isolation devices and/or wires, cables, terminal boards, connectors, etc. Excludes BASE, ELECTRICAL EQUIPMENT RACK and MOUNT, RESILIENT. See also RACK, ELECTRICAL EQUIPMENT.
Part Alternates: 16E1348205, 16E1348-205, 5975-01-543-9304, 01-543-9304, 5975015439304, 015439304
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 26 SEP 2006 | 01-543-9304 | 29923 ( MOUNTING BASE, ELECTRICAL EQUIPMENT ) |
Drawings & Photos | NSN 5975-01-543-9304
Cross Reference | NSN 5975-01-543-9304
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 16E1348-205 | 81755 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5975-01-543-9304
Technical Data | NSN 5975-01-543-9304
| Characteristic | Specifications |
|---|---|

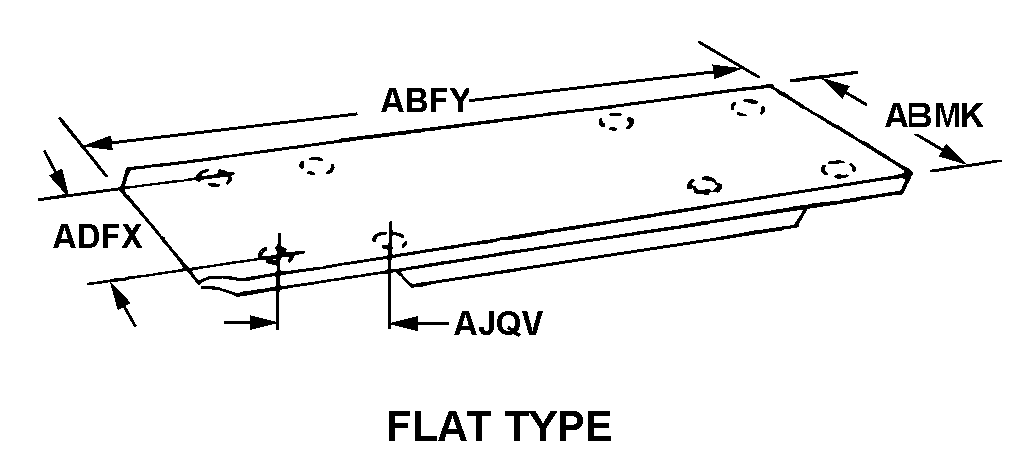

| STYLE DESIGNATOR | E6 FLAT TYPE |
| OVERALL DEPTH | 6.660 INCHES NOMINAL |
| OVERALL WIDTH | 3.800 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG WIDTH | 1.380 INCHES NOMINAL |
| III END ITEM IDENTIFICATION | AIRCRAFT F16 A/B |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | PLATE |
Restrictions/Controls & Freight Information | NSN 5975-01-543-9304
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
