NSN 5975-01-063-4022 MT-4811/APX-100V, MT4811APX100V, 706A35402124
Product Details | ELECTRICAL EQUIPMENT MOUNTING BASE
5975-01-063-4022 A tray or racklike item designed to provide a supporting surface to which electrical/electronic equipment may be secured when installed in aircraft, vehicles, or other types of mobile equipment. It may be equipped with shock or vibration isolation devices and/or wires, cables, terminal boards, connectors, etc. Excludes BASE, ELECTRICAL EQUIPMENT RACK and MOUNT, RESILIENT. See also RACK, ELECTRICAL EQUIPMENT.
Part Alternates: MT-4811/APX-100V, MT4811APX100V, 706A35402124, 706A35-402-124, 40388500501, 4038850-0501, 5975-01-063-4022, 01-063-4022, 5975010634022, 010634022
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 05 AUG 1978 | 01-063-4022 | 29923 ( MOUNTING BASE, ELECTRICAL EQUIPMENT ) |

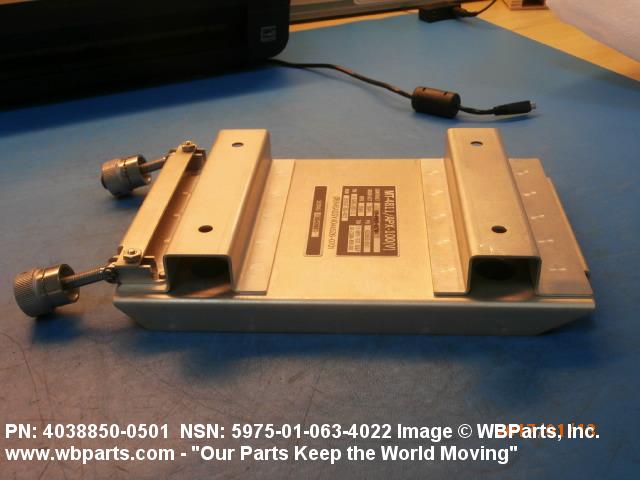

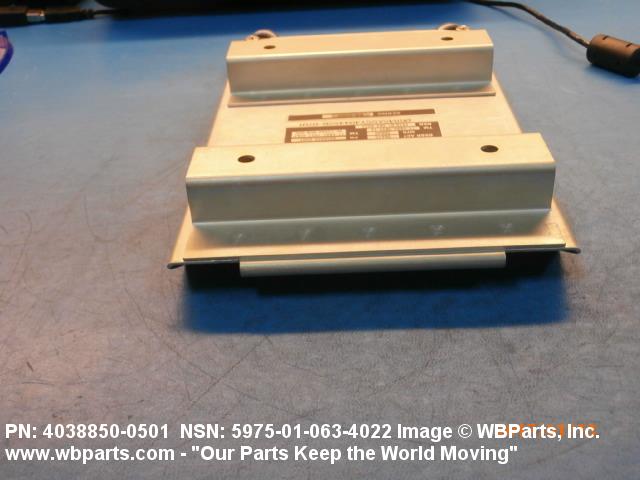

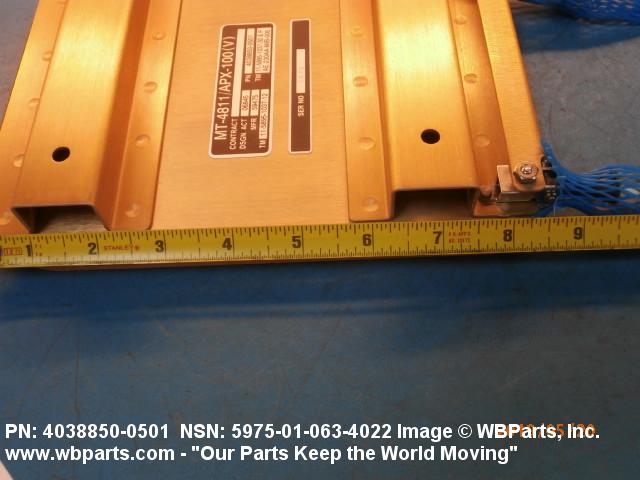

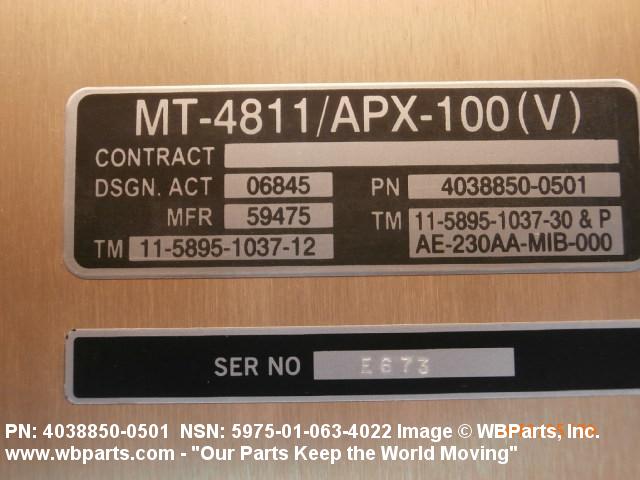

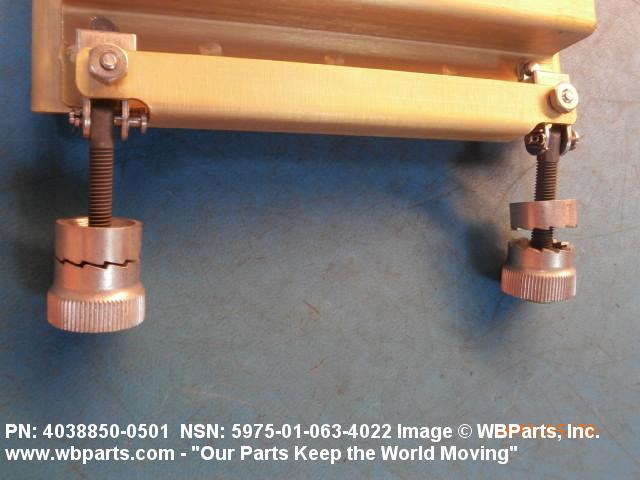

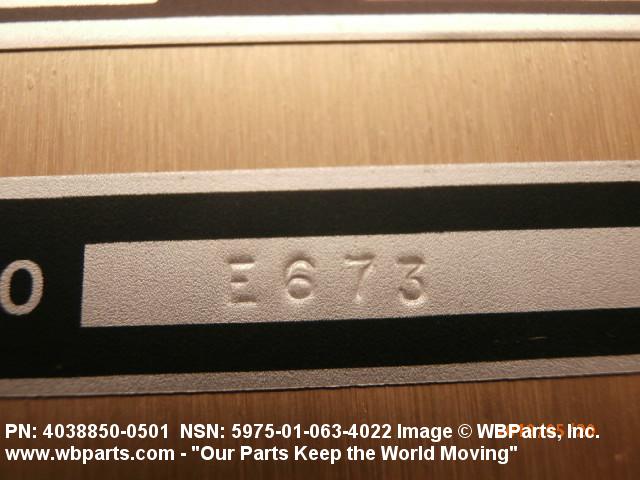

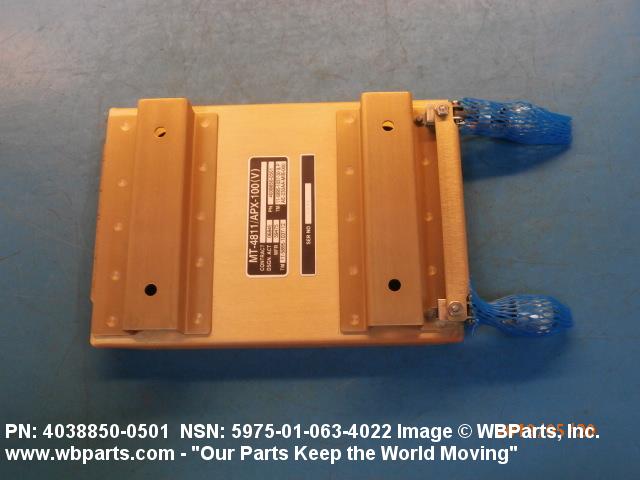

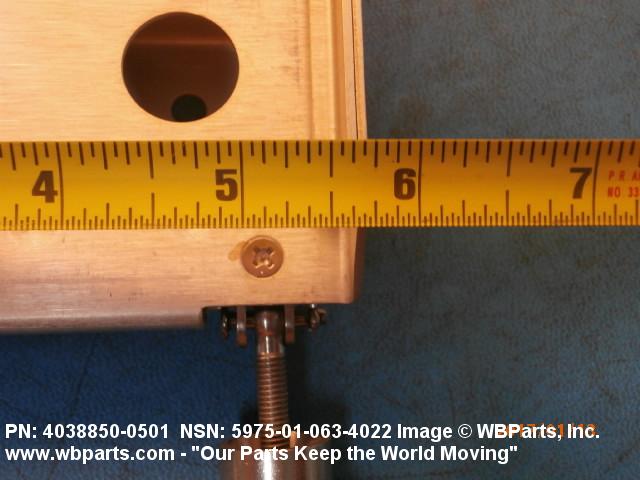

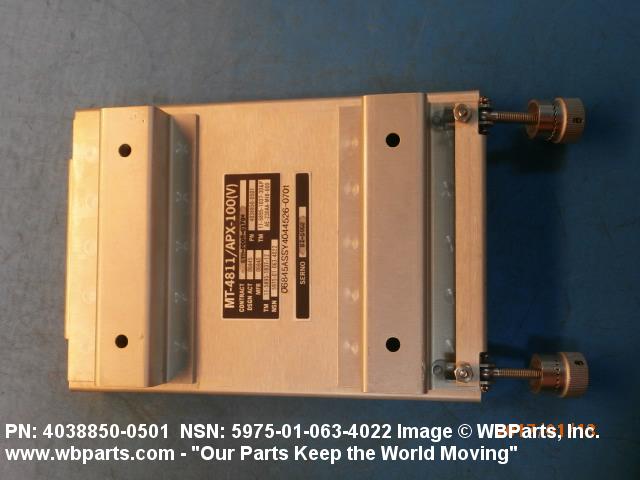

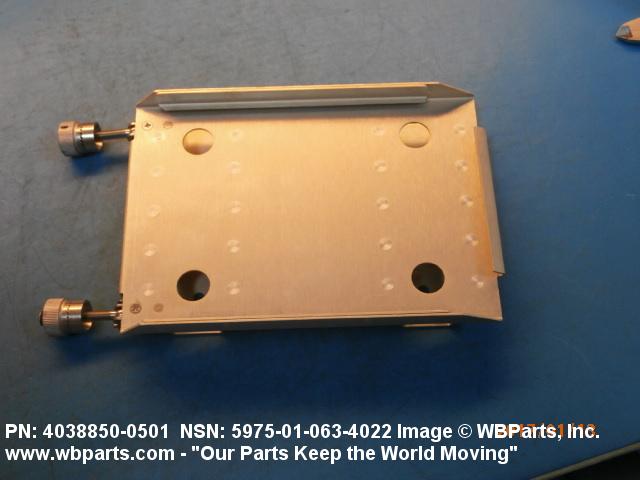

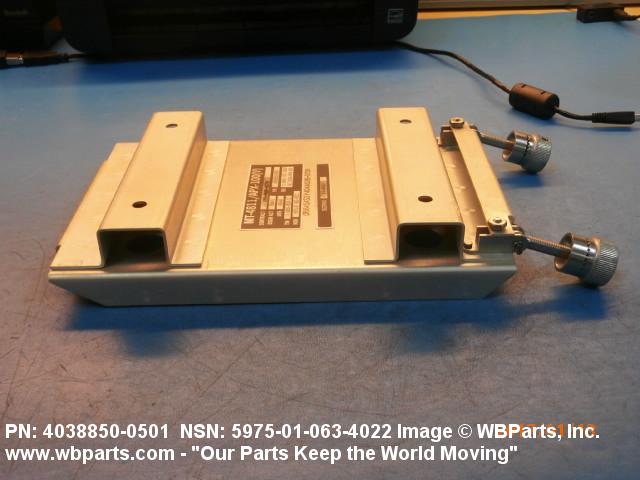

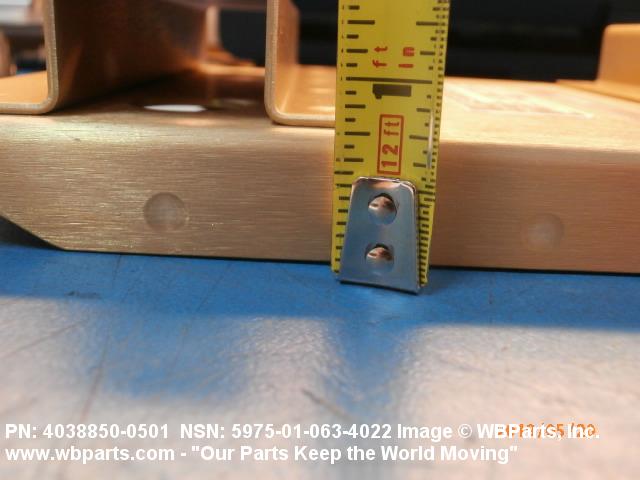

Drawings & Photos | NSN 5975-01-063-4022
Demand History | NSN 5975-01-063-4022
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5975-01-063-4022 | 2023-09-264 | 4 | United States |
| 5975-01-063-4022 | 2022-01-12 | 2 | United States |
| 5975-01-063-4022 | 2020-12-359 | 1 | AE |
| 5975-01-063-4022 | 2020-11-316 | 1 | US |
| 5975-01-063-4022 | 2020-07-188 | 1 | AE |
| 5975-01-063-4022 | 2020-07-188 | 1 | AE |
| 40388500501 | 2020-02-36 | 14 | United States |
| 40388500501 | 2020-01-08 | 1 | United States |
| 5975-01-063-4022 | 2019-07-192 | 25 | US |
| 5975-01-063-4022 | 2019-06-176 | 10 | United States |
| 5975-01-063-4022 | 2019-06-161 | 14 | United States |
| 5975-01-063-4022 | 2019-04-116 | 12 | United States |
| 5975-01-063-4022 | 2019-04-99 | 1 | United States |
| 5975-01-063-4022 | 2019-04-99 | 1 | United States |
| 40388500501 | 2019-03-85 | 1 | US |
| 5975-01-063-4022 | 2019-01-15 | 3 | United States |
| 5975-01-063-4022 | 2019-01-08 | 3 | United States |
| 5975-01-063-4022 | 2018-03-66 | 2 | US |
| 5975-01-063-4022 | 2018-03-64 | 2 | US |
| 5975-01-063-4022 | 2018-01-10 | 34 | US |
| 5975-01-063-4022 | 2017-04-107 | 1 | DIBBS-RFPs |
| 5975-01-063-4022 | 2017-01-06 | 1 | United States |
| 40388500501 | 2015-05-125 | 1 | US |
| 5975-01-063-4022 | 2014-05-148 | 89 | DIBBS |
| 5975-01-063-4022 | 2014-04-107 | 2 | United States |
| 5975-01-063-4022 | 2014-03-78 | 1 | DIBBS-RFPs |
| 5975-01-063-4022 | 2013-12-347 | 88 | DIBBS |
| 5975-01-063-4022 | 2013-12-339 | 88 | DIBBS |
| 5975-01-063-4022 | 2013-10-275 | 72 | DIBBS |
| 5975-01-063-4022 | 2013-09-267 | 72 | DIBBS |
| 5975-01-063-4022 | 2013-07-199 | 1 | US |
| 5975-01-063-4022 | 2012-10-303 | 2 | US |
| 5975-01-063-4022 | 2012-10-303 | 2 | US |
| 5975-01-063-4022 | 2012-02-45 | 3 | US |
| 40388500501 | 2011-08-237 | 31 | United States |
| 4038850-0501 | 2011-05-122 | 1 | |
| 5975-01-063-4022 | 2010-11-323 | 1 | United States |
| MT4811APX100V | 2008-07-211 | 1 | US |
| 5975-01-063-4022 | 2008-05-142 | 300 | us |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5975-01-063-4022
Related Products | NSN 5975-01-063-4022
Technical Data | NSN 5975-01-063-4022
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | E1 TRAY TYPE |
| OVERALL DEPTH | 8.130 INCHES NOMINAL |
| OVERALL HEIGHT | 0.750 INCHES NOMINAL |
| OVERALL WIDTH | 5.500 INCHES NOMINAL |
| MATERIAL | ALUMINUM ALLOY |
| SPECIAL FEATURES | WEAPONS ITEM USED ON A HARRIER,HORNET,GALAXY AND HERCULES AIRCRAFT |
| CRITICALITY CODE JUSTIFICATION | FEAT |
| III FSC APPLICATION DATA | MISCELLANEOUS COMMUNICATION EQUIPMENT |
Restrictions/Controls & Freight Information | NSN 5975-01-063-4022
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093600 | BRACKETS/BUSHINGS/JOINTS/MOUNTS ETC |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5975-01-063-4022
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 3B | Navy-owned stocks of field level repairable DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
