NSN 5975-01-121-2150 10134275 , 7302301, 730-230-1
Product Details | ELECTRICAL CONDUCTOR BUSHING
5975-01-121-2150 An item of metal and/or insulating material having a smooth interior with rounded edges to prevent damage to the insulation of the wire or cable emerging there-from, designed to fit through panel(s) or the wall of a JUNCTION BOX. It may be designed to snap into a knockout hole, or designed with an external thread and furnished with or without a locking nut. For items designed to couple conduit to JUNCTION BOX, see BOX CONNECTOR, ELECTRICAL. See also BUSHING, ELECTRICAL CONDUIT and BUSHING, NONMETALLIC. For items having hexagonal shoulders, see CHASE NIPPLE, CONDUIT.
Part Alternates: 10134275 , 7302301, 730-230-1, 5975-01-121-2150, 01-121-2150, 5975011212150, 011212150
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 NOV 1981 | 01-121-2150 | 04455 ( BUSHING, ELECTRICAL CONDUCTOR ) |

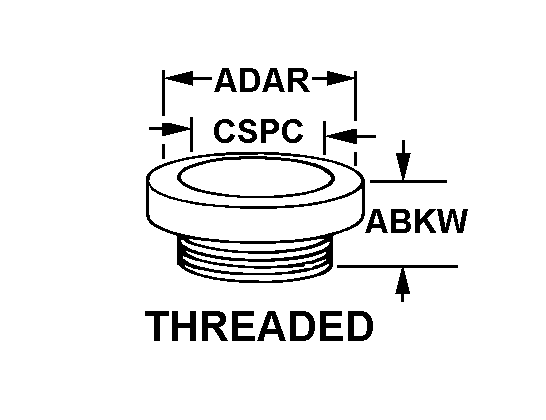

Drawings & Photos | NSN 5975-01-121-2150
Cross Reference | NSN 5975-01-121-2150
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 730-230-1 | 81579 | MASON ELECTRIC COMPANY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5975-01-121-2150
Technical Data | NSN 5975-01-121-2150
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | B1 THREADED |
| OVERALL HEIGHT | 0.430 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 0.700 INCHES NOMINAL |
| ACCOMMODATION HOLE INSIDE DIAMETER | 0.265 INCHES NOMINAL |
| MATERIAL | ALUMINUM ALLOY BODY |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-200/8,ALLOY 6061,TEMPER T651 FED SPEC 1ST MATERIAL RESPONSE OR QQ-A-225/8,ALLOY 6061,TEMPER T651 FED SPEC 2ND MATERIAL RESPONSE BODY |
| SURFACE TREATMENT | CHROMATE BODY |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-C-5541,CLASS 3 MIL SPEC SINGLE TREATMENT RESPONSE BODY |
| BASE THREAD LOCATION | EXTERNAL |
| THREAD SERIES | UN |
| NOMINAL THREAD SIZE | 0.500 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 2A |
| THREAD LENGTH | 0.170 INCHES NOMINAL |
| MANUFACTURERS CODE | 81579 |
| DESIGN CONTROL REFERENCE | 730-230-1 |
Restrictions/Controls & Freight Information | NSN 5975-01-121-2150
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062010 | FITTINGS CONDUIT NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5975-01-121-2150
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
