NSN 5975-00-038-2598 5M1320, 5M13-20, 00-038-2598
Product Details | ELECTRICAL CONDUCTOR BUSHING
5975-00-038-2598 An item of metal and/or insulating material having a smooth interior with rounded edges to prevent damage to the insulation of the wire or cable emerging there-from, designed to fit through panel(s) or the wall of a JUNCTION BOX. It may be designed to snap into a knockout hole, or designed with an external thread and furnished with or without a locking nut. For items designed to couple conduit to JUNCTION BOX, see BOX CONNECTOR, ELECTRICAL. See also BUSHING, ELECTRICAL CONDUIT and BUSHING, NONMETALLIC. For items having hexagonal shoulders, see CHASE NIPPLE, CONDUIT.
Part Alternates: 5M1320, 5M13-20, 5975-00-038-2598, 00-038-2598, 5975000382598, 000382598
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-038-2598 | 04455 ( BUSHING, ELECTRICAL CONDUCTOR ) |

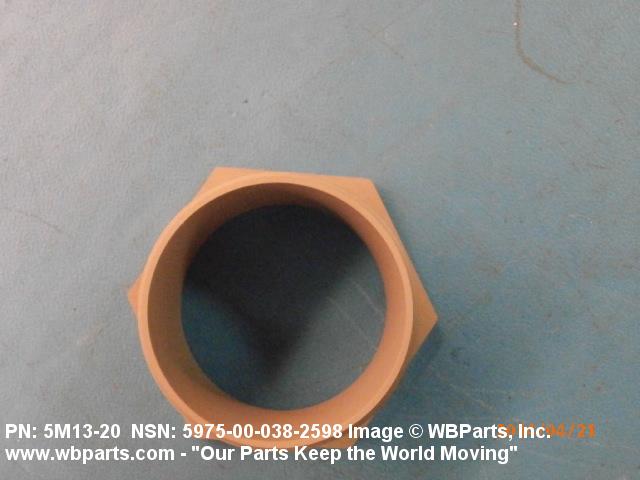

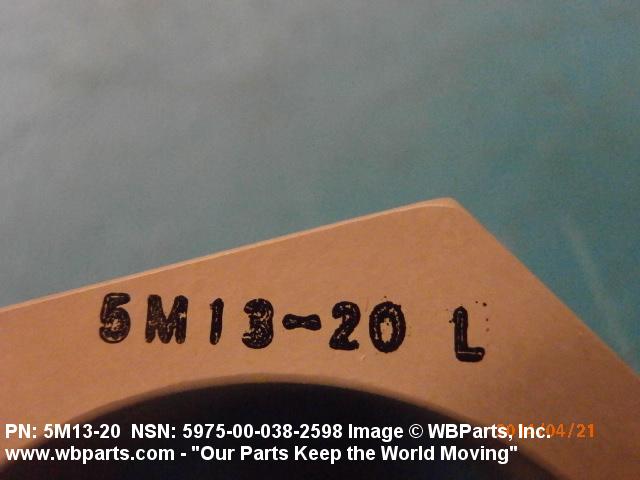

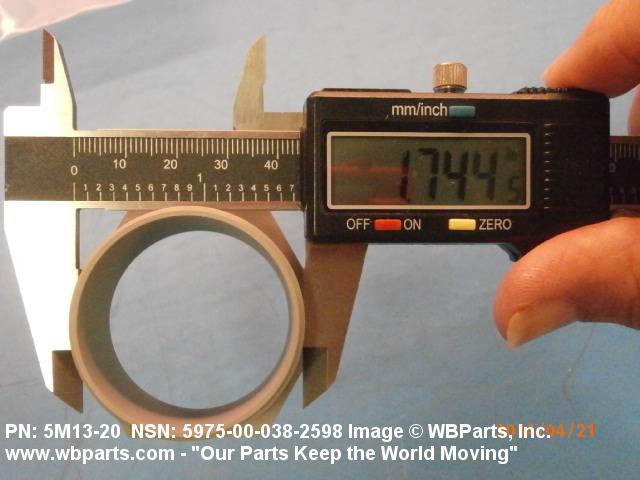

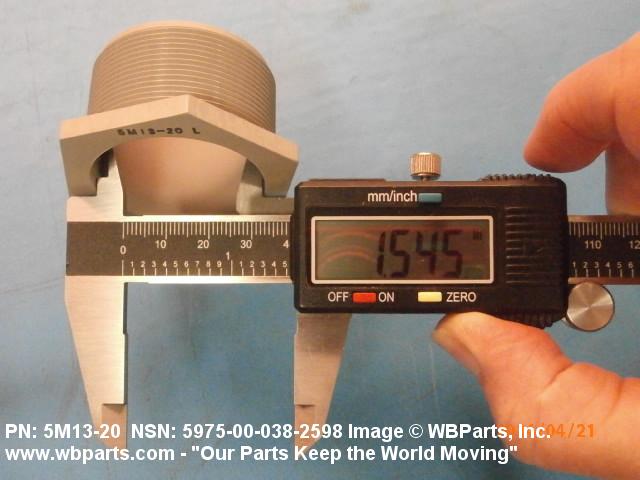

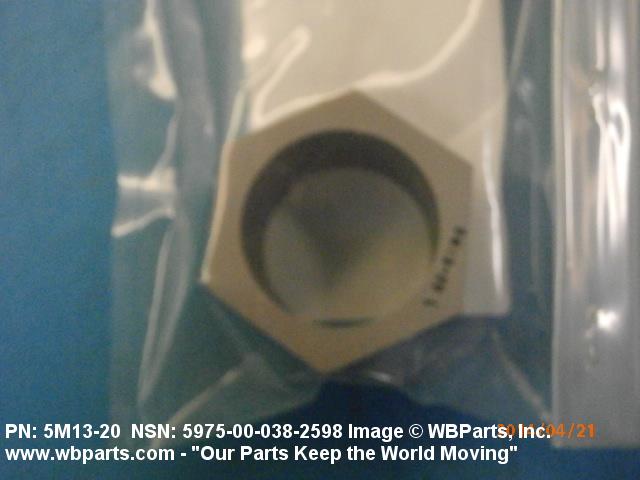

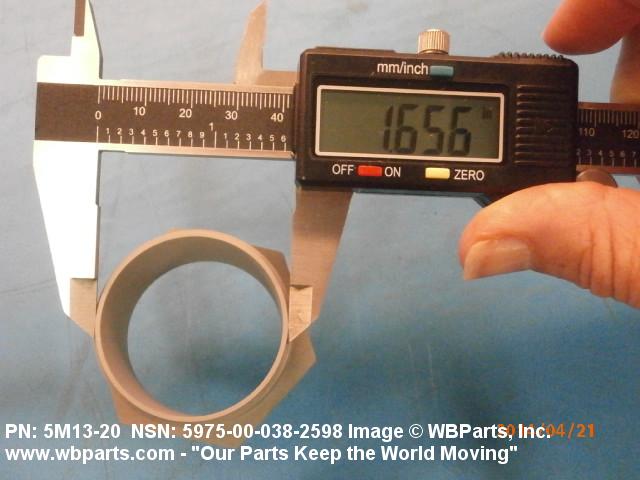

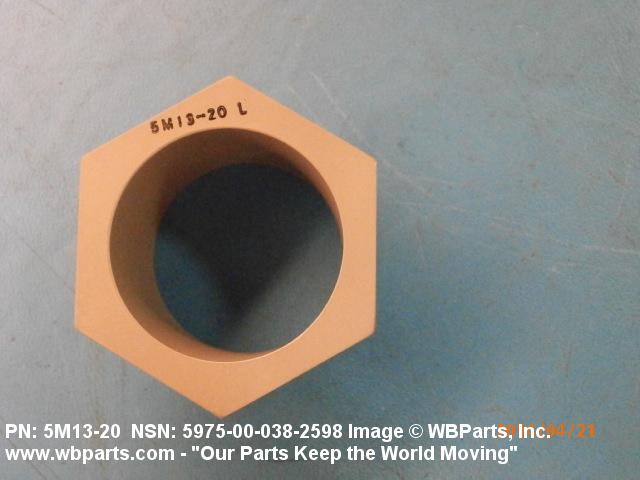

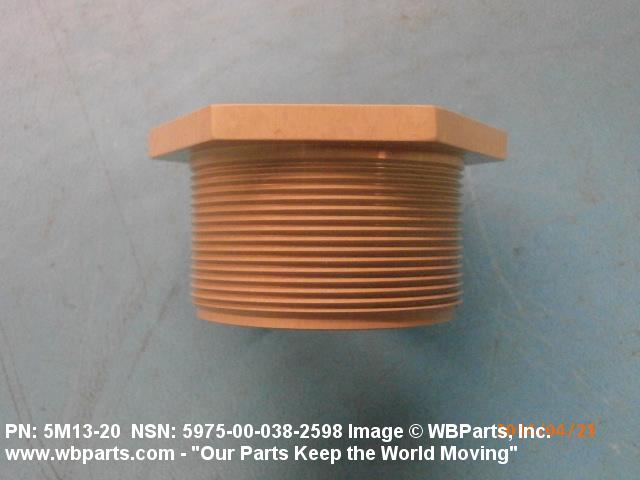

Drawings & Photos | NSN 5975-00-038-2598
Demand History | NSN 5975-00-038-2598
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5975-00-038-2598 | 2018-02-37 | 56 | DIBBS |
| 5975-00-038-2598 | 2018-01-11 | 12 | DIBBS |
| 5975-00-038-2598 | 2018-01-03 | 12 | DIBBS |
| 5975-00-038-2598 | 2017-11-318 | 4 | DIBBS |
| 5975-00-038-2598 | 2017-10-297 | 2 | DIBBS |
| 5975-00-038-2598 | 2017-10-296 | 2 | DIBBS |
| 5975-00-038-2598 | 2017-08-221 | 2 | DIBBS |
| 5975-00-038-2598 | 2017-05-150 | 2 | DIBBS |
| 5M1320 | 2014-04-94 | 1 | United States |
Cross Reference | NSN 5975-00-038-2598
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5M13-20 | 76301 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5975-00-038-2598
Related Products | NSN 5975-00-038-2598
Technical Data | NSN 5975-00-038-2598
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | B1 THREADED |

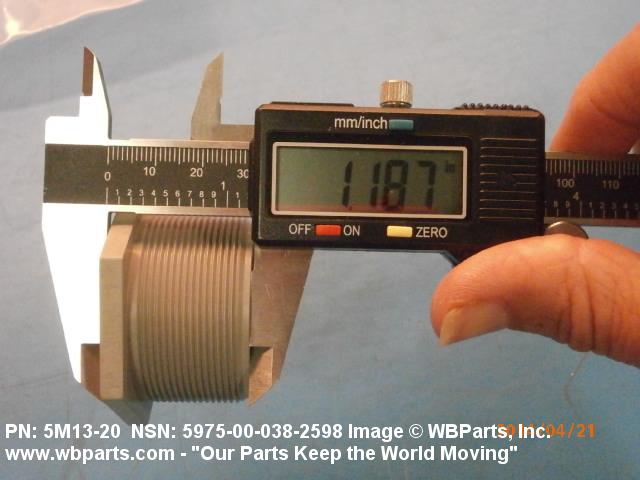

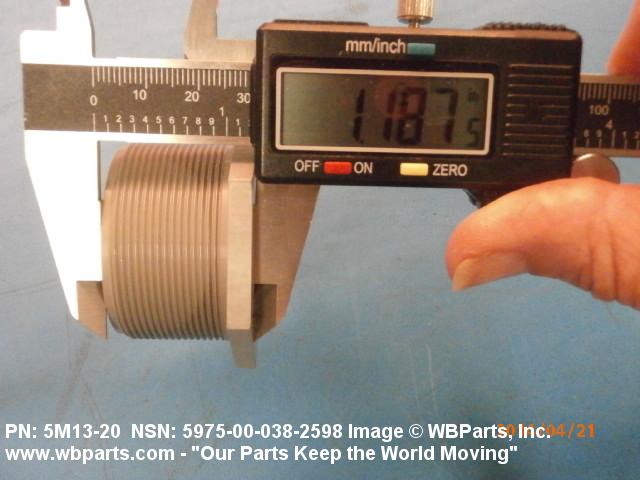

| OVERALL HEIGHT | 1.188 INCHES NOMINAL |

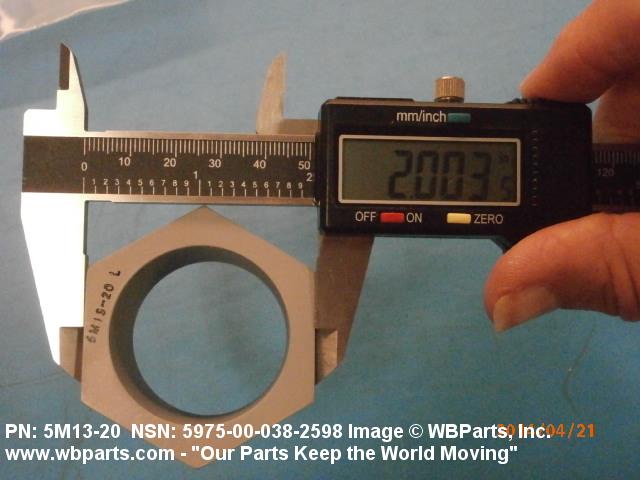

| BODY OUTSIDE DIAMETER | 2.000 INCHES NOMINAL |
| ACCOMMODATION HOLE INSIDE DIAMETER | 1.562 INCHES NOMINAL |
| MATERIAL | ALUMINUM ALLOY BODY |
| SURFACE TREATMENT | ZINC BODY |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-Z-325,TYPE 2,CLASS 1 FED SPEC SINGLE TREATMENT RESPONSE BODY |
| BASE THREAD LOCATION | EXTERNAL |
| THREAD SERIES | UNS |

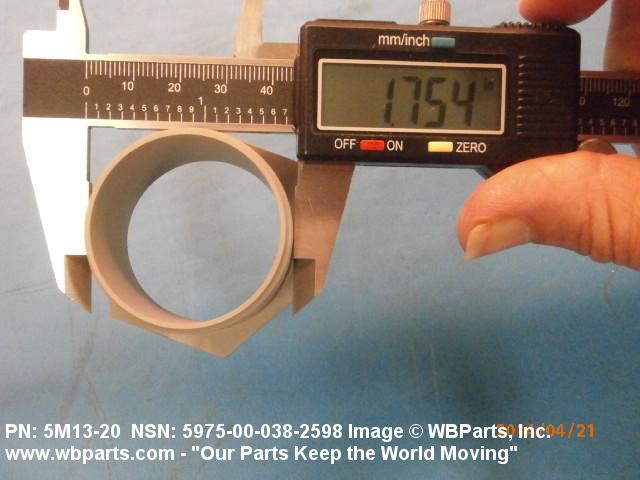

| NOMINAL THREAD SIZE | 1.750 INCHES |
| THREAD QUANTITY PER INCH | 18 |
| THREAD CLASS | 2A |

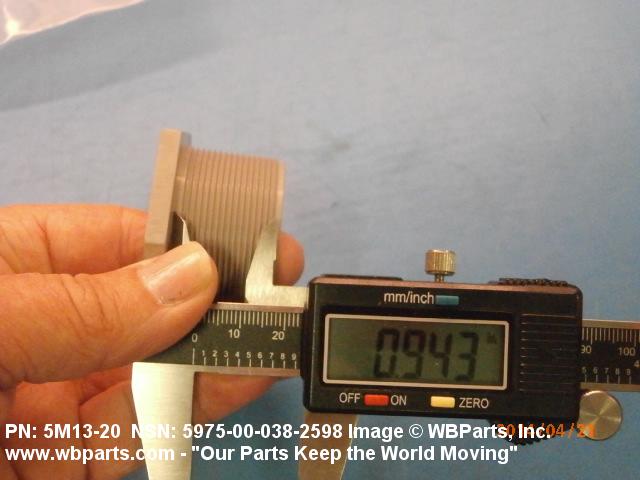

| THREAD LENGTH | 0.944 INCHES NOMINAL |
| III SUPPLEMENTARY FEATURES | END ITEM F-4 PHANTOM AIRCRAFT |
| MANUFACTURERS CODE | 76301 |
| DESIGN CONTROL REFERENCE | 5M13-20 |
Restrictions/Controls & Freight Information | NSN 5975-00-038-2598
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062010 | FITTINGS CONDUIT NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5975-00-038-2598
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
