NSN 5975-01-014-9968 M24235/17-041, M2423517041, MIL-S-24235/17
Product Details | STUFFING TUBE
5975-01-014-9968 An item specifically designed to pass an electrical cable or tube through a continuous structure with provisions for packing so as to prevent the leakage of liquids and/or gases through the opening. May include packing nut(s), adapter(s), washer(s), gasket(s), bushing(s), packing(s), cap(s), and/or plug(s).
Part Alternates: M24235/17-041, M2423517041, MIL-S-24235/17, MILS2423517, 5975-01-014-9968, 01-014-9968, 5975010149968, 010149968
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 13 JAN 1976 | 01-014-9968 | 00882 ( STUFFING TUBE ) |

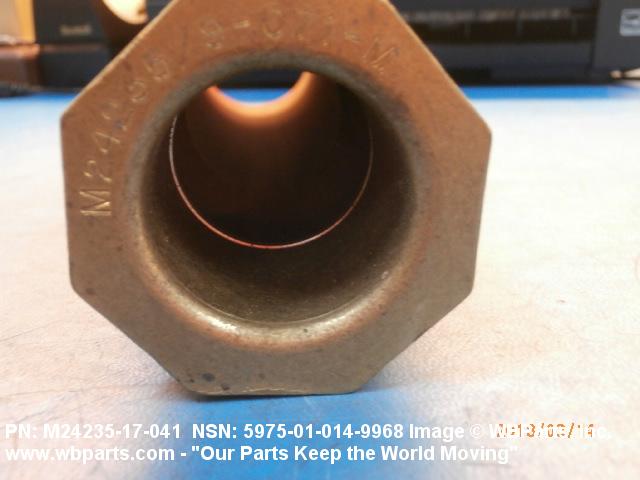

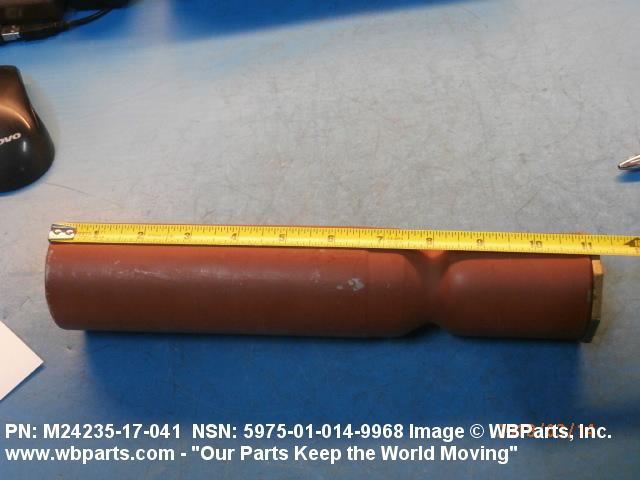

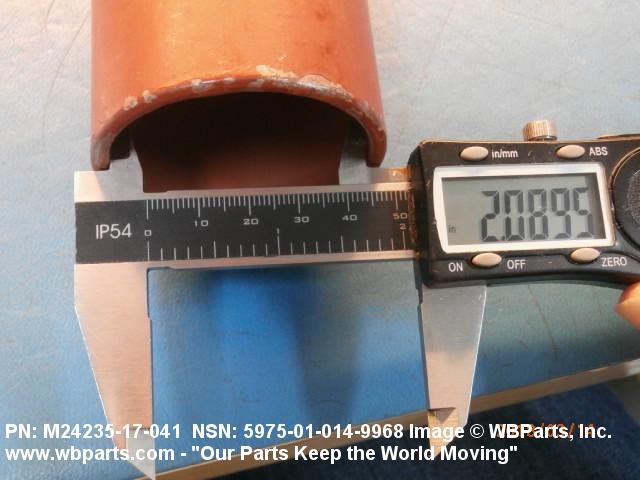

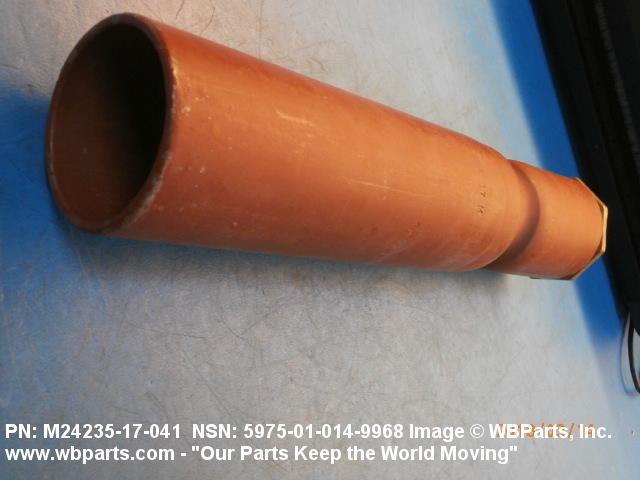

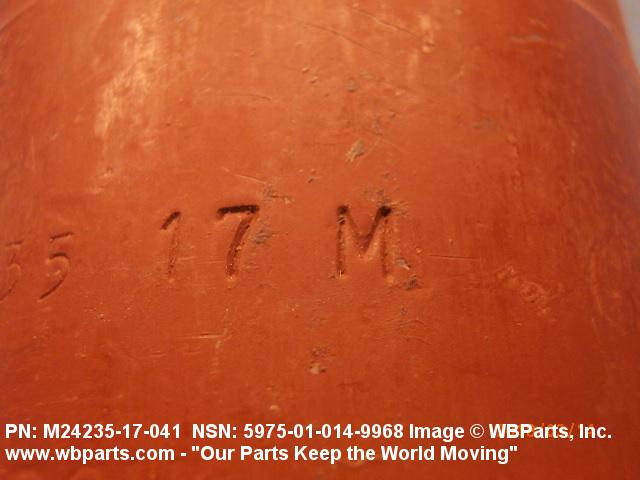

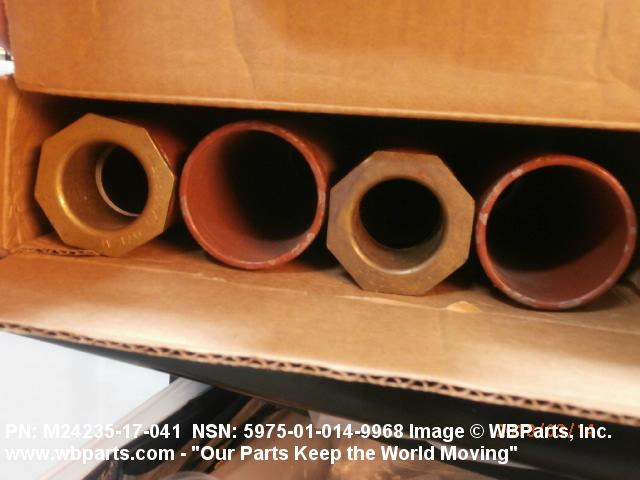

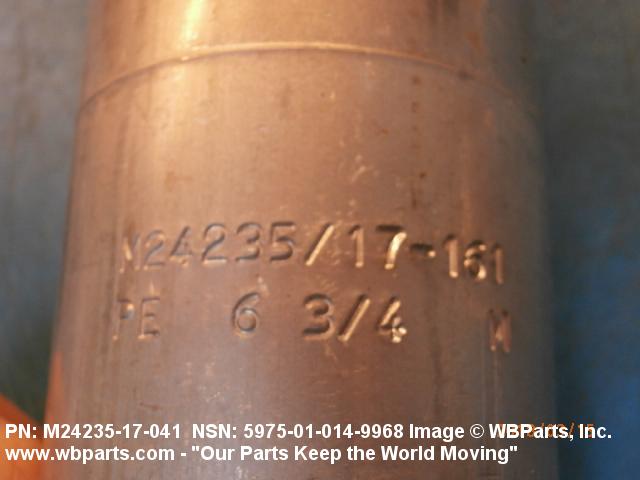

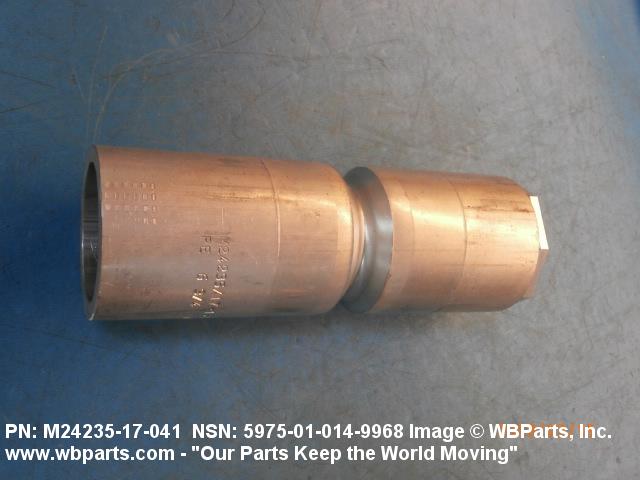

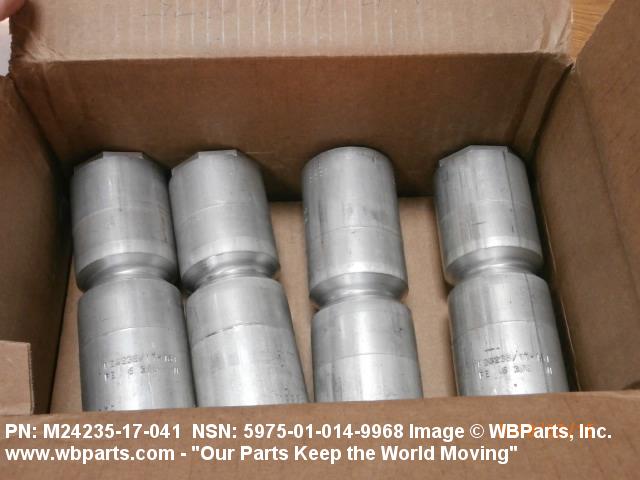

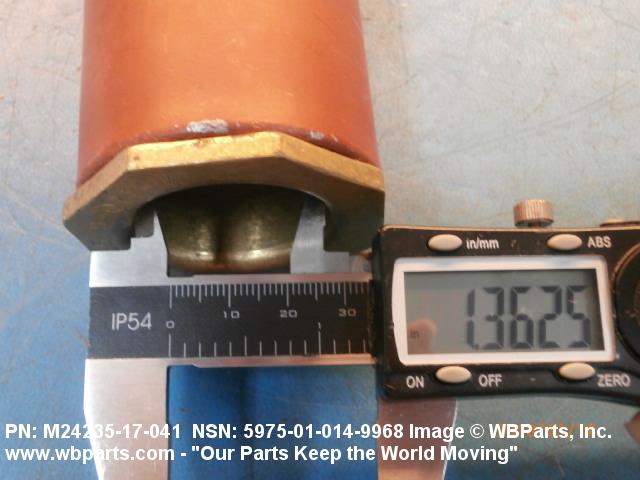

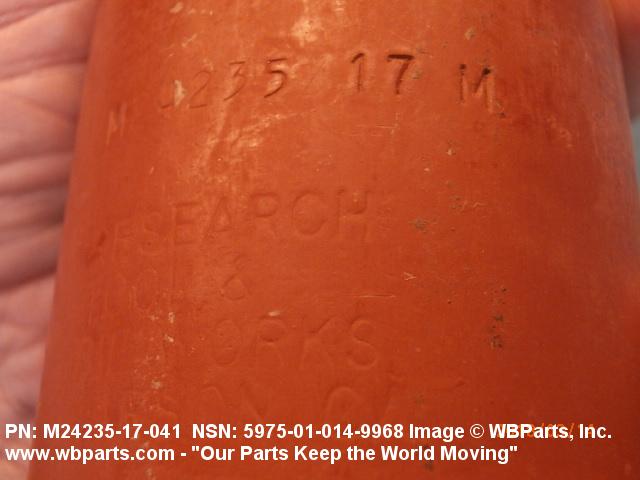

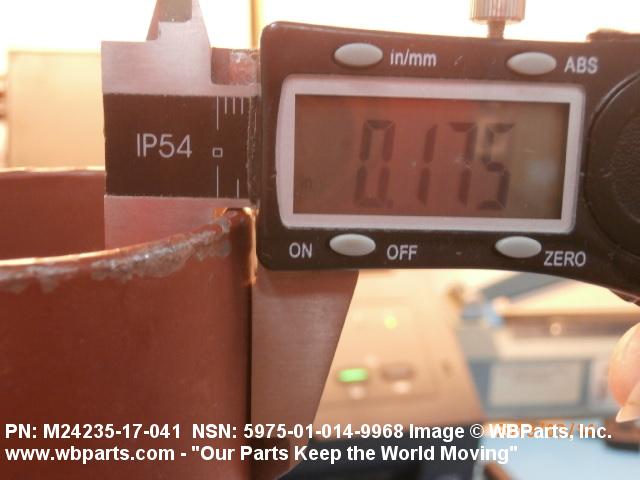

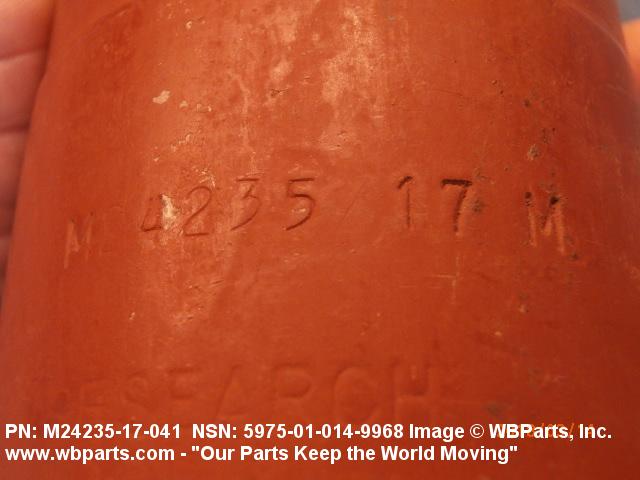

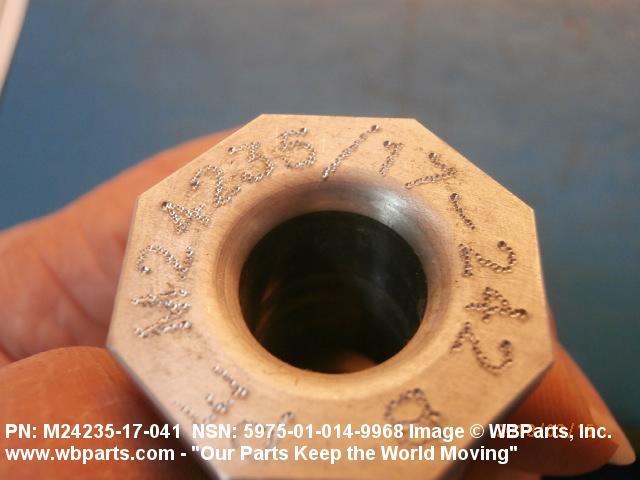

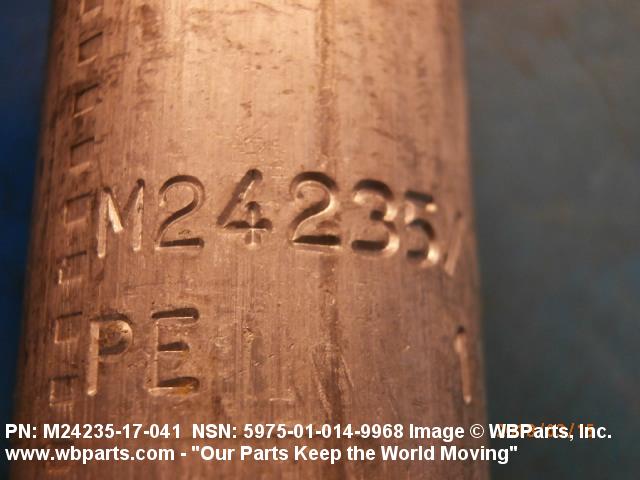

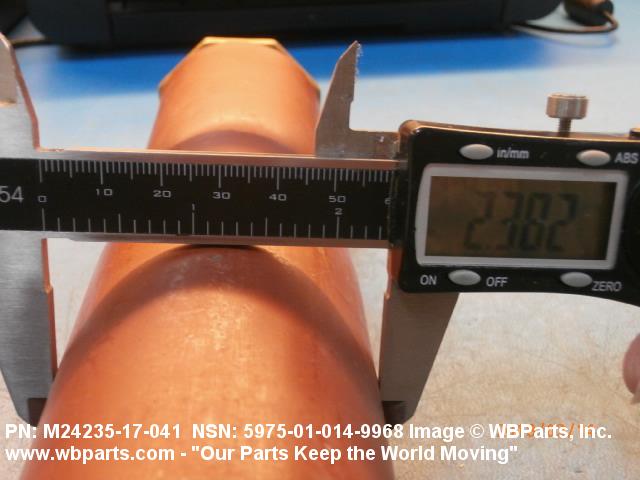

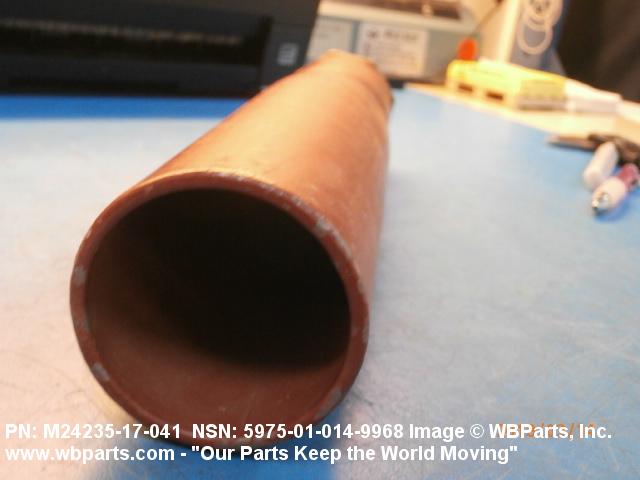

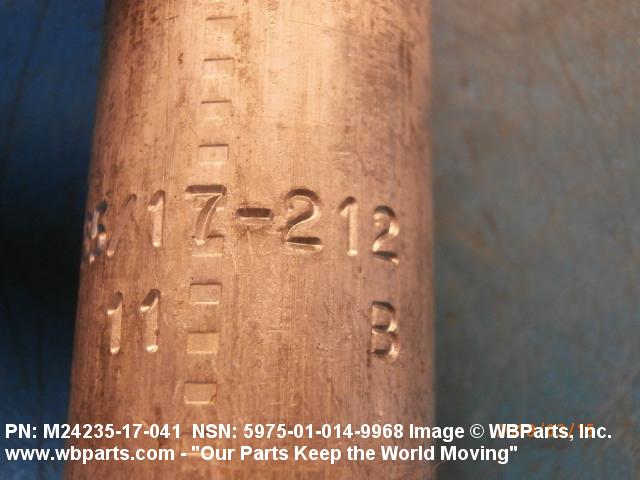

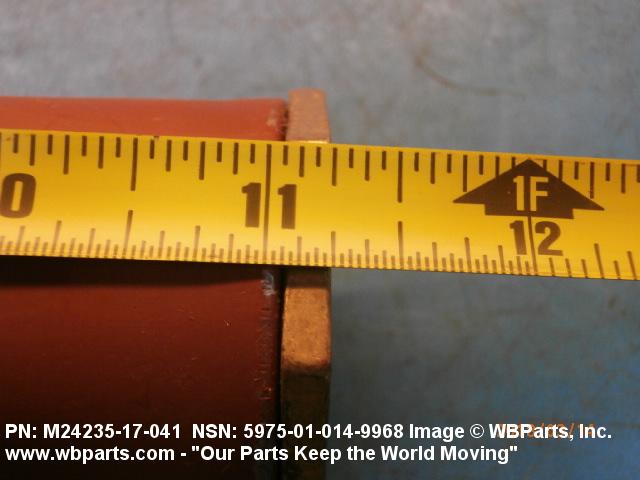

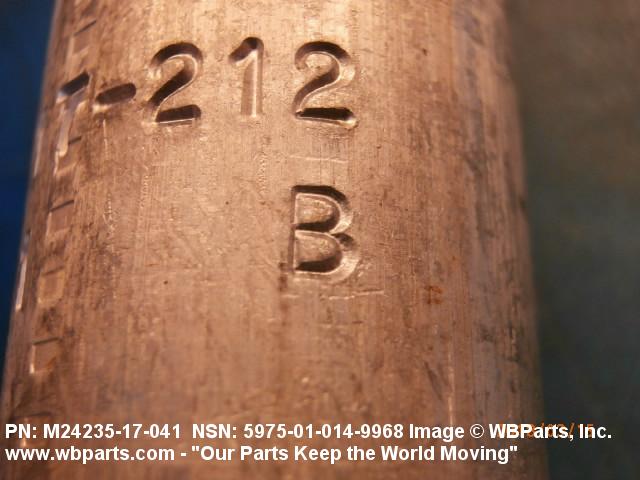

Drawings & Photos | NSN 5975-01-014-9968
Demand History | NSN 5975-01-014-9968
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5975-01-014-9968 | 2024-05-133 | 3 | DIBBS |
| M2423517041 | 2018-02-58 | 8 | us |
| 5975-01-014-9968 | 2016-09-251 | 21 | DIBBS |
| 5975-01-014-9968 | 2016-07-202 | 4 | DIBBS |
| 5975-01-014-9968 | 2015-08-239 | 6 | DIBBS |
| 5975-01-014-9968 | 2015-03-75 | 4 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5975-01-014-9968
Technical Data | NSN 5975-01-014-9968
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY OVERALL |
| SIZE | 1.406 INCHES NOMINAL |
| STYLE DESIGNATOR | 59 PLAIN-DOUBLE |
| OVERALL LENGTH | 6.750 INCHES NOMINAL |
| BORE DIAMETER | 1.406 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 2.375 INCHES NOMINAL |
| FIRST PACKING CHAMBER INSIDE DIAMETER | 1.892 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UN FIRST END |
| NOMINAL THREAD SIZE | 2.000 INCHES FIRST END |
| THREAD CLASS | 2B FIRST END |
| THREAD QUANTITY PER INCH | 12 FIRST END |
| THREAD LENGTH | 1.312 INCHES NOMINAL FIRST END |
| THREAD DIRECTION | RIGHT-HAND FIRST END |
| ITEM ACCOMMODATED MAXIMUM THICKNESS | 0.188 INCHES |
| PACKING CHAMBER QUANTITY | 1 |
| MOUNTING METHOD | FLANGE |
| FURNISHED ITEMS | GLAND NUT AND GLAND RING |
| NONDEFINITIVE SPEC/STD DATA | M SIZE AND 1741 SYMBOL |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-S-24235/17 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M24235/17-041 |
Restrictions/Controls & Freight Information | NSN 5975-01-014-9968
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5975-01-014-9968
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
