NSN 5975-01-014-9937 M24235/17-064, M2423517064, MIL-S-24235/17

Product Details | STUFFING TUBE

5975-01-014-9937 An item specifically designed to pass an electrical cable or tube through a continuous structure with provisions for packing so as to prevent the leakage of liquids and/or gases through the opening. May include packing nut(s), adapter(s), washer(s), gasket(s), bushing(s), packing(s), cap(s), and/or plug(s).

Part Alternates: M24235/17-064, M2423517064, MIL-S-24235/17, MILS2423517, 5975-01-014-9937, 01-014-9937, 5975010149937, 010149937

Electrical and Electronic Equipment Components | Electrical Hardware and Supplies

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	13 JAN 1976	01-014-9937	00882 ( STUFFING TUBE )

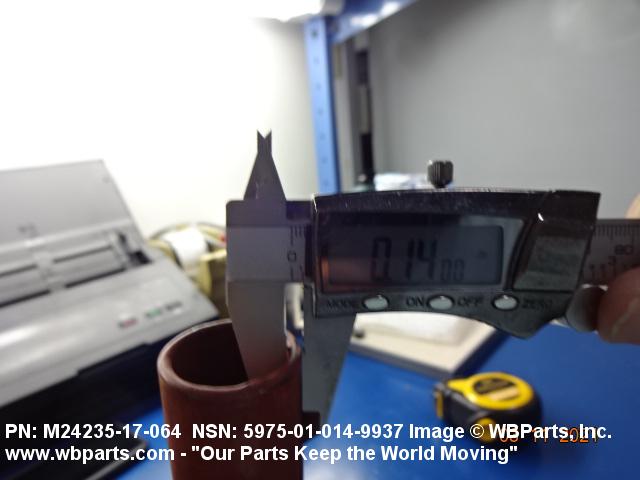

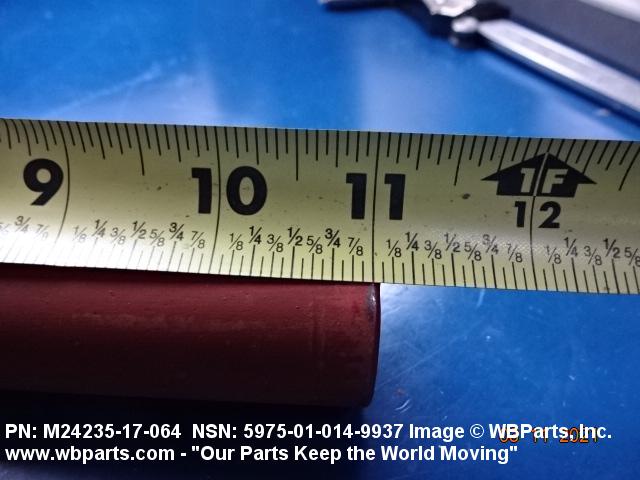

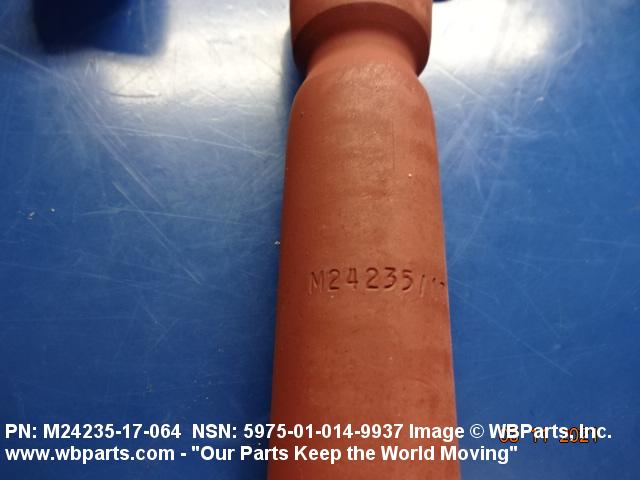

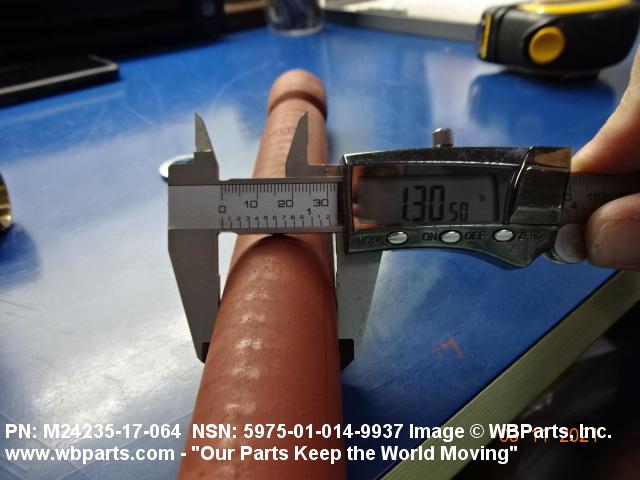

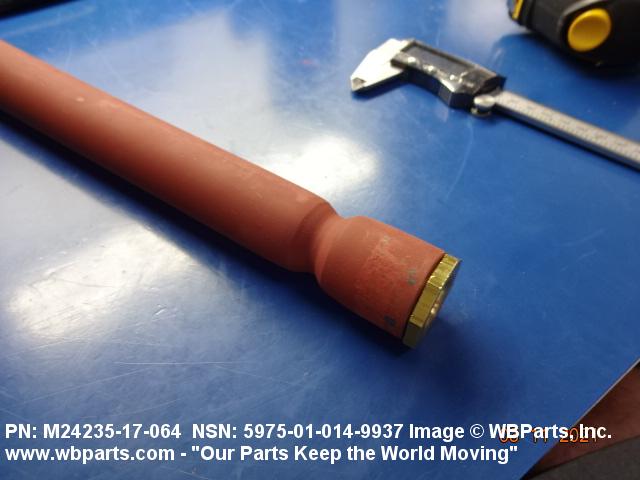

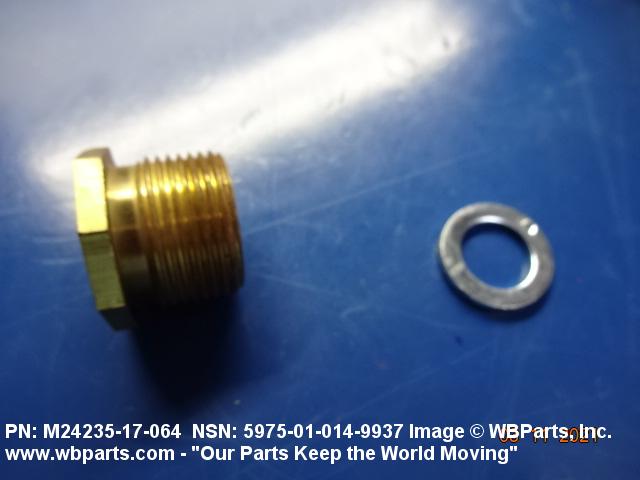

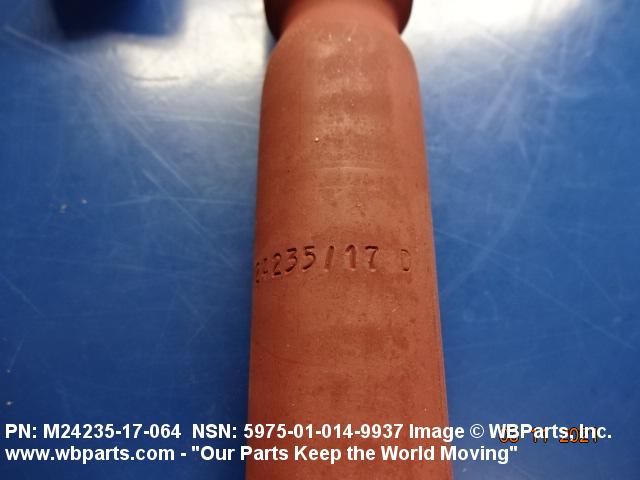

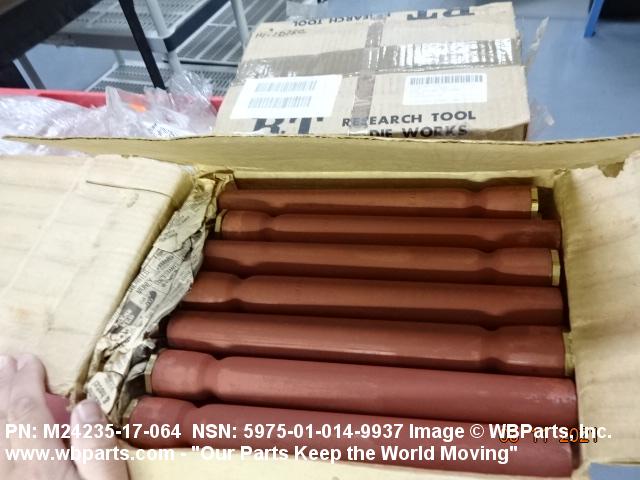

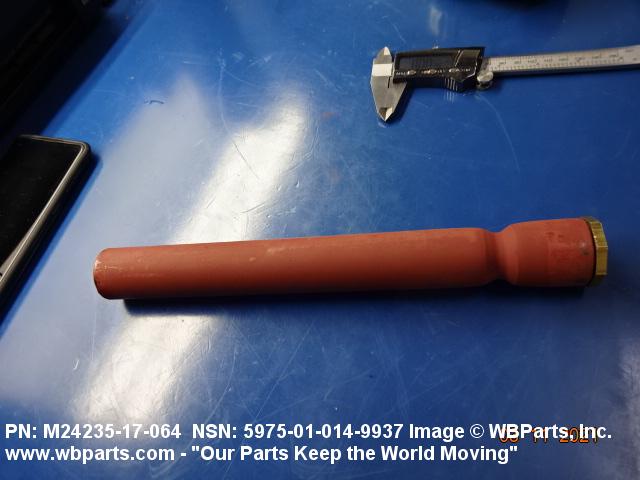

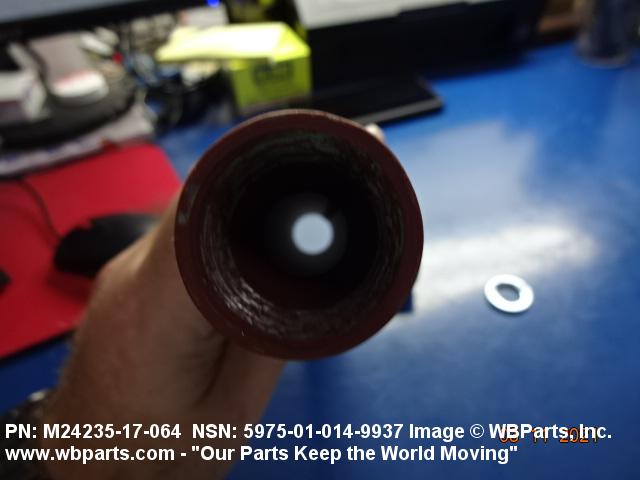

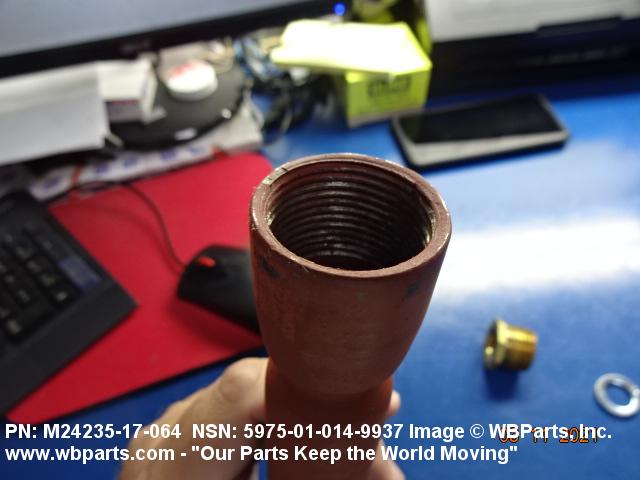

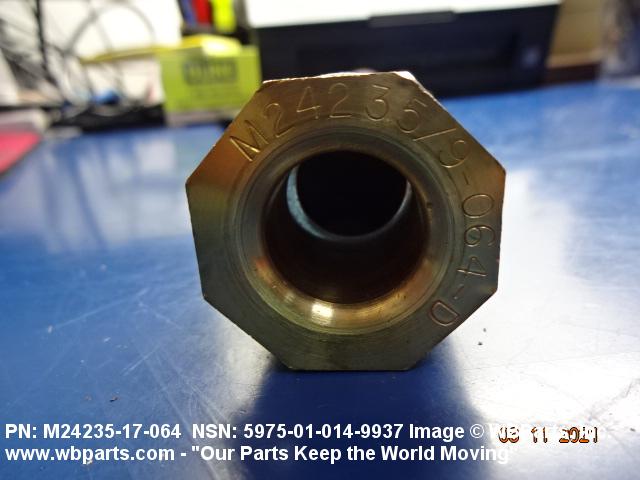

Drawings & Photos | NSN 5975-01-014-9937

Part Number	Request Date	QTY	Origin
5975-01-014-9937	2023-06-163	1	United States
5975-01-014-9937	2023-05-136	201	DIBBS
5975-01-014-9937	2021-08-217	177	DIBBS
5975-01-014-9937	2021-03-60	80	United States
5975-01-014-9937	2021-01-21	170	DIBBS
5975-01-014-9937	2020-11-313	102	DIBBS
5975-01-014-9937	2020-08-232	28	DIBBS
5975-01-014-9937	2020-06-156	112	US
5975-01-014-9937	2020-06-155	112	DIBBS
5975-01-014-9937	2018-11-312	130	DIBBS
5975-01-014-9937	2018-02-39	120	us
5975-01-014-9937	2018-01-09	114	DIBBS
5975-01-014-9937	2017-05-129	64	DIBBS
M2423517064	2015-10-300	2	United States
5975-01-014-9937	2015-05-140	178	DIBBS
5975-01-014-9937	2014-07-208	109	DIBBS
5975-01-014-9937	2014-02-33	23	DIBBS
5975-01-014-9937	2012-01-04	197	DIBBS
5975-01-014-9937	2011-09-257	1	Singapore

Cross Reference | NSN 5975-01-014-9937

Part Number	Cage Code	Manufacturer
M24235/17-064	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-S-24235/17	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5975-01-014-9937

Compare

Related Products | NSN 5975-01-014-9937

5975-01-014-9938, 5975-01-014-9939, 5975-01-014-9940, 5975-01-014-9941, 5975-01-014-9942

Technical Data | NSN 5975-01-014-9937

Characteristic	Specifications
MATERIAL	STEEL OVERALL
SIZE	0.750 INCHES NOMINAL
STYLE DESIGNATOR	59 PLAIN-DOUBLE
OVERALL LENGTH	11.000 INCHES NOMINAL
BORE DIAMETER	0.750 INCHES NOMINAL
BODY OUTSIDE DIAMETER	1.312 INCHES NOMINAL
FIRST PACKING CHAMBER INSIDE DIAMETER	1.142 INCHES NOMINAL
THREAD SERIES DESIGNATOR	UNF FIRST END
NOMINAL THREAD SIZE	1.250 INCHES FIRST END
THREAD CLASS	2B FIRST END
THREAD QUANTITY PER INCH	12 FIRST END
THREAD LENGTH	0.875 INCHES NOMINAL FIRST END
THREAD DIRECTION	RIGHT-HAND FIRST END
ITEM ACCOMMODATED MAXIMUM THICKNESS	0.188 INCHES
PACKING CHAMBER QUANTITY	1
MOUNTING METHOD	FLANGE
FURNISHED ITEMS	GLAND NUT AND GLAND RING
NONDEFINITIVE SPEC/STD DATA	D SIZE AND 1764 SYMBOL
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-S-24235/17
MANUFACTURERS CODE	81349
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	M24235/17-064

Restrictions/Controls & Freight Information | NSN 5975-01-014-9937

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	061680	ELEC WIRING PLUGS ETC
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	72D	unknown
Originating Activity Code	CX	Defense Supply Center Richmond Richmond, VA 23297-5000
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5975-01-014-9937

Navy

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
