NSN 5975-00-903-6255 74102, 74-102, 94107
Product Details | ELECTRICAL CONDUIT ELBOW
5975-00-903-6255 An item fabricated in the form of an elbow and having both ends threaded female, or with unthreaded connecting facilities on both ends, or connecting facilities on both ends, one of which is a male thread without boss or shoulder. If a locknut or bondnut is included, it shall not be considered as a thread boss or shoulder. It is primarily intended to connect conduit to conduit. It may have a removable cover to facilitate pulling wires, but does not include facilities for mounting wiring devices. For items having a removable cover to facilitate pulling wires and specifically designed for close installation in exposed outdoor locations and which may have facilities for an outside driven ground, see ENTRANCE ELBOW, ELECTRICAL. For items with one end having a male thread with a boss or shoulder, see BOX CONNECTOR, ELECTRICAL. For items having a removable screw cap for pulling wires, with the cap positioned 45 degrees from the connection facilities, see ENTRANCE ELBOW, ELECTRICAL. For items fabricated in the form of an elbow having both ends threaded male, see BEND, ELECTRICAL CONDUIT.
Part Alternates: 74102, 74-102, 94107, 5975-00-903-6255, 00-903-6255, 5975009036255, 009036255
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01-JAN-60 | 00-903-6255 | 06944 ( ELBOW, ELECTRICAL CONDUIT ) |
Drawings & Photos | NSN 5975-00-903-6255
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5975-00-903-6255
Technical Data | NSN 5975-00-903-6255
| Characteristic | Specifications |
|---|---|

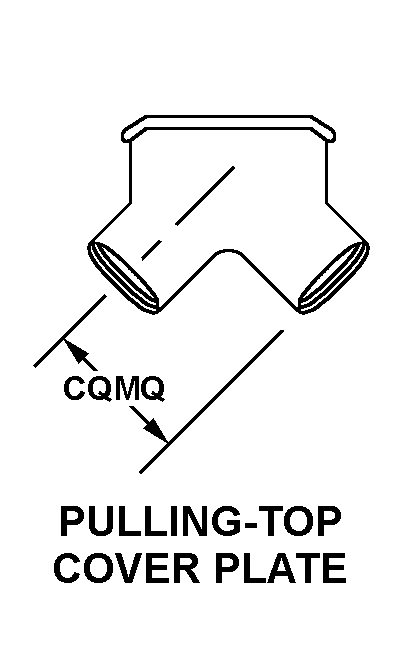

| STYLE DESIGNATOR | A38A PULLING-TOP COVER PLATE |
| LEG END TO PLANE OF BEND DISTANCE | 1.469 INCHES NOMINAL FIRST END 1.469 INCHES NOMINAL SECOND END |
| ITEM ACCOMMODATED TRADE SIZE | 0.750 INCHES FIRST END 0.750 INCHES SECOND END |
| MATERIAL | ALUMINUM ALLOY |
| SURFACE TREATMENT | CADMIUM |
| CONDUIT TYPE ACCOMMODATED | RIGID METALLIC THINWALL FIRST END RIGID METALLIC THINWALL SECOND END |
| END TYPE | INTERNAL THREAD FIRST END INTERNAL THREAD SECOND END |
| DEFLECTION ANGLE | 90.0 DEGREES |
| MANUFACTURERS CODE | 30119 |
| DESIGN CONTROL REFERENCE | 74-102 |
Restrictions/Controls & Freight Information | NSN 5975-00-903-6255
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
