NSN 5975-00-885-8290 HG52982, HG5298-2, SB4375

Product Details | ELECTRICAL CONDUCTOR BUSHING

5975-00-885-8290 An item of metal and/or insulating material having a smooth interior with rounded edges to prevent damage to the insulation of the wire or cable emerging there-from, designed to fit through panel(s) or the wall of a JUNCTION BOX. It may be designed to snap into a knockout hole, or designed with an external thread and furnished with or without a locking nut. For items designed to couple conduit to JUNCTION BOX, see BOX CONNECTOR, ELECTRICAL. See also BUSHING, ELECTRICAL CONDUIT and BUSHING, NONMETALLIC. For items having hexagonal shoulders, see CHASE NIPPLE, CONDUIT.

Part Alternates: HG52982, HG5298-2, SB4375, SB437-5, P6844, P-6844, 044387-002, 077003712009, 077-003712-009, 5975-00-885-8290, 00-885-8290, 5975008858290, 044387002, 008858290

Electrical and Electronic Equipment Components | Electrical Hardware and Supplies

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	01 JAN 1962	00-885-8290	04455 ( BUSHING, ELECTRICAL CONDUCTOR )

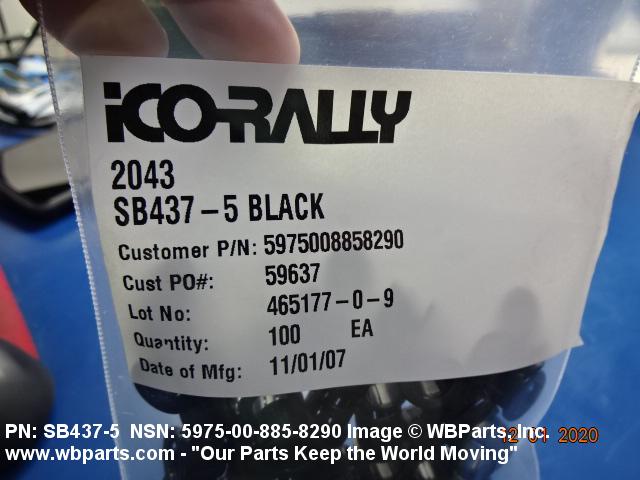

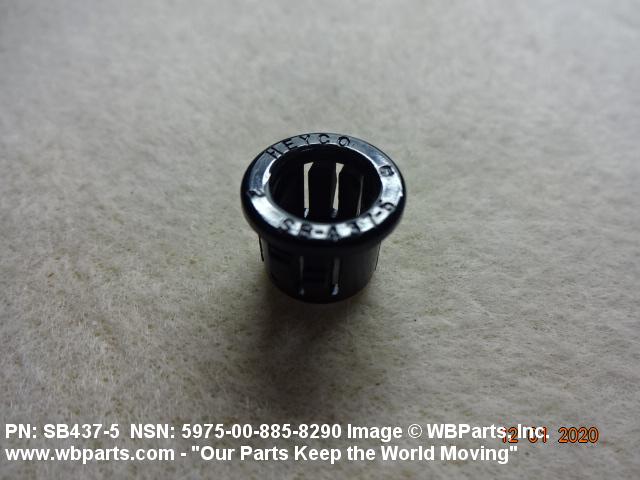

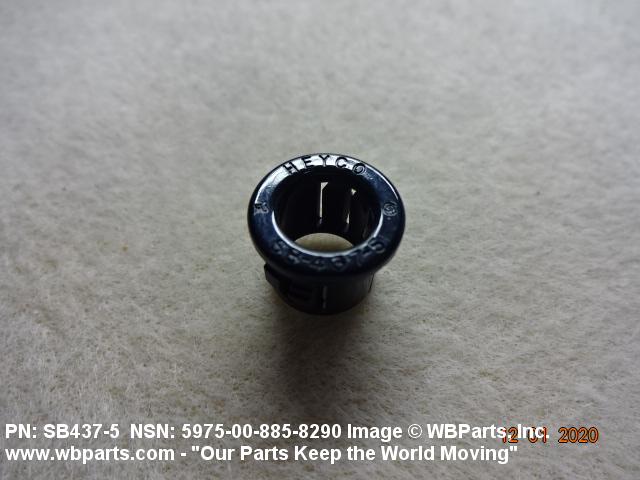

Drawings & Photos | NSN 5975-00-885-8290

Part Number	Request Date	QTY	Origin
5975-00-885-8290	2020-11-325	100	United States
5975-00-885-8290	2020-02-51	130	US
5975-00-885-8290	2017-10-276	16667	DIBBS
5975-00-885-8290	2014-05-148	12500	DIBBS
5975-00-885-8290	2010-04-96	3457	DIBBS

Cross Reference | NSN 5975-00-885-8290

Part Number	Cage Code	Manufacturer
044387-002	89305	SIMMONDS PRECISION PRODUCTS, INC. DBA GOODRICH SENSORS AND INTERGRATED
077-003712-009	26916	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV MULTIPLE
HG5298-2	59310	ABB KENT-TAYLOR INC
P-6844	28520	HEYCO INC DBA HEYCO PRODUCTS
SB437-5	28520	HEYCO INC DBA HEYCO PRODUCTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5975-00-885-8290

Compare

Related Products | NSN 5975-00-885-8290

5975-00-885-8639, 5975-00-885-9006, 5975-00-885-9019, 5975-00-886-1548, 5975-00-886-3252

Technical Data | NSN 5975-00-885-8290

Characteristic	Specifications
STYLE DESIGNATOR	B2 SNAP

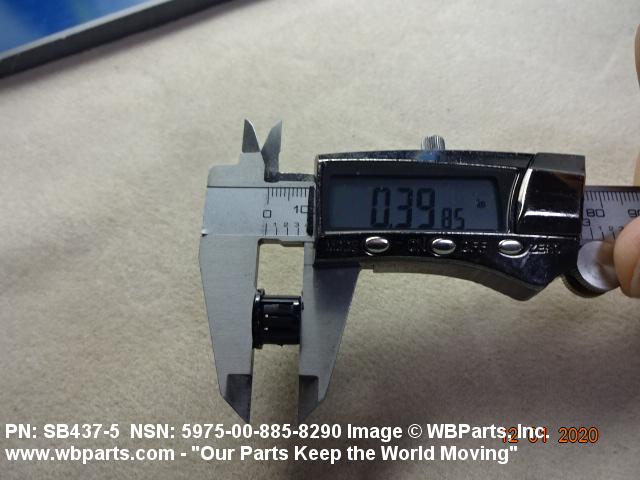

OVERALL HEIGHT	0.406 INCHES NOMINAL

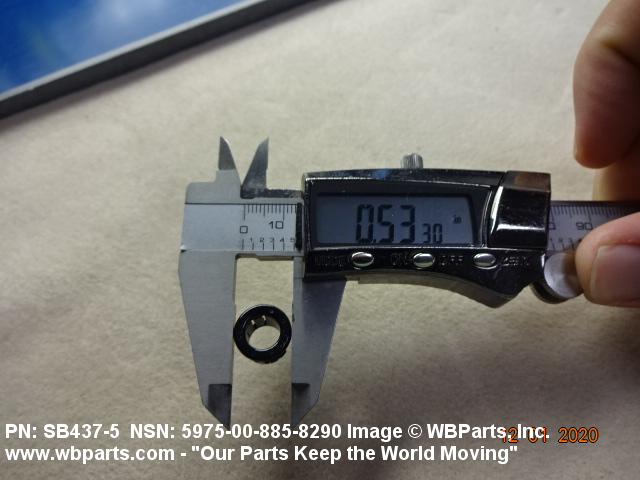

BODY OUTSIDE DIAMETER	0.531 INCHES NOMINAL

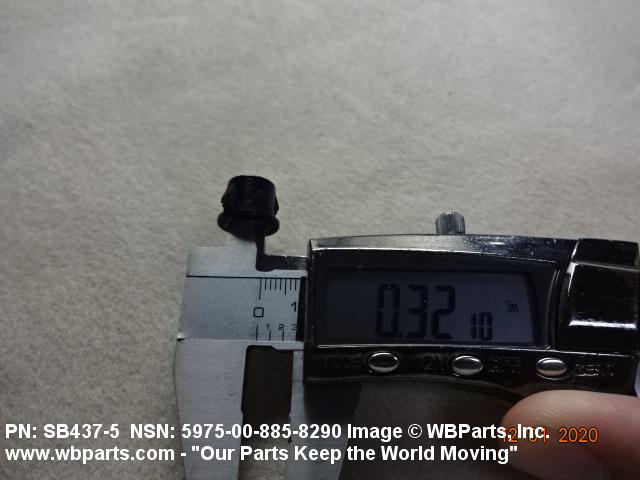

ACCOMMODATION HOLE INSIDE DIAMETER	0.312 INCHES NOMINAL
MATERIAL	PLASTIC POLYAMIDE BODY
MATERIAL DOCUMENT AND CLASSIFICATION	MIL-M-20693 MIL SPEC SINGLE MATERIAL RESPONSE BODY

Restrictions/Controls & Freight Information | NSN 5975-00-885-8290

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)
