NSN 5975-00-808-9272 MS170421, MS17042-1, M196223005
Product Details | STUFFING TUBE
5975-00-808-9272 An item specifically designed to pass an electrical cable or tube through a continuous structure with provisions for packing so as to prevent the leakage of liquids and/or gases through the opening. May include packing nut(s), adapter(s), washer(s), gasket(s), bushing(s), packing(s), cap(s), and/or plug(s).
Part Alternates: MS170421, MS17042-1, M196223005, M19622-3-005, ASTM F1836M , ASTMF1836M, MILS196223, MILS19622-3, 318244-155, 5975-00-808-9272, 00-808-9272, 5975008089272, 318244155, 008089272
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-808-9272 | 00882 ( STUFFING TUBE ) |

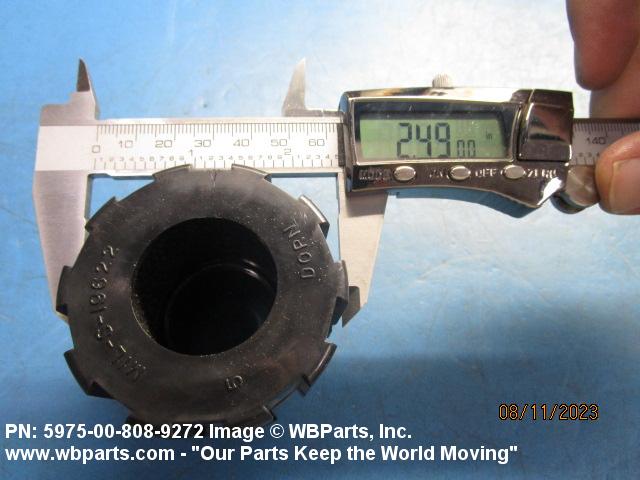

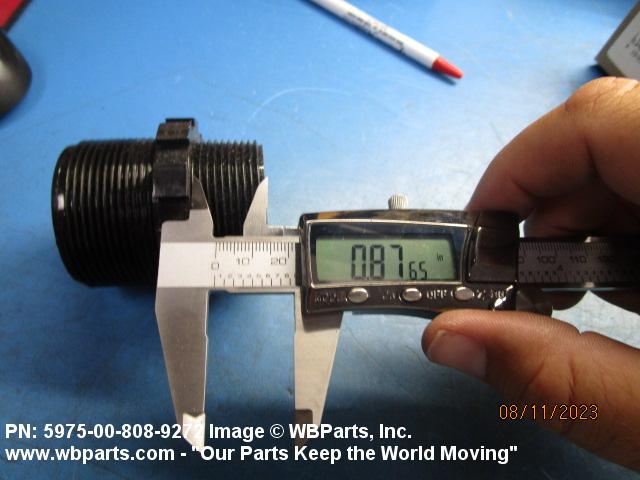

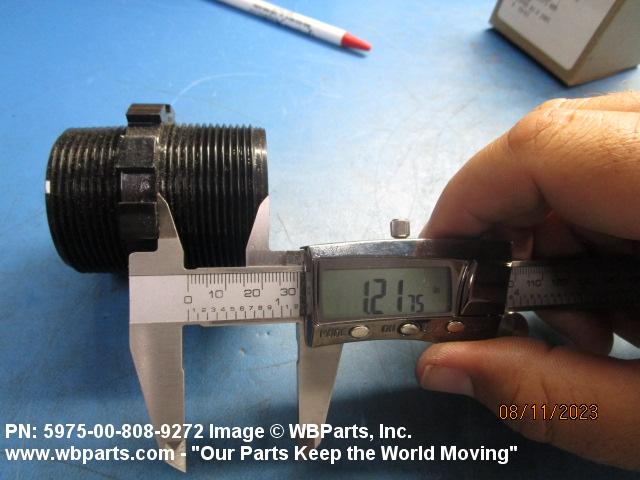

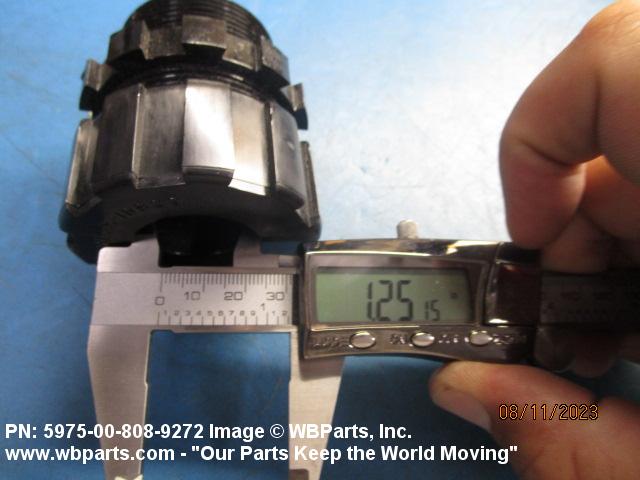

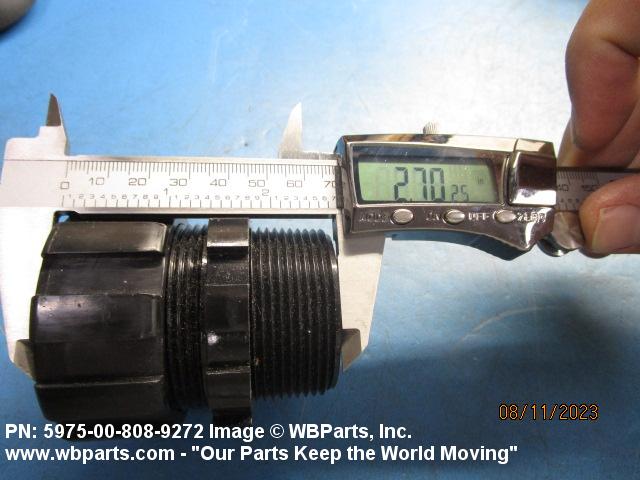

Drawings & Photos | NSN 5975-00-808-9272
Demand History | NSN 5975-00-808-9272
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5975-00-808-9272 | 2024-05-149 | 16 | DIBBS |
| 5975-00-808-9272 | 2024-05-140 | 16 | DIBBS |
| 5975-00-808-9272 | 2024-01-24 | 35 | US |
| 5975-00-808-9272 | 2023-12-352 | 20 | DIBBS |
| 5975-00-808-9272 | 2023-12-351 | 20 | DIBBS |
| 5975-00-808-9272 | 2023-08-232 | 73 | DIBBS |
| 5975-00-808-9272 | 2023-07-188 | 2 | Canada |
| MS170421 | 2023-07-188 | 2 | Canada |
| 5975-00-808-9272 | 2023-05-142 | 35 | DIBBS |
| 5975-00-808-9272 | 2022-11-324 | 45 | DIBBS |
| 5975-00-808-9272 | 2022-08-226 | 31 | DIBBS |
| 5975-00-808-9272 | 2020-10-282 | 190 | DIBBS |
| 5975-00-808-9272 | 2020-09-257 | 33 | DIBBS |
| 5975-00-808-9272 | 2020-03-86 | 117 | DIBBS |
| 5975-00-808-9272 | 2018-01-15 | 152 | DIBBS |
| 5975-00-808-9272 | 2017-10-297 | 155 | DIBBS |
| 5975-00-808-9272 | 2017-10-296 | 155 | DIBBS |
| 5975-00-808-9272 | 2015-04-113 | 303 | DIBBS |
| 5975-00-808-9272 | 2014-03-67 | 186 | DIBBS |
| 5975-00-808-9272 | 2012-12-357 | 135 | DIBBS |
Cross Reference | NSN 5975-00-808-9272
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 318244-155 | 70143 | NORTHROP GRUMMAN SYSTEMS CORPORATION DBA NORTHROP GRUMMAN ELECTRONIC |
| ASTM F1836M | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M19622-3-005 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MILS19622-3 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS17042-1 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5975-00-808-9272
Related Products | NSN 5975-00-808-9272
Technical Data | NSN 5975-00-808-9272
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC POLYAMIDE OVERALL |
| SIZE | 1.187 INCHES NOMINAL |
| STYLE DESIGNATOR | 41 SLOTTED-DOUBLE |
| COUNTERBORE DIAMETER | 1.500 INCHES NOMINAL |
| COUNTERBORE DEPTH | 0.375 INCHES NOMINAL |
| SLOT DEPTH | 0.125 INCHES NOMINAL |
| SLOT WIDTH | 0.375 INCHES NOMINAL |
| SLOT LENGTH | 0.375 INCHES NOMINAL |
| OVERALL LENGTH | 2.469 INCHES NOMINAL |
| BORE DIAMETER | 1.187 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 2.500 INCHES NOMINAL |
| BORE LENGTH | 0.969 INCHES NOMINAL |
| FIRST END CHAMFER DEPTH | 0.375 INCHES NOMINAL |
| MOUNTING END LENGTH | 0.875 INCHES NOMINAL |
| FIRST PACKING CHAMBER INSIDE DIAMETER | 1.343 INCHES NOMINAL |
| FIRST PACKING CHAMBER LENGTH | 1.125 INCHES NOMINAL |
| FIRST END CHAMFER ANGLE | 10.0 DEGREES NOMINAL |
| SLOT ANGLE | 36.0 DEGREES NOMINAL |
| THREAD SERIES DESIGNATOR | NPT FIRST END UN SECOND END |
| NOMINAL THREAD SIZE | 1.500 INCHES FIRST END 2.000 INCHES SECOND END |
| THREAD CLASS | 2A SECOND END |
| THREAD QUANTITY PER INCH | 12 FIRST END |
| THREAD LENGTH | 9.875 INCHES NOMINAL FIRST END 1.156 INCHES NOMINAL SECOND END |
| THREAD DIRECTION | RIGHT-HAND SECOND END |
| PACKING CHAMBER QUANTITY | 1 |
| MOUNTING METHOD | THREAD |
| FURNISHED ITEMS | CAP |
| SPECIAL MARKINGS | 5 |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILS19622-3 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M19622-3-005 |
Restrictions/Controls & Freight Information | NSN 5975-00-808-9272
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5975-00-808-9272
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
