NSN 5975-00-682-7759 REB1013742REVN, REB101374-2REVN, 00-682-7759
Product Details | STUFFING TUBE PACKING NUT
5975-00-682-7759 A threaded or unthreaded device, with an unthreaded center hole to accommodate an electrical cable or tube, designed to mate with the threads or sealing components of a stuffing tube body for the purpose of compressing packing around the electrical cable or tube. A component of a STUFFING TUBE.
Part Alternates: REB1013742REVN, REB101374-2REVN, 5975-00-682-7759, 00-682-7759, 5975006827759, 006827759
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-682-7759 | 15324 ( PACKING NUT, STUFFING TUBE ) |
Drawings & Photos | NSN 5975-00-682-7759
Demand History | NSN 5975-00-682-7759
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5975-00-682-7759 | 2022-03-67 | 0 | NECO |
| 5975-00-682-7759 | 2015-04-107 | 7 | NECO |
Cross Reference | NSN 5975-00-682-7759
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| REB101374-2REVN | 80064 | NAVAL SHIP SYSTEMS COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5975-00-682-7759
Related Products | NSN 5975-00-682-7759
Technical Data | NSN 5975-00-682-7759
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY OVERALL |
| SIZE | 0.515 INCHES NOMINAL |

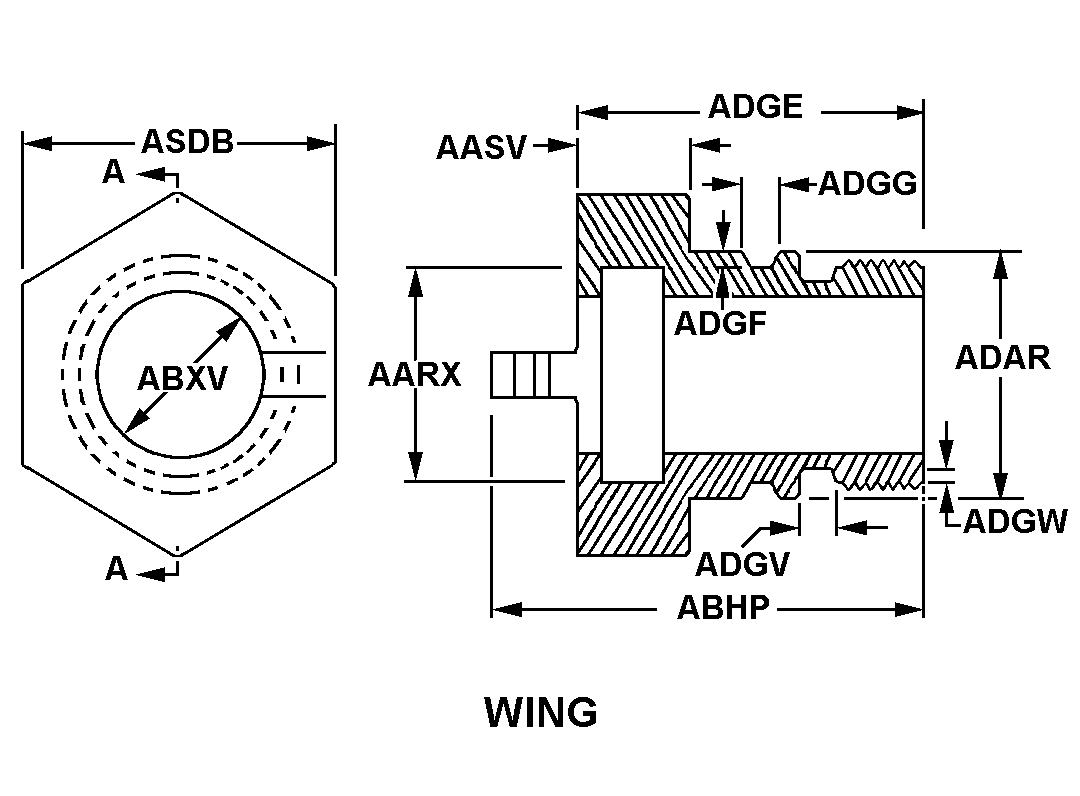

| STYLE DESIGNATOR | 10 WING |
| WIDTH ACROSS FLATS | 1.250 INCHES NOMINAL |
| INSIDE DIAMETER | 0.930 INCHES NOMINAL |
| HEAD LENGTH | 0.500 INCHES NOMINAL |
| OVERALL LENGTH | 2.125 INCHES NOMINAL |
| BORE DIAMETER | 0.562 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 1.057 INCHES NOMINAL |
| BORE LENGTH | 1.625 INCHES NOMINAL |
| OUTSIDE RECESS LENGTH | 0.109 INCHES NOMINAL |
| OUTSIDE RECESS WIDTH | 0.187 INCHES NOMINAL |
| THREAD RELIEF LENGTH | 0.125 INCHES NOMINAL |
| THREAD RELIEF DEPTH | 0.075 INCHES NOMINAL |
| MOUNTING END LENGTH | 1.125 INCHES NOMINAL |
| INSIDE RECESS LENGTH | 0.375 INCHES NOMINAL |
| INSIDE RECESS WIDTH | 0.184 INCHES NOMINAL |
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD SIZE | 1.000 INCHES |
| THREAD CLASS | 2A |
| THREAD QUANTITY PER INCH | 14 |
| THREAD LENGTH | 0.406 INCHES NOMINAL |
| THREAD DIRECTION | RIGHT-HAND |
| MANUFACTURERS CODE | 80064 |
| DESIGN CONTROL REFERENCE | REB101374-2REVN |
Restrictions/Controls & Freight Information | NSN 5975-00-682-7759
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | N | The item does not have a critical feature such as tolerance, fit restrictions or application. Nuclear hardness properties have not been determined (not valid for input). |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5975-00-682-7759
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 1H | Consumable material assigned to NAVICP MECH for inventory management Naval Inventory Control Point, Mechanicsburg |
| Special Material ID | SQ | Submarine antenna quality assured material |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | NRP | NAVICP-ERP 700 Robbins Avenue Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | M | Medium Demand Velocity Items (consumables) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
