NSN 5975-00-683-2743 WF406, 8820, 00-683-2743
Product Details | ELECTRICAL CONDUIT UNION
5975-00-683-2743 An item comprising three members, so constructed that one of the members holds the remaining two in a fixed butted position; generally used to connect two conduits, conduit fittings, or a conduit and a conduit fitting in such a manner that they may be disconnected without disturbing the rest of the conduit line. See also COUPLING, ELECTRICAL CONDUIT.
Part Alternates: WF406, 8820, 5975-00-683-2743, 00-683-2743, 5975006832743, 006832743
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-683-2743 | 06943 ( UNION, ELECTRICAL CONDUIT ) |

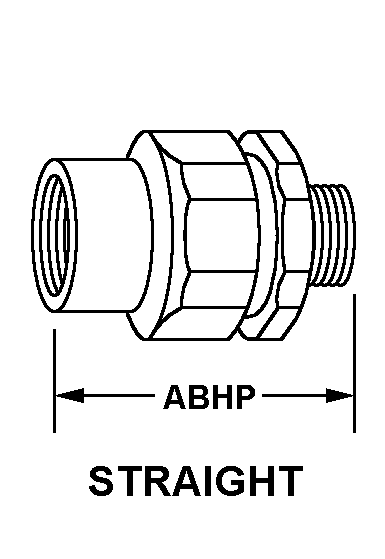

Drawings & Photos | NSN 5975-00-683-2743
Demand History | NSN 5975-00-683-2743
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| WF406 | 2012-09-270 | 4 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5975-00-683-2743
Technical Data | NSN 5975-00-683-2743
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A52 STRAIGHT |
| OVERALL LENGTH | 2.250 INCHES NOMINAL |
| ITEM ACCOMMODATED TRADE SIZE | 3.000 INCHES FIRST END 3.000 INCHES SECOND END |
| MATERIAL | IRON |
| CONDUIT TYPE ACCOMMODATED | RIGID METALLIC THICKWALL FIRST END RIGID METALLIC THICKWALL SECOND END |
| END TYPE | SPLIT NIPPLE FIRST END SPLIT NIPPLE SECOND END |
| NONDEFINITIVE SPEC/STD DATA | B-1A TYPE |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | WF406 |
Restrictions/Controls & Freight Information | NSN 5975-00-683-2743
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
