NSN 5975-00-581-4598 MX2326U, MX2326UL1 , REB49336
Product Details | STUFFING TUBE
5975-00-581-4598 An item specifically designed to pass an electrical cable or tube through a continuous structure with provisions for packing so as to prevent the leakage of liquids and/or gases through the opening. May include packing nut(s), adapter(s), washer(s), gasket(s), bushing(s), packing(s), cap(s), and/or plug(s).
Part Alternates: MX2326U, MX2326UL1 , REB49336, REB4933L1 , MILC21367, MIL-C-21367 , MILC21367L1, MIL-C-21367L1, MIL-H-21367/11 , MIL-H-21367/11L1 , MILH2136711, MILH2136711L1, 5975-00-581-4598, 00-581-4598, 5975005814598, 005814598
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-581-4598 | 00882 ( STUFFING TUBE ) |

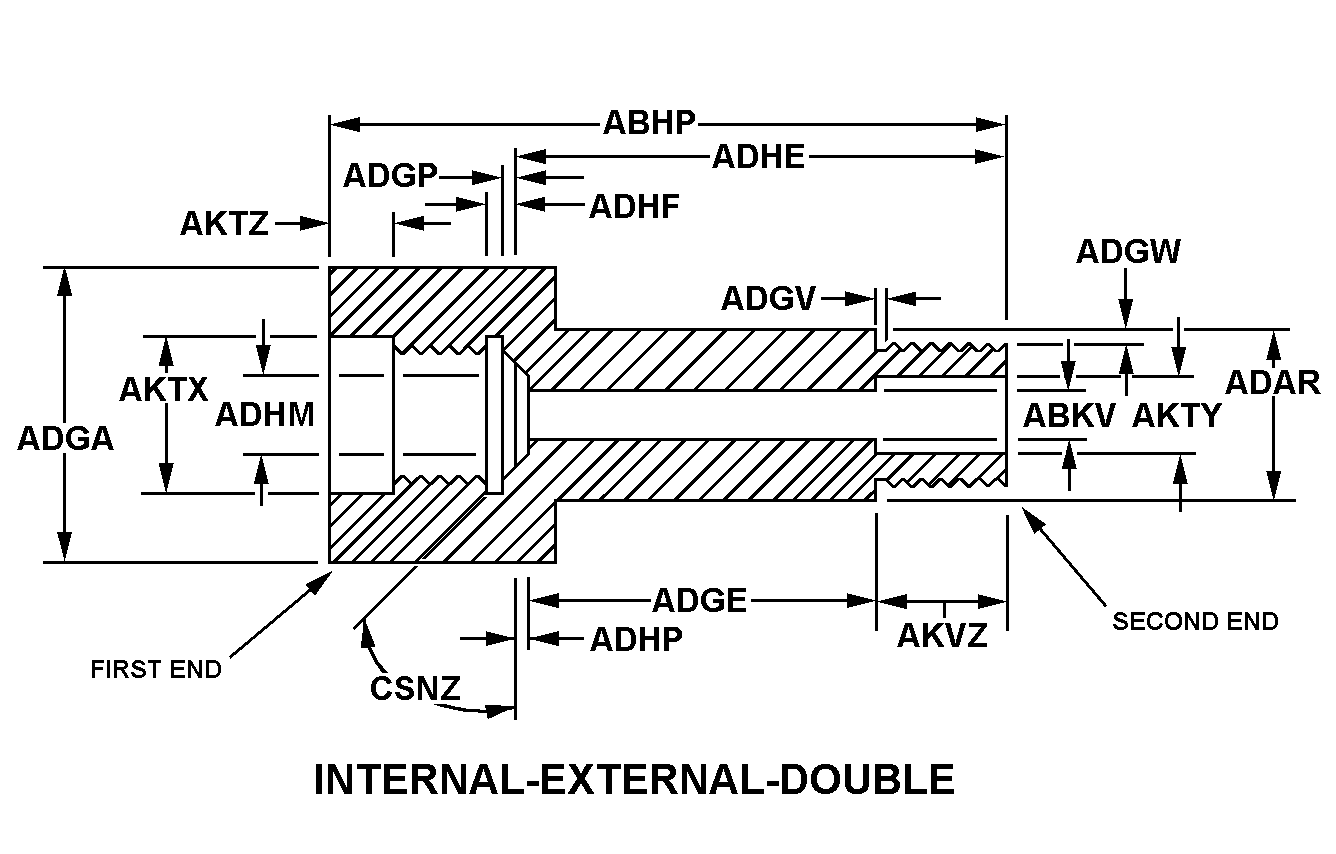

Drawings & Photos | NSN 5975-00-581-4598
Cross Reference | NSN 5975-00-581-4598
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MIL-C-21367 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-C-21367L1 | 03950 | NAVAL INVENTORY CONTROL POINT MECHANICSBURG |
| MIL-H-21367/11 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-H-21367/11L1 | 03950 | NAVAL INVENTORY CONTROL POINT MECHANICSBURG |
| MX2326U | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MX2326UL1 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| REB49336 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| REB4933L1 | 03950 | NAVAL INVENTORY CONTROL POINT MECHANICSBURG |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5975-00-581-4598
Related Products | NSN 5975-00-581-4598
Technical Data | NSN 5975-00-581-4598
| Characteristic | Specifications |
|---|---|
| SURFACE TREATMENT | NICKEL OVERALL |
| SIZE | 0.640 INCHES NOMINAL |
| STYLE DESIGNATOR | 58 INTERNAL-EXTERNAL-DOUBLE |
| COUNTERBORE DIAMETER | 1.313 INCHES NOMINAL |
| COUNTERBORE DEPTH | 0.625 INCHES NOMINAL |
| OVERALL LENGTH | 7.687 INCHES NOMINAL |
| BORE DIAMETER | 0.697 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 1.484 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 2.000 INCHES NOMINAL |
| BORE LENGTH | 3.159 INCHES NOMINAL |
| FIRST END CHAMFER DEPTH | 0.093 INCHES NOMINAL |
| THREAD RELIEF LENGTH | 0.172 INCHES NOMINAL |
| THREAD RELIEF DEPTH | 0.069 INCHES NOMINAL |
| INSIDE RECESS LENGTH | 0.060 INCHES NOMINAL |
| FIRST PACKING CHAMBER INSIDE DIAMETER | 0.840 INCHES NOMINAL |
| FIRST PACKING CHAMBER LENGTH | 0.188 INCHES NOMINAL |
| SECOND END CHAMFER ANGLE | 20.0 DEGREES NOMINAL |
| THREAD SERIES DESIGNATOR | UNEF FIRST END UNF SECOND END |
| NOMINAL THREAD SIZE | 1.500 INCHES FIRST END 1.250 INCHES SECOND END |
| THREAD CLASS | 2A BOTH ENDS 2B FIRST END |
| THREAD QUANTITY PER INCH | 18 FIRST END 12 SECOND END |
| THREAD LENGTH | 0.765 INCHES NOMINAL BOTH ENDS 0.375 INCHES NOMINAL FIRST END |
| THREAD DIRECTION | RIGHT-HAND FIRST END RIGHT-HAND SECOND END |
| PACKING CHAMBER QUANTITY | 1 |
| MOUNTING METHOD | WELDED |
| DEPARTURE FROM CITED DESIGNATOR | QUALTIY CONTROL IAW NAVSHIPS 0948-045-7010 MATERIAL IDENTIFICATION AND CONTROL INSTRUCTIONS FOR LEVEL 1 ITEMS |
| CRITICALITY CODE JUSTIFICATION | ZZZX |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILC21367 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MX2326U |
Restrictions/Controls & Freight Information | NSN 5975-00-581-4598
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | S | The item is a non-aviation Critical Safety Item (CSI) whose failure will result in serious damage to equipment or serious injury or death to personnel. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 186620 | TOOLS, NOI HAND OTHER THAN POWER |
| Less than car load rating | Q | 70 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5975-00-581-4598
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 1H | Consumable material assigned to NAVICP MECH for inventory management Naval Inventory Control Point, Mechanicsburg |
| Special Material ID | L1 | An items that supports either a SUBSAFE or Level 1 system that has undergone the extreme material control and quality assurance techniques that provide objective exidence of its acceptance for its appropriate application. Each item has certification papers (or special markings that provide traceability to the certification) that pedigree its material and physical properties, provide traceability, to manufacturer, contract list and lot, and document the quality assurance system and test requirements applied to the item. |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | NRP | NAVICP-ERP 700 Robbins Avenue Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | M | Medium Demand Velocity Items (consumables) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
