Product Details | STUFFING TUBE
5975-00-563-7576 An item specifically designed to pass an electrical cable or tube through a continuous structure with provisions for packing so as to prevent the leakage of liquids and/or gases through the opening. May include packing nut(s), adapter(s), washer(s), gasket(s), bushing(s), packing(s), cap(s), and/or plug(s).
Part Alternates: DBZP512S169, 5975-00-563-7576, 00-563-7576, 5975005637576, 005637576
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
59 | 19 NOV 1974 | 00-563-7576 | 00882 ( STUFFING TUBE ) |
Cross Reference | NSN 5975-00-563-7576
Part Number | Cage Code | Manufacturer |
---|---|---|
DBZP512S169 | 49367 | AMPHENOL CORPORATION DBA AMPHENOL AEROSPACE INDUSTRIAL |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 5975-00-563-7576
Related Products | NSN 5975-00-563-7576
Technical Data | NSN 5975-00-563-7576
Characteristic | Specifications |
---|---|
MATERIAL | ALUMINUM OVERALL |
SURFACE TREATMENT | ANODIZE OVERALL |

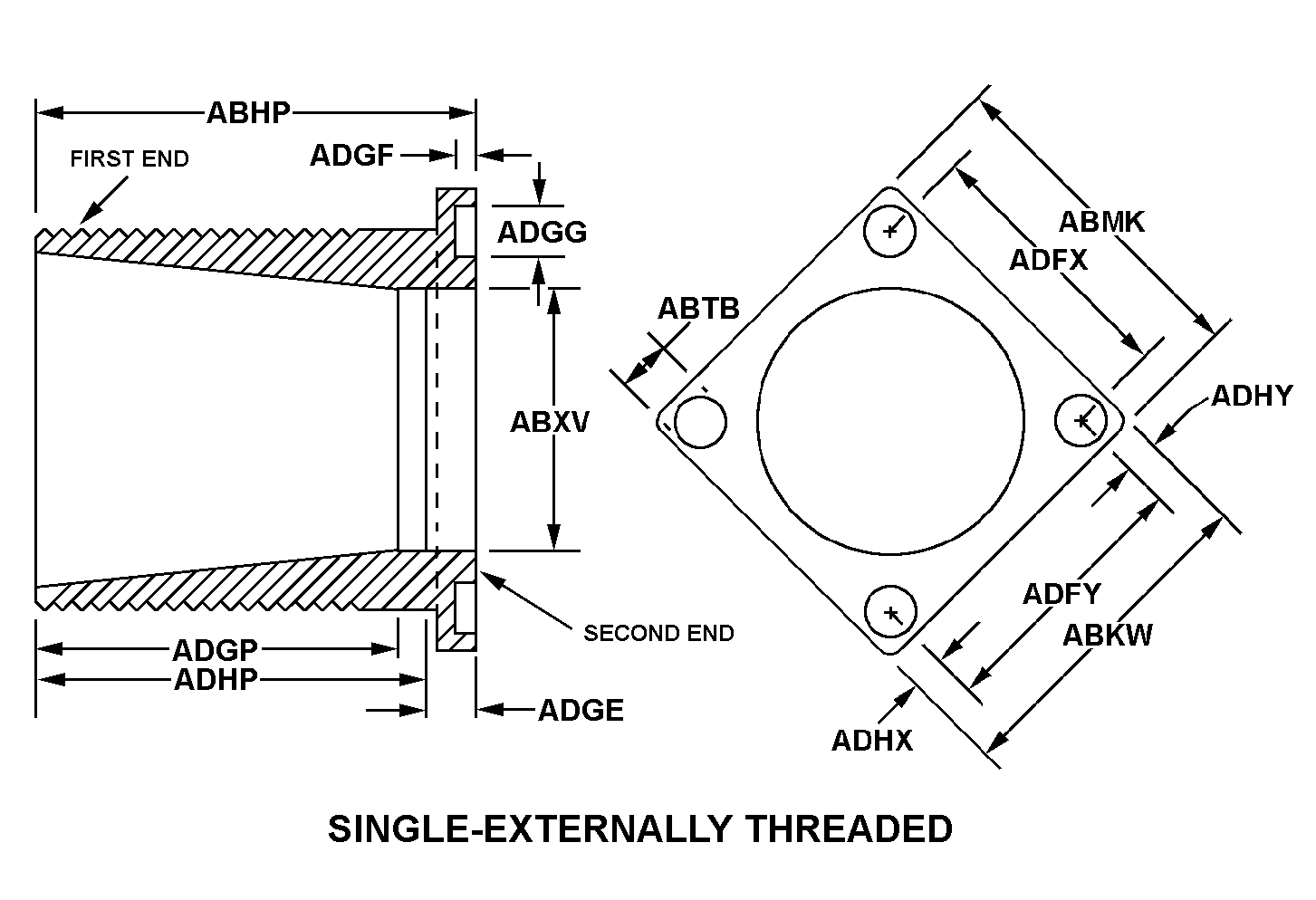

STYLE DESIGNATOR | 52 SINGLE-EXTERNALLY THREADED |
OVERALL LENGTH | 2.469 INCHES NOMINAL |
OVERALL HEIGHT | 1.625 INCHES NOMINAL |
OVERALL WIDTH | 1.625 INCHES NOMINAL |
MOUNTING HOLE DIAMETER | 0.188 INCHES NOMINAL |
BORE DIAMETER | 0.938 INCHES NOMINAL |
CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG WIDTH | 1.250 INCHES NOMINAL |
CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH | 1.250 INCHES NOMINAL |
DISTANCE FROM MOUNTING HOLE CENTER TO BASE EDGE ALONG LENGTH | 0.188 INCHES NOMINAL |
DISTANCE FROM MOUNTING HOLE CENTER TO BASE EDGE ALONG WIDTH | 0.188 INCHES NOMINAL |
THREAD DIRECTION | RIGHT-HAND FIRST END |
PACKING CHAMBER QUANTITY | 1 |
MOUNTING METHOD | BOLT |
FURNISHED ITEMS | WASHER AND GROMMET AND GASKET |
SPECIAL FEATURES | ACCOMMODATES 0.625 IN. MIN,0.750 IN. MAX DIA CABLE |
MANUFACTURERS CODE | 49367 |
DESIGN CONTROL REFERENCE | DBZP512S169 |
