Product Details | CONDUIT OUTLET

5975-00-516-0594 An item designed to be used in a conduit system for the purpose of providing outlets or attachments for electrical wiring devices and/or designed to provide access and facilitate installment of wires. It may or may not include a cover(s). It does not include wiring devices. Excludes ENTRANCE ELBOW, ELECTRICAL. See also JUNCTION BOX.

Part Alternates: FD02300044000, FD02-3-00044000, 5975-00-516-0594, 00-516-0594, 5975005160594, 005160594

Electrical and Electronic Equipment Components | Electrical Hardware and Supplies

Supply Group (FSG) NSN Assign. NIIN
59 07 AUG 1974 00-516-0594

Drawings & Photos | NSN 5975-00-516-0594


Cross Reference | NSN 5975-00-516-0594

Part Number Cage Code Manufacturer
FD02-3-00044000 15235 CROUSE-HINDS CO

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5975-00-516-0594

Technical Data | NSN 5975-00-516-0594

Characteristic Specifications

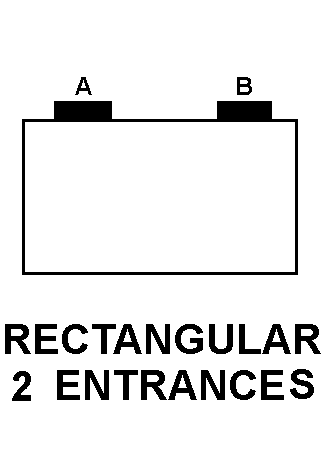

STYLE DESIGNATOR B11 RECTANGULAR 2 ENTRANCES
WIDTH 4.312 INCHES NOMINAL
LENGTH 6.500 INCHES NOMINAL
DEPTH 2.750 INCHES NOMINAL
CONDUIT ENTRANCE TYPE HUB DRILLED AND TAPPED ALL ENTRANCE
CONDUIT TYPE ACCOMMODATED RIGID METALLIC THICKWALL ALL ENTRANCE
CONDUIT TRADE SIZE ACCOMMODATED 1.250 INCHES ALL ENTRANCE
TRADE DESIGNATION FD SERIES
MATERIAL IRON, ASTM A48, CLASS 30 OVERALL
SURFACE TREATMENT CADMIUM AND ZINC OVERALL
COVER MOUNTING METHOD THREADED FASTENER
COVER MOUNTING HOLE QUANTITY 6 AND 6
WIRING DEVICE GANG QUANTITY 2
MULTIGANG OUTLET PARTITIONING METHOD PARALLEL
COVER MOUNTING SURFACE TYPE FLAT
HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION WEATHERPROOF

Restrictions/Controls & Freight Information | NSN 5975-00-516-0594

Category Code Description
Hazardous Material Indicator CodePThere is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Precious Metals Indicator Code:UPrecious metal type is unknown
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
