NSN 5975-00-516-0602 FD02333000300, FD02-3-33000300, 00-516-0602
Product Details | CONDUIT OUTLET
5975-00-516-0602 An item designed to be used in a conduit system for the purpose of providing outlets or attachments for electrical wiring devices and/or designed to provide access and facilitate installment of wires. It may or may not include a cover(s). It does not include wiring devices. Excludes ENTRANCE ELBOW, ELECTRICAL. See also JUNCTION BOX.
Part Alternates: FD02333000300, FD02-3-33000300, 5975-00-516-0602, 00-516-0602, 5975005160602, 005160602
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 07 AUG 1974 | 00-516-0602 | 06945 ( CONDUIT OUTLET ) |
Drawings & Photos | NSN 5975-00-516-0602
Cross Reference | NSN 5975-00-516-0602
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| FD02-3-33000300 | 15235 | CROUSE-HINDS CO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5975-00-516-0602
Technical Data | NSN 5975-00-516-0602
| Characteristic | Specifications |
|---|---|

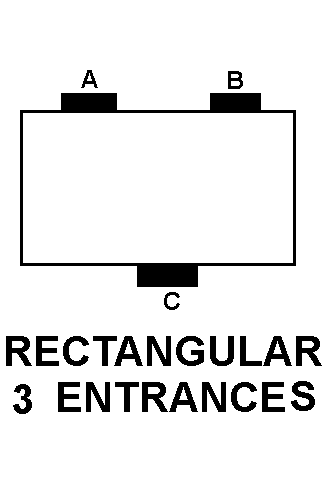

| STYLE DESIGNATOR | B27 RECTANGULAR 3 ENTRANCES |
| WIDTH | 4.312 INCHES NOMINAL |
| LENGTH | 6.500 INCHES NOMINAL |
| DEPTH | 2.750 INCHES NOMINAL |
| CONDUIT ENTRANCE TYPE | HUB DRILLED AND TAPPED ALL ENTRANCE |
| CONDUIT TYPE ACCOMMODATED | RIGID METALLIC THICKWALL ALL ENTRANCE |
| CONDUIT TRADE SIZE ACCOMMODATED | 1.000 INCHES ALL ENTRANCE |
| TRADE DESIGNATION | FD SERIES |
| MATERIAL | IRON, ASTM A48, CLASS 30 OVERALL |
| SURFACE TREATMENT | CADMIUM AND ZINC OVERALL |
| COVER MOUNTING METHOD | THREADED FASTENER |
| COVER MOUNTING HOLE QUANTITY | 6 AND 6 |
| WIRING DEVICE GANG QUANTITY | 2 |
| MULTIGANG OUTLET PARTITIONING METHOD | PARALLEL |
| COVER MOUNTING SURFACE TYPE | FLAT |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | WEATHERPROOF |
Restrictions/Controls & Freight Information | NSN 5975-00-516-0602
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
