NSN 5975-00-355-4820 9S5235LREV18SYMB0L155114, 9S5235LREV18SYMB0L1551-14, 00-355-4820
Product Details | STUFFING TUBE
5975-00-355-4820 An item specifically designed to pass an electrical cable or tube through a continuous structure with provisions for packing so as to prevent the leakage of liquids and/or gases through the opening. May include packing nut(s), adapter(s), washer(s), gasket(s), bushing(s), packing(s), cap(s), and/or plug(s).
Part Alternates: 9S5235LREV18SYMB0L155114, 9S5235LREV18SYMB0L1551-14, 5975-00-355-4820, 00-355-4820, 5975003554820, 003554820
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-355-4820 | 00882 ( STUFFING TUBE ) |
Drawings & Photos | NSN 5975-00-355-4820
Cross Reference | NSN 5975-00-355-4820
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9S5235LREV18SYMB0L1551-14 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5975-00-355-4820
Technical Data | NSN 5975-00-355-4820
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY OVERALL |
| SIZE | 1.750 INCHES NOMINAL |

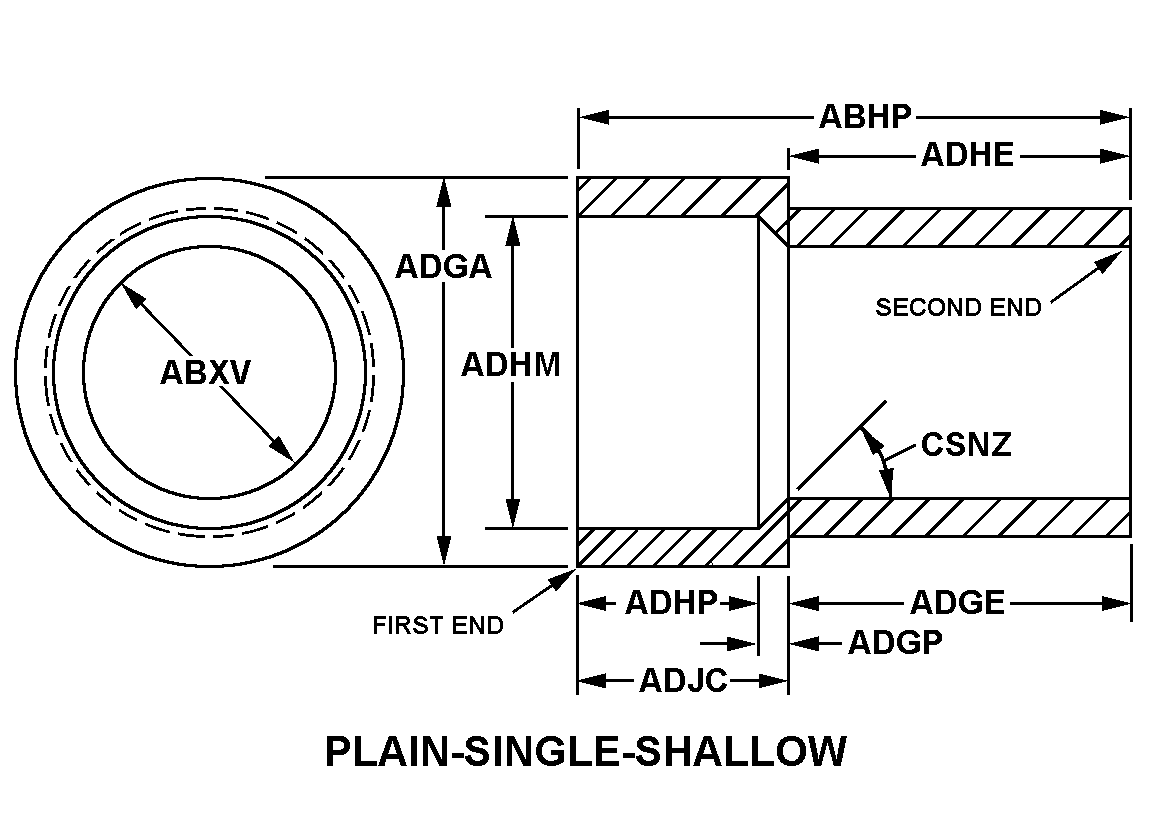

| STYLE DESIGNATOR | 43 PLAIN-SINGLE-SHALLOW |
| OVERALL LENGTH | 1.875 INCHES NOMINAL |
| BORE DIAMETER | 1.750 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 2.438 INCHES NOMINAL |
| BORE LENGTH | 0.188 INCHES NOMINAL |
| FIRST END CHAMFER DEPTH | 0.227 INCHES NOMINAL |
| FIRST PACKING CHAMBER INSIDE DIAMETER | 2.204 INCHES NOMINAL |
| FIRST PACKING CHAMBER LENGTH | 1.461 INCHES NOMINAL |
| DISTANCE FROM OUTSIDE EDGE OF FIRST PACKING CHAMBER TO EDGE OF MOUNTING FLANGE | 1.688 INCHES NOMINAL |
| SECOND END CHAMFER ANGLE | 45.0 DEGREES NOMINAL |
| THREAD SERIES DESIGNATOR | UN SECOND END |
| NOMINAL THREAD SIZE | 2.312 INCHES SECOND END |
| THREAD QUANTITY PER INCH | 12 SECOND END |
| PACKING CHAMBER QUANTITY | 1 |
| MOUNTING METHOD | WELDED |
| FURNISHED ITEMS | GLAND NUT AND GLAND RING |
| SPECIAL MARKINGS | R |
| MANUFACTURERS CODE | 80064 |
| DESIGN CONTROL REFERENCE | 9S5235LREV18SYMB0L1551-14 |
Restrictions/Controls & Freight Information | NSN 5975-00-355-4820
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 186620 | TOOLS, NOI HAND OTHER THAN POWER |
| Less than car load rating | Q | 70 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5975-00-355-4820
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9G | Navy-owned stocks of defense general material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9G | Defense Supply Center Richmond Richmond, VA 23297 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
