NSN 5975-00-296-4093 MS161562, MS16156-2, M19622/1-002

Product Details | STUFFING TUBE

5975-00-296-4093 An item specifically designed to pass an electrical cable or tube through a continuous structure with provisions for packing so as to prevent the leakage of liquids and/or gases through the opening. May include packing nut(s), adapter(s), washer(s), gasket(s), bushing(s), packing(s), cap(s), and/or plug(s).

Part Alternates: MS161562, MS16156-2, M19622/1-002, M196221002, M1962271002, M1962271-002, SEM2161752, SEM-2161752, MILS196221, MILS19622-1, PL1887874 IT. 8, PL1887874IT8, 204-4680421 PIE, 2044680421PIE, 40104562, 4010456-2, 52102882, 5210288-2, 61708921, 617089-21, 5975-00-296-4093, 00-296-4093, 5975002964093, 002964093

Electrical and Electronic Equipment Components | Electrical Hardware and Supplies

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	01 JAN 1963	00-296-4093	00882 ( STUFFING TUBE )

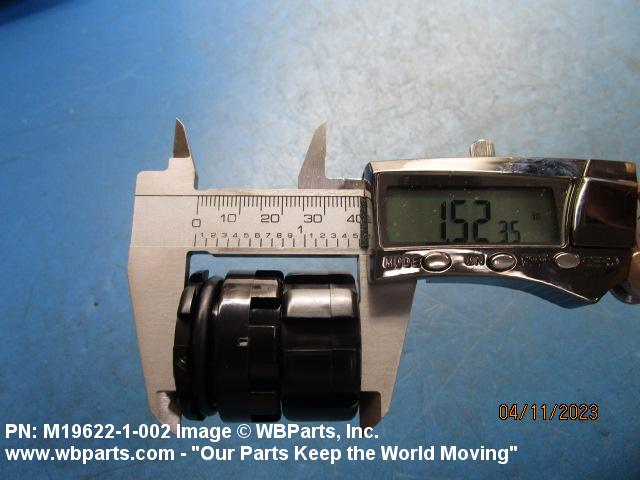

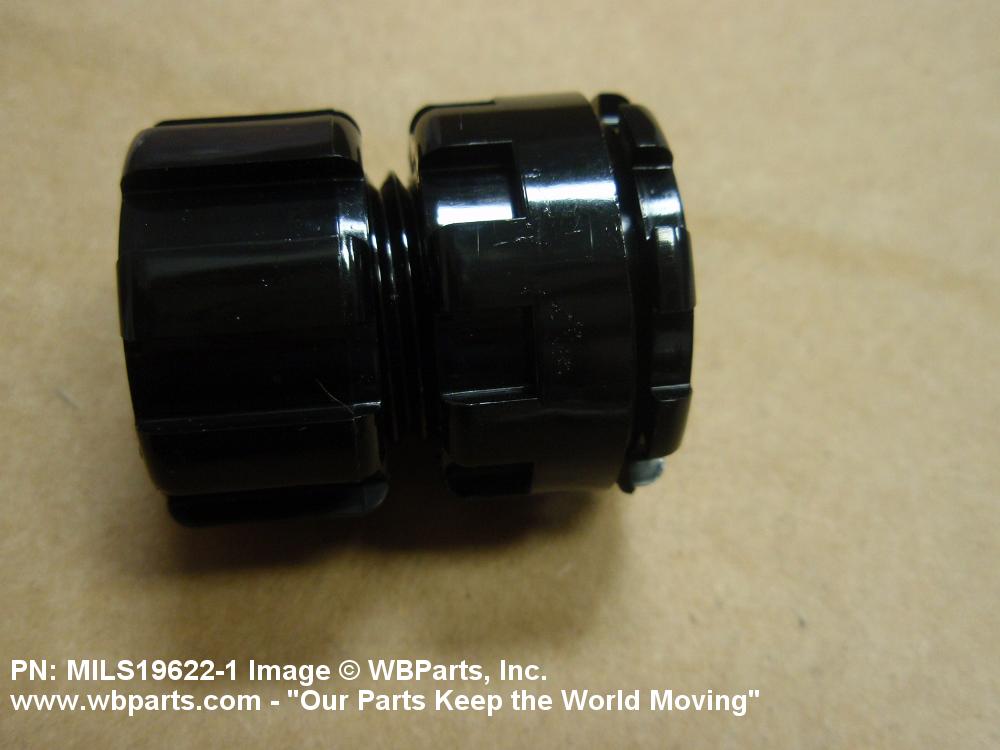

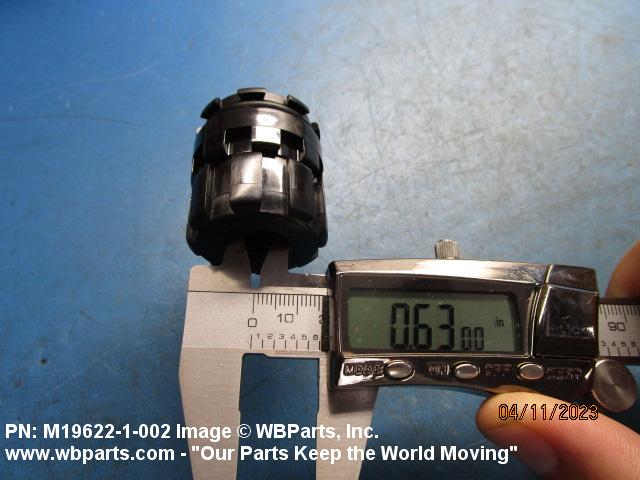

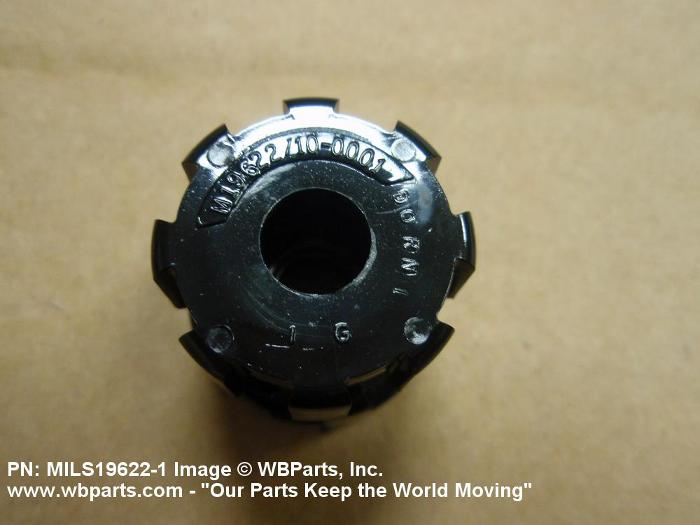

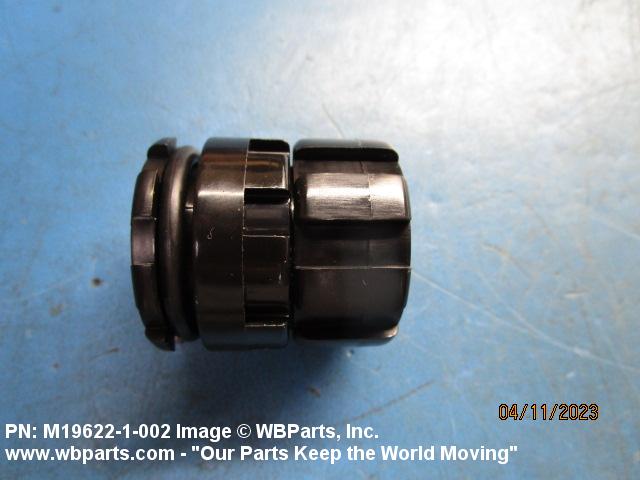

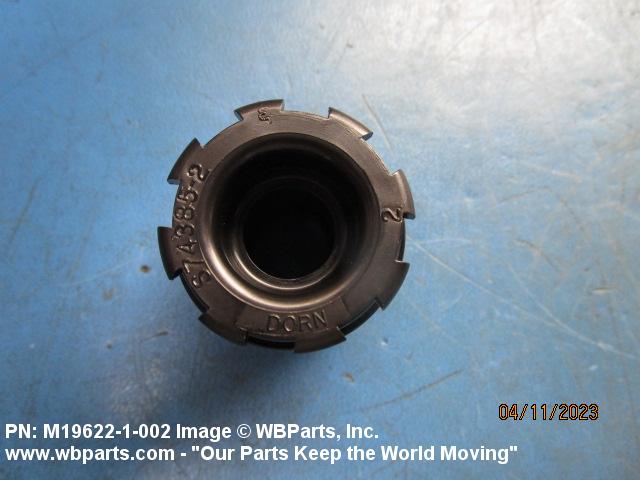

Drawings & Photos | NSN 5975-00-296-4093

Part Number	Request Date	QTY	Origin
5975-00-296-4093	2024-10-305	220	United States
5975-00-296-4093	2024-09-270	10	TW
M196221002	2023-03-76	1	United States
M196221002	2023-03-76	1	United States
5975-00-296-4093	2022-04-111	1	US
5975-00-296-4093	2022-04-97	58	US
5975-00-296-4093	2022-03-80	10	US
5975-00-296-4093	2022-01-25	1	US
5975-00-296-4093	2022-01-25	1	US
5975-00-296-4093	2021-12-337	2	us
5975-00-296-4093	2021-11-312	6	United States
5975-00-296-4093	2021-10-278	1	US
5975-00-296-4093	2021-10-278	1	US
5975-00-296-4093	2021-06-179	1	US
5975-00-296-4093	2021-02-53	2	US
5975-00-296-4093	2020-12-357	2	US
5975-00-296-4093	2020-12-342	3	US
2044680421PIE	2019-10-295	16	us
5975-00-296-4093	2019-09-252	12	US
M196221002	2019-05-151	100	United States
5975-00-296-4093	2018-10-296	1	DIBBS-RFPs
5975-00-296-4093	2018-09-267	2	US
5975-00-296-4093	2018-09-267	102	US
MS161562	2018-04-113	20	United States
5975-00-296-4093	2018-03-87	2	US
5975-00-296-4093	2017-10-285	2	US
5975-00-296-4093	2016-09-257	4	Mexico
5975-00-296-4093	2016-08-225	5	US
M196221002	2014-10-302	40	United States
5975-00-296-4093	2013-10-302	12	United States
5975-00-296-4093	2013-06-156	2	Canada
5975-00-296-4093	2012-12-349	75	United States
5975-00-296-4093	2012-11-321	8	US
SEM2161752	2012-03-61	8	US
5975-00-296-4093	2012-02-44	5	US
5975-00-296-4093	2012-01-19	13	United States
M196221002	2011-05-146	2000	US
M196221002	2011-05-126	100	Thailand
M19622/1-002	2011-04-95	16	United States
M19622/1-002	2011-04-95	64	United States
M19622/1-002	2011-04-95	64	United States
M19622/1-002	2011-04-95	80	United States
M19622/1-002	2011-04-95	80	United States
5975-00-296-4093	2006-02-47	1	Malaysia

Cross Reference | NSN 5975-00-296-4093

Part Number	Cage Code	Manufacturer
204-4680421 PIE	89256	NAVAL SHIP ENGINEERING CENTER PHILADELPHIA DIV
204-4680421 PIE	99820	DORN EQUIPMENT CORP
4010456-2	07187	HONEYWELL INTERNATIONAL INC. DBA HONEYWELL
5210288-2	53711	NAVAL SEA SYSTEMS COMMAND
617089-21	56232	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
M19622/1-002	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M1962271-002	99820	DORN EQUIPMENT CORP
MILS19622-1	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MS16156-2	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
PL1887874 IT. 8	03956	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NAVAL AND MARINE SYSTEMS
SEM-2161752	4A966	EIS, INC. DBA SEACOAST ELECTRIC CO

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5975-00-296-4093

Compare

Related Products | NSN 5975-00-296-4093

5975-00-296-4094, 5975-00-296-4095, 5975-00-296-4096, 5975-00-296-4097, 5975-00-296-4098

Technical Data | NSN 5975-00-296-4093

Characteristic	Specifications
MATERIAL	PLASTIC POLYAMIDE OVERALL
SIZE	0.563 INCHES NOMINAL
STYLE DESIGNATOR	40 SLOTTED-SINGLE
COUNTERBORE DIAMETER	0.750 INCHES NOMINAL
COUNTERBORE DEPTH	0.437 INCHES NOMINAL
SLOT DEPTH	0.093 INCHES NOMINAL
SLOT WIDTH	0.250 INCHES NOMINAL
SLOT LENGTH	0.125 INCHES NOMINAL
OVERALL LENGTH	1.328 INCHES NOMINAL
BORE DIAMETER	0.564 INCHES NOMINAL
BODY OUTSIDE DIAMETER	1.000 INCHES NOMINAL
OVERALL OUTSIDE DIAMETER	1.375 INCHES NOMINAL
BORE LENGTH	0.125 INCHES NOMINAL
FIRST END CHAMFER DEPTH	0.250 INCHES NOMINAL
FIRST PACKING CHAMBER INSIDE DIAMETER	0.625 INCHES NOMINAL
FIRST PACKING CHAMBER LENGTH	0.750 INCHES NOMINAL
DISTANCE FROM OUTSIDE EDGE OF FIRST PACKING CHAMBER TO EDGE OF MOUNTING FLANGE	1.203 INCHES NOMINAL
FIRST END CHAMFER ANGLE	10.0 DEGREES NOMINAL
SLOT ANGLE	45.0 DEGREES NOMINAL
THREAD SERIES DESIGNATOR	UN FIRST END
NOMINAL THREAD SIZE	1.000 INCHES FIRST END
THREAD CLASS	2A FIRST END
THREAD QUANTITY PER INCH	12 FIRST END
THREAD LENGTH	0.875 INCHES NOMINAL FIRST END
THREAD DIRECTION	RIGHT-HAND FIRST END
PACKING CHAMBER QUANTITY	1
MOUNTING METHOD	SLOT
FURNISHED ITEMS	GLAND NUT AND GLAND RING
SPECIAL MARKINGS	2
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MILS19622-1
MANUFACTURERS CODE	81349
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	M19622-1-002

Restrictions/Controls & Freight Information | NSN 5975-00-296-4093

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	061680	ELEC WIRING PLUGS ETC
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	72D	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5975-00-296-4093

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	2	Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
