Product Details | STUFFING TUBE PACKING NUT
5975-00-280-7941 A threaded or unthreaded device, with an unthreaded center hole to accommodate an electrical cable or tube, designed to mate with the threads or sealing components of a stuffing tube body for the purpose of compressing packing around the electrical cable or tube. A component of a STUFFING TUBE.
Part Alternates: M242359063, M24235-9-063, MILS242359, MILS24235-9, 9S5166LPC13C, 5975-00-280-7941, 00-280-7941, 5975002807941, 002807941
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-280-7941 | 15324 ( PACKING NUT, STUFFING TUBE ) |
Drawings & Photos | NSN 5975-00-280-7941
Demand History | NSN 5975-00-280-7941
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5975-00-280-7941 | 2018-10-283 | 290 | DIBBS |
| 5975-00-280-7941 | 2013-09-260 | 778 | DIBBS |
| 5975-00-280-7941 | 2013-05-128 | 417 | DIBBS |
| 5975-00-280-7941 | 2012-09-258 | 194 | DIBBS |
| 5975-00-280-7941 | 2012-08-220 | 194 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5975-00-280-7941
Related Products | NSN 5975-00-280-7941
Technical Data | NSN 5975-00-280-7941
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY OVERALL |

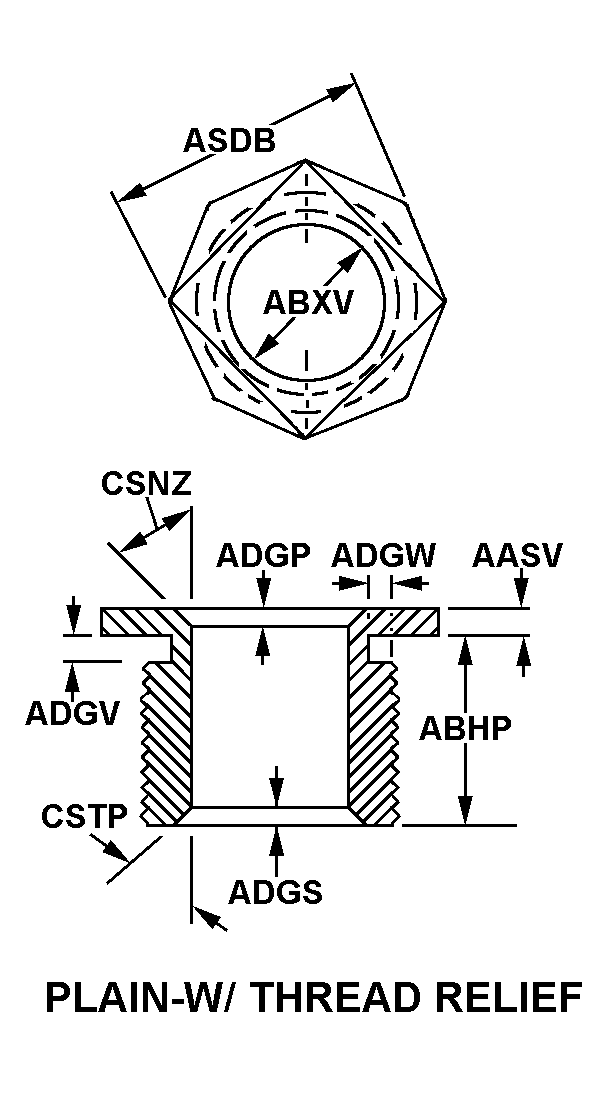

| STYLE DESIGNATOR | 22 PLAIN-W/THREAD RELIEF |
| WIDTH ACROSS FLATS | 1.250 INCHES NOMINAL |
| HEAD LENGTH | 0.188 INCHES NOMINAL |
| OVERALL LENGTH | 1.062 INCHES NOMINAL |
| BORE DIAMETER | 0.640 INCHES NOMINAL |
| FIRST END CHAMFER DEPTH | 0.125 INCHES NOMINAL |
| SECOND END CHAMFER DEPTH | 0.031 INCHES NOMINAL |
| THREAD RELIEF LENGTH | 0.188 INCHES NOMINAL |
| THREAD RELIEF DEPTH | 0.062 INCHES NOMINAL |
| FIRST END CHAMFER ANGLE | 0.0 DEGREES NOMINAL |
| SECOND END CHAMFER ANGLE | 45.0 DEGREES NOMINAL |
| THREAD SERIES DESIGNATOR | UN |
| NOMINAL THREAD SIZE | 1.125 INCHES |
| THREAD CLASS | 2A |
| THREAD QUANTITY PER INCH | 12 |
| THREAD LENGTH | 0.688 INCHES NOMINAL |
| THREAD DIRECTION | RIGHT-HAND |
| SPECIAL MARKINGS | C |
| SPECIAL FEATURES | FIRST END RADIUS 1/8 IN. |
| TEST DATA DOCUMENT | 81349-MIL-S-24235 SPECIFICATION |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILS24235-9 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M24235-9-063 |
