NSN 5975-00-280-8482 SLB1, 00-280-8482, 002808482
Product Details | ELECTRICAL ENTRANCE ELBOW
5975-00-280-8482 An item of metallic composition cast in the form of an elbow, which is primarily intended to provide for the angular entrance of wires into a building, structure, or enclosure. This item, specifically designed for installation in exposed locations, has two hubs of a specified size to fit the service entrance conduit and may have a third hub for a driven ground connection. It has a cover which makes it tamper-proof and weather-resistant. It may include facilities for pulling electrical conductors but does not have facilities for mounting wiring devices.
Part Alternates: SLB1, 5975-00-280-8482, 00-280-8482, 5975002808482, 002808482
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 25 AUG 1973 | 00-280-8482 | 06939 ( ENTRANCE ELBOW, ELECTRICAL ) |

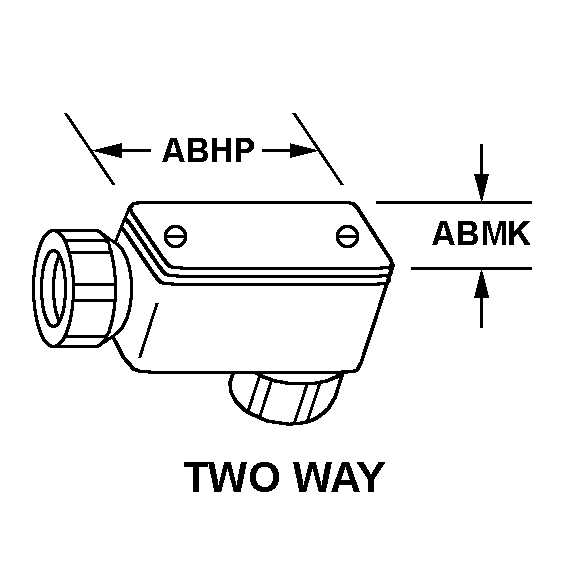

Drawings & Photos | NSN 5975-00-280-8482
Demand History | NSN 5975-00-280-8482
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5975-00-280-8482 | 2014-11-315 | 354 | DIBBS |
| 5975-00-280-8482 | 2014-10-282 | 180 | DIBBS |
| 5975-00-280-8482 | 2014-07-210 | 111 | DIBBS |
| 5975-00-280-8482 | 2014-07-202 | 111 | DIBBS |
Cross Reference | NSN 5975-00-280-8482
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SLB1 | 75282 | KILLARK ELECTRIC MFG CO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5975-00-280-8482
Related Products | NSN 5975-00-280-8482
Technical Data | NSN 5975-00-280-8482
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A43 TWO WAY |
| OVERALL LENGTH | 3.125 INCHES NOMINAL |
| OVERALL WIDTH | 1.188 INCHES NOMINAL |
| ITEM ACCOMMODATED TRADE SIZE | 0.500 INCHES FIRST END 0.500 INCHES SECOND END |
| MATERIAL | ALUMINUM |
| CONDUIT TYPE ACCOMMODATED | RIGID METALLIC THICKWALL FIRST END RIGID METALLIC THICKWALL SECOND END |
| END TYPE | INTERNAL THREAD FIRST END INTERNAL THREAD SECOND END |
| DEFLECTION ANGLE | 90.0 DEGREES |
| FURNISHED ITEMS | COVER AND GASKET |
Restrictions/Controls & Freight Information | NSN 5975-00-280-8482
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 156643 | PLASTIC/RUBR BENDS ELBOWS/SWEEPS |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | 23 | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5975-00-280-8482
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
