NSN 5975-00-255-2097 MS169229006, MS16922-9-006, M196229006
Product Details | STUFFING TUBE ADAPTER
5975-00-255-2097 A threaded or unthreaded item designed to mate with the mounting threads or mounting surfaces of a STUFFING TUBE, and to mount the STUFFING TUBE to a continuous structure (bulkhead or deck). The adapter may be recessed on the face to accommodate a gasket and/or washer.
Part Alternates: MS169229006, MS16922-9-006, M196229006, M19622-9-006, MILS19622, MIL-S-19622, 5975-00-255-2097, 00-255-2097, 5975002552097, 002552097
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 20 JUN 1973 | 00-255-2097 | 05826 ( ADAPTER, STUFFING TUBE ) |

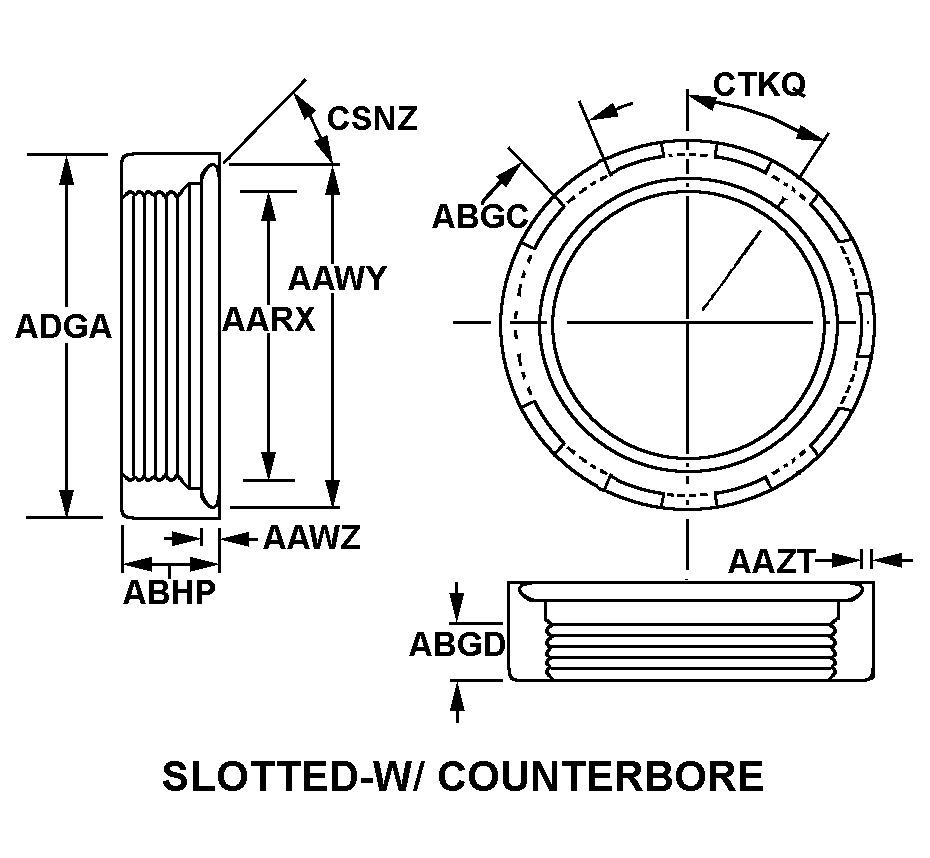

Drawings & Photos | NSN 5975-00-255-2097
Demand History | NSN 5975-00-255-2097
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5975-00-255-2097 | 2018-06-166 | 386 | DIBBS |
| 5975-00-255-2097 | 2018-06-158 | 386 | DIBBS |
| 5975-00-255-2097 | 2014-05-124 | 196 | DIBBS |
| 5975-00-255-2097 | 2014-03-82 | 37 | DIBBS |
| 5975-00-255-2097 | 2013-04-100 | 12 | DIBBS |
| 5975-00-255-2097 | 2013-04-92 | 12 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5975-00-255-2097
Related Products | NSN 5975-00-255-2097
Technical Data | NSN 5975-00-255-2097
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC POLYHEXAMETHYLENE AMIDE OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-M-20693,TY 2 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SIZE | 1.187 INCHES NOMINAL |
| STYLE DESIGNATOR | 1 SLOTTED-W/COUNTERBORE |
| INSIDE DIAMETER | 2.031 INCHES NOMINAL |
| COUNTERBORE DEPTH | 0.099 INCHES NOMINAL |
| SLOT DEPTH | 0.125 INCHES NOMINAL |
| SLOT WIDTH | 0.375 INCHES NOMINAL |
| SLOT LENGTH | 0.375 INCHES NOMINAL |
| OVERALL LENGTH | 0.639 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 2.500 INCHES NOMINAL |
| OUTSIDE RECESS WIDTH | 0.140 INCHES NOMINAL |
| FIRST END CHAMFER ANGLE | 36.0 DEGREES NOMINAL |
| SLOT ANGLE | 36.0 DEGREES NOMINAL |
| THREAD SERIES DESIGNATOR | UN |
| NOMINAL THREAD SIZE | 2.000 INCHES |
| THREAD CLASS | 2B |
| THREAD QUANTITY PER INCH | 12 |
| THREAD LENGTH | 0.375 INCHES NOMINAL |
| THREAD DIRECTION | RIGHT-HAND |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-S-19622 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M19622-9-006 |
Restrictions/Controls & Freight Information | NSN 5975-00-255-2097
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061260 | CABLE TERMINALS/BOXES/HOUSINGS ETC |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5975-00-255-2097
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
