NSN 5975-00-255-2105 M19622150001, M19622-15-0001, 00-255-2105
Product Details | STUFFING TUBE ADAPTER
5975-00-255-2105 A threaded or unthreaded item designed to mate with the mounting threads or mounting surfaces of a STUFFING TUBE, and to mount the STUFFING TUBE to a continuous structure (bulkhead or deck). The adapter may be recessed on the face to accommodate a gasket and/or washer.
Part Alternates: M19622150001, M19622-15-0001, 5975-00-255-2105, 00-255-2105, 5975002552105, 002552105
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 20 JUN 1973 | 00-255-2105 | 05826 ( ADAPTER, STUFFING TUBE ) |

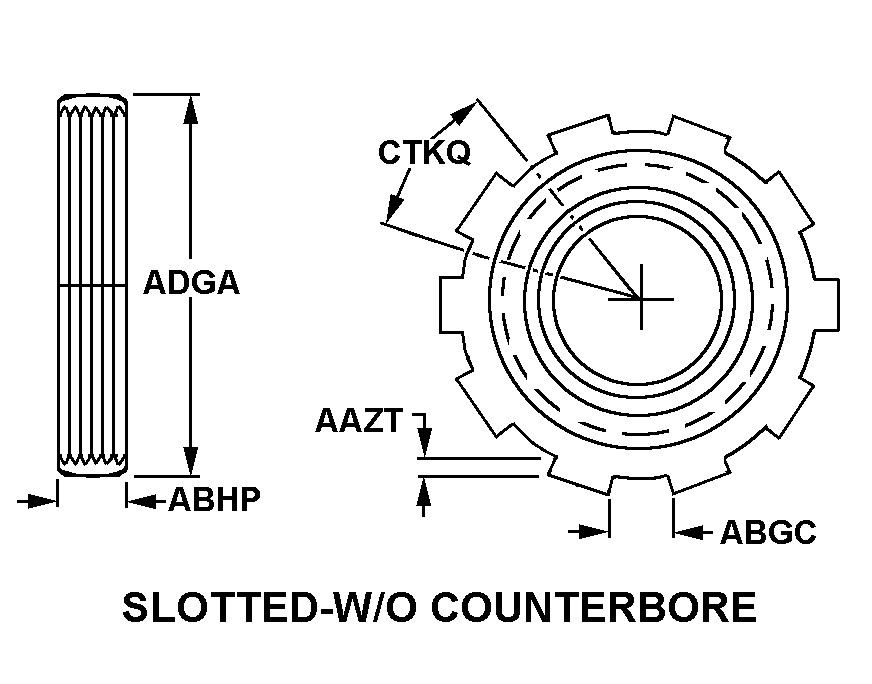

Drawings & Photos | NSN 5975-00-255-2105
Cross Reference | NSN 5975-00-255-2105
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| M19622-15-0001 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5975-00-255-2105
Technical Data | NSN 5975-00-255-2105
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC POLYHEXAMETHYLENE AMIDE OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-M-20693,TY 2 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| STYLE DESIGNATOR | 2 SLOTTED-W/O COUNTERBORE |
| INSIDE DIAMETER | 0.794 INCHES NOMINAL |
| SLOT DEPTH | 0.093 INCHES NOMINAL |
| SLOT WIDTH | 0.250 INCHES NOMINAL |
| OVERALL LENGTH | 0.250 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 1.250 INCHES NOMINAL |
| SLOT ANGLE | 45.0 DEGREES NOMINAL |
| THREAD SERIES DESIGNATOR | UN |
| NOMINAL THREAD SIZE | 0.875 INCHES |
| THREAD CLASS | 2B |
| THREAD QUANTITY PER INCH | 12 |
| THREAD LENGTH | 0.250 INCHES NOMINAL |
| THREAD DIRECTION | RIGHT-HAND |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M19622-15-0001 |
Restrictions/Controls & Freight Information | NSN 5975-00-255-2105
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095760 | LOCKS/LOCK SETS NOI METAL IN BBL/BX |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5975-00-255-2105
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
