NSN 5975-00-179-1775 9S5406LPC189S5235L1L34576L4, 9S5406LPC18-9S5235L1L3-4576L4, 00-179-1775
Product Details | STUFFING TUBE
5975-00-179-1775 An item specifically designed to pass an electrical cable or tube through a continuous structure with provisions for packing so as to prevent the leakage of liquids and/or gases through the opening. May include packing nut(s), adapter(s), washer(s), gasket(s), bushing(s), packing(s), cap(s), and/or plug(s).
Part Alternates: 9S5406LPC189S5235L1L34576L4, 9S5406LPC18-9S5235L1L3-4576L4, 5975-00-179-1775, 00-179-1775, 5975001791775, 001791775
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-179-1775 | 00882 ( STUFFING TUBE ) |
Drawings & Photos | NSN 5975-00-179-1775
Cross Reference | NSN 5975-00-179-1775
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9S5406LPC18-9S5235L1L3-4576L4 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5975-00-179-1775
Related Products | NSN 5975-00-179-1775
Technical Data | NSN 5975-00-179-1775
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SIZE | 0.406 INCHES NOMINAL |

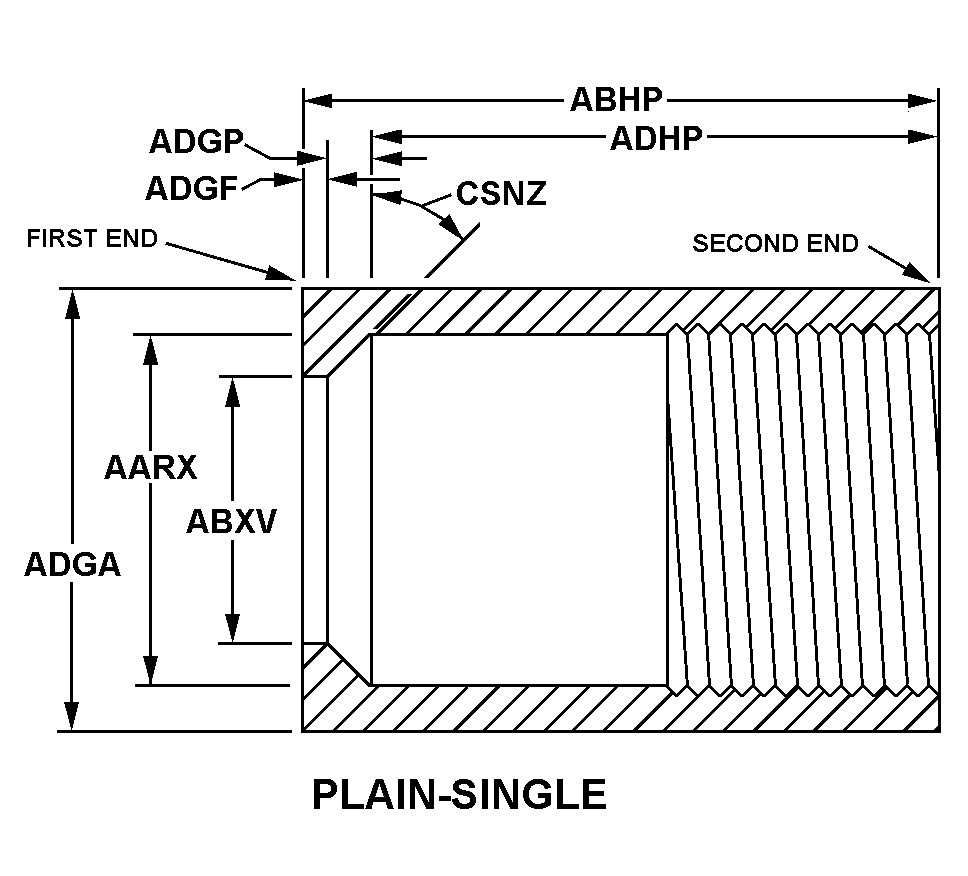

| STYLE DESIGNATOR | 61 PLAIN-SINGLE |
| INSIDE DIAMETER | 0.875 INCHES NOMINAL |
| OVERALL LENGTH | 1.563 INCHES NOMINAL |
| BORE DIAMETER | 0.406 INCHES NOMINAL |
| OVERALL OUTSIDE DIAMETER | 0.938 INCHES NOMINAL |
| BORE LENGTH | 0.188 INCHES NOMINAL |
| FIRST END CHAMFER DEPTH | 0.235 INCHES NOMINAL |
| FIRST PACKING CHAMBER LENGTH | 1.140 INCHES NOMINAL |
| SECOND END CHAMFER ANGLE | 45.0 DEGREES NOMINAL |
| THREAD SERIES DESIGNATOR | UN FIRST END |
| NOMINAL THREAD SIZE | 0.875 MILLIMETERS FIRST END |
| THREAD CLASS | 2B |
| THREAD QUANTITY PER INCH | 12 FIRST END |
| THREAD LENGTH | 0.875 INCHES NOMINAL |
| THREAD DIRECTION | RIGHT-HAND FIRST END |
| PACKING CHAMBER QUANTITY | 1 |
| MOUNTING METHOD | WELDED |
| SPECIAL MARKINGS | A |
| SPECIAL FEATURES | WELD MTD BY PLAIN NECK 0.551 IN. DIA 0.188 IN. LG |
| TEST DATA DOCUMENT | 53711-9-S-5406L DRAWING |
Restrictions/Controls & Freight Information | NSN 5975-00-179-1775
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 186620 | TOOLS, NOI HAND OTHER THAN POWER |
| Less than car load rating | Q | 70 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5975-00-179-1775
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 1H | Consumable material assigned to NAVICP MECH for inventory management Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | N35 | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | M | Medium Demand Velocity Items (consumables) |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
