NSN 5970-01-522-3210 SPC20170 , SPC5156, 01-522-3210

Product Details | ELECTRICAL INSULATION SLEEVING

5970-01-522-3210 A rigid or flexible tubing having uniform inside and outside diameters in the overall length. It is specifically designed to prevent any undesirable flow of current between conductors and other objects. Includes shrinkable type tubing, items in bulk and in specific fabricated lengths (cut to size). Excludes items not having rated electrical characteristics. Also excludes BUSHING, SLEEVE; CABLE NIPPLE, ELECTRICAL; CONDUIT (as modified); INSULATION SLEEVING, ELECTRICAL, SPECIAL PURPOSE; INSULATION SLEEVING, THERMAL; SLEEVE, MARKER, CABLE; SLEEVING, TEXTILE, ELECTRICAL; TUBING, GLASS; and TUBING, NONMETALLIC.

Part Alternates: SPC20170 , SPC5156, 5970-01-522-3210, 01-522-3210, 5970015223210, 015223210

Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	27 JUL 2004	01-522-3210	00867 ( INSULATION SLEEVING, ELECTRICAL )

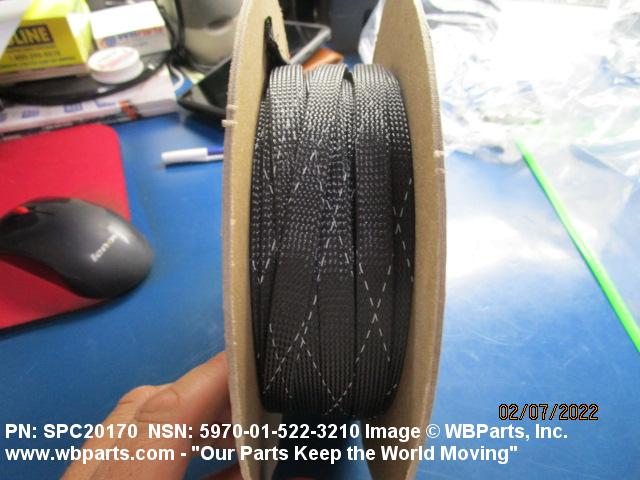

Drawings & Photos | NSN 5970-01-522-3210

Part Number	Request Date	QTY	Origin
5970-01-522-3210	2022-05-123	105	US
5970-01-522-3210	2022-05-123	158	US
5970-01-522-3210	2022-05-123	210	US
SPC20170	2022-04-102	204	DIBBS
5970-01-522-3210	2022-01-06	2	United States
SPC5156	2022-01-06	200	United States
SPC20170	2021-06-160	42	DIBBS
SPC5156	2020-08-244	92	US
SPC5156	2020-08-244	92	US
SPC20170	2019-11-317	142	DIBBS
5970-01-522-3210	2017-05-129	16	DIBBS
5970-01-522-3210	2013-03-78	55	DIBBS
5970-01-522-3210	2011-10-276	0	DIBBS
5970-01-522-3210	2010-05-150	76	DIBBS

Cross Reference | NSN 5970-01-522-3210

Part Number	Cage Code	Manufacturer
SPC20170	63590	SPC TECHNOLOGY - NEWARK
SPC5156	63590	SPC TECHNOLOGY - NEWARK

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5970-01-522-3210

Compare

Related Products | NSN 5970-01-522-3210

5970-01-522-3408, 5970-01-522-3680, 5970-01-522-3681, 5970-01-522-3682, 5970-01-522-3845

Technical Data | NSN 5970-01-522-3210

Characteristic	Specifications
STYLE DESIGNATOR	A2 NONSHRINKABLE
WALL THICKNESS	0.034 INCHES MINIMUM AND 0.038 INCHES MAXIMUM
INSIDE DIAMETER	0.375 INCHES NOMINAL AND 0.188 INCHES MINIMUM
OVERALL LENGTH	100.000 FEET NOMINAL
MATERIAL	ANY ACCEPTABLE
DESIGN FORM	FULL ROUND
COLOR	BLACK AND WHITE
FLEXIBILITY	FLEXIBLE
TEMP RATING	250.0 DEG CELSIUS
ENVIRONMENTAL PROTECTION	FLAME RESISTANT AND HYDRAULIC FLUID AND MILDEW RESISTANT AND WATER RESISTANT AND JET FUEL RESISTANT AND SOLVENT RESISTANT AND OIL RESISTANT
RELIABILITY INDICATOR	NOT ESTABLISHED
SPECIAL FEATURES	FRAY RESISTANT; BLACK WITH WHITE TRACER
III END ITEM IDENTIFICATION	GAGES
III PART NAME ASSIGNED BY CONTROLLING AGENCY	FLAME RETARDANT, FRAY RESISTANT EXPANDABLE SLEEVING

Restrictions/Controls & Freight Information | NSN 5970-01-522-3210

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Electro-static Discharge Susceptible:	A	No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	103300	INSULATING MATERIAL NOI
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	72D	unknown
Originating Activity Code	CX	Defense Supply Center Richmond Richmond, VA 23297-5000
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5970-01-522-3210

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q SP : Strip

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q SP : Strip
