NSN 5970-01-176-6892 M23053/16-003-0, M23053160030, AMS-DTL-23053/16

Product Details | ELECTRICAL INSULATION SLEEVING

5970-01-176-6892 A rigid or flexible tubing having uniform inside and outside diameters in the overall length. It is specifically designed to prevent any undesirable flow of current between conductors and other objects. Includes shrinkable type tubing, items in bulk and in specific fabricated lengths (cut to size). Excludes items not having rated electrical characteristics. Also excludes BUSHING, SLEEVE; CABLE NIPPLE, ELECTRICAL; CONDUIT (as modified); INSULATION SLEEVING, ELECTRICAL, SPECIAL PURPOSE; INSULATION SLEEVING, THERMAL; SLEEVE, MARKER, CABLE; SLEEVING, TEXTILE, ELECTRICAL; TUBING, GLASS; and TUBING, NONMETALLIC.

Part Alternates: M23053/16-003-0, M23053160030, AMS-DTL-23053/16, AMSDTL2305316, DR25 1-2BLACK, DR-25-1/2-0-SP, DR25-1/2-NOIR, DR2512, DR25-1-2, DR25120SP, DR2512BLACK, DR2512NOIR, MIL-I-23053/16, MILI2305316, 5L.2743.001.86, 5L274300186, 99116510, 0195511B00, 1/2 DR-25-0 , 10121084 , 12DR250, 560 90 30 694 11, 560903069411, 007381, 5970-01-176-6892, 01-176-6892, 5970011766892, 011766892

Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	15 APR 1984	01-176-6892	00867 ( INSULATION SLEEVING, ELECTRICAL )

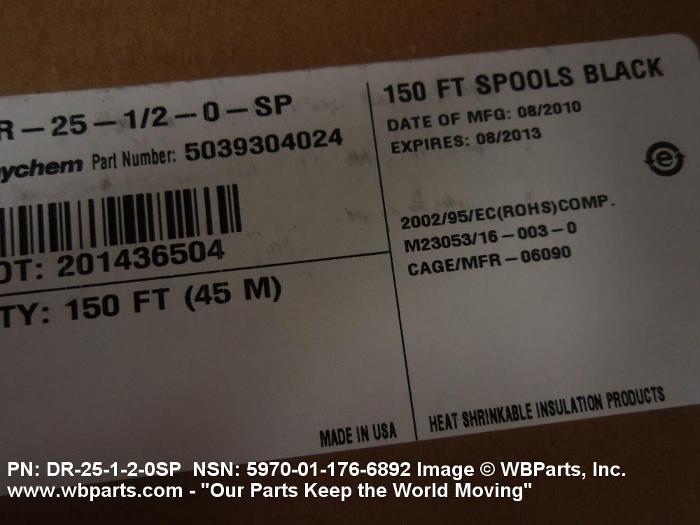

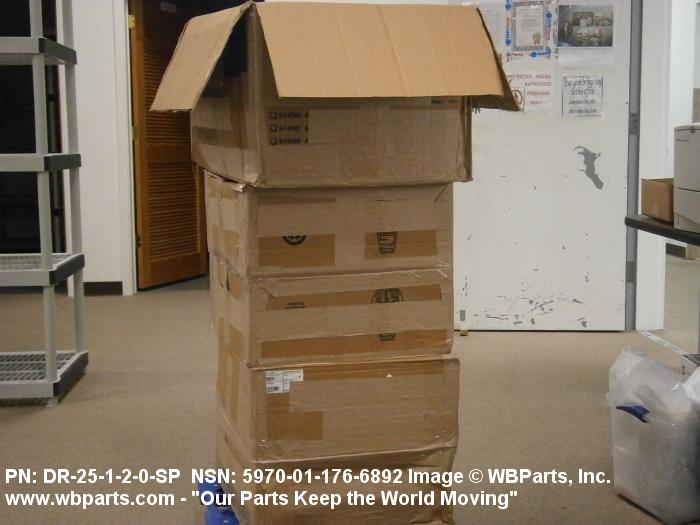

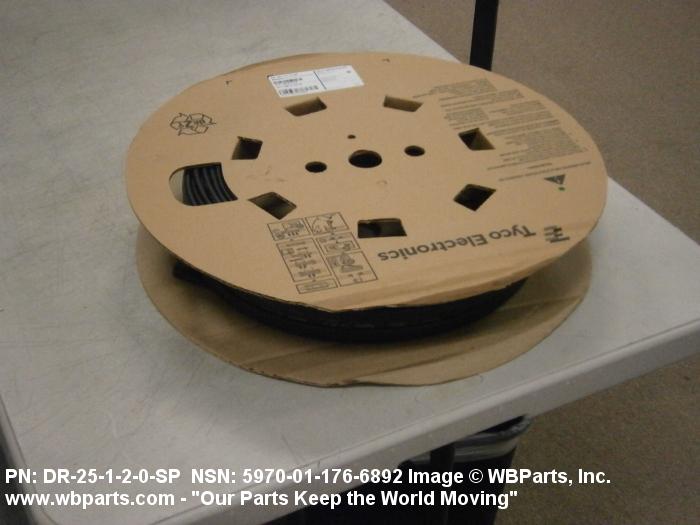

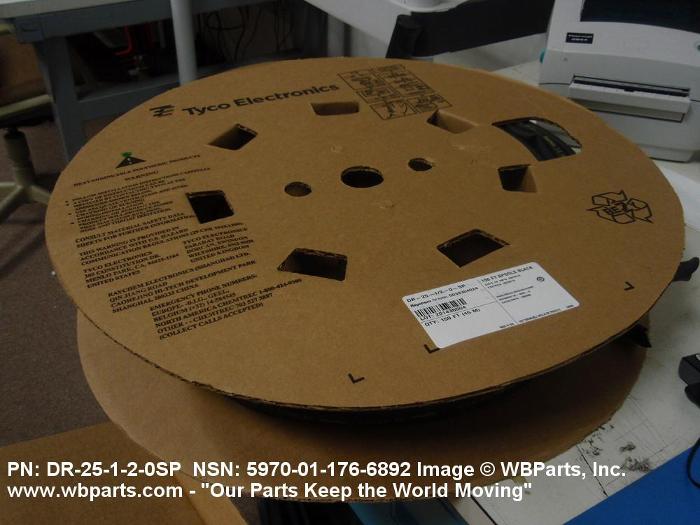

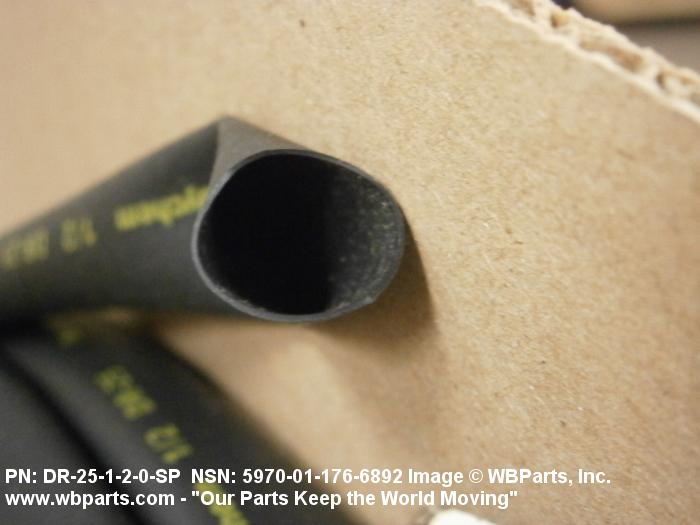

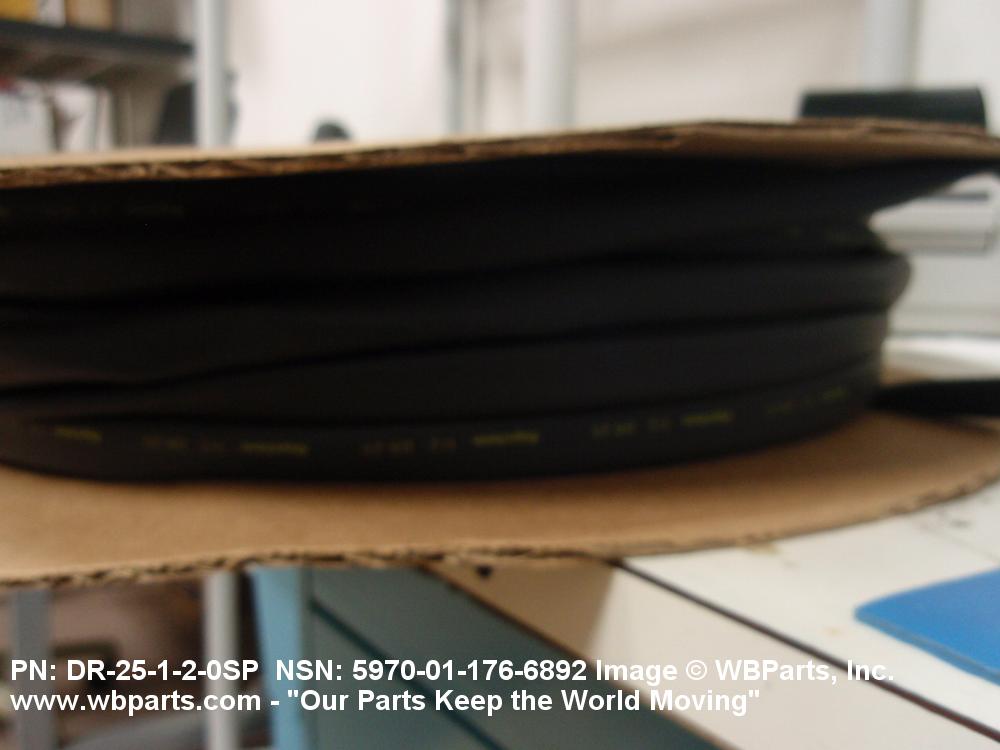

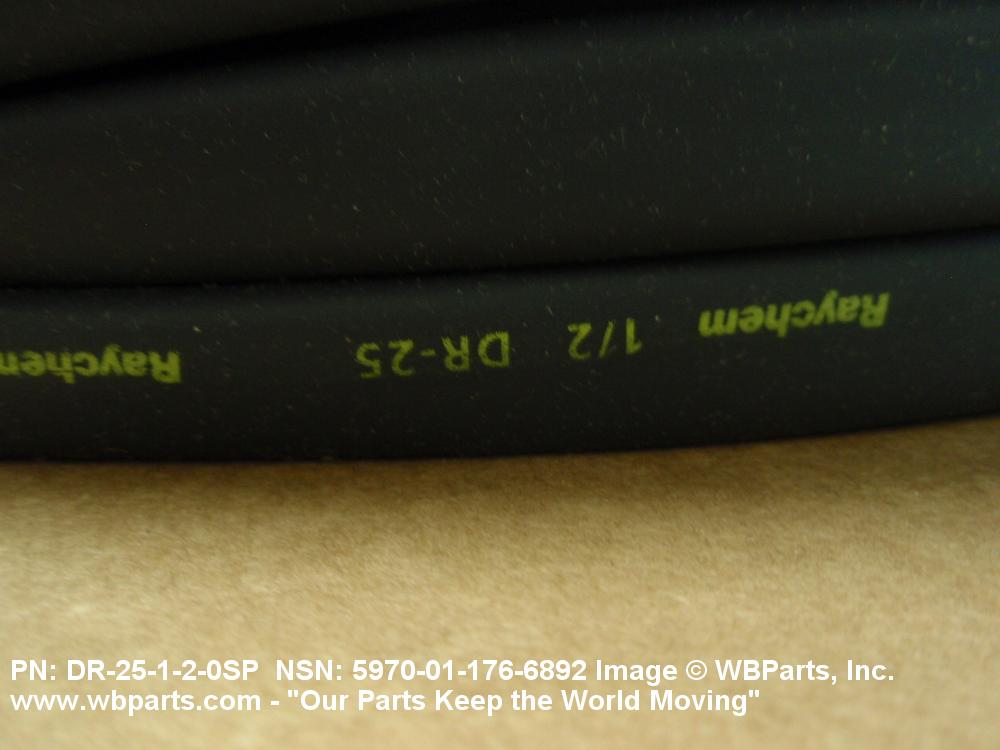

Drawings & Photos | NSN 5970-01-176-6892

Part Number	Request Date	QTY	Origin
5970-01-176-6892	2020-04-93	1	DIBBS-RFPs
5970-01-176-6892	2020-02-54	12851	DIBBS
5970-01-176-6892	2019-06-164	500	DIBBS
M23053160030	2018-01-03	5	United States
5970-01-176-6892	2017-04-94	1	DIBBS-RFPs
5970-01-176-6892	2015-02-34	52899	DIBBS
5970-01-176-6892	2013-07-203	600	Malaysia
5970-01-176-6892	2013-07-203	1000	Malaysia
M23053/16-003-0	2012-02-39	3117	IL
M23053160030	2011-04-102	100	United States
M23053160030	2011-04-102	100	United States
M23053160030	2011-04-98	100	United States
M23053160030	2011-04-98	100	United States
5970-01-176-6892	2010-09-270	2334	DIBBS

Cross Reference | NSN 5970-01-176-6892

Part Number	Cage Code	Manufacturer
007381	59027	MEGGITT DEFENSE SYSTEMS, INC. DBA MEGGITT WESTERN DESIGN
0195511B00	F0555	MBDA FRANCE
1/2 DR-25-0	F6220	RAYCHEM SA
560 90 30 694 11	F8424	MOTOROP BRM INDUSTRIES
5L.2743.001.86	D1901	AIRBUS DEFENCE AND SPACE GMBH DIV SEPS
5L.2743.001.86	D6513	TELEFUNKEN RADIO COMMUNICATIONSYSTEMS GMBH & CO. KG
99116510	F6481	THALES SA
AMS-DTL-23053/16	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
DR-25-1/2-0-SP	06090	TYCO ELECTRONICS CORPORATION
DR-25-1/2-0-SP	F0286	TYCO ELECTRONICS FRANCE SAS
DR25 1-2BLACK	06090	TYCO ELECTRONICS CORPORATION
DR25-1-2	06090	TYCO ELECTRONICS CORPORATION
DR25-1/2-NOIR	F0286	TYCO ELECTRONICS FRANCE SAS
M23053/16-003-0	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
M23053/16-003-0	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-I-23053/16	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5970-01-176-6892

Compare

Related Products | NSN 5970-01-176-6892

5970-01-176-6893, 5970-01-176-8236, 5970-01-176-8319, 5970-01-176-8702, 5970-01-176-8718

Technical Data | NSN 5970-01-176-6892

Characteristic	Specifications
STYLE DESIGNATOR	A1 SHRINKABLE
OVERALL LENGTH	ANY ACCEPTABLE
EXPANDED INSIDE DIAMETER	0.500 INCHES MINIMUM
RECOVERED INSIDE DIAMETER	0.250 INCHES MAXIMUM
RECOVERED WALL THICKNESS	0.048 INCHES NOMINAL
MATERIAL	PLASTIC,POLYOLEFIN,MIL-I-23053/16
COLOR	BLACK
FLEXIBILITY	FLEXIBLE
HEAT SHRINKAGE RATING IN PERCENT	50.0
TEMP RATING	-75.0 DEG CELSIUS AND 120.0 DEG CELSIUS
MINIMUM TENSILE STRENGTH	1700 POUNDS PER SQUARE INCH
DIELECTRIC MATERIAL VOLTAGE RATING PER UNIT THICKNESS	300.0 VOLTS PER MIL /0.001 INCH/
ENVIRONMENTAL PROTECTION	CORROSION RESISTANT AND MILDEW RESISTANT
RELIABILITY INDICATOR	NOT ESTABLISHED

Restrictions/Controls & Freight Information | NSN 5970-01-176-6892

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	6	24 months
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	103300	INSULATING MATERIAL NOI
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	72D	unknown
Originating Activity Code	CX	Defense Supply Center Richmond Richmond, VA 23297-5000
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5970-01-176-6892

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	6	24 months
Purchasing	QTY UOM	Q FT : Foot

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	6	24 months
Purchasing	QTY UOM	Q FT : Foot

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	6	24 months
Purchasing	QTY UOM	Q FT : Foot

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	6	24 months
Purchasing	QTY UOM	Q FT : Foot
