NSN 5970-01-142-2903 135402, 135-40-2, 20554390701
Product Details | FEEDTHRU INSULATOR
5970-01-142-2903 An insulator which is specifically designed to provide for the passage of electrical conductors through such items as panels, bulkheads, walls, and the like. It consists of two or more insulators, including one or more studs fed through the items in such a way as to be used as conductors. The studs may be used for mounting. See also INSULATOR, BOWL; and TERMINAL, FEEDTHRU, INSULATED.
Part Alternates: 135402, 135-40-2, 20554390701, 2055439-0701, 9541, 5970-01-142-2903, 01-142-2903, 5970011422903, 011422903
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 14 NOV 1982 | 01-142-2903 | 18284 ( INSULATOR, FEEDTHRU ) |

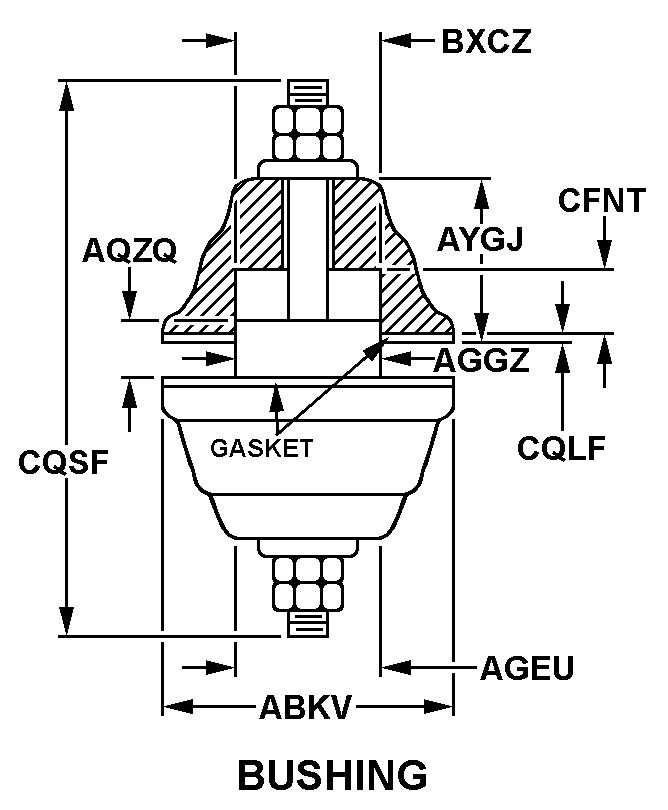

Drawings & Photos | NSN 5970-01-142-2903
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5970-01-142-2903
Technical Data | NSN 5970-01-142-2903
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | F20 BUSHING |
| OUTSIDE DIAMETER | 0.940 INCHES NOMINAL |
| BASE DIAMETER | 0.590 INCHES NOMINAL |
| SHANK OUTSIDE DIAMETER | ANY ACCEPTABLE |
| SHANK HEIGHT | ANY ACCEPTABLE |
| HEIGHT ABOVE MOUNTING SURFACE | 0.500 INCHES NOMINAL |
| FIRST COUNTERBORE DIAMETER | 0.530 INCHES NOMINAL |
| FIRST COUNTERBORE DEPTH | ANY ACCEPTABLE |
| GASKET THICKNESS | 0.020 INCHES NOMINAL |
| CENTER STUD LENGTH | 2.590 INCHES NOMINAL |
| MATERIAL AND LOCATION | OVERALL BRASS, QQ-B-626, COMP 22 AND OVERALL INSULATION, ELECTRICAL, MIL-I-10 |
| SURFACE TREATMENT AND LOCATION | OVERALL NICKEL PLATED |
| SPECIAL FEATURES | ONE END ACCOMMODATES ONLY ONE NUT |
| III FURNISHED ITEMS AND QUANTITY | 1 TERMINAL LUG |
| MANUFACTURERS CODE | 91967 |
| DESIGN CONTROL REFERENCE | 9541 |
