NSN 5970-01-123-4966 M38527/08-043P, M38527/8-43P, M3852708043P
Product Details | DISK INSULATOR
5970-01-123-4966 An insulator that is essentially thin, flat, and round in shape, with or without holes. The general shape may vary by the addition of such features as beveled edges, indented surfaces, through-hole key and/or peripheral flats. It may have one or more holes off center; if there are two or more holes, one may be centrally located. Excludes MOUNTING PAD, ELECTRICAL-ELECTRONIC COMPONENT.
Part Alternates: M38527/08-043P, M38527/8-43P, M3852708043P, M38527843P, M49466/01-053P, M4946601053P, MIL-I-49466/01, MILI4946601, MIL-M-38527/8, MILM385278, G1346752, G134675-2, 10134122 , 43-18-1-5 MIL, 431815MIL, 5970-01-123-4966, 01-123-4966, 5970011234966, 011234966
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 13 DEC 1981 | 01-123-4966 | 18295 ( INSULATOR, DISK ) |

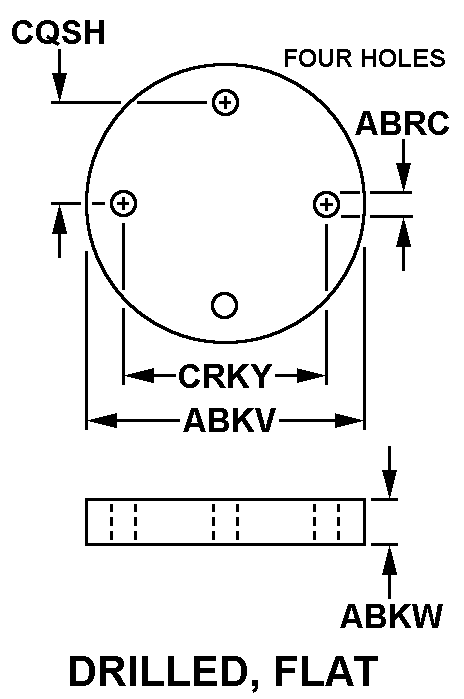

Drawings & Photos | NSN 5970-01-123-4966
Cross Reference | NSN 5970-01-123-4966
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 43-18-1-5 MIL | 13103 | THERMALLOY CO INC |
| 43-18-1-5 MIL | 54355 | ACCESSORIES FOR ELECTRONICS INC DBA AFE |
| G134675-2 | 3B150 | RAYTHEON TECHNICAL SERVICES COMPANY LLC |
| G134675-2 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
| M38527/08-043P | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M38527/8-43P | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M49466/01-053P | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-I-49466/01 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-M-38527/8 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
