Product Details | PLATE INSULATOR
5970-01-123-4971 An insulator having flat surfaces, with or without holes, whose thickness does not exceed 25 percent of its length or width, whichever is smaller, and whose shape is other than round. Excludes INSULATOR (1), SPACER; INSULATOR (1), WASHER; MOUNTING PAD, ELECTRICAL-ELECTRONIC COMPONENT; PLATE, ELECTRICAL SHIELD; and TERMINAL BOARD.
Part Alternates: 1021023105, 10-21-023-105, 342-0311-00, 5970-01-123-4971, 01-123-4971, 5970011234971, 011234971, 342031100
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 13 DEC 1981 | 01-123-4971 | 18296 ( INSULATOR, PLATE ) |
Drawings & Photos | NSN 5970-01-123-4971
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5970-01-123-4971
Technical Data | NSN 5970-01-123-4971
| Characteristic | Specifications |
|---|---|

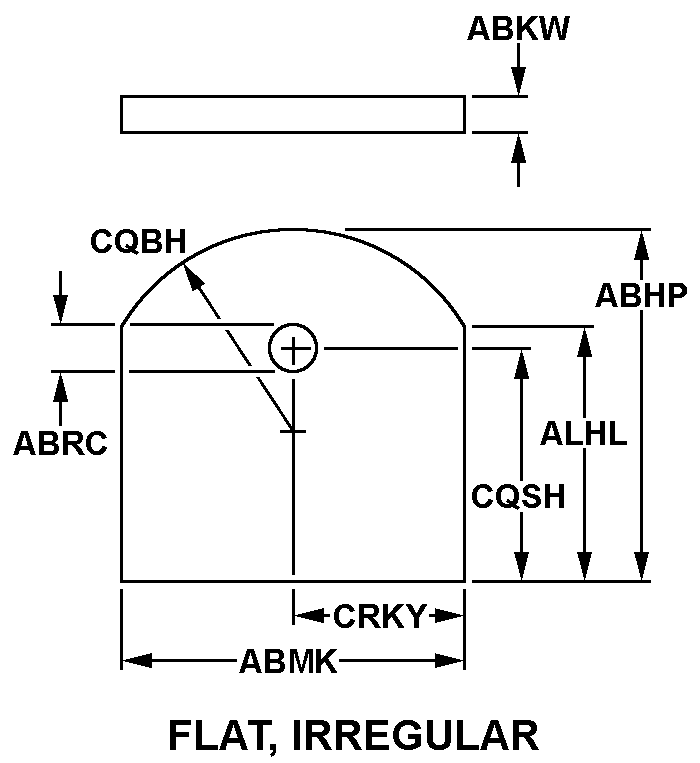

| STYLE DESIGNATOR | K35 FLAT, IRREGULAR |
| OVERALL LENGTH | 0.860 INCHES NOMINAL |
| OVERALL HEIGHT | 0.002 INCHES NOMINAL |
| OVERALL WIDTH | 0.660 INCHES NOMINAL |
| FIRST HOLE DIAMETER | 0.143 INCHES NOMINAL |
| SIDE LENGTH | 0.600 INCHES NOMINAL |
| FIRST END RADIUS | 0.210 INCHES NOMINAL |
| FIRST HOLE SPACING | 0.650 INCHES NOMINAL |
| SECOND HOLE SPACING | 0.330 INCHES NOMINAL |
| MATERIAL AND LOCATION | OVERALL MICA |
| MANUFACTURERS CODE | 01295 |
| DESIGN CONTROL REFERENCE | 10-21-023-105 |
