NSN 5970-01-106-9664 M23594TYICL1-.50, M23594TYICL150, AA59474
Product Details | ELECTRICAL INSULATION TAPE
5970-01-106-9664 A narrow strip of woven or processed material less than twelve inches (304.8 mm) in width. It is specifically designed to prevent any undesirable flow of current between conductors and other objects. The item tends to resist any physical change, in contrast to an insulating compound in tape form which will fuse under a specified heat or pressure. It may or may not have adhesive backing. Excludes items not having definite rated electrical characteristics, such as TAPE, ADHESIVE, RUBBER; TAPE, PRESSURE SENSITIVE ADHESIVE; TAPE, SEMI-CONDUCTING, ELECTRICAL; and TAPE, SHIELDING, ELECTRICAL. See also INSULATION CLOTH, ELECTRICAL and INSULATING COMPOUND, ELECTRICAL.
Part Alternates: M23594TYICL1-.50, M23594TYICL150, AA59474, A-A-59474, MILI23594, MIL-I-23594, 60 1/2IN, 6012IN, 60847471, 6084747-1, 5970-01-106-9664, 01-106-9664, 5970011069664, 011069664
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 28 JAN 1981 | 01-106-9664 | 33476 ( TAPE, INSULATION, ELECTRICAL ) |

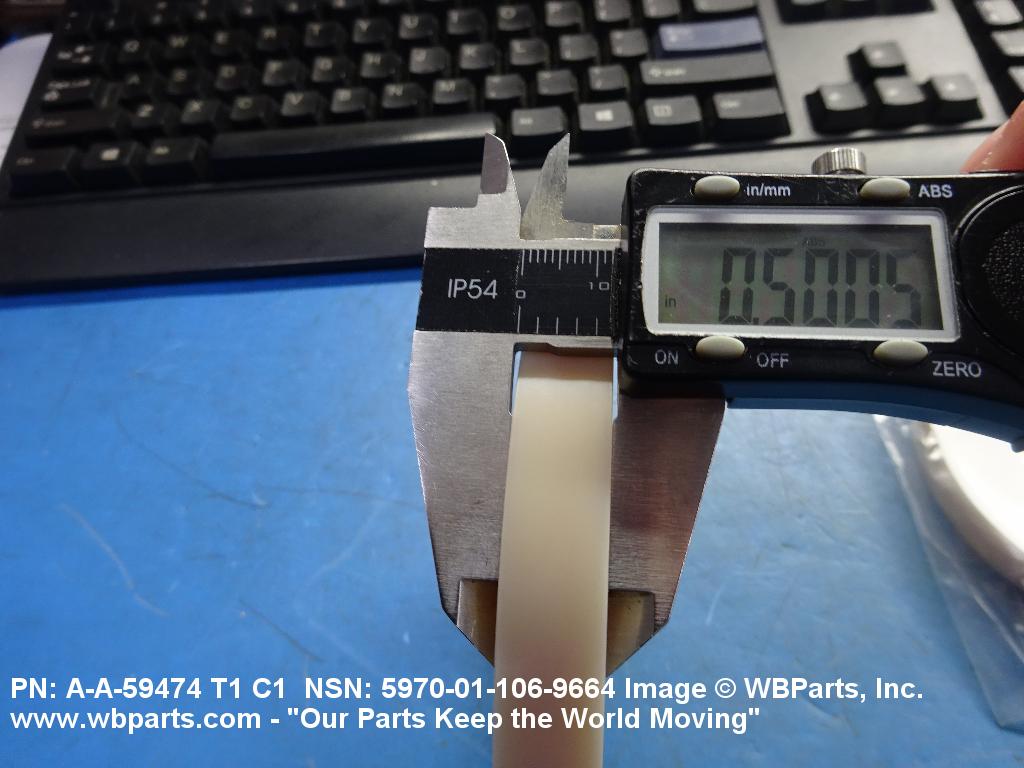

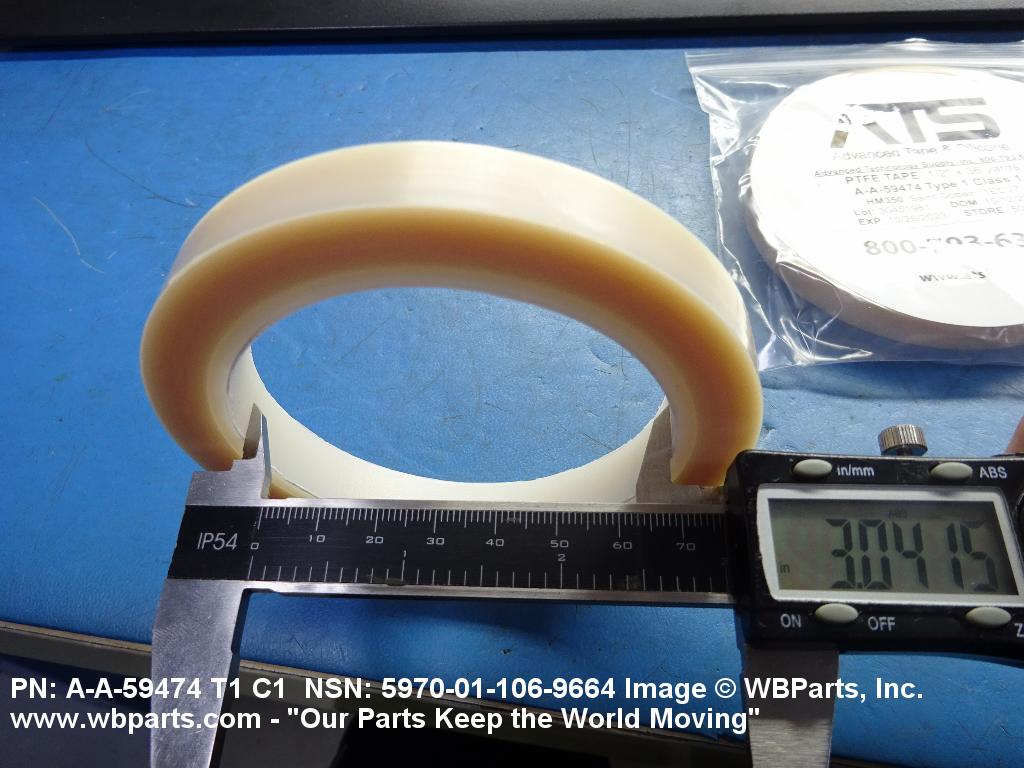

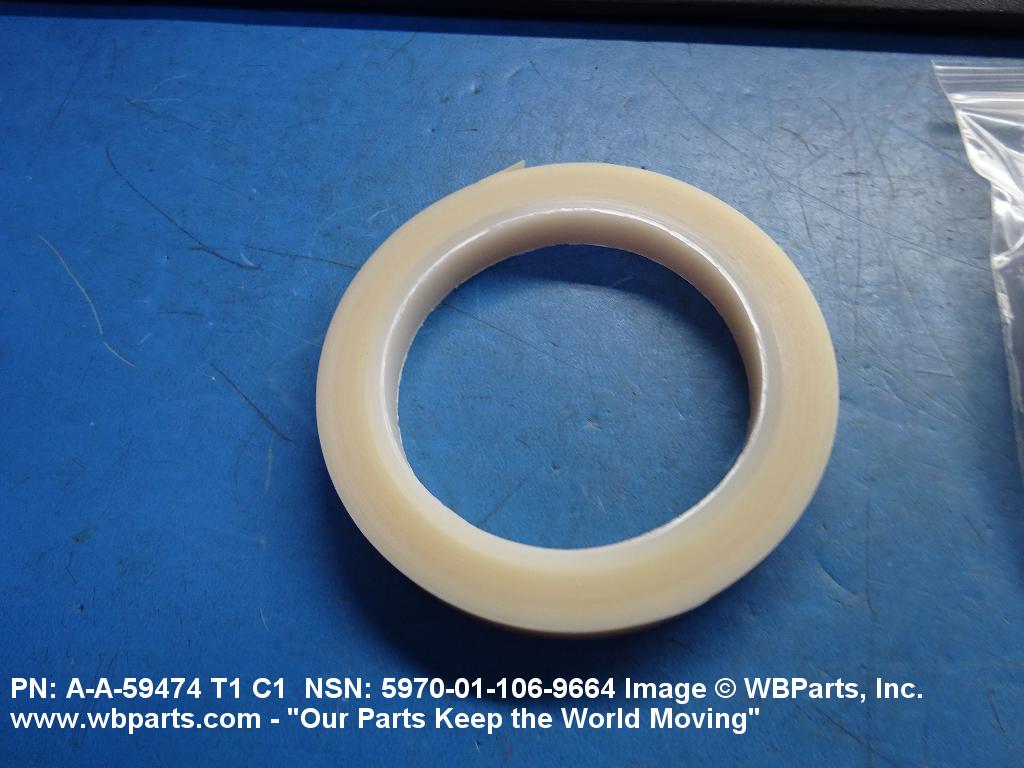

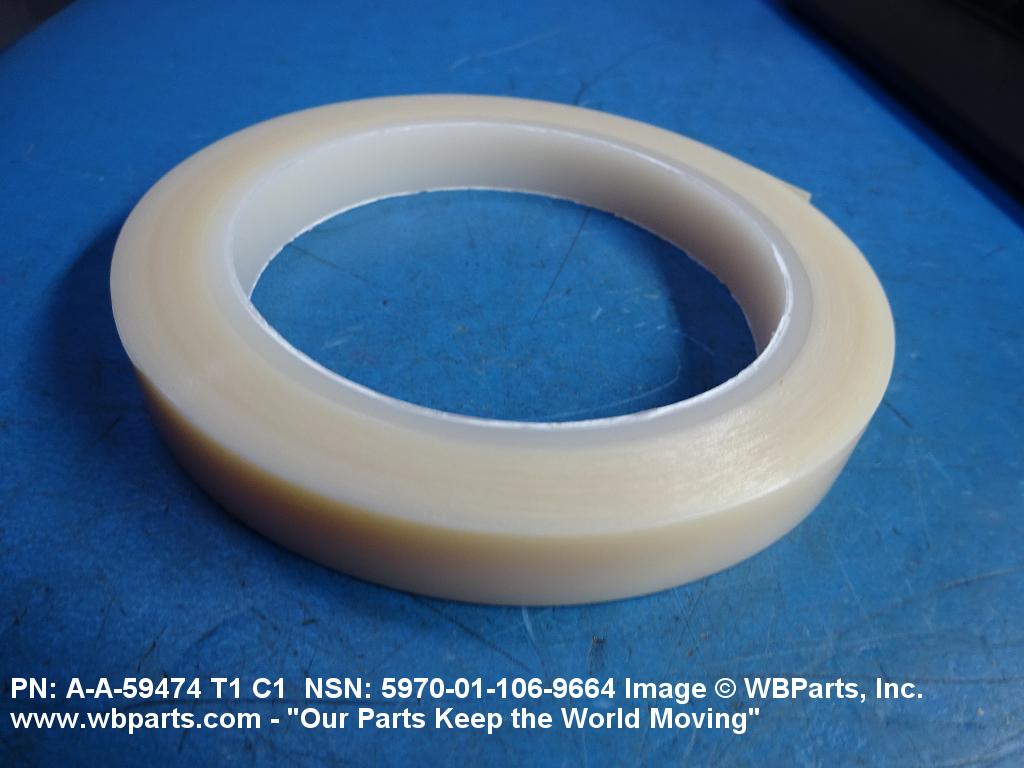

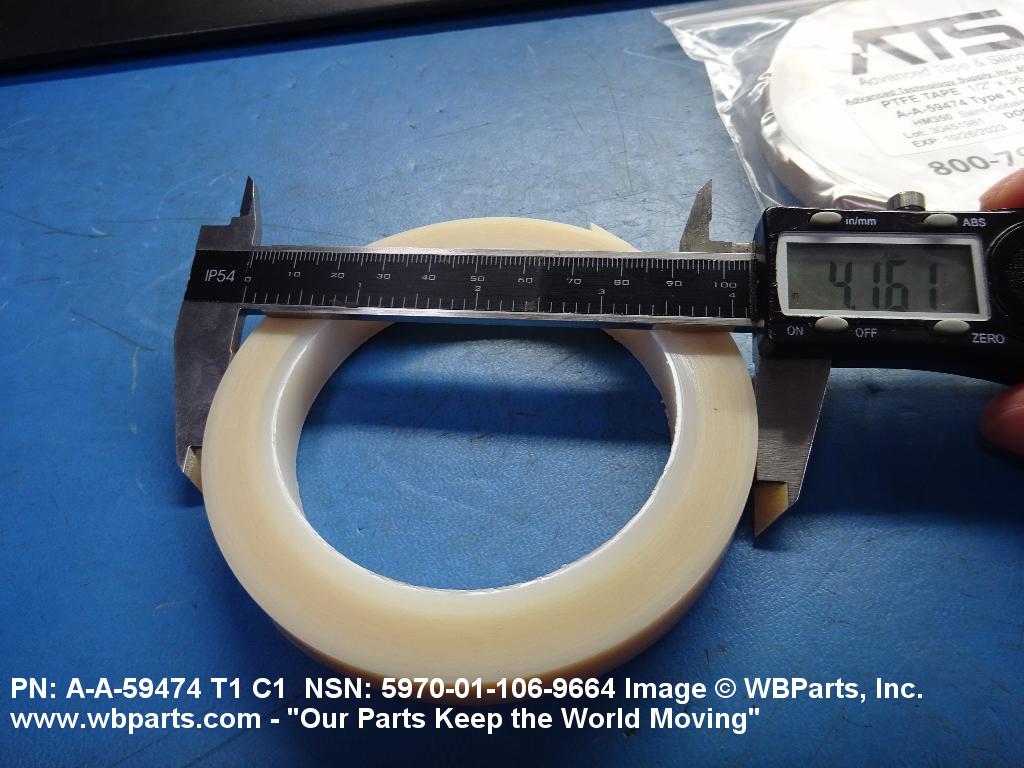

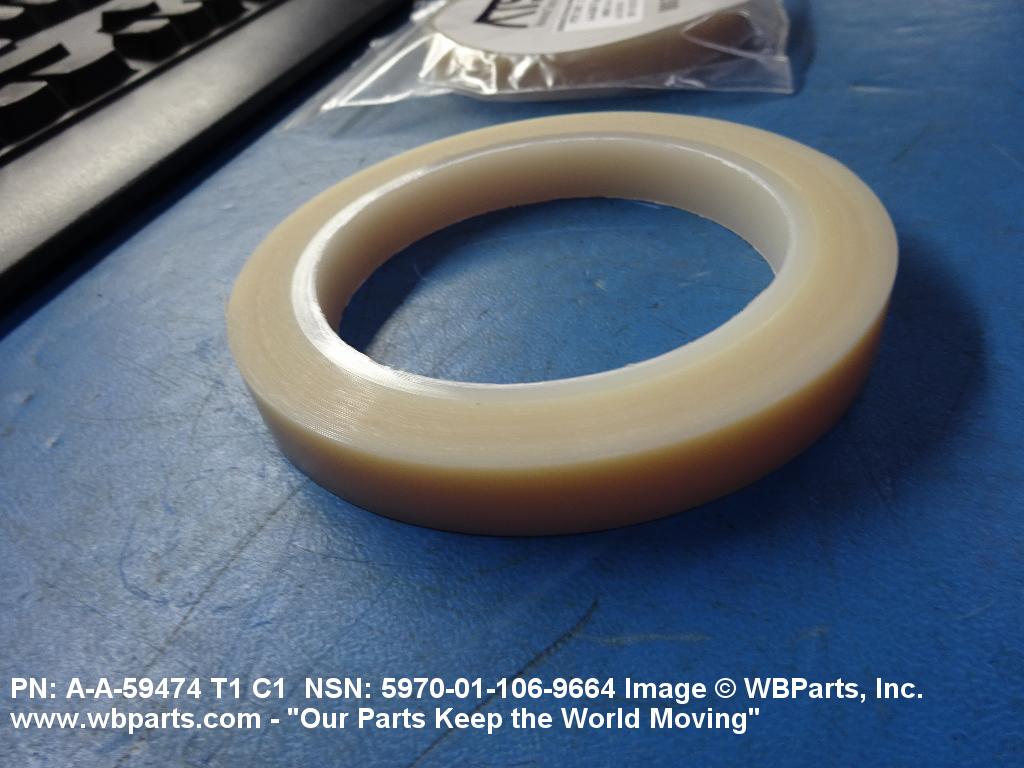

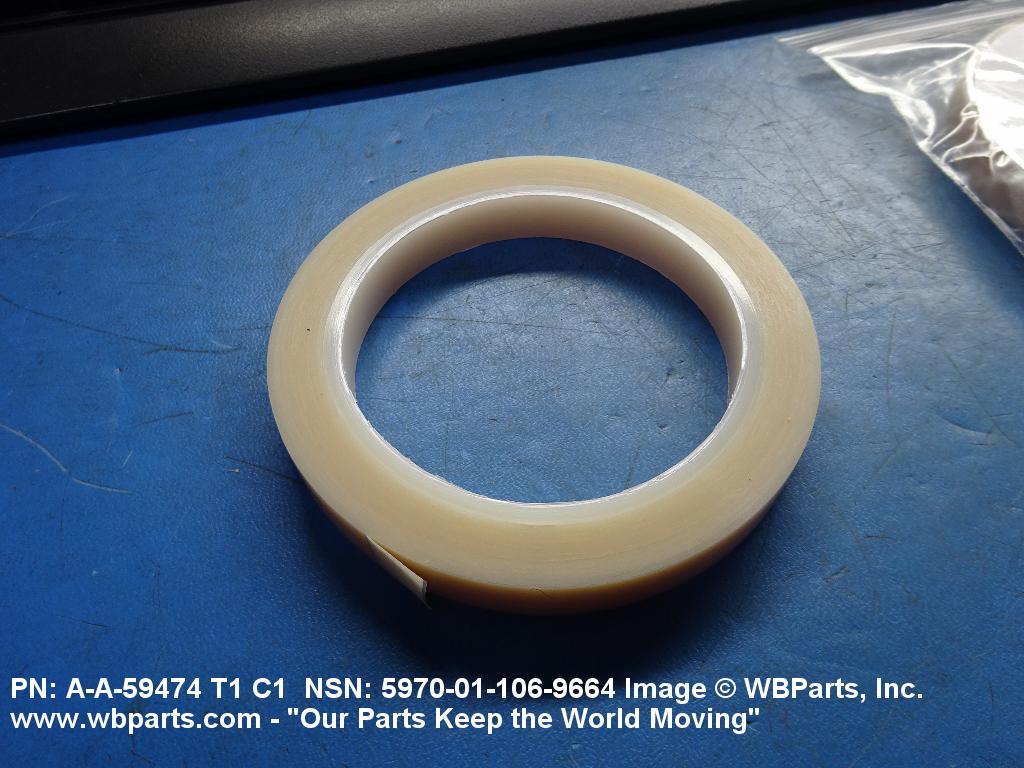

Drawings & Photos | NSN 5970-01-106-9664
Demand History | NSN 5970-01-106-9664
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AA59474 | 2024-10-288 | 2 | US |
| AA59474 | 2024-08-234 | 2 | us |
| MILI23594 | 2024-06-177 | 5 | United States |
| 5970-01-106-9664 | 2022-12-356 | 2 | US |
| 5970-01-106-9664 | 2022-12-340 | 1 | United States |
| 5970-01-106-9664 | 2022-12-335 | 4 | United States |
| 5970-01-106-9664 | 2022-11-329 | 4 | United States |
| AA59474 | 2022-02-52 | 1 | United States |
| AA59474 | 2020-01-23 | 1 | United States |
| AA59474 | 2019-09-254 | 2 | United States |
| 5970-01-106-9664 | 2019-09-251 | 128 | DIBBS |
| 5970-01-106-9664 | 2019-03-88 | 1 | DIBBS-RFPs |
| 5970-01-106-9664 | 2018-11-310 | 180 | DIBBS |
| MILI23594 | 2018-06-176 | 7 | IN |
| 5970-01-106-9664 | 2018-01-15 | 91 | DIBBS |
| 5970-01-106-9664 | 2017-11-311 | 104 | DIBBS |
| AA59474 | 2016-09-250 | 1 | United Kingdom |
| 5970-01-106-9664 | 2016-08-216 | 145 | DIBBS |
| 5970-01-106-9664 | 2016-05-143 | 73 | DIBBS |
| 5970-01-106-9664 | 2016-05-130 | 91 | DIBBS |
| AA59474 | 2016-01-22 | 1515 | United States |
| MILI23594 | 2015-08-236 | 50 | India |
| A-A-59474 | 2015-06-174 | 3 | Greece |
| AA59474 | 2015-05-142 | 3 | US |
| 5970-01-106-9664 | 2014-11-323 | 1 | US |
| MILI23594 | 2014-07-188 | 25 | India |
| AA59474 | 2014-05-147 | 2 | United States |
| AA59474 | 2014-03-70 | 32 | US |
| MIL-I-23594 | 2013-07-190 | 5 | HK |
| 5970-01-106-9664 | 2013-06-163 | 461 | DIBBS |
| AA59474 | 2012-09-257 | 1 | US |
| AA59474 | 2012-05-138 | 24 | US |
| 5970-01-106-9664 | 2012-04-117 | 148 | DIBBS |
| AA59474 | 2012-01-23 | 4 | United States |
| 5970-01-106-9664 | 2011-03-81 | 68 | DIBBS |
| AA59474 | 2011-03-75 | 1 | Canada |
| 5970-01-106-9664 | 2010-11-330 | 60 | DIBBS |
| 5970-01-106-9664 | 2010-10-291 | 78 | DIBBS |
| 5970-01-106-9664 | 2010-08-242 | 60 | DIBBS |
Cross Reference | NSN 5970-01-106-9664
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 60 1/2IN | 20999 | 3M CO ADMININISTRATIVE ELECTRONIC & COMMUNICATIONS |
| 60 1/2IN | 55387 | PAMTECH INC |
| 60 1/2IN | 75037 | MINNESOTA MINING AND MFG CO 3M COMPANY |
| 60 1/2IN | 7V059 | MINNESOTA MINING AND MFG CO |
| 6084747-1 | 03640 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| A-A-59474 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| M23594TYICL1-.50 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-I-23594 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5970-01-106-9664
Related Products | NSN 5970-01-106-9664
Technical Data | NSN 5970-01-106-9664
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC POLYTETRAFLUOROETHYLENE OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-I-23594,TYPE 1,CLASS 1 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| COLOR | UNPIGMENTED OVERALL |
| NOMINAL LENGTH | 150.0 FEET |
| NOMINAL WIDTH | 0.500 INCHES |
| MINIMUM TENSILE STRENGTH | 7 POUNDS PER SQUARE INCH |
| CUT TYPE AND QUANTITY | 1 SINGLE |
| NOMINAL OVERALL THICKNESS | 0.0020 INCHES |
| ADHESIVE TYPE | PRESSURE SENSITIVE |
| ADHESIVE LOCATION | ONE SIDE |
| TEMP RATING | 260.0 DEG CELSIUS NOMINAL |
| DIELECTRIC WITHSTANDING VOLTAGE IN VOLTS | 4200.0 |
| DIELECTRIC MATERIAL VOLTAGE RATING PER MIL THICKNESS IN VOLTS | NOT RATED |
| DIELECTRIC MATERIAL VOLTAGE RATING PER MILLIMETER THICKNESS IN KILOVOLTS | NOT RATED |
| NONDEFINITIVE SPEC/STD DATA | 1 CLASS AND 1 TYPE |
| DEPARTURE FROM CITED DESIGNATOR | AS MODIFIED BY LG |
| MANUFACTURERS CODE | 58536 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | A-A-59474 |
Restrictions/Controls & Freight Information | NSN 5970-01-106-9664
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 4 | 12 months |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 049680 | CLOTH R TAPE INSULATING |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5970-01-106-9664
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 4 | 12 months |
| Purchasing | QTY UOM |
1 RO : Roll |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 4 | 12 months |
| Purchasing | QTY UOM |
1 RO : Roll |
