NSN 5970-01-077-0695 13000542, 130-005-4-2, 01-077-0695
Product Details | ELECTRICAL INSULATION SLEEVING
5970-01-077-0695 A rigid or flexible tubing having uniform inside and outside diameters in the overall length. It is specifically designed to prevent any undesirable flow of current between conductors and other objects. Includes shrinkable type tubing, items in bulk and in specific fabricated lengths (cut to size). Excludes items not having rated electrical characteristics. Also excludes BUSHING, SLEEVE; CABLE NIPPLE, ELECTRICAL; CONDUIT (as modified); INSULATION SLEEVING, ELECTRICAL, SPECIAL PURPOSE; INSULATION SLEEVING, THERMAL; SLEEVE, MARKER, CABLE; SLEEVING, TEXTILE, ELECTRICAL; TUBING, GLASS; and TUBING, NONMETALLIC.
Part Alternates: 13000542, 130-005-4-2, 5970-01-077-0695, 01-077-0695, 5970010770695, 010770695
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 18 MAY 1979 | 01-077-0695 | 00867 ( INSULATION SLEEVING, ELECTRICAL ) |

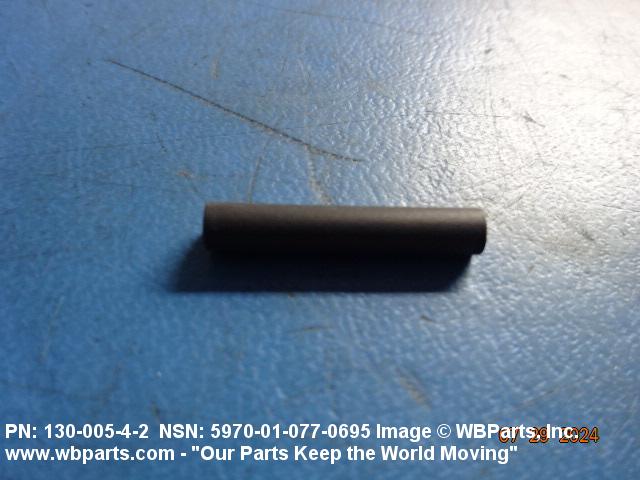

Drawings & Photos | NSN 5970-01-077-0695
Demand History | NSN 5970-01-077-0695
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5970-01-077-0695 | 2024-07-199 | 8 | United States |
| 5970-01-077-0695 | 2024-07-197 | 8 | United States |
| 5970-01-077-0695 | 2024-07-192 | 8 | United States |
| 13000542 | 2021-04-112 | 924 | United States |
| 13000542 | 2018-08-243 | 193 | US |
Cross Reference | NSN 5970-01-077-0695
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 130-005-4-2 | 97499 | BELL HELICOPTER TEXTRON INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5970-01-077-0695
Technical Data | NSN 5970-01-077-0695
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A1 SHRINKABLE |
| OVERALL LENGTH | 1.000 INCHES NOMINAL |
| EXPANDED INSIDE DIAMETER | 0.125 INCHES NOMINAL |
| RECOVERED INSIDE DIAMETER | 0.062 INCHES NOMINAL |
| RECOVERED WALL THICKNESS | 0.020 INCHES NOMINAL |
| MATERIAL | PLASTIC, POLYOLEFIN |
| COLOR | BLACK |
| FLEXIBILITY | FLEXIBLE |
Restrictions/Controls & Freight Information | NSN 5970-01-077-0695
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 103300 | INSULATING MATERIAL NOI |
| Less than car load rating | W | Rating Variable |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | ZG | Germany ZH ZJ |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
