NSN 5970-01-073-1017 5M388T28H, 01-073-1017, 010731017
Product Details | ELECTRICAL INSULATION SLEEVING
5970-01-073-1017 A rigid or flexible tubing having uniform inside and outside diameters in the overall length. It is specifically designed to prevent any undesirable flow of current between conductors and other objects. Includes shrinkable type tubing, items in bulk and in specific fabricated lengths (cut to size). Excludes items not having rated electrical characteristics. Also excludes BUSHING, SLEEVE; CABLE NIPPLE, ELECTRICAL; CONDUIT (as modified); INSULATION SLEEVING, ELECTRICAL, SPECIAL PURPOSE; INSULATION SLEEVING, THERMAL; SLEEVE, MARKER, CABLE; SLEEVING, TEXTILE, ELECTRICAL; TUBING, GLASS; and TUBING, NONMETALLIC.
Part Alternates: 5M388T28H, 5970-01-073-1017, 01-073-1017, 5970010731017, 010731017
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01-073-1017 | 00867 ( INSULATION SLEEVING, ELECTRICAL ) |

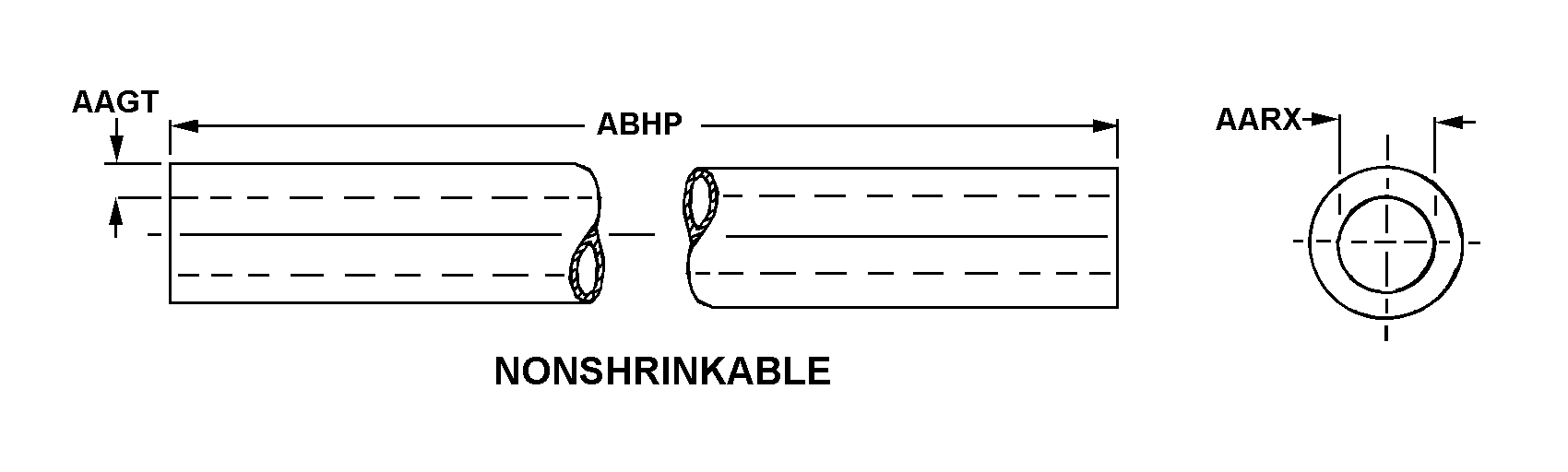

Drawings & Photos | NSN 5970-01-073-1017
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5970-01-073-1017
Technical Data | NSN 5970-01-073-1017
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A2 NONSHRINKABLE |
| WALL THICKNESS | 0.020 INCHES MINIMUM AND 0.030 INCHES MAXIMUM |
| INSIDE DIAMETER | 0.375 INCHES MINIMUM AND 0.399 INCHES MAXIMUM |
| OVERALL LENGTH | 1000.000 FEET NOMINAL |
| MATERIAL | PLASTIC, POLYTETRAFLUOROETHYLENE, MIL-I-22129 |
| COLOR | NATURAL |
| FLEXIBILITY | FLEXIBLE |
| TEMP RATING | -73.3 DEG CELSIUS AND 260.0 DEG CELSIUS |
| DIELECTRIC WITHSTANDING VOLTAGE IN VOLTS | 17000.0 |
| ENVIRONMENTAL PROTECTION | ANY ACCEPTABLE |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
| SPECIAL FEATURES | TWO 0.125 IN. DIA DRAIN HOLES,DIAMETRICALLY OPPOSITE,SPACED EVERY SIX INCHES |
| MANUFACTURERS CODE | 76301 |
| DESIGN CONTROL REFERENCE | 5M388T28H |
Restrictions/Controls & Freight Information | NSN 5970-01-073-1017
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
