NSN 5970-01-072-3250 10145292 , 639AS767, 639AS767A

Product Details | PINCAP INSULATOR

5970-01-072-3250 An insulator having an integral provision for rigidly assembling one upon the other for the purpose of extending its insulating range.

Part Alternates: 10145292 , 639AS767, 639AS767A, 5970-01-072-3250, 01-072-3250, 5970010723250, 010723250

Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	28 FEB 1979	01-072-3250	00224 ( INSULATOR, PINCAP )

Drawings & Photos | NSN 5970-01-072-3250

Part Number	Request Date	QTY	Origin
5970-01-072-3250	2019-01-17	745	United States
5970-01-072-3250	2018-12-359	745	DIBBS
5970-01-072-3250	2018-11-331	354	DIBBS
5970-01-072-3250	2018-09-249	391	DIBBS
5970-01-072-3250	2018-04-105	344	DIBBS
5970-01-072-3250	2014-06-152	347	DIBBS
5970-01-072-3250	2013-02-39	353	DIBBS
5970-01-072-3250	2013-01-10	114	DIBBS
5970-01-072-3250	2010-12-340	96	DIBBS
5970-01-072-3250	2010-05-133	176	DIBBS
5970-01-072-3250	2010-04-100	100	DIBBS

Cross Reference | NSN 5970-01-072-3250

Part Number	Cage Code	Manufacturer
639AS767	30003	NAVAL AIR SYSTEMS COMMAND
639AS767A	30003	NAVAL AIR SYSTEMS COMMAND

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5970-01-072-3250

Compare

Related Products | NSN 5970-01-072-3250

5970-01-072-3251, 5970-01-072-4500, 5970-01-072-5050, 5970-01-072-5276, 5970-01-072-5636

Technical Data | NSN 5970-01-072-3250

Characteristic	Specifications

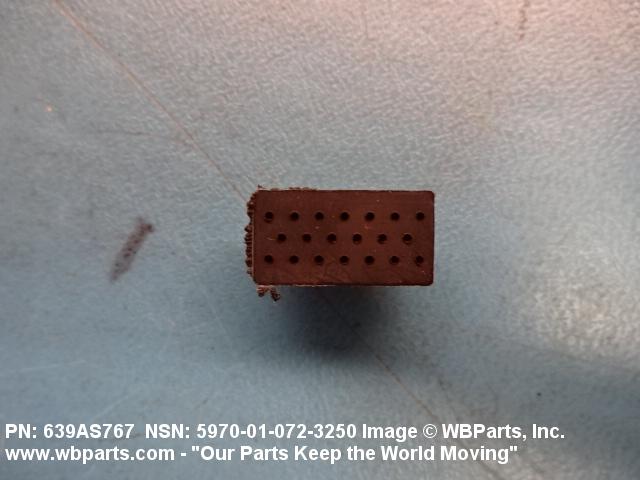

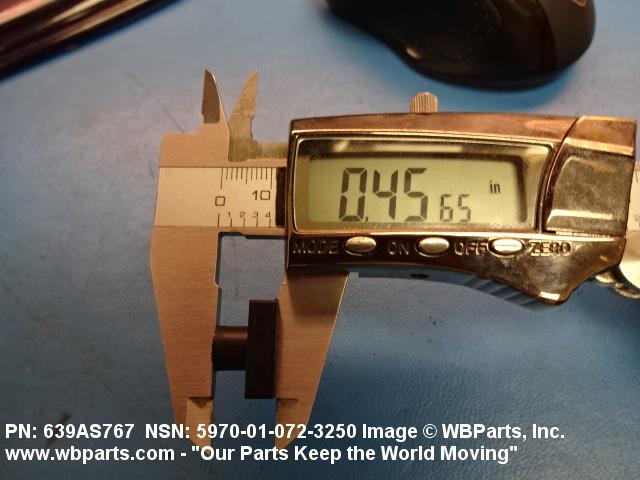

SPECIAL FEATURES	MATERIAL USED IS SILICONE RUBBER;LENGTH IS 0.680 IN.; WIDTH IS 0.380 IN.; DIAMETER OF CENTER BOLT IS 0.320 IN.; DIAMETER OF MOUNTING HOLES IS 0.028AND 0.150 DEEP WITH TWENTY MOUNTING HOLES
MANUFACTURERS CODE	30003
DESIGN CONTROL REFERENCE	639AS767

Restrictions/Controls & Freight Information | NSN 5970-01-072-3250

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	103660	ELECTRIC WIRE OR WIRING
Less than car load rating	T	55
Less than truck load rating	Z	No Rating
Water commodity Code	658	unknown
Originating Activity Code	TG	Warner-Robins Air Logistics Center Robins AFB, GA 31098-5609
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	Z	unknonwn
