Product Details | PLATE INSULATOR
5970-01-072-5050 An insulator having flat surfaces, with or without holes, whose thickness does not exceed 25 percent of its length or width, whichever is smaller, and whose shape is other than round. Excludes INSULATOR (1), SPACER; INSULATOR (1), WASHER; MOUNTING PAD, ELECTRICAL-ELECTRONIC COMPONENT; PLATE, ELECTRICAL SHIELD; and TERMINAL BOARD.
Part Alternates: 91396, 913-96, 5970-01-072-5050, 01-072-5050, 5970010725050, 010725050
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 02 MAR 1979 | 01-072-5050 | 18296 ( INSULATOR, PLATE ) |
Drawings & Photos | NSN 5970-01-072-5050
Cross Reference | NSN 5970-01-072-5050
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 913-96 | 10639 | AVIONICS SPECIALTIES INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5970-01-072-5050
Technical Data | NSN 5970-01-072-5050
| Characteristic | Specifications |
|---|---|

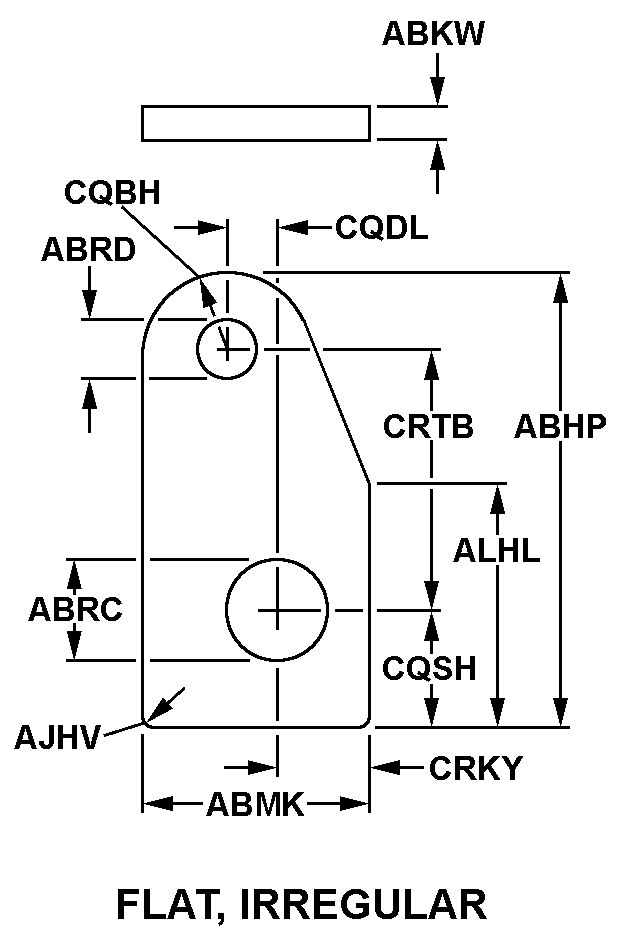

| STYLE DESIGNATOR | K39 FLAT, IRREGULAR |
| OVERALL LENGTH | 1.055 INCHES NOMINAL |
| OVERALL HEIGHT | 0.015 INCHES NOMINAL |
| OVERALL WIDTH | 0.820 INCHES NOMINAL |
| FIRST HOLE DIAMETER | 0.102 INCHES MINIMUM AND 0.107 INCHES MAXIMUM |
| SECOND HOLE DIAMETER | 0.102 INCHES MINIMUM AND 0.107 INCHES MAXIMUM |
| THIRD HOLE SPACING | 0.391 INCHES NOMINAL |
| MATERIAL AND LOCATION | OVERALL SILICONE,GLASS,MIL-P-997,TYPE GSG,CLASS 180 |
| MANUFACTURERS CODE | 10639 |
| DESIGN CONTROL REFERENCE | 913-96 |
