NSN 5970-01-008-4805 MMS809038, MMS809-0-3-8, 01-008-4805
Product Details | ELECTRICAL INSULATION SLEEVING
5970-01-008-4805 A rigid or flexible tubing having uniform inside and outside diameters in the overall length. It is specifically designed to prevent any undesirable flow of current between conductors and other objects. Includes shrinkable type tubing, items in bulk and in specific fabricated lengths (cut to size). Excludes items not having rated electrical characteristics. Also excludes BUSHING, SLEEVE; CABLE NIPPLE, ELECTRICAL; CONDUIT (as modified); INSULATION SLEEVING, ELECTRICAL, SPECIAL PURPOSE; INSULATION SLEEVING, THERMAL; SLEEVE, MARKER, CABLE; SLEEVING, TEXTILE, ELECTRICAL; TUBING, GLASS; and TUBING, NONMETALLIC.
Part Alternates: MMS809038, MMS809-0-3-8, 5970-01-008-4805, 01-008-4805, 5970010084805, 010084805
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 25 AUG 1975 | 01-008-4805 | 00867 ( INSULATION SLEEVING, ELECTRICAL ) |

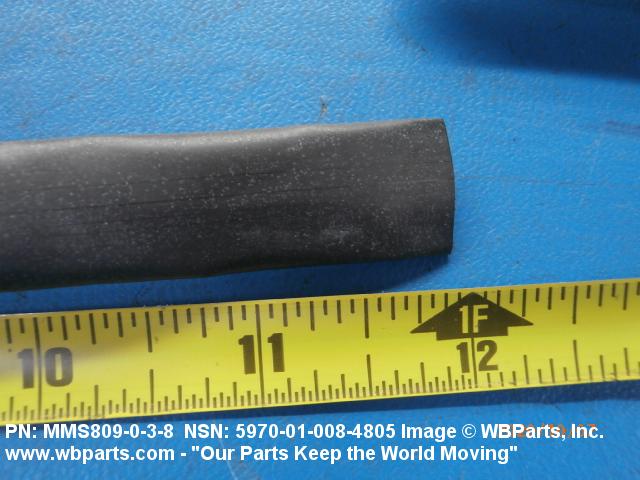

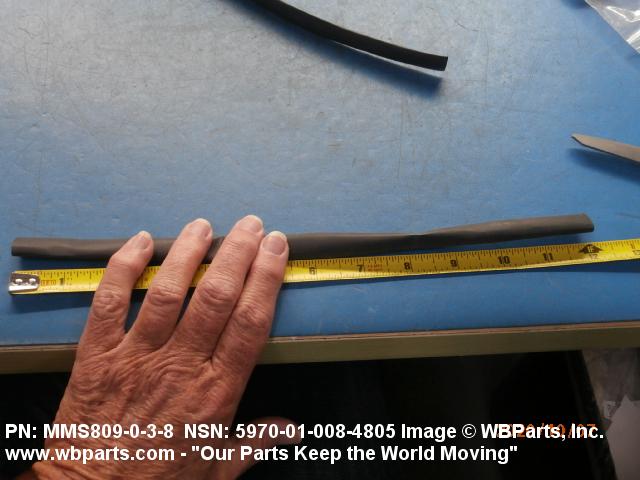

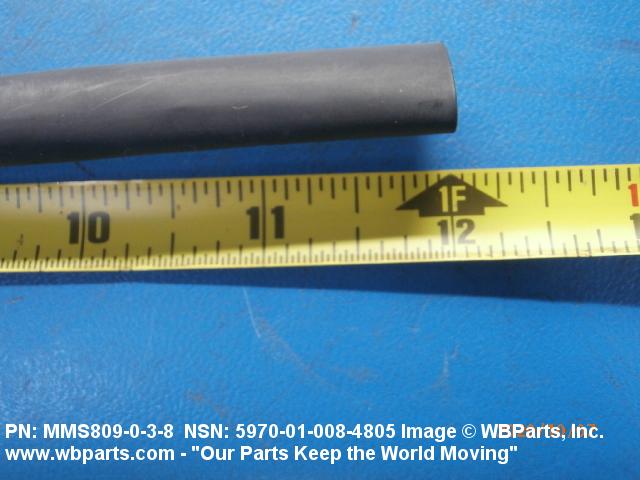

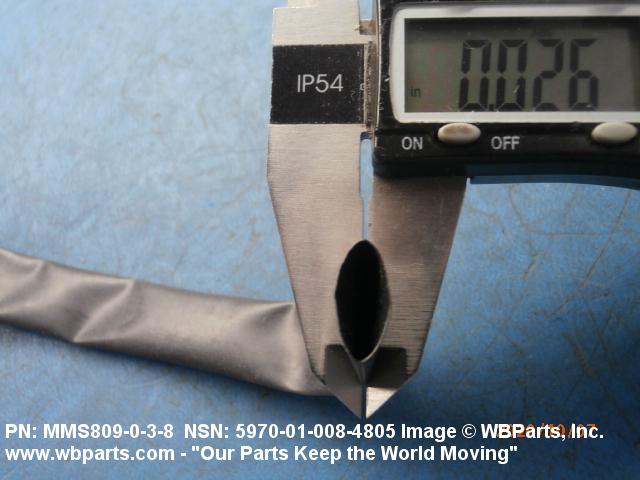

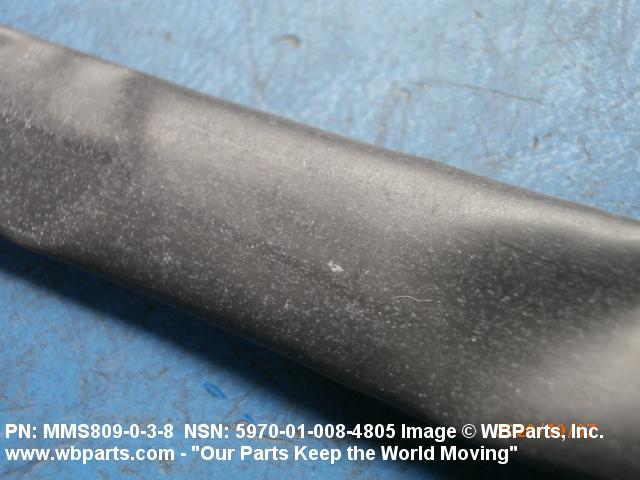

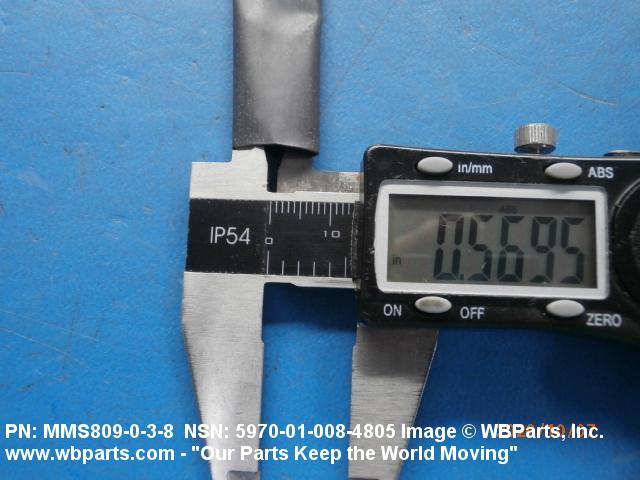

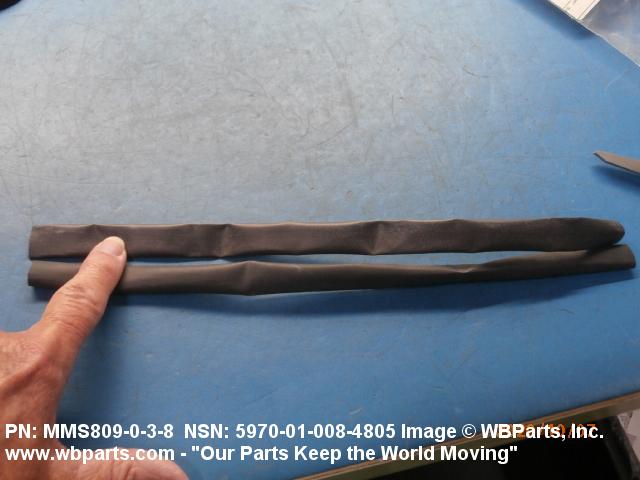

Drawings & Photos | NSN 5970-01-008-4805
Demand History | NSN 5970-01-008-4805
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MMS809038 | 2020-10-280 | 120 | United States |
| MMS809038 | 2020-09-273 | 1 | United States |
Cross Reference | NSN 5970-01-008-4805
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MMS809-0-3-8 | 76301 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5970-01-008-4805
Technical Data | NSN 5970-01-008-4805
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A1 SHRINKABLE |
| OVERALL LENGTH | 0.562 INCHES NOMINAL |
| EXPANDED INSIDE DIAMETER | 0.375 INCHES MINIMUM |
| RECOVERED INSIDE DIAMETER | 0.187 INCHES MAXIMUM |
| RECOVERED WALL THICKNESS | 0.025 INCHES NOMINAL |
| MATERIAL | PLASTIC, POLYOLEFIN |
| COLOR | BLACK |
| FLEXIBILITY | FLEXIBLE |
| HEAT SHRINKAGE RATING IN PERCENT | 50.0 |
| TEMP RATING | 250.0 DEG FAHRENHEIT |
| ENVIRONMENTAL PROTECTION | CORROSION RESISTANT |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
Restrictions/Controls & Freight Information | NSN 5970-01-008-4805
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 103300 | INSULATING MATERIAL NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | ZG | Germany ZH ZJ |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5970-01-008-4805
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9G | Navy-owned stocks of defense general material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9G | Defense Supply Center Richmond Richmond, VA 23297 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
