NSN 5970-00-871-5779 M23053/5-208-C, M230535208C, MPM0013008
Product Details | ELECTRICAL INSULATION SLEEVING
5970-00-871-5779 A rigid or flexible tubing having uniform inside and outside diameters in the overall length. It is specifically designed to prevent any undesirable flow of current between conductors and other objects. Includes shrinkable type tubing, items in bulk and in specific fabricated lengths (cut to size). Excludes items not having rated electrical characteristics. Also excludes BUSHING, SLEEVE; CABLE NIPPLE, ELECTRICAL; CONDUIT (as modified); INSULATION SLEEVING, ELECTRICAL, SPECIAL PURPOSE; INSULATION SLEEVING, THERMAL; SLEEVE, MARKER, CABLE; SLEEVING, TEXTILE, ELECTRICAL; TUBING, GLASS; and TUBING, NONMETALLIC.
Part Alternates: M23053/5-208-C, M230535208C, MPM0013008, MP-M0013-008, AMS-DTL-23053/5, AMSDTL230535, ST-221-1/2IN CLEAR, ST22112INCLEAR, Y00037508, Y00037-508, FIT221 1/2IN CLEAR, FIT2211/2INCLEAR, FIT221112, FIT221-1-1-2, FIT22112INCLEAR, FP3012T12CLEAR, FP301-2T1-2CLEAR, PFC100E 1/2IN, PFC100E12IN, RNF100 1/2IN CLEAR, RNF-100-1/2-CL-SP, RNF-100-1/2-X, RNF10012CLSP, RNF10012INCLEAR, RNF10012T, RNF100-1-2T, RNF10012X, RT876TYPE212, MIL-DTL-23053/5, MILDTL230535, MIL-I-23053/5, MILI230535, 10511238, 132722, 13272-2, 1406AS7204, 1406AS720-4, 4000101, 447991JQ5003UA, 5141590008, 514159-0008, 5928808, 59288-08, 6889140-08, 955093C1, 5970-00-871-5779, 00-871-5779, 5970008715779, 008715779, 688914008
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1960 | 00-871-5779 | 00867 ( INSULATION SLEEVING, ELECTRICAL ) |

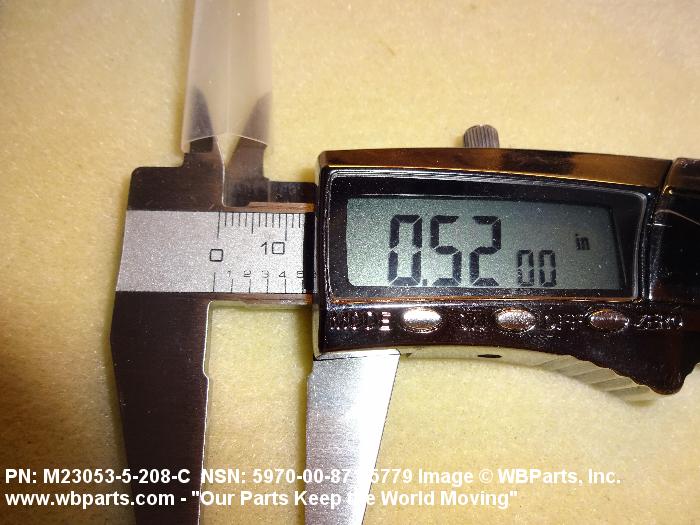

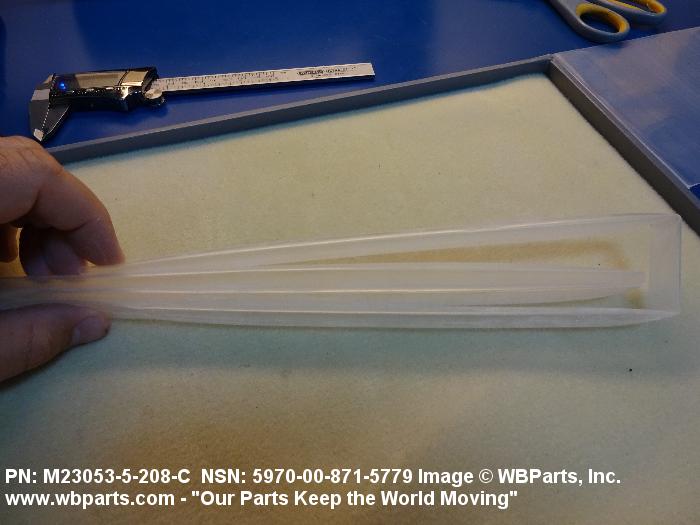

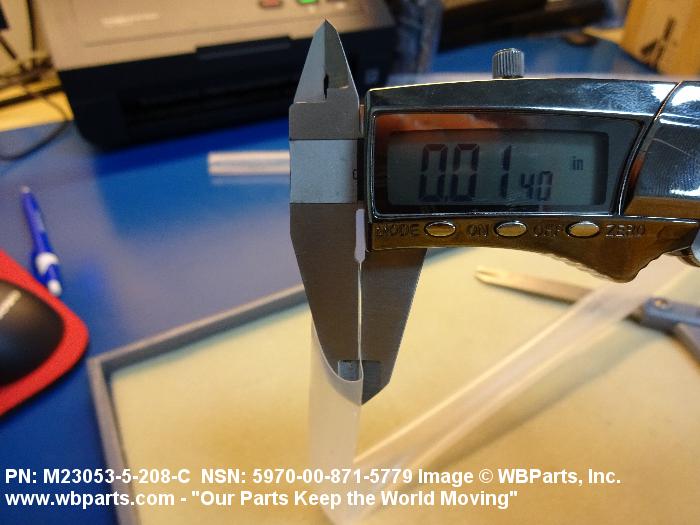

Drawings & Photos | NSN 5970-00-871-5779
Demand History | NSN 5970-00-871-5779
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MILI230535 | 2020-01-15 | 2 | South Korea |
| 5970-00-871-5779 | 2019-08-233 | 700 | DIBBS |
| M230535208C | 2019-04-115 | 200 | us |
| 5970-00-871-5779 | 2019-02-36 | 9968 | DIBBS |
| 5970-00-871-5779 | 2018-12-350 | 17770 | DIBBS |
| 5970-00-871-5779 | 2018-02-50 | 9045 | DIBBS |
| 5970-00-871-5779 | 2018-01-18 | 7558 | DIBBS |
| 5970-00-871-5779 | 2017-12-351 | 200 | DIBBS |
| 5970-00-871-5779 | 2017-11-311 | 15388 | DIBBS |
| 5970-00-871-5779 | 2017-08-220 | 6462 | DIBBS |
| 5970-00-871-5779 | 2017-07-190 | 5350 | DIBBS |
| 5970-00-871-5779 | 2017-06-164 | 3847 | DIBBS |
| 5970-00-871-5779 | 2017-05-135 | 3847 | DIBBS |
| 5970-00-871-5779 | 2017-05-135 | 200 | DIBBS |
| 5970-00-871-5779 | 2015-06-176 | 20 | United States |
| M230535208C | 2015-05-142 | 6 | US |
| 5970-00-871-5779 | 2015-03-86 | 50 | DIBBS |
| 5970-00-871-5779 | 2014-04-104 | 1 | DIBBS-RFPs |
| 5970-00-871-5779 | 2013-10-275 | 18698 | DIBBS |
| 5970-00-871-5779 | 2013-07-191 | 23101 | DIBBS |
| MILI230535 | 2012-06-166 | 50 | US |
| 5970-00-871-5779 | 2012-03-66 | 44316 | DIBBS |
| M230535208C | 2012-01-23 | 224 | United States |
| MILI230535 | 2012-01-18 | 1 | India |
| 5970-00-871-5779 | 2011-11-321 | 44316 | DIBBS |
| MILI230535 | 2009-08-239 | 1 | US |
Cross Reference | NSN 5970-00-871-5779
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0097843 | SZ177 | BAE SYSTEMS LAND SYSTEMS SOUTH AFRICA TRADING AS LAND SYSTEMS OMC |
| 0097843-FH00 | SZ177 | BAE SYSTEMS LAND SYSTEMS SOUTH AFRICA TRADING AS LAND SYSTEMS OMC |
| 10511238 | 56161 | GENERAL DYNAMICS LAND SYSTEMS - CANADA CORPORATION |
| 13272-2 | U2888 | CELAB LTD |
| 1406AS720-4 | 30003 | NAVAL AIR SYSTEMS COMMAND |
| 4000101 | 07421 | INTERSTATE ELECTRONICS CORPORATION DBA L-3 INTERSTATE ELECTRONICS |
| 4000101 | 99564 | AMETEK, INC. DBA AEROSPACE GST |
| 447991JQ5003UA | 97942 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN SYSTEMS |
| 514159-0008 | 65597 | THALES DEFENSE & SECURITY, INC. |
| 59288-08 | 09795 | SAINT-GOBAIN PERFORMANCE PLASTICS CORPORATION |
| 6889140-08 | 63005 | ROLLS-ROYCE CORPORATION |
| 955093C1 | 55820 | HAMILTON SUNDSTRAND CORPORATION DBA HAMILTON SUNDSTRAND POWER SYTEMS |
| 955093C1 | 66195 | SOLAR TURBINES INCORPORATED |
| AMS-DTL-23053/5 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| FIT221 1/2IN CLEAR | 92194 | ALPHA WIRE CORPORATION |
| FIT221-1-1-2 | 92194 | ALPHA WIRE CORPORATION |
| FIT2211/2INCLEAR | 92194 | ALPHA WIRE CORPORATION |
| FP301-2T1-2CLEAR | 20999 | 3M CO ADMININISTRATIVE ELECTRONIC & COMMUNICATIONS |
| FP301-2T1-2CLEAR | 53387 | 3M COMPANY DIV ELECTRO AND COMMUNICATIONS |
| M23053/5-208-C | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| M23053/5-208-C | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-DTL-23053/5 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-I-23053/5 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MP-M0013-008 | 33875 | RAYTHEON E-SYSTEMS INC |
| PFC100E 1/2IN | 90484 | ROCKBESTOS-SURPRENANT CABLE CORP |
| RNF-100-1/2-CL-SP | 06090 | TYCO ELECTRONICS CORPORATION |
| RNF-100-1/2-X | 06090 | TYCO ELECTRONICS CORPORATION |
| RNF100 1/2IN CLEAR | 06090 | TYCO ELECTRONICS CORPORATION |
| RNF100-1-2T | 06090 | TYCO ELECTRONICS CORPORATION |
| RT876TYPE2 1&2 | 06090 | TYCO ELECTRONICS CORPORATION |
| ST-221-1/2IN CLEAR | 56352 | MANHATTAN/CDT COLE-FLEX |
| Y00037-508 | 12436 | BAE SYSTEMS NATIONAL SECURITY SOLUTIONS INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5970-00-871-5779
Technical Data | NSN 5970-00-871-5779
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A1 SHRINKABLE |
| OVERALL LENGTH | ANY ACCEPTABLE |
| EXPANDED INSIDE DIAMETER | 0.500 INCHES MINIMUM |
| RECOVERED INSIDE DIAMETER | 0.250 INCHES MAXIMUM |
| RECOVERED WALL THICKNESS | 0.022 INCHES MINIMUM AND 0.028 INCHES MAXIMUM |
| MATERIAL | PLASTIC, POLYOLEFIN, MIL-I-23053/5, CLASS 2 |
| COLOR | CLEAR |
| FLEXIBILITY | FLEXIBLE |
| HEAT SHRINKAGE RATING IN PERCENT | 50.0 |
| TEMP RATING | -55.0 DEG CELSIUS AND 135.0 DEG CELSIUS |
| MINIMUM TENSILE STRENGTH | 1500 POUNDS PER SQUARE INCH |
| DIELECTRIC MATERIAL VOLTAGE RATING PER UNIT THICKNESS | 500.0 VOLTS PER MIL /0.001 INCH/ |
| ENVIRONMENTAL PROTECTION | CORROSION RESISTANT AND MILDEW RESISTANT AND WATER RESISTANT |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
Restrictions/Controls & Freight Information | NSN 5970-00-871-5779
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 9 | 60 months |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | Q | 70 |
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
