NSN 5970-00-814-2878 MMS809914, MMS809-9-1-4, MPM0013106
Product Details | ELECTRICAL INSULATION SLEEVING
5970-00-814-2878 A rigid or flexible tubing having uniform inside and outside diameters in the overall length. It is specifically designed to prevent any undesirable flow of current between conductors and other objects. Includes shrinkable type tubing, items in bulk and in specific fabricated lengths (cut to size). Excludes items not having rated electrical characteristics. Also excludes BUSHING, SLEEVE; CABLE NIPPLE, ELECTRICAL; CONDUIT (as modified); INSULATION SLEEVING, ELECTRICAL, SPECIAL PURPOSE; INSULATION SLEEVING, THERMAL; SLEEVE, MARKER, CABLE; SLEEVING, TEXTILE, ELECTRICAL; TUBING, GLASS; and TUBING, NONMETALLIC.
Part Alternates: MMS809914, MMS809-9-1-4, MPM0013106, MP-M0013-106, M23053/5-106-9, M23053/5-107-9, M2305341039, M23053-4-103-9, M2305351069, M2305351079, AMS-DTL-23053/5, AMSDTL230535, BACT63A559, BACT63A55-9, S201412W, S2014-12W, S905289, S9052-8-9, SS7072A0250Z050, ST-221-1/4IN WHITE, ST22114INWHITE, Y00037056, Y00037-056, MIL-I-23053/5, MILI230535, MIL-LT-1/4-9-SP, MILLT149SP, P0135 1/4IN WHITE, P013514INWHITE, P015912, P015-9-12, PENNTUBE V FLEXIBLE 1/4IN WHITE, PENNTUBEVFLEXIBLE14INWHITE, R2479P6, RNF-100 1/4IN WHITE, RNF100 1-4WHT, RNF-100 TYPE1 1/4IN WHITE, RNF-100-1/4-WH-SP, RNF10014INWHITE, RNF10014W, RNF100-1-4W, RNF10014WHSP, RNF10014WHT, RNF100TYP1-1/4INWHITE, RNF100TYP114INWHITE, RNF100TYPE114INWHITE, RNF14WHITEL0NG120M, RNF1-4WHITEL0NG1-20M, RT1301SL, FIT221 1/4WHITE, FIT221-1-4 WHIT, FIT22114WHIT, FIT22114WHITE, FP301-1 1/4IN WHITE, FP3011125WHT, FP301-1-125WHT, FP301114INWHITE, GMS520169, GMS5-20-16-9, 224845-906, 3446356, 344635-6, 4000096, 6564286002, 656-4286-002, 7230941P26, 7230941-P26, 065001756020, 065-001756-020, 1130389G27, 1169991240, 11699912-40, 11830621152, 11830621-152, 119A2290152, 119A2290-152, 20899980608, 2089998-0608, 446320-206, 44791JP2503U9, 44791JP250WHT, 4503334424, 45-033344-24, 5919906, 59199-06, 7956686-05, 940053, 94-0053, 5970-00-814-2878, 00-814-2878, 5970008142878, 224845906, 795668605, 446320206, 008142878
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-814-2878 | 00867 ( INSULATION SLEEVING, ELECTRICAL ) |

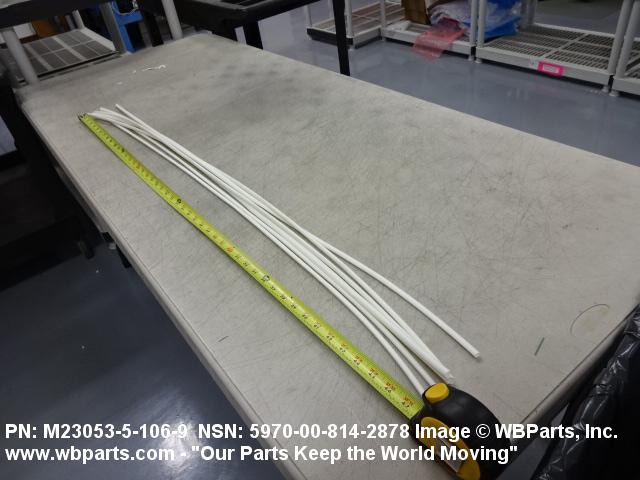

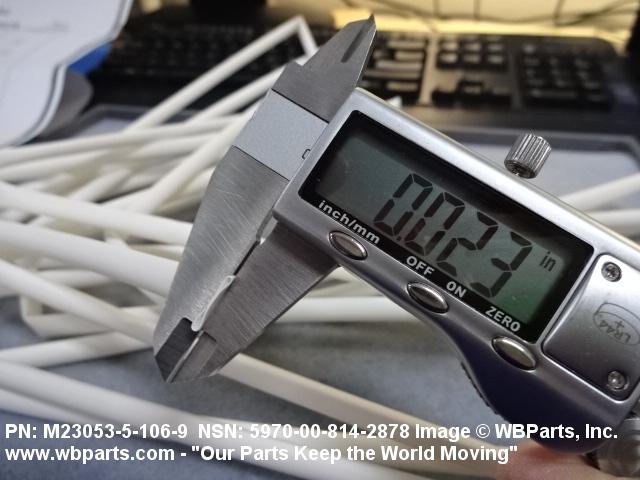

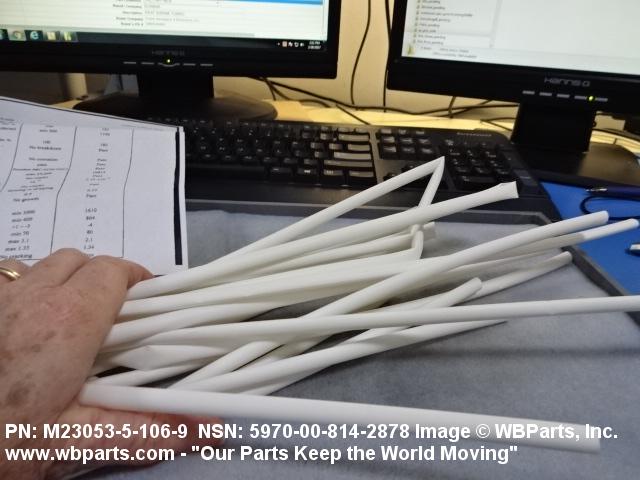

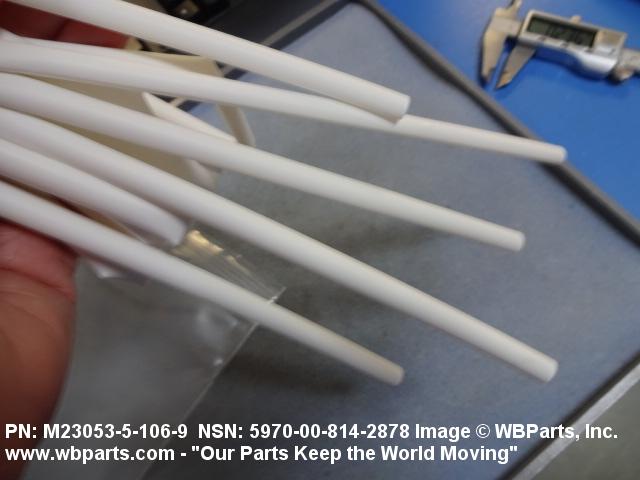

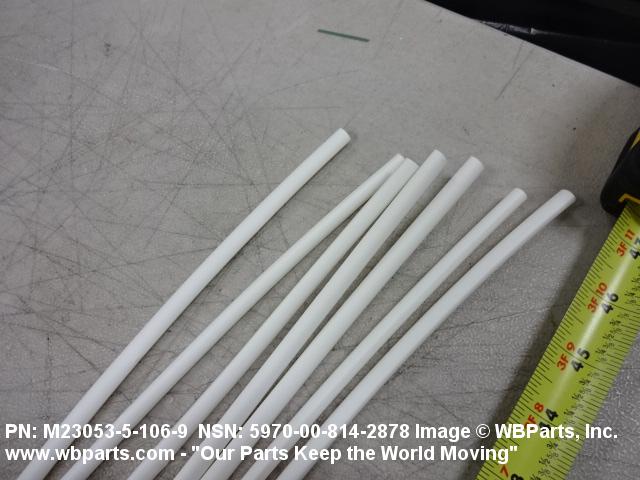

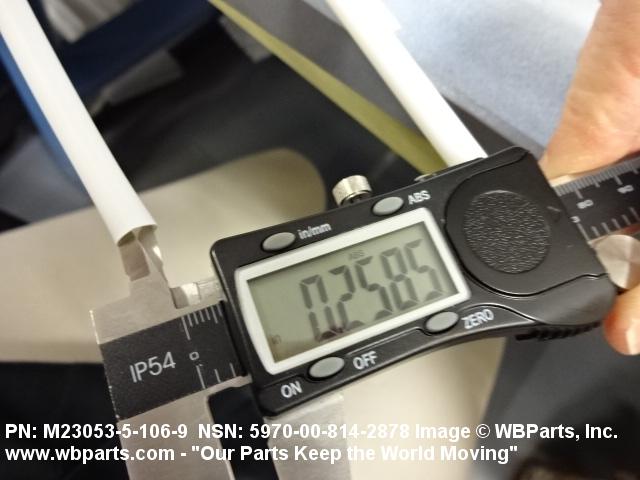

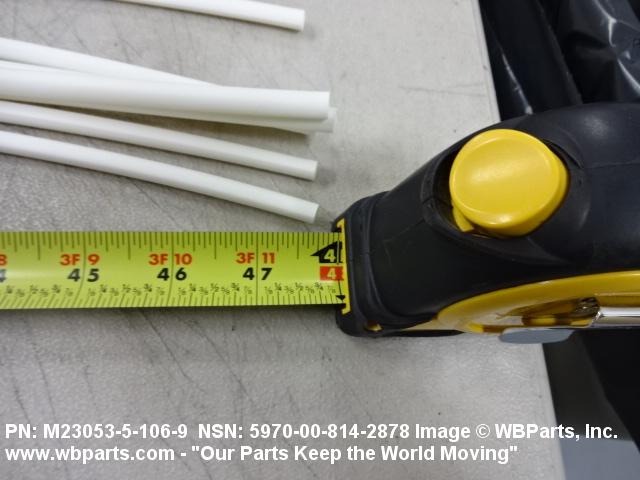

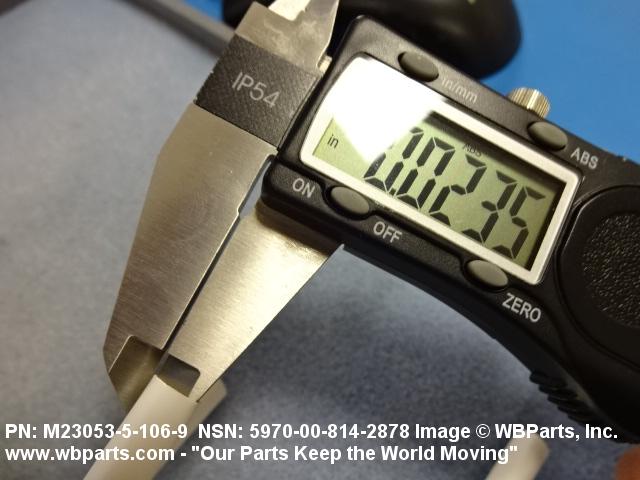

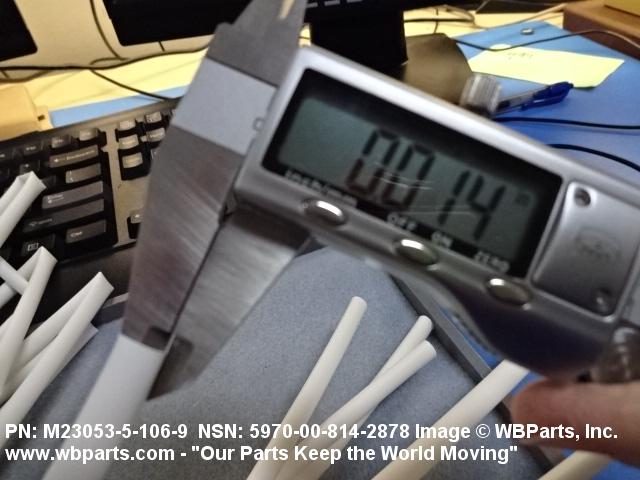

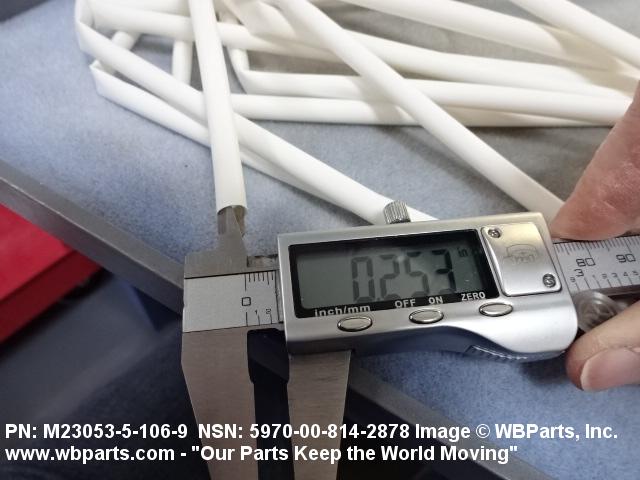

Drawings & Photos | NSN 5970-00-814-2878
Demand History | NSN 5970-00-814-2878
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| M2305351079 | 2025-06-153 | 1 | EG |
| M2305351069 | 2025-02-34 | 5 | United States |
| 5970-00-814-2878 | 2024-06-171 | 30814 | DIBBS |
| M2305351069 | 2023-03-82 | 264 | IN |
| M2305351079 | 2023-03-82 | 19 | IN |
| 5970-00-814-2878 | 2021-12-342 | 1 | US |
| M2305351079 | 2020-12-344 | 1 | United States |
| M2305351069 | 2020-10-280 | 1 | US |
| M2305351079 | 2020-10-280 | 1 | US |
| M2305351069 | 2020-09-274 | 1 | US |
| M2305351079 | 2020-09-274 | 1 | US |
| M2305351069 | 2020-08-244 | 69 | US |
| M2305351069 | 2020-08-244 | 69 | US |
| MILI230535 | 2020-01-15 | 2 | South Korea |
| M2305351069 | 2019-05-149 | 35 | US |
| 5970-00-814-2878 | 2017-12-356 | 1 | DIBBS-RFPs |
| 5970-00-814-2878 | 2017-11-318 | 4 | DIBBS-KIT |
| M23053/5-106-9 | 2017-11-318 | 4 | |
| 5970-00-814-2878 | 2016-06-175 | 500 | DIBBS |
| M2305351079 | 2016-03-82 | 1 | United States |
| M2305351069 | 2015-06-153 | 50 | NL |
| M2305351079 | 2015-06-153 | 50 | NL |
| M2305351079 | 2015-01-13 | 15 | United States |
| M2305351069 | 2013-12-345 | 1 | United States |
| M2305351079 | 2013-11-308 | 2 | United States |
| M2305351069 | 2013-07-193 | 1 | United States |
| M2305351079 | 2013-07-193 | 1 | United States |
| 5970-00-814-2878 | 2013-06-168 | 150 | US |
| M2305351069 | 2012-12-340 | 12 | United States |
| 5970-00-814-2878 | 2012-06-178 | 53819 | DIBBS |
| MILI230535 | 2012-06-166 | 50 | US |
| M23053/5-107-9 | 2012-01-30 | 10 | United States |
| M23053/5-107-9 | 2012-01-30 | 10 | United States |
| MILI230535 | 2012-01-18 | 1 | India |
| 5970-00-814-2878 | 2011-09-263 | 175132 | DIBBS |
| 5970-00-814-2878 | 2011-07-210 | 59779 | DIBBS |
| M2305351079 | 2010-12-356 | 1 | Italy |
| 5970-00-814-2878 | 2010-11-314 | 39807 | DIBBS |
| M2305351069 | 2010-05-147 | 50 | IT |
| M2305351069 | 2010-02-39 | 1 | US |
| M2305351079 | 2009-11-314 | 1000 | Turkey |
| MILI230535 | 2009-08-239 | 1 | US |
| 5970-00-814-2878 | 2009-04-94 | 100 | Turkey |
| 5970-00-814-2878 | 2008-12-340 | 100 | Taiwan |
Cross Reference | NSN 5970-00-814-2878
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 065-001756-020 | 26916 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV MULTIPLE |
| 1130389G27 | 31550 | EXELIS INC. DBA NIGHT VISION & COMMUNICATIONS |
| 11699912-40 | 19204 | ARMY UNITED STATES DEPARTMENT OF THE |
| 11830621-152 | 19203 | PICATINNY ARSENAL |
| 119A2290-152 | 05606 | GENERAL DYNAMICS-OTS, INC. DBA GD-OTS (WILLISTON) |
| 2089998-0608 | 27914 | HONEYWELL INTERNATIONAL INC DBA HONEYWELL |
| 224845-906 | 81413 | BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION I |
| 344635-6 | 3B150 | RAYTHEON TECHNICAL SERVICES COMPANY LLC |
| 344635-6 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
| 4000096 | 07421 | INTERSTATE ELECTRONICS CORPORATION DBA L-3 INTERSTATE ELECTRONICS |
| 4000096 | 99564 | AMETEK, INC. DBA AEROSPACE GST |
| 446320-206 | 37695 | RAYTHEON COMPANY DBA RAYTHEON |
| 44791JP2503U9 | 79500 | WESTINGHOUSE ELECTRIC CORP |
| 44791JP2503U9 | 97942 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN SYSTEMS |
| 44791JP250WHT | 97942 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN SYSTEMS |
| 45-033344-24 | 15280 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV ES DEFENSIVE SYSTEMS DIVISION |
| 59199-06 | 09795 | SAINT-GOBAIN PERFORMANCE PLASTICS CORPORATION |
| 656-4286-002 | 95105 | ROCKWELL COLLINS, INC. DIV GOVERNMENT SYSTEMS - DALLAS |
| 7230941-P26 | 03538 | LOCKHEED MARTIN CORPORATION DIV MST |
| 7956686-05 | 90536 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 94-0053 | 19397 | BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION INC. |
| AMS-DTL-23053/5 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| BACT63A55-9 | 81205 | THE BOEING COMPANY DBA BOEING |
| FIT221 1/4WHITE | 92194 | ALPHA WIRE CORPORATION |
| FIT221-1-4 WHIT | 92194 | ALPHA WIRE CORPORATION |
| FP301-1 1/4IN WHITE | 20999 | 3M CO ADMININISTRATIVE ELECTRONIC & COMMUNICATIONS |
| FP301-1 1/4IN WHITE | 53387 | 3M COMPANY DIV ELECTRO AND COMMUNICATIONS |
| FP301-1-125WHT | 20999 | 3M CO ADMININISTRATIVE ELECTRONIC & COMMUNICATIONS |
| GMS5-20-16-9 | 99696 | LOCKHEED MARTIN CORPORATION DIV LOCKHEED MARTIN SYSTEMS & GLOBAL |
| M23053-4-103-9 | 76301 | BOEING COMPANY, THE DBA BOEING |
| M23053/5-106-9 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| M23053/5-106-9 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M23053/5-107-9 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-I-23053/5 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-LT-1/4-9-SP | 06090 | TYCO ELECTRONICS CORPORATION |
| MMS809-9-1-4 | 76301 | BOEING COMPANY, THE DBA BOEING |
| MP-M0013-106 | 33875 | RAYTHEON E-SYSTEMS INC |
| P0135 1/4IN WHITE | 03890 | MARKEL CORP. |
| P015-9-12 | 81755 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
| PENNTUBE V FLEXIBLE 1/4IN WHITE | 09795 | SAINT-GOBAIN PERFORMANCE PLASTICS CORPORATION |
| R2479P6 | 23991 | LOCKHEED MARTIN CORPORATION DIV LOCKHEED MARTIN INFORMATION |
| RNF-100 1/4IN WHITE | 06090 | TYCO ELECTRONICS CORPORATION |
| RNF-100 TYPE1 1/4IN WHITE | 06090 | TYCO ELECTRONICS CORPORATION |
| RNF-100-1/4-WH-SP | 06090 | TYCO ELECTRONICS CORPORATION |
| RNF1-4WHITEL0NG1-20M | 06090 | TYCO ELECTRONICS CORPORATION |
| RNF100 1-4WHT | 06090 | TYCO ELECTRONICS CORPORATION |
| RNF100-1-4W | 06090 | TYCO ELECTRONICS CORPORATION |
| RNF100TYP1-1/4INWHITE | 06090 | TYCO ELECTRONICS CORPORATION |
| RT1301SL | 03464 | PARKER-HARRINGAN CORP |
| S2014-12W | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| S9052-8-9 | 70210 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| SS7072A0250Z050 | 78286 | SIKORSKY AIRCRAFT CORPORATION |
| ST-221-1/4IN WHITE | 56352 | MANHATTAN/CDT COLE-FLEX |
| Y00037-056 | 12436 | BAE SYSTEMS NATIONAL SECURITY SOLUTIONS INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5970-00-814-2878
Technical Data | NSN 5970-00-814-2878
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A1 SHRINKABLE |
| OVERALL LENGTH | ANY ACCEPTABLE |
| EXPANDED INSIDE DIAMETER | 0.250 INCHES MINIMUM |
| RECOVERED INSIDE DIAMETER | 0.125 INCHES MAXIMUM |
| RECOVERED WALL THICKNESS | 0.022 INCHES MINIMUM AND 0.028 INCHES MAXIMUM |
| MATERIAL | PLASTIC, POLYOLEFIN, MIL-I-23053/5, CLASS 1 |
| COLOR | WHITE |
| FLEXIBILITY | FLEXIBLE |
| HEAT SHRINKAGE RATING IN PERCENT | 50.0 |
| TEMP RATING | -55.0 DEG CELSIUS AND 135.0 DEG CELSIUS |
| MINIMUM TENSILE STRENGTH | 1500 POUNDS PER SQUARE INCH |
| DIELECTRIC MATERIAL VOLTAGE RATING PER UNIT THICKNESS | 500.0 VOLTS PER MIL /0.001 INCH/ |
| ENVIRONMENTAL PROTECTION | CORROSION RESISTANT AND FLAME RESISTANT AND MILDEW RESISTANT AND WATER RESISTANT |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
Restrictions/Controls & Freight Information | NSN 5970-00-814-2878
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061130 | CABLE ASSEMBLY |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 743 | unknown |
| Originating Activity Code | SJ | Air Force Cryptological Support Center San Antonio, TX 78243-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5970-00-814-2878
Air Force| Category | Code | Description |
|---|---|---|
| Materiel Management Aggregation Code | CS | SJ:COMMUNICATIONS SECURITY (COMSEC) OTHER THAN SERIALIZED CONTROL ITEM |
| Budget Code | K | 8357X3080:Cryptologic and Other USAF Security Service Equipment |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Source of Supply | FPD | Air Force Cryptologic Support Center (ESC) San Antonio, TX 78243-5000 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | P | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
