NSN 5970-00-280-9951 M7406427SUB9GP3, 00-280-9951, 002809951
Product Details | BOWL INSULATOR
5970-00-280-9951 An insulator used for wire entering or feedthru purposes. May include mounting and/or conducting hardware. Includes replacement bowls for feedthru insulators. Characterized by one or more bowl or bell shaped insulator surfaces.
Part Alternates: M7406427SUB9GP3, 5970-00-280-9951, 00-280-9951, 5970002809951, 002809951
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-280-9951 | 18300 ( INSULATOR, BOWL ) |

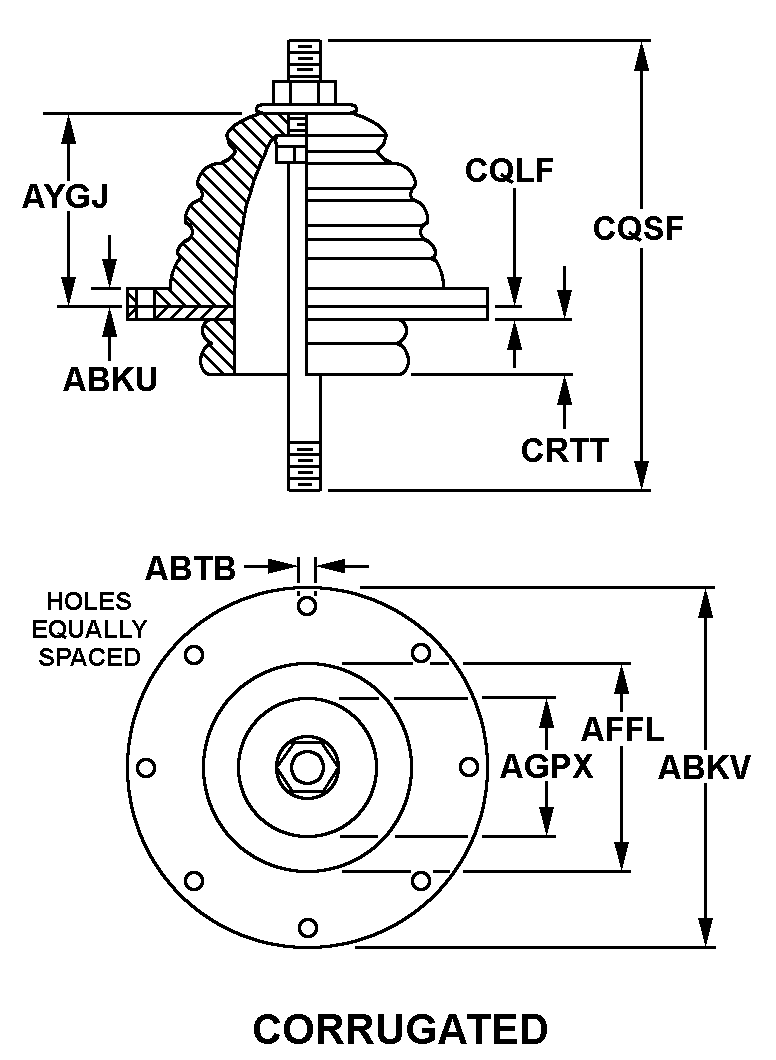

Drawings & Photos | NSN 5970-00-280-9951
Cross Reference | NSN 5970-00-280-9951
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| M7406427SUB9GP3 | 79500 | WESTINGHOUSE ELECTRIC CORP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5970-00-280-9951
Technical Data | NSN 5970-00-280-9951
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | B21 CORRUGATED |
| OUTSIDE DIAMETER | 3.875 INCHES NOMINAL |
| HEIGHT ABOVE MOUNTING SURFACE | 1.500 INCHES NOMINAL |
| CENTER STUD LENGTH | 2.625 INCHES NOMINAL |
| MATERIAL AND LOCATION | MOUNTING BASE CERAMIC OVERALL CERAMIC |
| SURFACE TREATMENT AND LOCATION | OVERALL GLAZED |
| IDENTIFICATION CODE COLOR | WHITE |
| MOUNTING FACILITY TYPE AND QUANTITY | 6 UNTHREADED HOLE |
Restrictions/Controls & Freight Information | NSN 5970-00-280-9951
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 103660 | ELECTRIC WIRE OR WIRING |
| Less than car load rating | T | 55 |
| Less than truck load rating | Z | No Rating |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
