NSN 5970-00-281-0903 NL522W14012, NL522W14-012, MIL-I-23264/2
Product Details | STANDOFF INSULATOR
5970-00-281-0903 An insulator which is specifically designed to support a conductor or an item at a predetermined spacing from a mounting surface. It may include mounting and/or conducting hardware.
Part Alternates: NL522W14012, NL522W14-012, MIL-I-23264/2, MILI232642, 5970-00-281-0903, 00-281-0903, 5970002810903, 002810903
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-281-0903 | 00225 ( INSULATOR, STANDOFF ) |
Drawings & Photos | NSN 5970-00-281-0903
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5970-00-281-0903
Related Products | NSN 5970-00-281-0903
Technical Data | NSN 5970-00-281-0903
| Characteristic | Specifications |
|---|---|

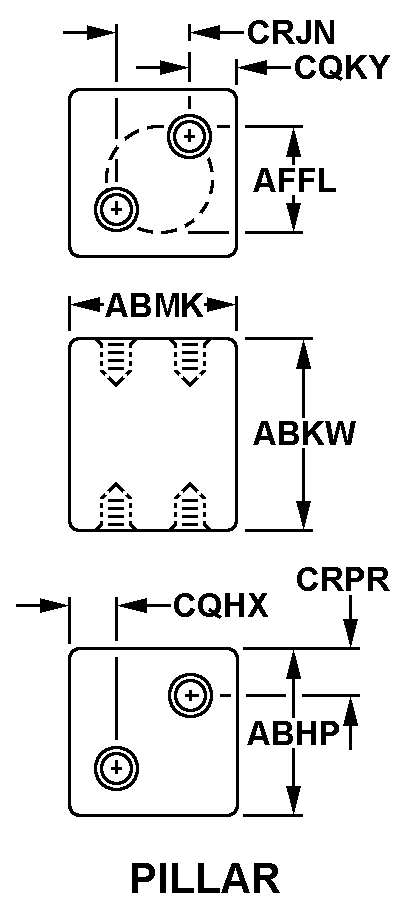

| STYLE DESIGNATOR | M8 PILLAR |
| OVERALL LENGTH | 1.000 INCHES NOMINAL |
| OVERALL HEIGHT | 1.500 INCHES NOMINAL |
| OVERALL WIDTH | 1.000 INCHES NOMINAL |
| MOUNTING BOLT CIRCLE DIAMETER | 0.374 INCHES NOMINAL |
| FIRST CENTER DISTANCE | 0.500 INCHES NOMINAL |
| FIRST MOUNTING HOLE SPACING | 0.187 INCHES NOMINAL |
| SECOND MOUNTING HOLE SPACING | 0.374 INCHES NOMINAL |
| SECOND CENTER DISTANCE | 0.500 INCHES NOMINAL |
| MATERIAL AND LOCATION | OVERALL INSULATION, ELECTRICAL, MIL-I-10, GRADE L522 |
| SURFACE TREATMENT AND LOCATION | OVERALL GLAZED |
| IDENTIFICATION CODE COLOR | WHITE |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 THREADED HOLE |
| SCREW THREAD SERIES DESIGNATOR AND LOCATION | ELECTRICAL TERMINATION UNC MOUNTING FACILITY UNC |
| SCREW THREAD DIAMETER AND LOCATION | 0.164 ELECTRICAL TERMINATION INCHES NOMINAL 0.164 MOUNTING FACILITY INCHES NOMINAL |
| SCREW THREAD QUANTITY PER INCH AND LOCATION | 32 ELECTRICAL TERMINATION 32 MOUNTING FACILITY |
| THREAD CLASS AND LOCATION | 2B ELECTRICAL TERMINATION 2B MOUNTING FACILITY |
| THREAD LENGTH AND LOCATION | 0.375 ELECTRICAL TERMINATION INCHES NOMINAL 0.375 MOUNTING FACILITY INCHES NOMINAL |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-I-23264/2 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | NL522W14-012 |
