NSN 5970-00-063-1499 M23053/1-102-0, M2305311020, MMSD300A316
Product Details | ELECTRICAL INSULATION SLEEVING
5970-00-063-1499 A rigid or flexible tubing having uniform inside and outside diameters in the overall length. It is specifically designed to prevent any undesirable flow of current between conductors and other objects. Includes shrinkable type tubing, items in bulk and in specific fabricated lengths (cut to size). Excludes items not having rated electrical characteristics. Also excludes BUSHING, SLEEVE; CABLE NIPPLE, ELECTRICAL; CONDUIT (as modified); INSULATION SLEEVING, ELECTRICAL, SPECIAL PURPOSE; INSULATION SLEEVING, THERMAL; SLEEVE, MARKER, CABLE; SLEEVING, TEXTILE, ELECTRICAL; TUBING, GLASS; and TUBING, NONMETALLIC.
Part Alternates: M23053/1-102-0, M2305311020, MMSD300A316, MMSD300A3-16, NT-3/8-0, NT-3/8-0-SP, NT3-8, NT380, NT380SP, NT38NOIRE, NT3-8NOIRE, AMS-DTL-23053/1, AMSDTL230531, S90712, SMB5406002, SM-B-540600-2, SS7072E0375Z, SS7072E0375ZXXX, GS830AV3, J00267, P51060375, P5106-0375, RT510, RT-510, RT-510 3/8, RT51038, MIL-I-23053/1, MILI230531, NT38, 728-057-002, 9116C00122, 9116C0012-2, 91302261, 0150242M00, 1266747, 38NT, 3-8NT, 4470502, 447050-2, 5970-00-063-1499, 00-063-1499, 5970000631499, 000631499, 728057002
Electrical and Electronic Equipment Components | Electrical Insulators and Insulating Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 28 MAR 1966 | 00-063-1499 | 00867 ( INSULATION SLEEVING, ELECTRICAL ) |

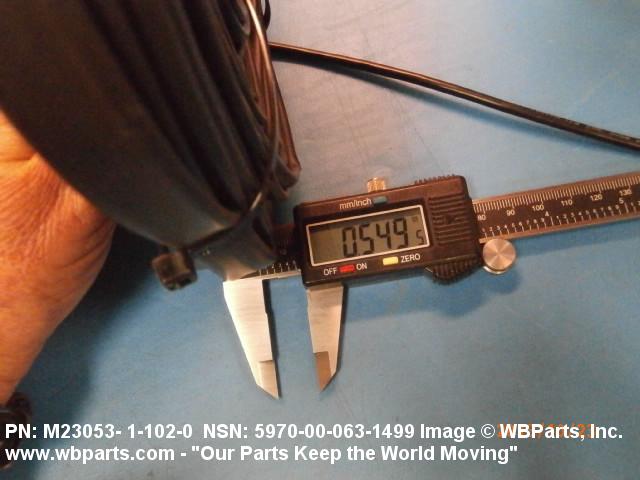

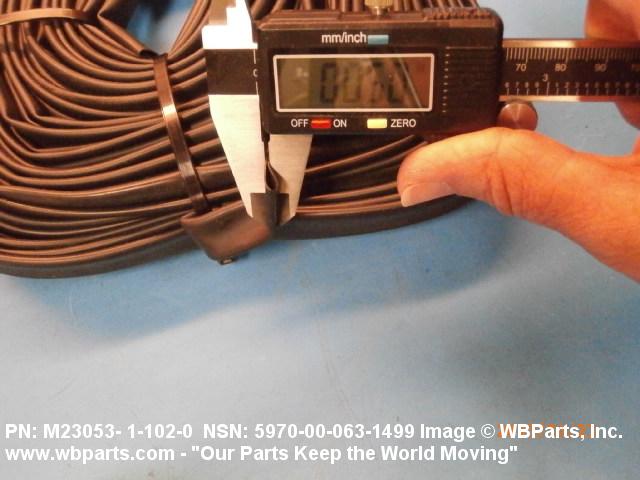

Drawings & Photos | NSN 5970-00-063-1499
Demand History | NSN 5970-00-063-1499
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5970-00-063-1499 | 2023-07-201 | 50 | United States |
| 5970-00-063-1499 | 2023-02-38 | 4 | United States |
| M2305311020 | 2016-04-104 | 192 | United States |
| M2305311020 | 2016-02-49 | 198 | United States |
| AMSDTL230531 | 2015-08-238 | 100 | Canada |
| P51060375 | 2014-06-175 | 1 | United States |
| M2305311020 | 2013-10-280 | 48 | United States |
| P51060375 | 2009-07-204 | 1 | US |
| P51060375 | 2009-07-203 | 1 | US |
Cross Reference | NSN 5970-00-063-1499
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0150242M00 | F0555 | MBDA FRANCE |
| 3-8NT | F6137 | MESSIER-BUGATTI-DOWTY |
| 447050-2 | 37695 | RAYTHEON COMPANY DBA RAYTHEON |
| 728-057-002 | 26055 | PARKER-HANNIFIN CORPORATION DBA ELECTRONICS SYSTEMS DIVISION |
| 728-057-002 | 59211 | PARKER-HANNIFIN CORPORATION DBA CUSTOMER SUPPORT MILITARY |
| 9116C0012-2 | 87557 | LOCKHEED CORP LOCKHEED ELECTRONICS CO INC |
| 9116C0012-2 | 94117 | BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION INC. |
| 91302261 | F6481 | THALES SA |
| AMS-DTL-23053/1 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| GS830AV3 | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| J00267 | K0967 | MBDA UK LTD |
| M23053/1-102-0 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| M23053/1-102-0 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-I-23053/1 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MMSD300A3-16 | 38597 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| NT-3/8-0 | F0286 | TYCO ELECTRONICS FRANCE SAS |
| NT-3/8-0 | F6220 | RAYCHEM SA |
| NT-3/8-0-SP | 06090 | TYCO ELECTRONICS CORPORATION |
| NT3-8 | 06090 | TYCO ELECTRONICS CORPORATION |
| NT3-8NOIRE | F0286 | TYCO ELECTRONICS FRANCE SAS |
| P5106-0375 | 81755 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
| RT-510 | 06090 | TYCO ELECTRONICS CORPORATION |
| RT-510 3/8 | 06090 | TYCO ELECTRONICS CORPORATION |
| S9071+2 | 99193 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| SM-B-540600-2 | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
| SS7072E0375Z | 78286 | SIKORSKY AIRCRAFT CORPORATION |
| SS7072E0375ZXXX | 78286 | SIKORSKY AIRCRAFT CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5970-00-063-1499
Technical Data | NSN 5970-00-063-1499
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | A1 SHRINKABLE |
| OVERALL LENGTH | ANY ACCEPTABLE |
| EXPANDED INSIDE DIAMETER | 0.375 INCHES MINIMUM |
| RECOVERED INSIDE DIAMETER | 0.211 INCHES MAXIMUM |
| RECOVERED WALL THICKNESS | 0.030 INCHES MINIMUM AND 0.050 INCHES MAXIMUM |
| MATERIAL | RUBBER,POLYCHLOROPRENE,MIL-I-2305 3/1,CLASS 1 |
| COLOR | BLACK |
| FLEXIBILITY | FLEXIBLE |
| HEAT SHRINKAGE RATING IN PERCENT | 42.9 |
| TEMP RATING | -55.0 DEG CELSIUS AND 90.0 DEG CELSIUS |
| MINIMUM TENSILE STRENGTH | 1500 POUNDS PER SQUARE INCH |
| DIELECTRIC MATERIAL VOLTAGE RATING PER UNIT THICKNESS | 300.0 VOLTS PER MIL /0.001 INCH/ |
| ENVIRONMENTAL PROTECTION | CORROSION RESISTANT AND FLAME RESISTANT AND MILDEW RESISTANT AND WATER RESISTANT |
| RELIABILITY INDICATOR | NOT ESTABLISHED |
Restrictions/Controls & Freight Information | NSN 5970-00-063-1499
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 197337 | WHEELS COG/GEAR/PINION/SPROCK |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5970-00-063-1499
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Z EA : Each |
