NSN 5965-00-905-6895 M125/SIC, M125S1C, M125SIC
Product Details | MAGNETIC MICROPHONE
5965-00-905-6895 A microphone which depends for its operation upon variations in reluctance of a magnetic circuit.
Part Alternates: M125/SIC, M125S1C, M125SIC, MILM23813, MIL-M-23813, 4300722S6584, 4300-722S6584, 60163002, 60163-002, 5965-00-905-6895, 00-905-6895, 5965009056895, 009056895
Electrical and Electronic Equipment Components | Headsets, Handsets, Microphones and Speakers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1960 | 00-905-6895 | 00363 ( MICROPHONE, MAGNETIC ) |

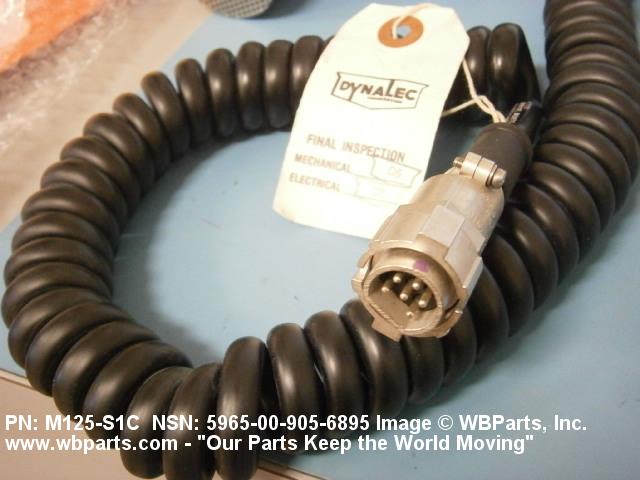

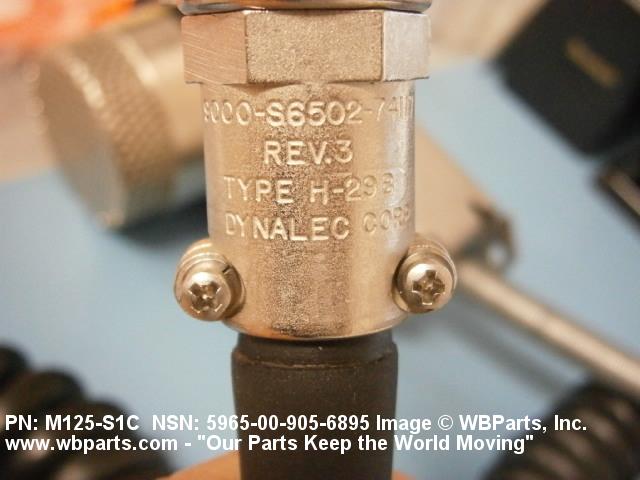

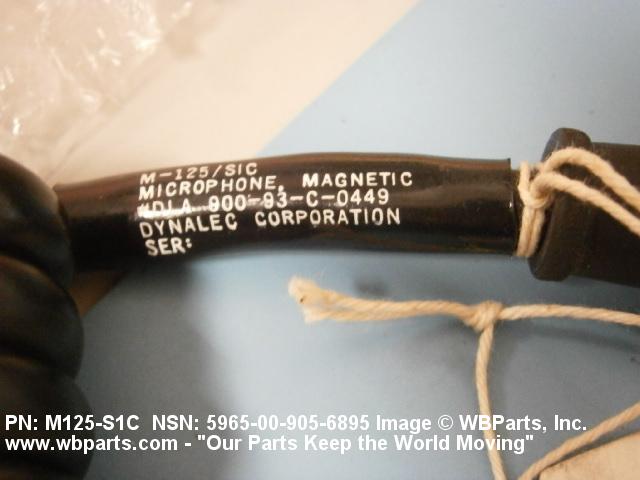

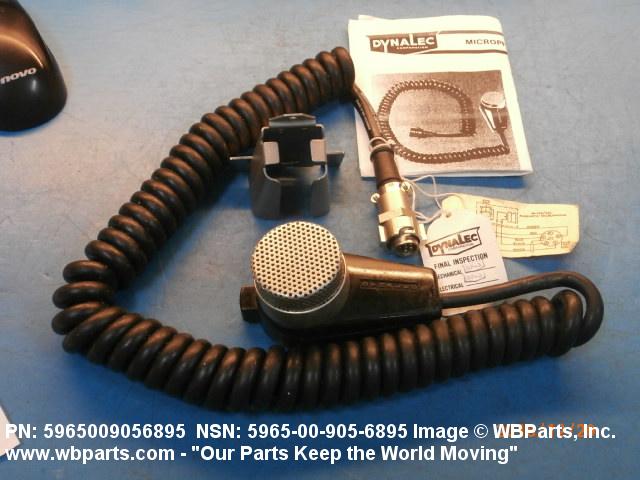

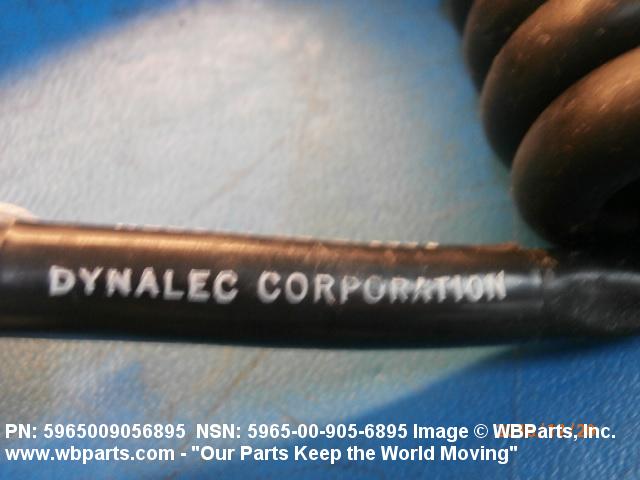

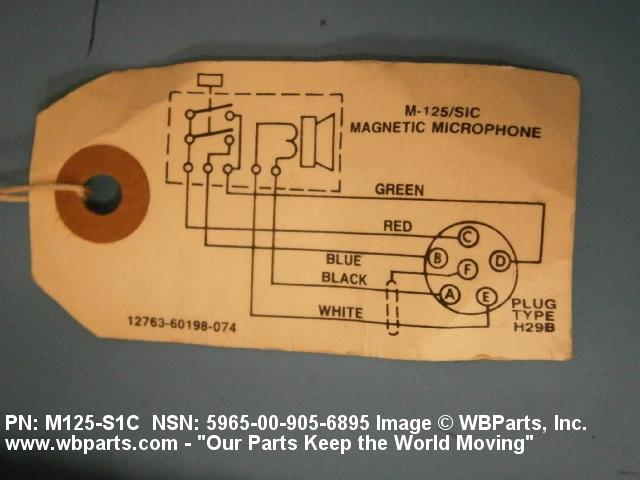

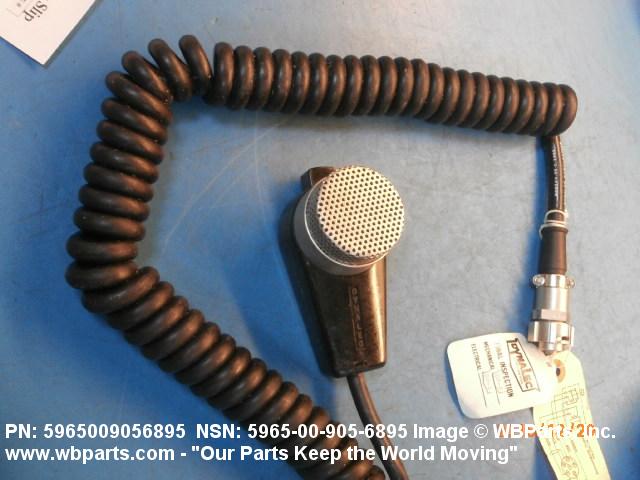

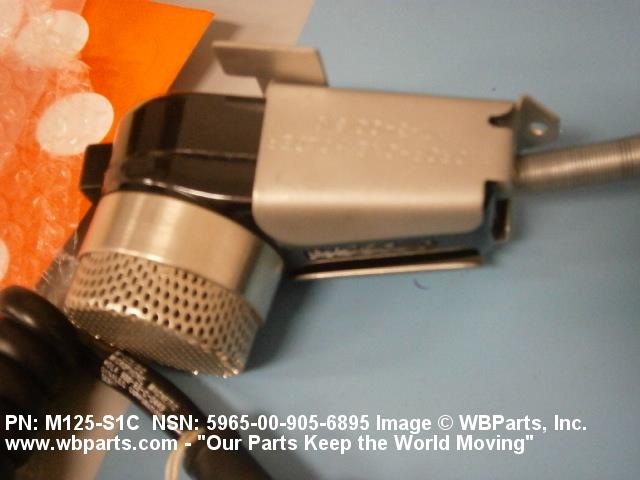

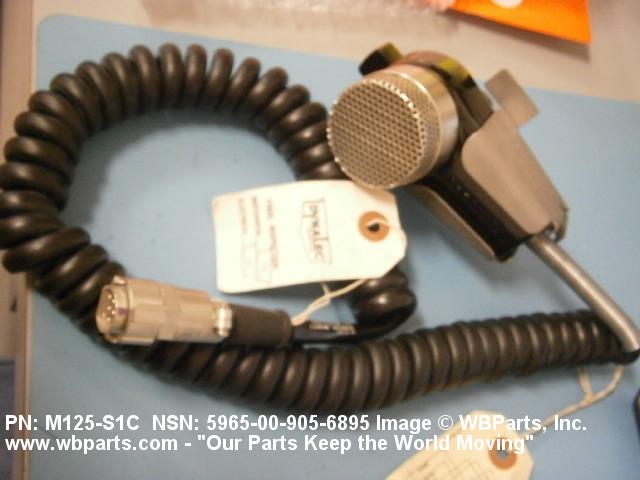

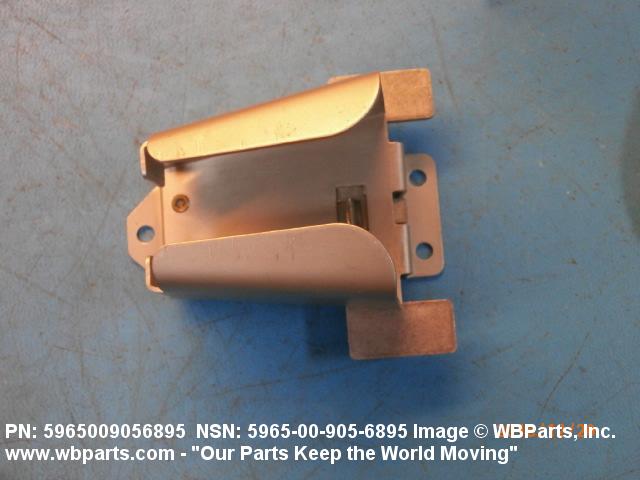

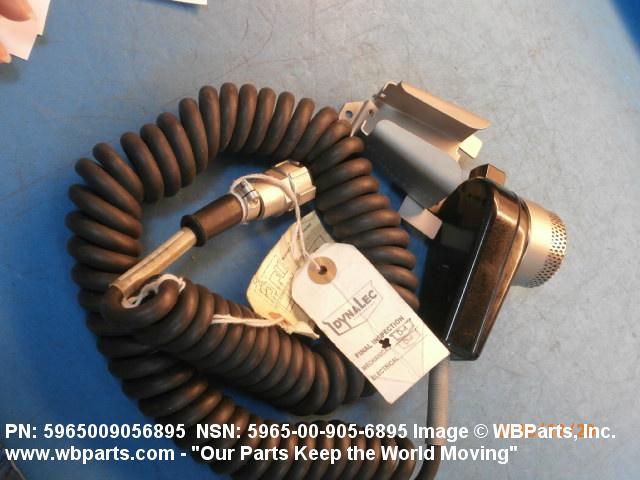

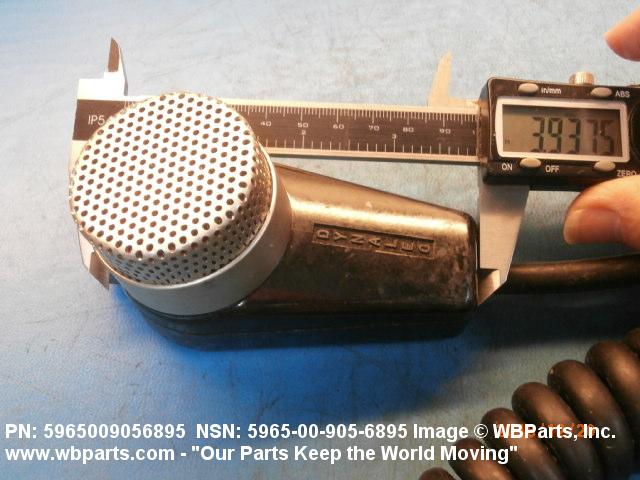

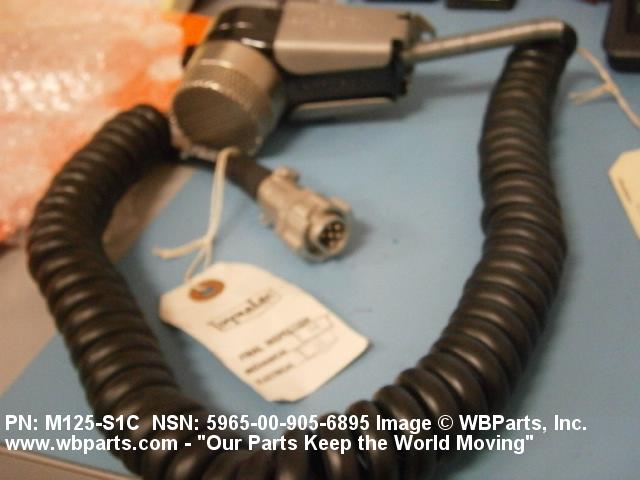

Drawings & Photos | NSN 5965-00-905-6895
Demand History | NSN 5965-00-905-6895
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5965-00-905-6895 | 2024-06-158 | 1 | US |
| 5965-00-905-6895 | 2024-03-87 | 50 | US |
| 5965-00-905-6895 | 2024-03-67 | 1 | BD |
| 5965-00-905-6895 | 2024-02-44 | 50 | United States |
| 5965-00-905-6895 | 2022-07-184 | 2 | BD |
| 5965-00-905-6895 | 2022-01-13 | 2 | US |
| 5965-00-905-6895 | 2021-10-284 | 64 | DIBBS |
| 5965-00-905-6895 | 2021-09-265 | 25 | BD |
| 5965-00-905-6895 | 2020-11-317 | 2 | BD |
| 5965-00-905-6895 | 2020-10-282 | 2 | BD |
| 5965-00-905-6895 | 2020-10-279 | 2 | UK |
| 60163002 | 2020-10-276 | 16 | United States |
| 5965-00-905-6895 | 2020-09-270 | 2 | BD |
| 5965-00-905-6895 | 2020-03-65 | 4 | US |
| 5965-00-905-6895 | 2019-09-250 | 1 | BD |
| 5965-00-905-6895 | 2019-08-221 | 1 | DIBBS-RFPs |
| 5965-00-905-6895 | 2019-07-197 | 25 | US |
| 5965-00-905-6895 | 2019-07-183 | 3 | Taiwan |
| 5965-00-905-6895 | 2019-03-67 | 2 | Taiwan |
| 5965-00-905-6895 | 2019-02-45 | 1 | Taiwan |
| 5965-00-905-6895 | 2018-11-312 | 5 | Taiwan |
| 5965-00-905-6895 | 2018-03-89 | 1 | United States |
| 60163002 | 2017-10-293 | 4 | US |
| 5965-00-905-6895 | 2017-07-207 | 4 | MANUAL |
| 5965-00-905-6895 | 2017-07-192 | 4 | US |
| 5965-00-905-6895 | 2016-09-245 | 2 | United States |
| 5965-00-905-6895 | 2015-03-82 | 128 | DIBBS |
| 5965-00-905-6895 | 2014-12-338 | 208 | DIBBS |
| 5965-00-905-6895 | 2014-07-188 | 258 | DIBBS |
| 5965-00-905-6895 | 2013-07-198 | 207 | US |
| 5965-00-905-6895 | 2013-07-185 | 207 | DIBBS |
| 5965-00-905-6895 | 2013-05-136 | 104 | DIBBS |
| 5965-00-905-6895 | 2013-04-91 | 200 | DIBBS |
| 5965-00-905-6895 | 2013-03-79 | 250 | DIBBS |
| 5965-00-905-6895 | 2013-02-38 | 148 | DIBBS |
| 5965-00-905-6895 | 2012-11-306 | 2 | Taiwan |
| 5965-00-905-6895 | 2012-05-135 | 440 | DIBBS |
| 5965-00-905-6895 | 2012-04-93 | 250 | DIBBS |
| 5965-00-905-6895 | 2012-03-73 | 1 | United States |
| 4300722S6584 | 2012-03-68 | 0 | United States |
| 5965-00-905-6895 | 2012-01-11 | 117 | DIBBS |
| 5965-00-905-6895 | 2011-11-320 | 232 | DIBBS |
| 5965-00-905-6895 | 2010-01-08 | 8 | US |
| 5965-00-905-6895 | 2010-01-08 | 8 | US |
| MILM23813 | 2007-12-344 | 24 | US |
Cross Reference | NSN 5965-00-905-6895
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4300-722S6584 | 43689 | HUNTINGTON INGALLS INCORPORATED DIV NEWPORT NEWS |
| 60163-002 | 12763 | DYNALEC CORPORATION |
| M125/SIC | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M125S1C | 12763 | DYNALEC CORPORATION |
| M125S1C | 57010 | TELEX COMMUNICATIONS/ELECTRO VOICE, INC. |
| MIL-M-23813 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5965-00-905-6895
Related Products | NSN 5965-00-905-6895
Technical Data | NSN 5965-00-905-6895
| Characteristic | Specifications |
|---|---|
| FREQUENCY RESPONSE RANGE IN HERTZ | 200.0 TO 8000.0 |
| IMPEDANCE RATING | 150.0 OHMS NOMINAL |
| OUTPUT AC VOLTAGE RATING | 1.0 MILLIVOLTS MINIMUM |
| POLARITY CONNECTION | REQUIRED |
| SOUND PICKUP DIRECTIONAL TYPE | UNIDIRECTIONAL |
| NOISE CANCELING FEATURE | INCLUDED |
| SUPPORT STAND | NOT INCLUDED |
| SHOCK MOUNT | PROVIDED |
| ELECTRICAL CONNECTION TYPE | INTEGRAL CORD |
| CONNECTOR IDENTIFICATION | BRS6-12-3/8 |
| CONNECTOR MANUFACTURER CODE | 71468 |
| EXTENDED CABLE LENGTH | 10.0 FEET NOMINAL |
| RETRACTED CABLE LENGTH | 2.0 FEET NOMINAL |
| CABLE CONDUCTOR QUANTITY | 5 |
| CABLE SHIELDED CONDUCTOR QUANTITY | 2 |
| SWITCH TYPE | PUSH |
| BODY STYLE | 19 HAND HELD |
| WIDTH | 2.000 INCHES NOMINAL |
| LENGTH | 4.000 INCHES NOMINAL |
| HEIGHT | 1.750 INCHES NOMINAL |
| TEST DATA DOCUMENT | 81349-MIL-M-23813 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-M-23813 GOVERNMENT SPECIFICATION |
| III CASE MATERIAL | PLASTIC |
| III FUNCTIONAL DESCRIPTION | NOISE CANCELLING,HAND HELD TYPE WITH COIL CORD AND CONNECTOR. USED ON SUBMARINES |
| III FSC APPLICATION DATA | COMMUNICATIONS EQUIPMENT |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-M-23813 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M125/SIC |
Restrictions/Controls & Freight Information | NSN 5965-00-905-6895
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061700 | ELEC APPLIANCES/INSTRUMENTS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 723 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5965-00-905-6895
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
