NSN 5965-00-905-6894 M124/SIC, M124SIC, MILM23813A

Product Details | MAGNETIC MICROPHONE

5965-00-905-6894 A microphone which depends for its operation upon variations in reluctance of a magnetic circuit.

Part Alternates: M124/SIC, M124SIC, MILM23813A, MIL-M-23813A, MILM23813ASHIPSM124S, 60163004, 60163-004, 60163-004/M-124/SIC, 60163004M124SIC, 5965-00-905-6894, 00-905-6894, 5965009056894, 009056894

Electrical and Electronic Equipment Components | Headsets, Handsets, Microphones and Speakers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	01 JAN 1960	00-905-6894	00363 ( MICROPHONE, MAGNETIC )

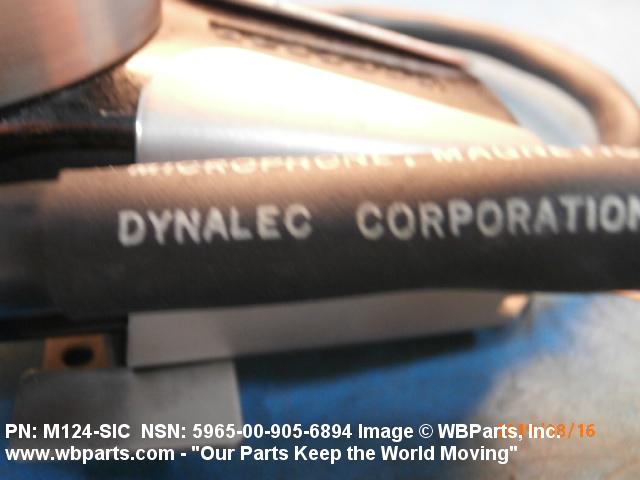

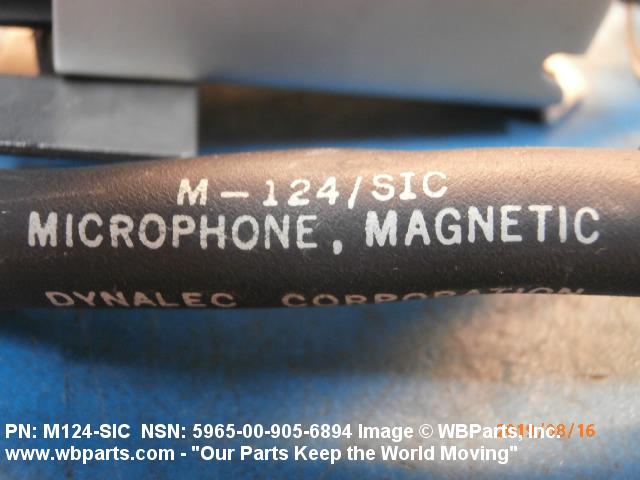

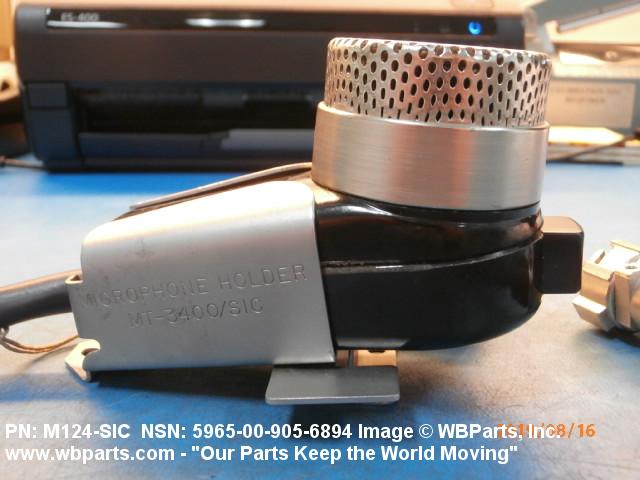

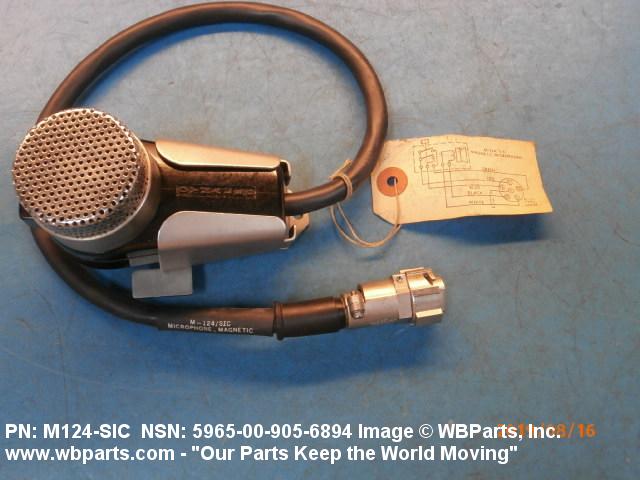

Drawings & Photos | NSN 5965-00-905-6894

Part Number	Request Date	QTY	Origin
5965-00-905-6894	2021-09-255	43	DIBBS
5965-00-905-6894	2021-02-39	42	DIBBS
5965-00-905-6894	2021-01-28	50	DIBBS
5965-00-905-6894	2021-01-05	53	DIBBS
5965-00-905-6894	2020-12-336	53	DIBBS
5965-00-905-6894	2020-11-313	42	DIBBS
5965-00-905-6894	2019-08-221	1	DIBBS-RFPs
5965-00-905-6894	2019-08-217	1	United States
M124SIC	2017-02-45	1	US
5965-00-905-6894	2014-11-320	72	DIBBS
5965-00-905-6894	2014-07-202	73	DIBBS
5965-00-905-6894	2014-06-152	89	DIBBS
5965-00-905-6894	2013-03-66	85	DIBBS
5965-00-905-6894	2013-02-58	87	DIBBS
5965-00-905-6894	2013-01-17	218	DIBBS
5965-00-905-6894	2011-04-116	31	DIBBS

Cross Reference | NSN 5965-00-905-6894

Part Number	Cage Code	Manufacturer
60163-004	12763	DYNALEC CORPORATION
60163-004/M-124/SIC	12763	DYNALEC CORPORATION
M124/SIC	12763	DYNALEC CORPORATION
M124/SIC	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-M-23813A	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MILM23813ASHIPSM124S	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5965-00-905-6894

Compare

Related Products | NSN 5965-00-905-6894

5965-00-905-6895, 5965-00-905-7561, 5965-00-905-9004, 5965-00-906-1442, 5965-00-906-6628

Technical Data | NSN 5965-00-905-6894

Characteristic	Specifications
FREQUENCY RESPONSE RANGE IN HERTZ	180.0 TO 5600.0
IMPEDANCE RATING	150.0 OHMS NOMINAL
OUTPUT AC VOLTAGE RATING	1.0 MILLIVOLTS MINIMUM
POLARITY CONNECTION	REQUIRED
SOUND PICKUP DIRECTIONAL TYPE	UNIDIRECTIONAL
NOISE CANCELING FEATURE	INCLUDED
SUPPORT STAND	NOT INCLUDED
SHOCK MOUNT	PROVIDED
ELECTRICAL CONNECTION TYPE	INTEGRAL CABLE
CONNECTOR IDENTIFICATION	BRS6-12-3/8
CONNECTOR MANUFACTURER CODE	71468
EXTENDED CABLE LENGTH	1.5 FEET NOMINAL
CABLE CONDUCTOR QUANTITY	5
CABLE SHIELDED CONDUCTOR QUANTITY	2
SWITCH TYPE	PUSH
BODY STYLE	19 HAND HELD
WIDTH	2.000 INCHES NOMINAL
LENGTH	4.250 INCHES NOMINAL
HEIGHT	2.438 INCHES NOMINAL
TEST DATA DOCUMENT	81349-MIL-M-23813A SPECIFICATION
SPECIFICATION/STANDARD DATA	81349-M124/SIC GOVERNMENT SPECIFICATION
III FSC APPLICATION DATA	COMMUNICATION EQUIPMENT
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-M-23813A
MANUFACTURERS CODE	81349
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	M124/SIC

Restrictions/Controls & Freight Information | NSN 5965-00-905-6894

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	061700	ELEC APPLIANCES/INSTRUMENTS NOI
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	723	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5965-00-905-6894

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
