NSN 5965-00-892-3353 H-216/U, H-216A/U, H216AU
Product Details | ELECTRICAL HEADSET
5965-00-892-3353 An item consisting of one or two earphones with a connecting cord and with or without a headband. Single headphone type must include facilities as required for use. For items without earphones designed to protect the ears from noise, see PROTECTOR, HEARING.
Part Alternates: H-216/U, H-216A/U, H216AU, H216U, SCDL157941, SC-DL-157941, MILH55353, MIL-H-55353, 1092, 200525, 20052-5, 5965-00-892-3353, 00-892-3353, 5965008923353, 008923353
Electrical and Electronic Equipment Components | Headsets, Handsets, Microphones and Speakers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-892-3353 | 00737 ( HEADSET, ELECTRICAL ) |

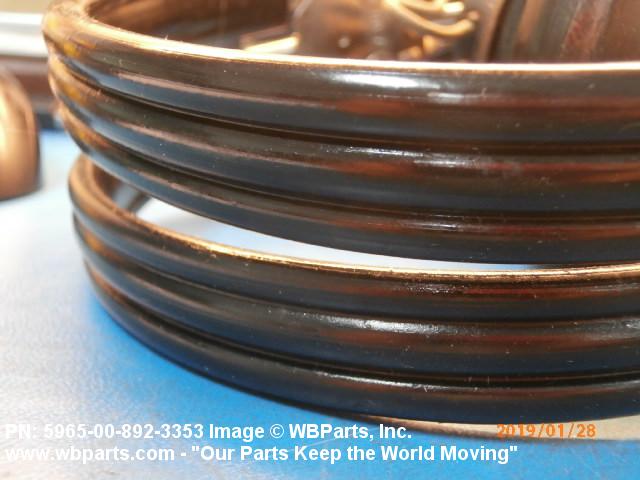

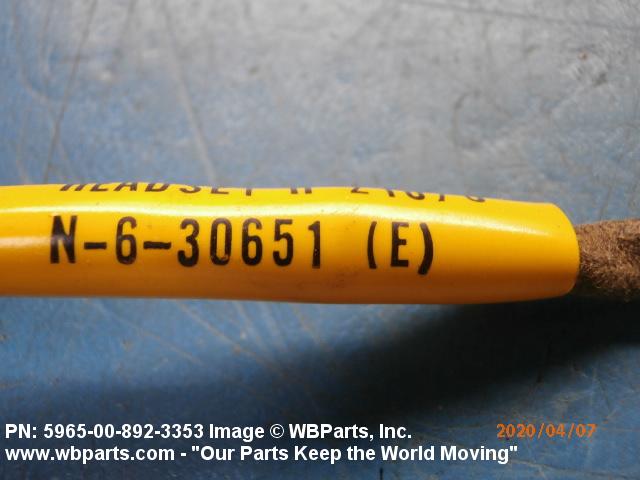

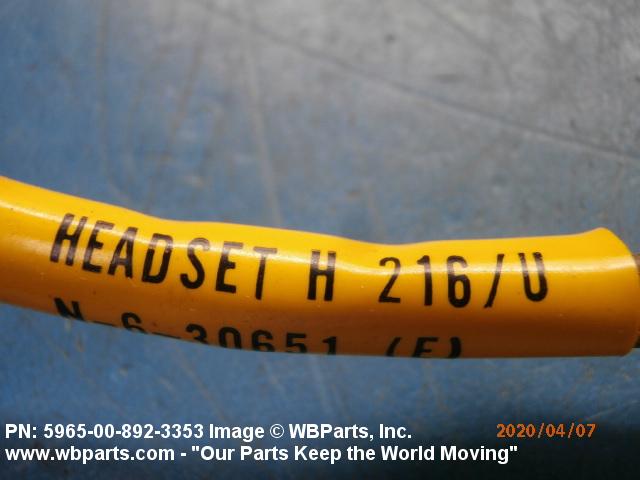

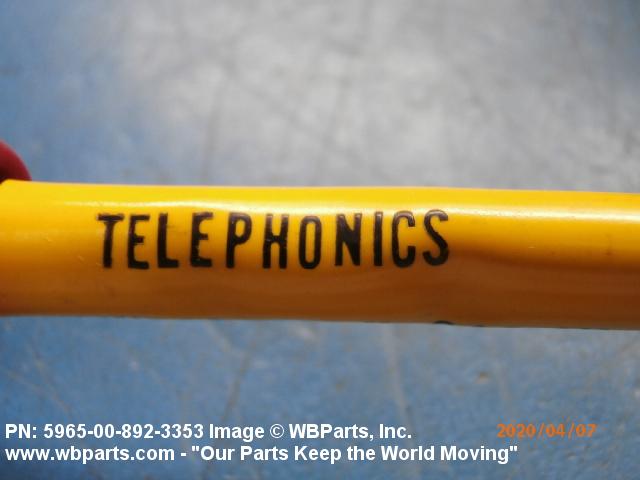

Drawings & Photos | NSN 5965-00-892-3353
Demand History | NSN 5965-00-892-3353
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5965-00-892-3353 | 2024-09-269 | 6 | us |
| 5965-00-892-3353 | 2020-04-93 | 1 | United States |
| 5965-00-892-3353 | 2020-03-76 | 2 | United States |
| 5965-00-892-3353 | 2020-03-72 | 2 | United States |
| 5965-00-892-3353 | 2019-11-308 | 1 | US |
| 5965-00-892-3353 | 2018-11-312 | 9 | US |
| 5965-00-892-3353 | 2018-09-249 | 1 | United States |
| H216AU | 2018-07-187 | 9 | United States |
| 5965-00-892-3353 | 2018-03-88 | 1 | US |
| 5965-00-892-3353 | 2017-08-220 | 3 | United States |
| 5965-00-892-3353 | 2015-06-161 | 7 | US |
| 5965-00-892-3353 | 2012-04-110 | 1 | US |
| 5965-00-892-3353 | 2010-01-26 | 2 | US |
| 1092 | 2009-05-128 | 1 | France |
| 5965-00-892-3353 | 2008-02-60 | 1 | US |
| 5965-00-892-3353 | 2007-12-361 | 10 | US |
Cross Reference | NSN 5965-00-892-3353
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1092 | 04582 | PAX MFG CORP PAX ELECTRONICS DIV |
| 20052-5 | 78711 | TELEPHONICS CORPORATION DBA COMMUNICATIONS SYSTEMS DIVISION |
| H-216/U | 80058 | JOINT ELECTRONICS TYPE DESIGNATION SYSTEM |
| H-216A/U | 80058 | JOINT ELECTRONICS TYPE DESIGNATION SYSTEM |
| H-216A/U | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-H-55353 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| SC-DL-157941 | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5965-00-892-3353
Related Products | NSN 5965-00-892-3353
Technical Data | NSN 5965-00-892-3353
| Characteristic | Specifications |
|---|---|
| HEADBAND TYPE | ADJUSTABLE DOUBLE BAND |
| HEADBAND MATERIAL | STEEL, STAINLESS |
| HEADBAND COVERING MATERIAL | LEATHER |
| HEADSET CORD LENGTH | 20.0 INCHES NOMINAL |
| EARPHONE ELEMENT TYPE | DYNAMIC |
| CHANNEL MONITOR CAPABILITY | SINGLE CHANNEL |
| EARPHONE QUANTITY | 2 |
| EARPHONE CAP MATERIAL | PLASTIC |
| EARPHONE SHELL MATERIAL | PLASTIC |
| EARPHONE CUSHION MATERIAL | ANY ACCEPTABLE |
| EARPHONE INTERCONNECTION ARRANGEMENT | SERIES |
| TERMINAL TYPE | TAB, SOLDER LUG |
| TERMINAL QUANTITY | 2 |
| TERMINAL LOCATION | INTERNAL |
| EARPHONE MOUNTING METHOD | DIAMETRICALLY OPPOSED HOLES IN OUTSIDE PERIPHERY OF CASE |
| BODY STYLE | 8 HEADSET, COVERED |
| HEADSET OVERALL HEIGHT | 9.060 INCHES NOMINAL |
| HEADSET OVERALL WIDTH | 6.250 INCHES NOMINAL |
| HEADSET OVERALL DEPTH | ANY ACCEPTABLE |
| IMPEDANCE RATING IN OHMS | 600.0 NOMINAL |
| ACOUSTIC SENSITIVITY REFERENCE RATING | NOT RATED |
| MAGNETIC SHIELDING | NOT INCLUDED |
| HEADSET CONNECTING CORD TERMINATION LOCATION | REVERSIBLE RIGHT-LEFT |
| SIGNAL INPUT TERMINAL TYPE | PLUG |
| CONNECTOR MANUFACTURER CODE | 80063 |
| CONNECTOR MANUFACTURER PART NUMBER | PJ-054R |
| TEST DATA DOCUMENT | 81349-MIL-H-55353 SPECIFICATION |
| III FSC APPLICATION DATA | COMMUNICATION EQUIPMENT |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | H-216A/U |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-H-55353 |
Restrictions/Controls & Freight Information | NSN 5965-00-892-3353
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062820 | RADIO/TV TRANSMIT/RECEIVE SETS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 723 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5965-00-892-3353
Navy
Marines| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 2 | Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Echelon Identification Code | K | Reserved |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | F | Reparable item. When uneconomically reparable, condemn and dispose at the third echelon level. |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
