NSN 5965-00-892-3665 H4004FU3641, H400-4FU3641, C4BN06001

Product Details | PERMANENT MAGNET LOUDSPEAKER

5965-00-892-3665 A loudspeaker whose diaphragm movements are produced by a coil or iron armature moving in the field of a permanent magnet.

Part Alternates: H4004FU3641, H400-4FU3641, C4BN06001, SCDL83161, SMD107437, G03A01PF, G03A01-PF, IC/E302, ICE302, LS445, LS445/U, LS-445/U, LS445U, MILDTL12606, MIL-DTL-12606, MILL12606, MIL-L-12606, C4BR, 06031000, 06031-000, 250C1002, 2881840001, 28818-40001, 40082131 , 4150142PC40, 4150-142PC40, 61211, 61211000, 61211-000, 62410000, 62410-000, 697836-004, 8011143, 8425B85, 5965-00-892-3665, 00-892-3665, 5965008923665, 008923665, 697836004

Electrical and Electronic Equipment Components | Headsets, Handsets, Microphones and Speakers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	01 JAN 1960	00-892-3665	15771 ( LOUDSPEAKER, PERMANENT MAGNET )

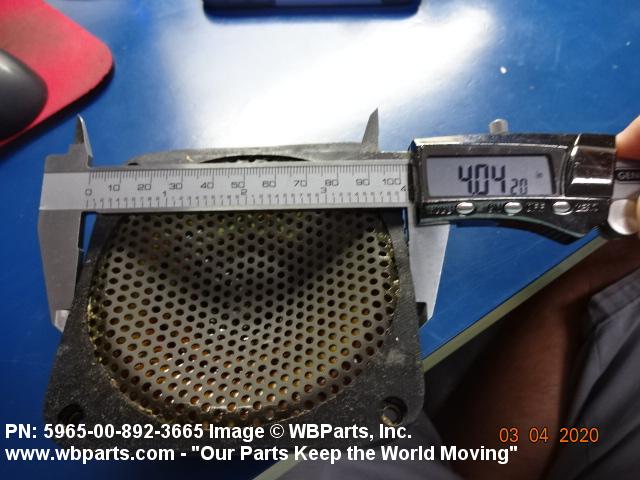

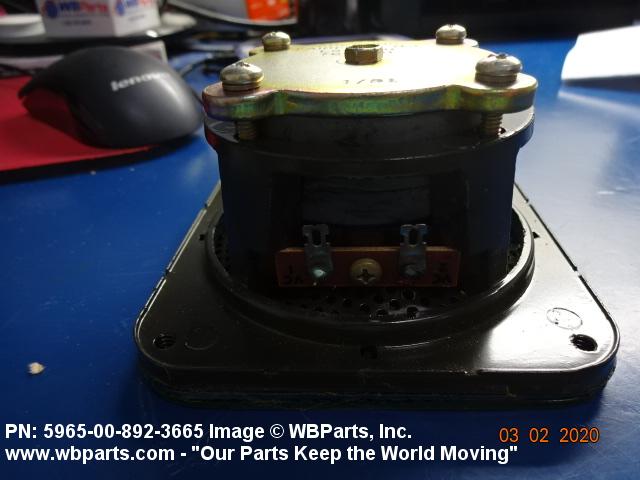

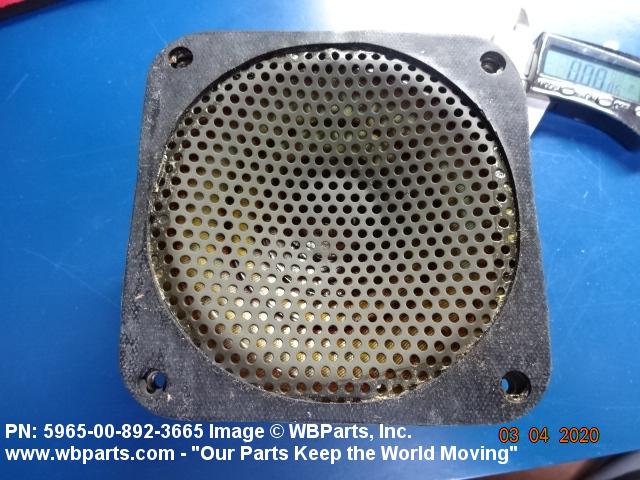

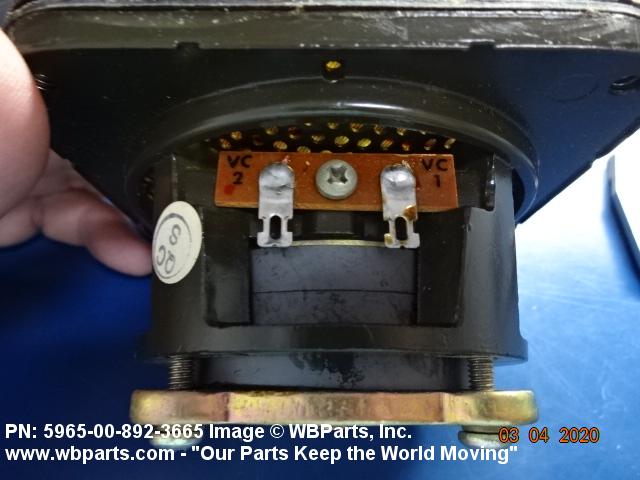

Drawings & Photos | NSN 5965-00-892-3665

Part Number	Request Date	QTY	Origin
5965-00-892-3665	2023-11-324	209	DIBBS
5965-00-892-3665	2023-11-311	209	DIBBS
5965-00-892-3665	2023-10-304	198	DIBBS
5965-00-892-3665	2023-10-292	198	DIBBS
5965-00-892-3665	2023-08-218	11	DIBBS
5965-00-892-3665	2023-05-131	401	DIBBS
5965-00-892-3665	2022-07-192	182	DIBBS
5965-00-892-3665	2022-06-181	182	DIBBS
5965-00-892-3665	2022-03-61	1	Taiwan
5965-00-892-3665	2021-11-333	2	US
5965-00-892-3665	2021-11-333	178	DIBBS
5965-00-892-3665	2021-11-321	178	DIBBS
5965-00-892-3665	2021-09-252	161	DIBBS
5965-00-892-3665	2021-07-207	91	DIBBS
5965-00-892-3665	2021-05-137	24	US
5965-00-892-3665	2020-07-206	1	us
LS445U	2020-02-43	75	Australia
LS445U	2020-01-09	51	Australia
5965-00-892-3665	2018-07-206	150	SG
5965-00-892-3665	2016-06-157	2810	DIBBS
5965-00-892-3665	2016-05-147	81	DIBBS
5965-00-892-3665	2016-04-119	1730	DIBBS
LS445U	2016-04-97	14	KR
5965-00-892-3665	2016-03-66	1182	DIBBS
5965-00-892-3665	2014-06-161	645	DIBBS
5965-00-892-3665	2014-03-87	850	DIBBS
5965-00-892-3665	2014-01-17	1587	DIBBS
5965-00-892-3665	2013-07-197	313	DIBBS
5965-00-892-3665	2013-06-171	459	DIBBS
5965-00-892-3665	2013-06-156	459	DIBBS
5965-00-892-3665	2012-09-268	104	DIBBS
LS445U	2012-06-181	10	US
5965-00-892-3665	2009-01-20	60	Canada
LS445U	2007-12-358	4	us
5965-00-892-3665	2007-12-353	6	India

Cross Reference | NSN 5965-00-892-3665

Part Number	Cage Code	Manufacturer
06031-000	01534	RAYTHEON COMPANY DBA RAYTHEON
250C1002	1VPW8	GENERAL DYNAMICS C4 SYSTEMS, INC.
250C1002	94990	MOTOROLA INC. DBA INTEGRATED INFORMATION SYSTEMS
28818-40001	K0662	SELEX ES LTD
4150-142PC40	43689	HUNTINGTON INGALLS INCORPORATED DIV NEWPORT NEWS
61211	12763	DYNALEC CORPORATION
61211-000	12763	DYNALEC CORPORATION
697836-004	12436	BAE SYSTEMS NATIONAL SECURITY SOLUTIONS INC.
8011143	18876	U S ARMY AVIATION AND MISSILE COMMAND
8425B85	98905	FEDERAL SIGNAL INTERNATIONAL FSC LTD DIV ELECTRICAL PRODUCTS
C4BN06001	87771	UNIVERSITY SOUND INC AFFIL OF MARK IV INDUSTRIES INC
C4BR	87771	UNIVERSITY SOUND INC AFFIL OF MARK IV INDUSTRIES INC
G03A01-PF	4Y759	GLOBAL MARKET DEVELOPMENT, INC. DBA ACCUSONIC PRODUCTS
H400-4FU3641	07109	MITEK CORPORATION DBA MTX/OAKTRON
IC/E302	28199	L-3 COMMUNICATIONS CORPORATION DBA L-3 HENSCHEL
LS-445/U	12763	DYNALEC CORPORATION
LS-445/U	80058	JOINT ELECTRONICS TYPE DESIGNATION SYSTEM
LS-445/U	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
LS-445/U	U0DY1	L3-COMMUNICATIONS MARINE SYSTEMS UKLTD MAPPS
LS445	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY

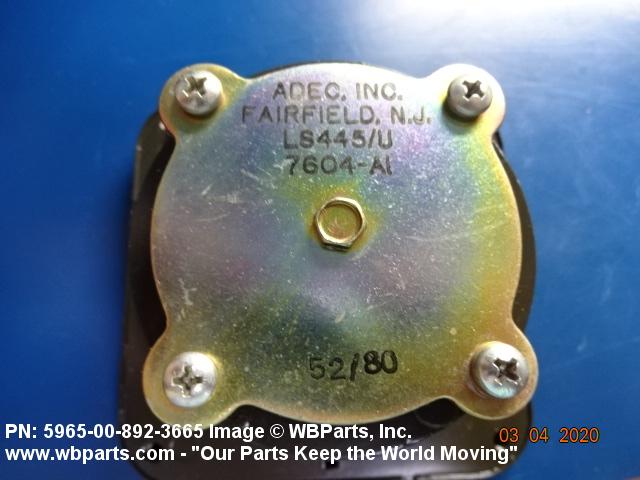

LS445/U	04848	ADEC INC
LS445/U	80064	NAVAL SHIP SYSTEMS COMMAND
LS445U	87771	UNIVERSITY SOUND INC AFFIL OF MARK IV INDUSTRIES INC
MIL-DTL-12606	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-L-12606	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
SCDL83161	80063	US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS
SMD107437	80063	US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5965-00-892-3665

Compare

Related Products | NSN 5965-00-892-3665

5965-00-892-3850, 5965-00-892-3893, 5965-00-893-1954, 5965-00-893-2509, 5965-00-893-4705

Technical Data | NSN 5965-00-892-3665

Characteristic	Specifications
POWER RATING	2.00 WATTS NORMAL AND 4.00 WATTS PEAK
IMPEDANCE RATING IN OHMS	7.0 VOICE COIL NOMINAL AND 9.0 VOICE COIL NOMINAL
FREQUENCY RESPONSE RANGE IN HERTZ	300.0 TO 7000.0
STYLE DESIGNATOR	6 SQUARE

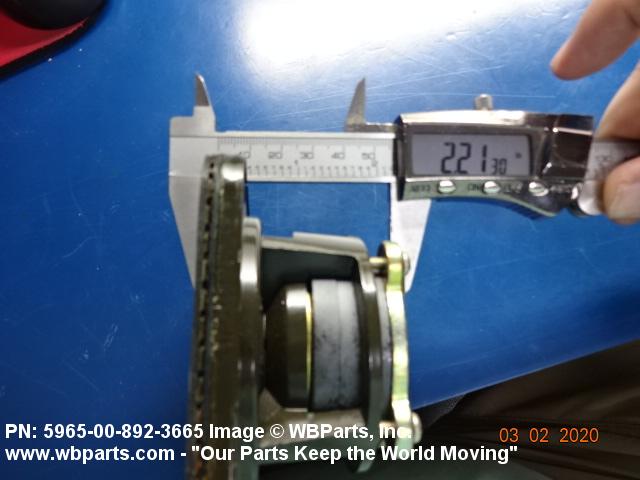

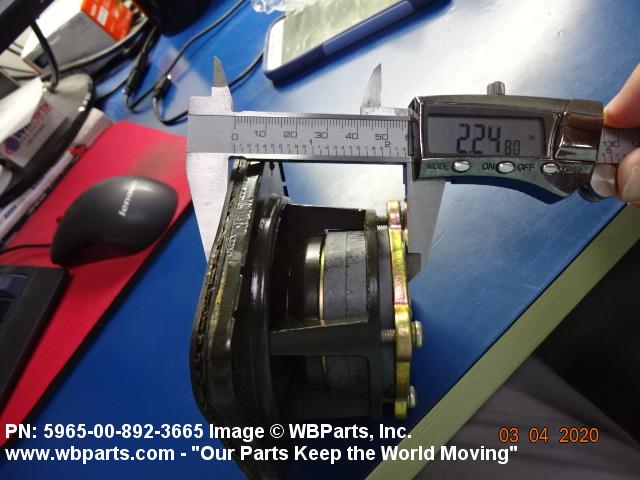

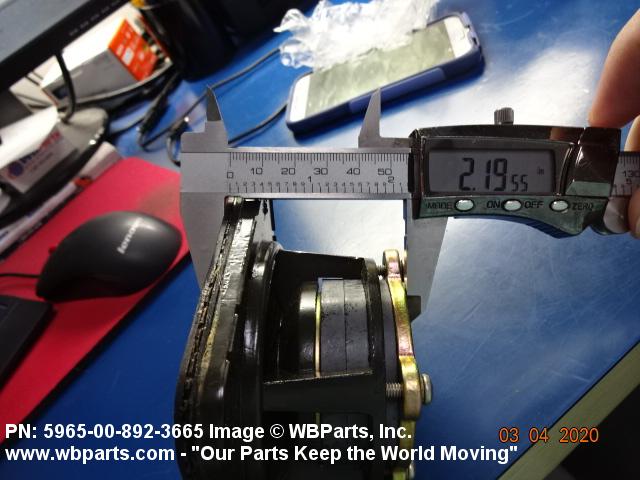

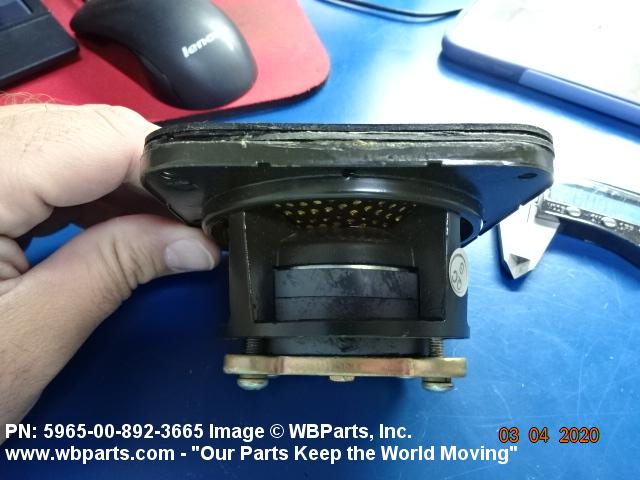

OVERALL DEPTH	2.375 INCHES MAXIMUM

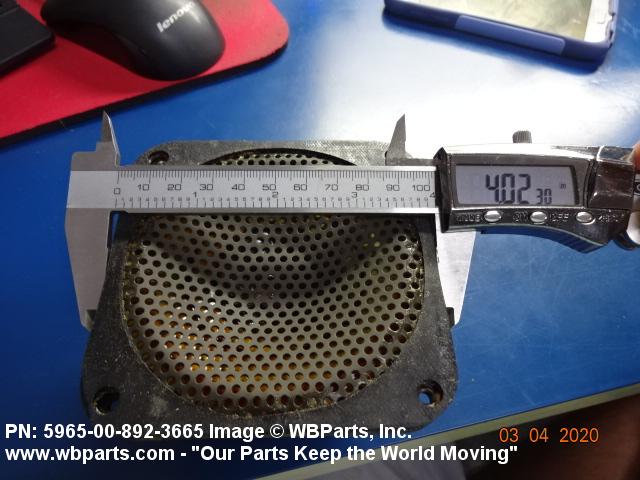

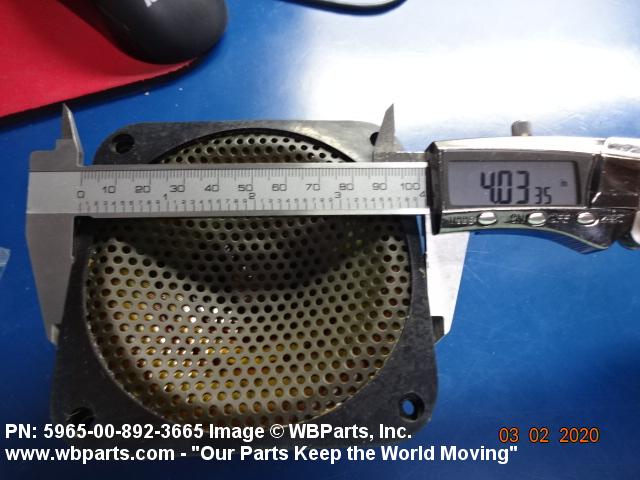

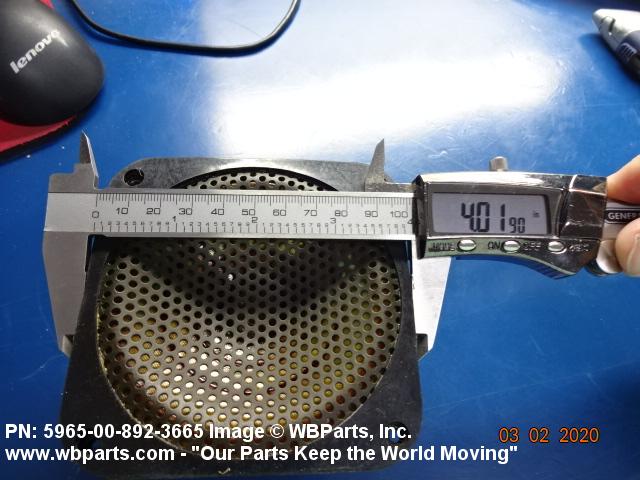

OVERALL LENGTH	4.000 INCHES NOMINAL

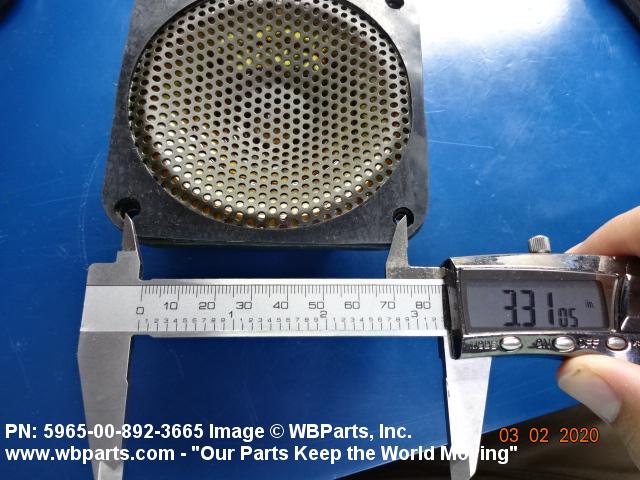

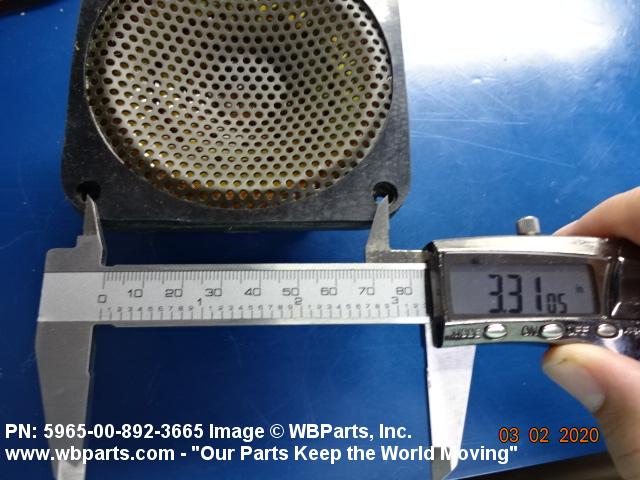

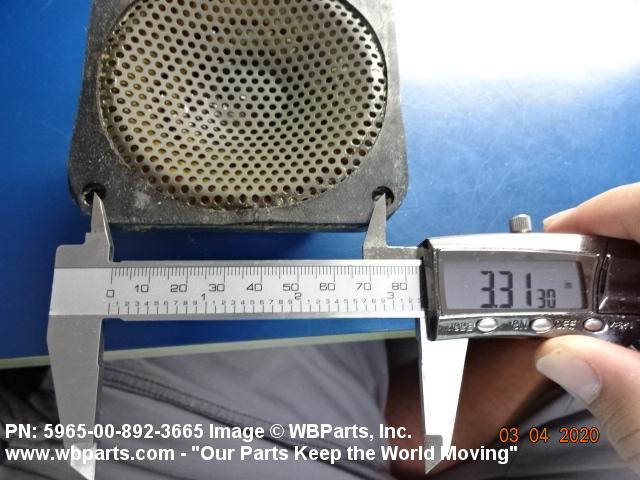

CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH	3.312 INCHES NOMINAL
CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH	3.312 INCHES NOMINAL
OVERALL WIDTH	4.000 INCHES NOMINAL
MOUNTING HOLE DIAMETER	0.190 INCHES NOMINAL
TRANSDUCER TYPE	CONE
TRANSDUCER DIAMETER	4.0 INCHES NOMINAL
TRANSDUCER LENGTH	0.575 INCHES MAXIMUM
USAGE DESIGN	OUTDOOR
INSTALLATION DESIGN	NONPORTABLE
TERMINAL TYPE	TAB, SOLDER LUG
TERMINAL QUANTITY	2
MOUNTING METHOD	THREADED HOLE
MOUNTING FACILITY QUANTITY	4
MOUNTING FACILITY THREAD SIZE AND SERIES/TYPE DESIGNATOR	10-24 UNC
TEST DATA DOCUMENT	81349-MIL-L-12606 SPECIFICATION
MANUFACTURERS CODE	81349
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	LS-445/U
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-DTL-12606

Restrictions/Controls & Freight Information | NSN 5965-00-892-3665

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	Y	Information is in the Hazardous Materials Information System (HMIS)
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Hazardous Control Code:	M1	Magnetized Material MAGNETIZED MATERIAL
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	062420	LOUDSPEAKER/SPEAKER W/HORN SUB 1
Less than car load rating
Less than truck load rating	F	150.0
Water commodity Code	723	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	M	Magnetic material

Management | NSN 5965-00-892-3665

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	T	Other Electronics Equipment
Weapons Systems/End Item or Homogeneous Group	TQ	Rechargeable batteries
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
