NSN 5965-00-179-7762 M-80C/U, M80CU, M-80D/U
Product Details | DYNAMIC MICROPHONE
5965-00-179-7762 A microphone which depends for its operation upon the generation of an electromotive force by the motion of a moving coil within a magnetic field.
Part Alternates: M-80C/U, M80CU, M-80D/U, M80DU, A3186938, DLSMB317091, DL-SM-B-317091, MILE55119, MIL-E-55119, 980, 9807253, 980-7253, 9809816, 980-9816, 5965-00-179-7762, 00-179-7762, 5965001797762, 001797762
Electrical and Electronic Equipment Components | Headsets, Handsets, Microphones and Speakers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 08 NOV 1968 | 00-179-7762 | 00362 ( MICROPHONE, DYNAMIC ) |
Drawings & Photos | NSN 5965-00-179-7762
Demand History | NSN 5965-00-179-7762
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5965-00-179-7762 | 2024-01-02 | 166 | DIBBS |
| 5965-00-179-7762 | 2021-11-333 | 10 | US |
| 5965-00-179-7762 | 2021-08-230 | 18 | IL |
| 5965-00-179-7762 | 2019-07-196 | 2 | IL |
| 5965-00-179-7762 | 2012-06-173 | 10 | Singapore |
| 5965-00-179-7762 | 2010-07-197 | 50 | JO |
| 5965-00-179-7762 | 2009-03-90 | 100 | Taiwan |
Cross Reference | NSN 5965-00-179-7762
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 980 | 81134 | BOSCH SECURITY SYSTEMS, INC DBA USE CAGE CODE 25734 FOR |
| 980-7253 | 81134 | BOSCH SECURITY SYSTEMS, INC DBA USE CAGE CODE 25734 FOR |
| 980-9816 | 81134 | BOSCH SECURITY SYSTEMS, INC DBA USE CAGE CODE 25734 FOR |
| A3186938 | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
| DL-SM-B-317091 | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
| M-80C/U | 16575 | SONETRONICS INC DBA SONETRONICS |
| M-80C/U | 80058 | JOINT ELECTRONICS TYPE DESIGNATION SYSTEM |
| M-80C/U | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M-80D/U | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-E-55119 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5965-00-179-7762
Related Products | NSN 5965-00-179-7762
Technical Data | NSN 5965-00-179-7762
| Characteristic | Specifications |
|---|---|
| FREQUENCY RESPONSE RANGE IN HERTZ | 300.0 TO 3500.0 |
| IMPEDANCE RATING | 150.0 OHMS NOMINAL |
| OUTPUT SENSITIVITY RATING IN DECIBELS | -125.0 |
| OUTPUT SENSITIVITY RATING REFERENCE | 10 DYNES PER SQ CENTIMETER |
| OPERATING DC VOLTAGE IN VOLTS | 24.0 |
| POLARITY CONNECTION | NOT REQUIRED |
| OPERATING DC | 500.0 MILLIAMPERES NOMINAL |
| SOUND PICKUP DIRECTIONAL TYPE | SEMIDIRECTIONAL |
| NOISE CANCELING FEATURE | NOT INCLUDED |
| SUPPORT STAND | NOT INCLUDED |
| SHOCK MOUNT | NOT PROVIDED |
| MOUNTING METHOD | CLIP |
| ELECTRICAL CONNECTION TYPE | INTEGRAL CORD |
| ACCESSORY COMPONENTS | CABLE |
| EXTENDED CABLE LENGTH | 7.0 FEET NOMINAL |
| RETRACTED CABLE LENGTH | 2.5 FEET NOMINAL |
| CABLE CONDUCTOR QUANTITY | 4 |
| SWITCH TYPE | PUSH |

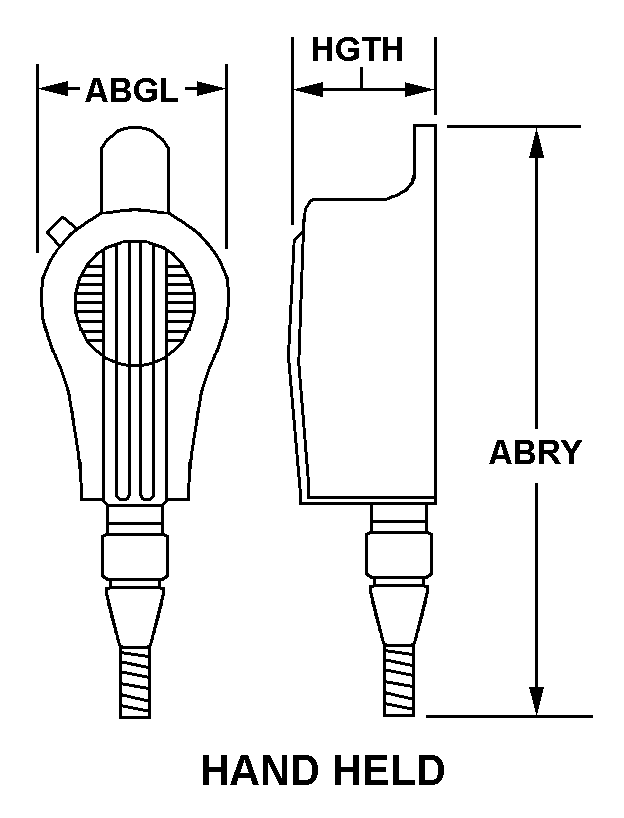

| BODY STYLE | 14 HAND HELD |
| WIDTH | 2.500 INCHES NOMINAL |
| LENGTH | 4.594 INCHES NOMINAL |
| HEIGHT | 1.031 INCHES NOMINAL |
| SPECIAL FEATURES | HAND HELD MICROPHONE INCLUDES SWITCH ASSEMBLY,CABLE CONNECTOR,HANGER,AND CLOTHING CLIP; DESIGNED TO BE WATER RESISTANT; USED WITH MILITARY RADIOS AND PUBLIC ADDRESS SYSTEMS |
| TEST DATA DOCUMENT | 81349-MIL-E-55119 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-M-80D/U GOVERNMENT SPECIFICATION |
| III FSC APPLICATION DATA | HEASSETS,HANDSETS,MICROPHONES AND SPEAKERS |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M-80D/U |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-E-55119 |
Restrictions/Controls & Freight Information | NSN 5965-00-179-7762
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061700 | ELEC APPLIANCES/INSTRUMENTS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | CL | U.S. Army Communications-Electronics Fort Monmouth, NJ 07703-5006 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5965-00-179-7762
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | R | Tactical and Strategic Communications |
| Weapons Systems/End Item or Homogeneous Group | RU | Vehicular and EPLRS IKs |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Physical Category Code | 1 | Bin |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
