NSN 5965-00-181-0213 MC087002, MC-087-002, BM56WS
Product Details | DYNAMIC MICROPHONE
5965-00-181-0213 A microphone which depends for its operation upon the generation of an electromotive force by the motion of a moving coil within a magnetic field.
Part Alternates: MC087002, MC-087-002, BM56WS, BM5-6WS, EV693, 216080007604, 216-080-007-604, 6938417, 693-8417, 9900WB, 9900-WB, 5965-00-181-0213, 00-181-0213, 5965001810213, 001810213
Electrical and Electronic Equipment Components | Headsets, Handsets, Microphones and Speakers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 17 AUG 1970 | 00-181-0213 | 00362 ( MICROPHONE, DYNAMIC ) |
Drawings & Photos | NSN 5965-00-181-0213
Demand History | NSN 5965-00-181-0213
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5965-00-181-0213 | 2023-02-59 | 6 | United States |
| 5965-00-181-0213 | 2019-03-74 | 8 | GU |
| 5965-00-181-0213 | 2019-03-64 | 8 | United States |
| 5965-00-181-0213 | 2018-07-204 | 742 | DIBBS |
| 5965-00-181-0213 | 2018-07-193 | 742 | DIBBS |
| 5965-00-181-0213 | 2018-05-127 | 426 | DIBBS |
| 5965-00-181-0213 | 2018-04-116 | 426 | DIBBS |
| 5965-00-181-0213 | 2018-04-105 | 399 | DIBBS |
| 5965-00-181-0213 | 2017-11-323 | 391 | DIBBS |
| 5965-00-181-0213 | 2017-05-144 | 185 | DIBBS |
| 5965-00-181-0213 | 2017-01-22 | 239 | DIBBS |
| 5965-00-181-0213 | 2015-10-295 | 257 | DIBBS |
| MC087002 | 2014-01-13 | 18 | Pakistan |
| 5965-00-181-0213 | 2014-01-09 | 18 | Pakistan |
| MC087002 | 2013-04-120 | 4 | US |
| MC-087-002 | 2012-10-282 | 10 | Pakistan |
| 5965-00-181-0213 | 2011-08-242 | 115 | DIBBS |
| 5965-00-181-0213 | 2011-07-188 | 165 | DIBBS |
| 5965-00-181-0213 | 2011-04-112 | 208 | DIBBS |
| 5965-00-181-0213 | 2007-08-220 | 235 | DIBBS |
| 5965-00-181-0213 | 2007-07-200 | 154 | DIBBS |
| 5965-00-181-0213 | 2006-06-165 | 0 | DIBBS |
Cross Reference | NSN 5965-00-181-0213
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 216-080-007-604 | 82872 | ROANWELL CORPORATION DBA PARAMOUNT CORDS |
| 693-8417 | 81134 | BOSCH SECURITY SYSTEMS, INC DBA USE CAGE CODE 25734 FOR |
| 9900-WB | 59369 | ACOUSTICOM CORP DBA ACOUSTIC |
| BM5-6WS | 55564 | D C M INDUSTRIES INC |
| EV693 | 81134 | BOSCH SECURITY SYSTEMS, INC DBA USE CAGE CODE 25734 FOR |
| MC-087-002 | 16575 | SONETRONICS INC DBA SONETRONICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5965-00-181-0213
Related Products | NSN 5965-00-181-0213
Technical Data | NSN 5965-00-181-0213
| Characteristic | Specifications |
|---|---|
| FREQUENCY RESPONSE RANGE IN HERTZ | 200.0 TO 6000.0 |
| IMPEDANCE RATING | 5.5 OHMS NOMINAL |
| OUTPUT SENSITIVITY RATING IN DECIBELS | 49.5 |
| POLARITY CONNECTION | NOT REQUIRED |
| SOUND PICKUP DIRECTIONAL TYPE | UNIDIRECTIONAL |
| NOISE CANCELING FEATURE | INCLUDED |
| SUPPORT STAND | NOT INCLUDED |
| SHOCK MOUNT | NOT PROVIDED |
| MOUNTING METHOD | SWIVEL ADAPTER |
| ELECTRICAL CONNECTION TYPE | INTEGRAL CABLE |
| ACCESSORY COMPONENTS | CONNECTOR |
| CABLE CONDUCTOR QUANTITY | 2 |

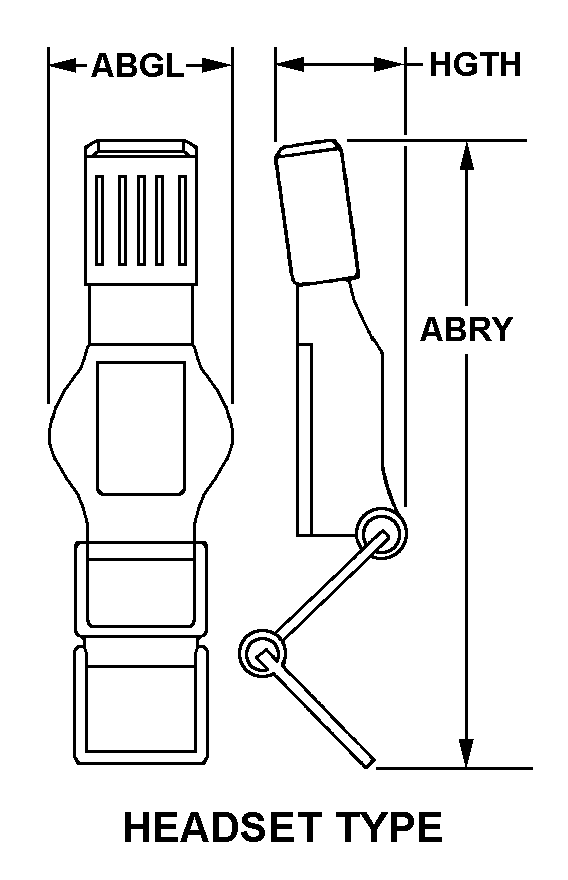

| BODY STYLE | 9 HEADSET TYPE |
| WIDTH | 1.500 INCHES NOMINAL |
| LENGTH | 9.500 INCHES NOMINAL |
| HEIGHT | 1.375 INCHES NOMINAL |
| SPECIAL FEATURES | MICROPHONE INCLUDES A BOOM ASSEMBLY,CORD,AND WINDSCREEN. USED BY HELICOPTER FLIGHT CREWS |
Restrictions/Controls & Freight Information | NSN 5965-00-181-0213
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061700 | ELEC APPLIANCES/INSTRUMENTS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5965-00-181-0213
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
