NSN 5962-01-049-0349 M38510/109-01AGB, M38510/10901BGB, M38510/10901BGC
Product Details | LINEAR MICROCIRCUIT
5962-01-049-0349 A microcircuit whose output is a function of the input; that is, the output varies in a predetermined and essentially predictable manner from the input signal.
Part Alternates: M38510/109-01AGB, M38510/10901BGB, M38510/10901BGC, M38510/109-01CGX, M3851010901AGB, M3851010901BGB, M3851010901BGC, M3851010901BGX, M38510-10901BGX, M3851010901CGX, A574A287101, A574A287-101, NE555T, SC596206371, SC5962-0637-1, SC76471H, SE555, SE555CT, SN52555L, SNC52555L, SNC52555L00, C120110001, C12011-0001, CC2029, CJ0369002, CJ0369-002, HL86017, ICM75551TV, ICM75555MTV, JAN3851010901BGA, JAN38510-10901BGA, JANM3851010901BGC, JANM38510-10901BGC, JM38510/10901BGC, JM38510/10901BGCA, JM38510/10901BGL, JM38510/10901BGX, JM3851010901BGC, JM3851010901BGCA, JM3851010901BGL, JM3851010901BGX, L02731, LM555H/883, LM555H883, MIL-M-38510/109, MILM38510109, UA555HMQB, RBSE555T, RC555T, RL34096, RM555T/883C, RM555T883B, RM555T883C, RM555TD883B, RM555TD-883B, 3214006-001-524, 52016, 555, 349-312-031, 3511137030, 351-1137-030, 3511257010, 351-1257-010, 4034801, 403480-1, 40815, 408-15, 446/4/06118, 10133546, 11A41139881, 11A4-113988-1, 1327A1871, 1327A187-1, 1688928, 1688-928, 0334622, 055006, 05-5006, 202116-001, 300017 PIECE 9, 300017PIECE9, 59623810901BGB, 5962-3810901BGB, 59623810901BGC, 5962-3810901BGC, 59623810901BGX, 5962-3810901BGX, 63A133445P117, 63C502576P1, 63C502576P2, 642AS37071, 642AS3707-1, 670109018GX, 670-10901-8GX, 6938290003, 69382900-03, 755002A77325, 755002A7732-5, 8082721, 808272-1, 9327601B, 932760-1B, 5962-01-049-0349, 01-049-0349, 5962010490349, 3214006001524, 100000193, 202116001, 446406118, 010490349, 349312031
Electrical and Electronic Equipment Components | Microcircuits, Electronic
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 10 OCT 1977 | 01-049-0349 | 31778 ( MICROCIRCUIT, LINEAR ) |

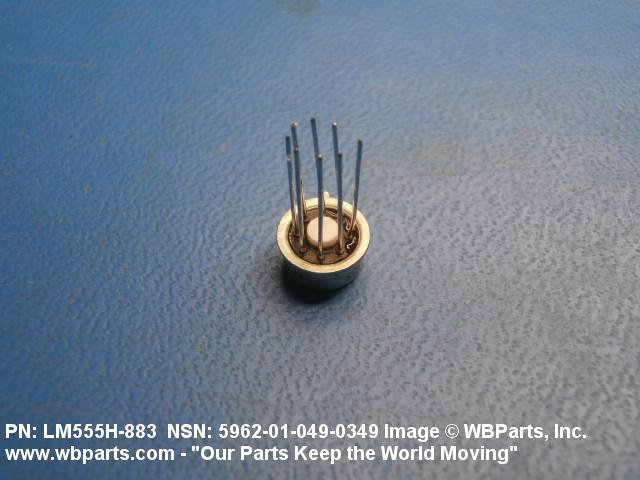

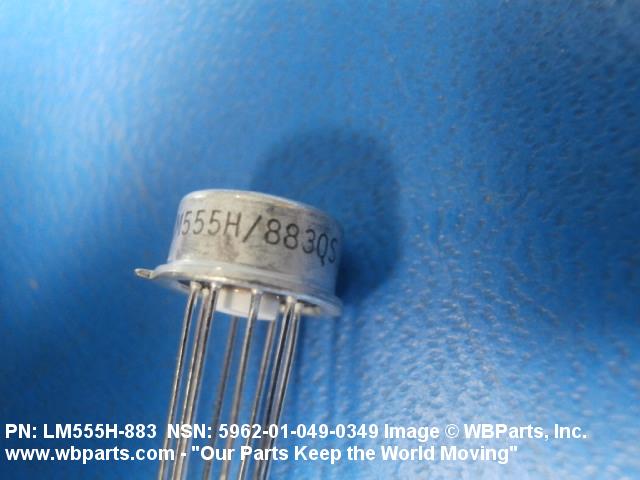

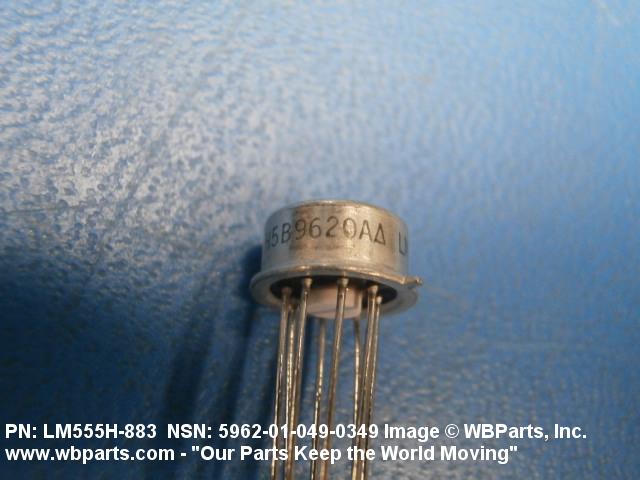

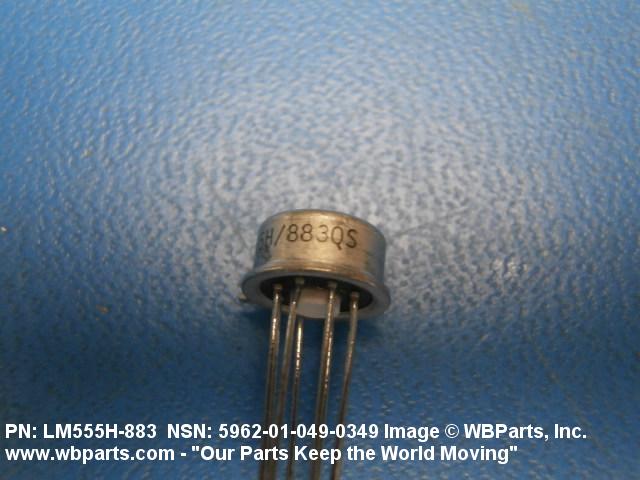

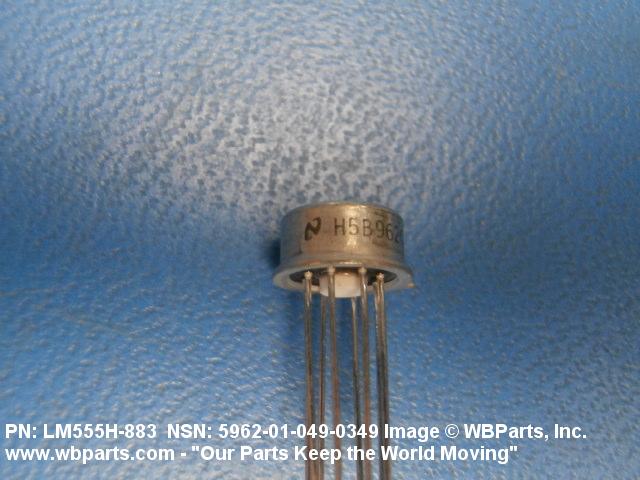

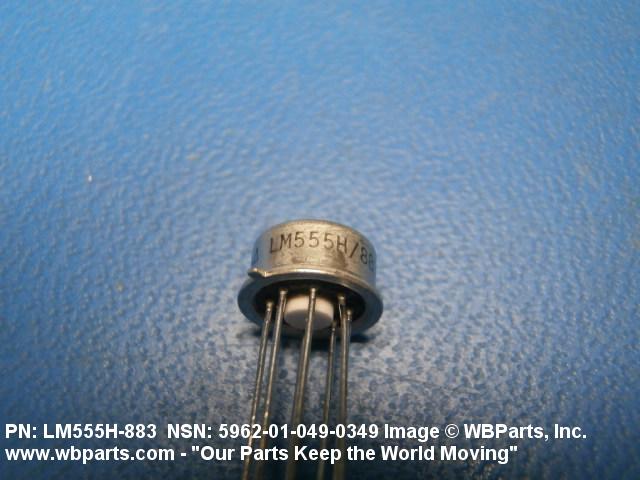

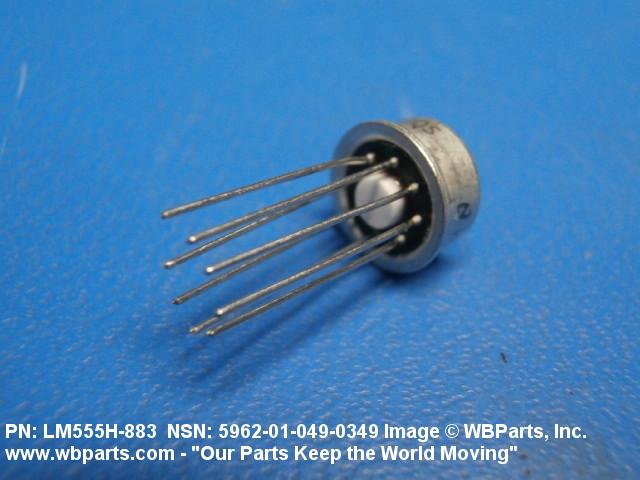

Drawings & Photos | NSN 5962-01-049-0349
Demand History | NSN 5962-01-049-0349
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5962-01-049-0349 | 2023-08-229 | 30 | DE |
| M3851010901BGC | 2016-10-279 | 2 | Thailand |
| M3851010901BGC | 2016-07-208 | 1 | TH |
| 5962-01-049-0349 | 2014-02-37 | 50 | United States |
| M3851010901BGX | 2012-06-173 | 10 | United States |
| SE555CT | 2011-06-180 | 10 | MX |
| SE555CT | 2011-06-180 | 10 | MX |
| M3851010901BGX | 2011-02-54 | 5 | United States |
| M3851010901BGX | 2010-12-350 | 15 | United States |
| M3851010901BGX | 2010-12-350 | 15 | United States |
| LM555H883 | 2007-03-71 | 1500 | US |
Cross Reference | NSN 5962-01-049-0349
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0334622 | 89305 | SIMMONDS PRECISION PRODUCTS, INC. DBA GOODRICH SENSORS AND INTERGRATED |
| 05-5006 | 57705 | HUNTRON INC DBA HUNTRON INSTRUMENTS |
| 100000193 | 34984 | DATA GENERAL CORP M/S 9S17 |
| 11A4-113988-1 | U4338 | THALES UK LIMITED DBA THALES UK LTDDEFENCE MISSION SYSTEMS |
| 1327A187-1 | 66126 | L-3 FUZING AND ORDNANCE SYSTEMS, INC. |
| 1688-928 | 31361 | WOODWARD, INC. DBA INDUSTRIAL PRODUCTS GROUP |
| 202116-001 | 81413 | BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION I |
| 300017 PIECE 9 | 0DHG4 | GULF COAST HOLDINGS INC DBA UNIDYNAMICS |
| 3214006-001-524 | 99696 | LOCKHEED MARTIN CORPORATION DIV LOCKHEED MARTIN SYSTEMS & GLOBAL |
| 349-312-031 | 07421 | INTERSTATE ELECTRONICS CORPORATION DBA L-3 INTERSTATE ELECTRONICS |
| 351-1137-030 | 13499 | ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS |
| 351-1257-010 | 13499 | ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS |
| 403480-1 | 20284 | TARGET CORPORATION DBA TARGET |
| 408-15 | 94970 | DUKANE SEACOM, INC. |
| 446/4/06118 | K0668 | SELEX ES LTD DBA SELEX S & A S |
| 446/4/06118 | K1423 | BRITISH AEROSPACE LAND & SEA SYSTEMS POST DESIGN SERVICES |
| 52016 | 31757 | MICROPAC INDUSTRIES, INC. |
| 52016 | C7407 | IV-ELECTRONIC KLAUS VESPERMANN KG |
| 555 | 18324 | PHILIPS SEMICONDUCTORS INC |
| 5962-3810901BGB | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| 5962-3810901BGC | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| 5962-3810901BGX | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| 63A133445P117 | 16331 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 63C502576P1 | 16331 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 63C502576P2 | 16331 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 642AS3707-1 | 30003 | NAVAL AIR SYSTEMS COMMAND |
| 670-10901-8GX | 83298 | ALLIED SIGNAL INC AEROSPACE EQUIPMENT SYSTEMS |
| 69382900-03 | 27963 | GENERAL DYNAMICS INFORMATION SYSTEMS INC. |
| 69382900-03 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
| 69382900-03 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| 755002A7732-5 | 05869 | RAYTHEON COMPANY DBA RAYTHEON |
| 808272-1 | 96214 | RAYTHEON COMPANY DBA RAYTHEON |
| 932760-1B | 82577 | RAYTHEON COMPANY DBA RAYTHEON |
| A574A287-101 | 88818 | KEARFOTT CORPORATION DBA KEARFOTT |
| C12011-0001 | U8539 | ROSEMOUNT AEROSPACE LTD |
| CC2029 | 18324 | PHILIPS SEMICONDUCTORS INC |
| CJ0369-002 | 22915 | NORTHROP GRUMMAN CORP ELECTRONIC SYSTEMS DEFENSIVE SYSTEM |
| HL86017 | 07263 | FAIRCHILD SEMICONDUCTOR CORP |
| ICM75551TV | 32293 | INTERSIL INC SUB OF GENERAL ELECTRIC CO |
| ICM75555MTV | 32293 | INTERSIL INC SUB OF GENERAL ELECTRIC CO |
| JAN38510-10901BGA | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| JANM38510-10901BGC | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| JM38510/10901BGC | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| JM38510/10901BGCA | C7191 | ADELCO ELEKTRONIK GMBH |
| JM38510/10901BGL | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| JM38510/10901BGX | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| L02731 | 16236 | DLA LAND AND MARITIME |
| LM555H/883 | 18324 | PHILIPS SEMICONDUCTORS INC |
| LM555H/883 | 27014 | NATIONAL SEMICONDUCTOR CORPORATION |
| M38510-10901BGX | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M38510/109-01AGB | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M38510/109-01CGX | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M38510/10901BGB | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M38510/10901BGC | 18324 | PHILIPS SEMICONDUCTORS INC |
| M38510/10901BGC | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-M-38510/109 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| NE555T | 18234 | ETS-LINDGREN INC. DBA LINDGREN |
| RBSE555T | 18324 | PHILIPS SEMICONDUCTORS INC |
| RC555T | 07933 | FAIRCHILD SEMICONDUCTOR CORP SEMICONDUCTOR DIV HQ |
| RL34096 | 27014 | NATIONAL SEMICONDUCTOR CORPORATION |
| RM555T/883C | 07933 | FAIRCHILD SEMICONDUCTOR CORP SEMICONDUCTOR DIV HQ |
| RM555T883B | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
| RM555TD-883B | 07933 | FAIRCHILD SEMICONDUCTOR CORP SEMICONDUCTOR DIV HQ |
| SC5962-0637-1 | 12115 | DRS ICAS, LLC |
| SC76471H | 04713 | FREESCALE SEMICONDUCTOR, INC. |
| SE555 | 32293 | INTERSIL INC SUB OF GENERAL ELECTRIC CO |
| SE555CT | 18324 | PHILIPS SEMICONDUCTORS INC |
| SN52555L | 01295 | TEXAS INSTRUMENTS INCORPORATED DBA TEXAS INSTRUMENTS |
| SNC52555L | 01295 | TEXAS INSTRUMENTS INCORPORATED DBA TEXAS INSTRUMENTS |
| SNC52555L00 | 01295 | TEXAS INSTRUMENTS INCORPORATED DBA TEXAS INSTRUMENTS |
| UA555HMQB | 07263 | FAIRCHILD SEMICONDUCTOR CORP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5962-01-049-0349
Related Products | NSN 5962-01-049-0349
Technical Data | NSN 5962-01-049-0349
| Characteristic | Specifications |
|---|---|
| DESIGN FUNCTION AND QUANTITY | 1 TIMER |
| INPUT CIRCUIT PATTERN | 4 INPUT |
| VOLTAGE RATING AND TYPE PER CHARACTERISTIC | 18.0 VOLTS MAXIMUM POWER SOURCE |
| TIME RATING PER CHACTERISTIC | 900.00 NANOSECONDS MAXIMUM PROPAGATION DELAY TIME, LOW TO HIGH LEVEL OUTPUT AND 1200.00 NANOSECONDS MAXIMUM PROPAGATION DELAY TIME, HIGH TO LOW LEVEL OUTPUT |
| OPERATING TEMP RANGE | -55.0 TO 125.0 DEG CELSIUS |
| TERMINAL TYPE AND QUANTITY | 8 PIN |
| TERMINAL SURFACE TREATMENT | SOLDER |
| INCLOSURE CONFIGURATION | CAN |
| INCLOSURE MATERIAL | GLASS AND METAL |
| CASE OUTLINE SOURCE AND DESIGNATOR | A-1 MIL-M-38510 |

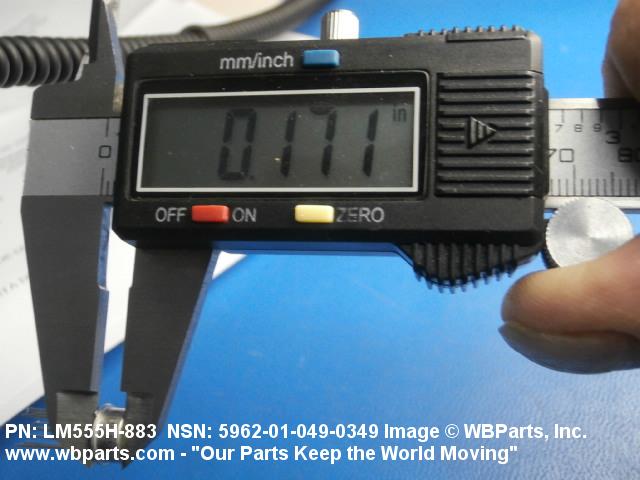

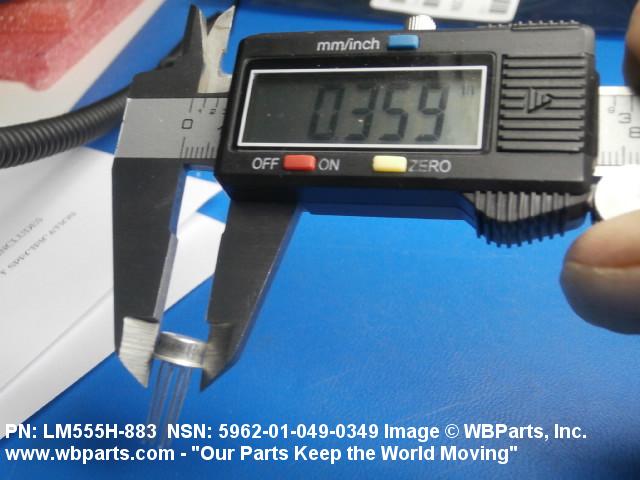

| BODY OUTSIDE DIAMETER | 0.335 INCHES MINIMUM AND 0.370 INCHES MAXIMUM |
