NSN 5962-01-014-0499 M38510/10104BGB, M38510/10104BGX, M3851010104BGB
Product Details | LINEAR MICROCIRCUIT
5962-01-014-0499 A microcircuit whose output is a function of the input; that is, the output varies in a predetermined and essentially predictable manner from the input signal.
Part Alternates: M38510/10104BGB, M38510/10104BGX, M3851010104BGB, M3851010104BGX, B02574788, B78061, LM308H, MIL-M-38510/101, MILM38510101, 108, 15638052, 15638-052, 18260072, 2574788, 564718, 93254021, 932540-21, 5962-01-014-0499, 01-014-0499, 5962010140499, 010140499
Electrical and Electronic Equipment Components | Microcircuits, Electronic
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 14 DEC 1975 | 01-014-0499 | 31778 ( MICROCIRCUIT, LINEAR ) |

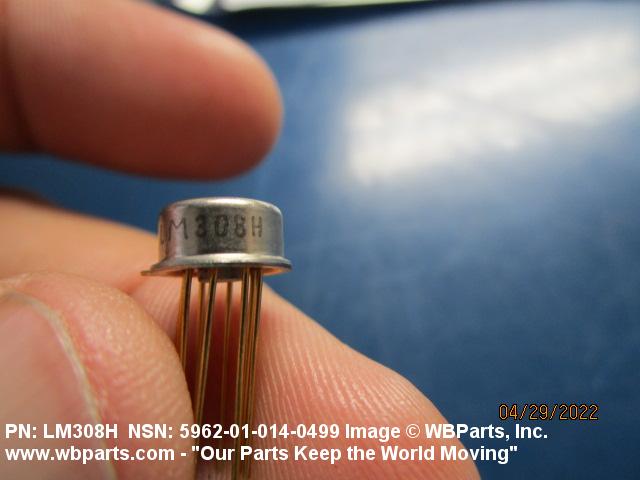

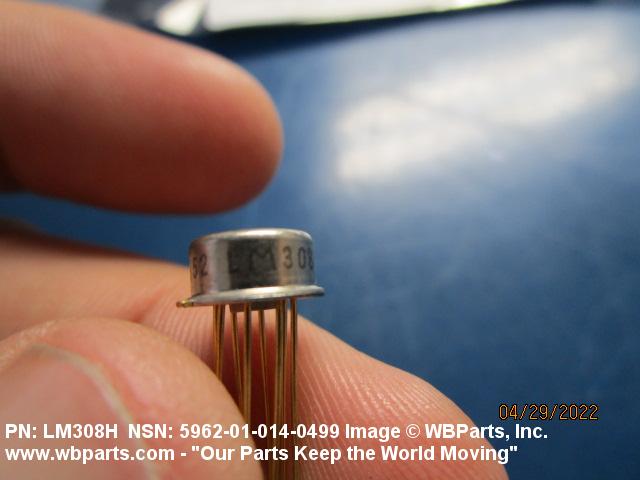

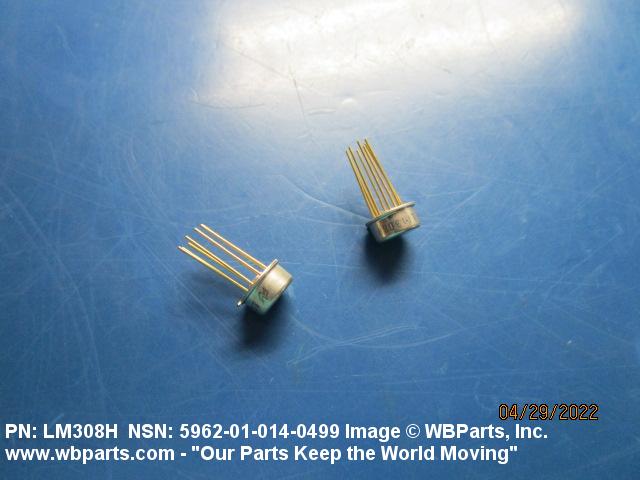

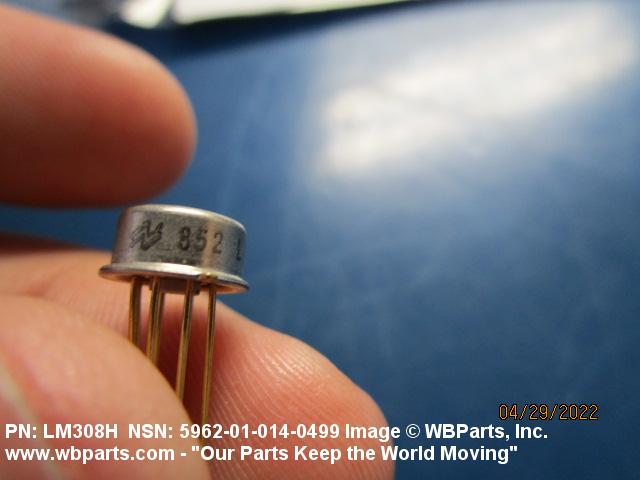

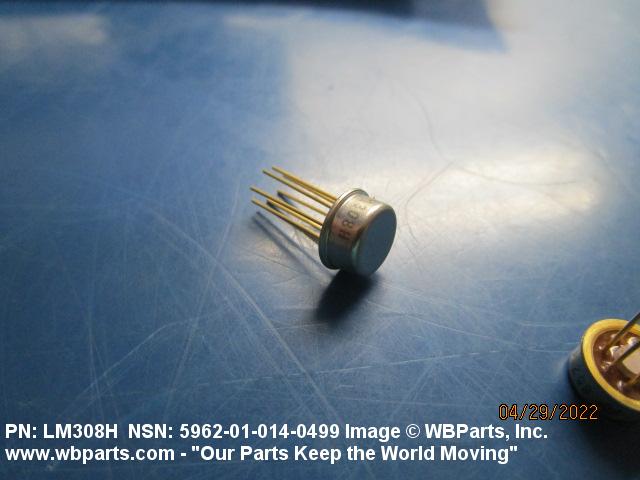

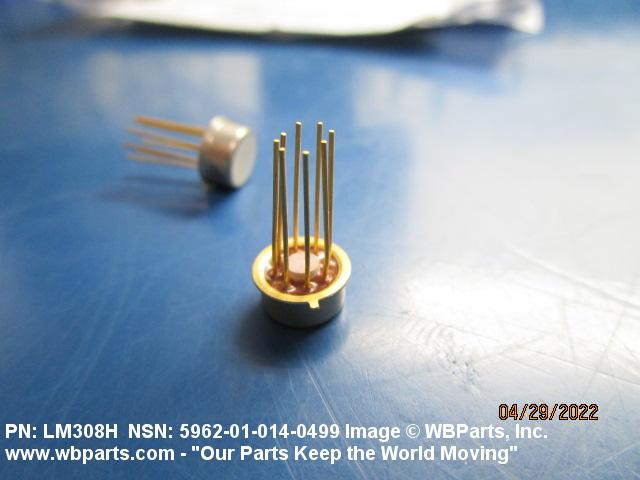

Drawings & Photos | NSN 5962-01-014-0499
Demand History | NSN 5962-01-014-0499
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5962-01-014-0499 | 2022-03-89 | 2 | United States |
| M3851010104BGB | 2015-08-230 | 2 | Sweden |
Cross Reference | NSN 5962-01-014-0499
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 108 | 27014 | NATIONAL SEMICONDUCTOR CORPORATION |
| 15638-052 | 10138 | ASTRONAUTICS CORPORATION OF AMERICA |
| 18260072 | 50436 | HEWLETT-PACKARD CO VIDEO COMMUNICATION DIV |
| 2574788 | D0894 | ROHDE & SCHWARZ GMBH & CO. KG |
| 564718 | D0327 | SELEX COMMUNICATIONS GMBH |
| 932540-21 | 82577 | RAYTHEON COMPANY DBA RAYTHEON |
| B02574788 | D0894 | ROHDE & SCHWARZ GMBH & CO. KG |
| B78061 | K0967 | MBDA UK LTD |
| LM308H | 17850 | SYMMETRICOM INCS ANALOG SOLUTIONS DIV |
| M38510/10104BGB | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M38510/10104BGX | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-M-38510/101 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5962-01-014-0499
Related Products | NSN 5962-01-014-0499
Technical Data | NSN 5962-01-014-0499
| Characteristic | Specifications |
|---|---|
| DESIGN FUNCTION AND QUANTITY | 1 ADDER |
| INPUT CIRCUIT PATTERN | 4 INPUT |
| VOLTAGE RATING AND TYPE PER CHARACTERISTIC | 20.0 VOLTS MAXIMUM POWER SOURCE |
| TIME RATING PER CHACTERISTIC | 1200.00 NANOSECONDS MAXIMUM PROPAGATION DELAY TIME, LOW TO HIGH LEVEL OUTPUT AND 1200.00 NANOSECONDS MAXIMUM PROPAGATION DELAY TIME, HIGH TO LOW LEVEL OUTPUT |
| OPERATING TEMP RANGE | -55.0 TO 125.0 DEG CELSIUS |
| TERMINAL TYPE AND QUANTITY | 8 PIN |
| TERMINAL SURFACE TREATMENT | SOLDER |
| INCLOSURE CONFIGURATION | CAN |
| INCLOSURE MATERIAL | GLASS AND METAL |
| CASE OUTLINE SOURCE AND DESIGNATOR | A-1 MIL-M-38510 |
| BODY OUTSIDE DIAMETER | 0.335 INCHES MINIMUM AND 0.370 INCHES MAXIMUM |
| BODY HEIGHT | 0.165 INCHES MINIMUM AND 0.185 INCHES MAXIMUM |
| MAXIMUM POWER DISSIPATION RATING | 330.0 MILLIWATTS |
| STORAGE TEMP RANGE | -65.0 TO 150.0 DEG CELSIUS |
| FEATURES PROVIDED | HERMETICALLY SEALED AND MONOLITHIC AND NEGATIVE OUTPUTS AND POSITIVE OUTPUTS AND EXTERNALLY COMPENSATED |
| TEST DATA DOCUMENT | 81349-MIL-M-38510 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-M-38510/101 GOVERNMENT SPECIFICATION |
| III UNPACKAGED UNIT WEIGHT | 1.2 GRAMS |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-M-38510/101 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M38510/10104BGB |
Restrictions/Controls & Freight Information | NSN 5962-01-014-0499
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | B | ESD sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061700 | ELEC APPLIANCES/INSTRUMENTS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | 3 | Electrostatic Sensitive Device (ESD), subject to damage caused by electrostatic discharge. (See DoD 4500.32-R, Volume 1, Appendix A, Section I for additional information on ESD devices). |
Management | NSN 5962-01-014-0499
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9N | Navy-owned stocks of defense electronic material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9E | Defense Supply Center Columbus Columbus, OH 43218 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
