NSN 5961-01-276-5674 60970491, 6097049-1, 655442
Product Details | UNITIZED SEMICONDUCTOR DEVICE RECTIFIER
5961-01-276-5674 Two or more diode semiconductor devices designed to function as a unit in changing alternating current to direct current. The diode devices are internally connected in series, and are permanently cased, encapsulated, potted, or molded together to form an inseparable unit. These units may be designed as either half-wave or full-wave rectifiers and may be mounted to form either single phase or three phase bridges. For interconnected items arranged in stack(s), see RECTIFIER, SEMICONDUCTOR DEVICE. For items fabricated in the form of a monolithic or thin film structure that perform the function of a circuit, see INTEGRATED CIRCUIT (as modified). Excludes SEMICONDUCTOR DEVICES, UNITIZED; SEMICONDUCTOR DEVICE ASSEMBLY; and RECTIFIER NETWORK, UNITIZED.
Part Alternates: 60970491, 6097049-1, 655442, 655-442, 5961-01-276-5674, 01-276-5674, 5961012765674, 012765674
Electrical and Electronic Equipment Components | Semiconductor Devices and Associated Hardware
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
59 | 09 APR 1988 | 01-276-5674 | 62108 ( RECTIFIER, SEMICONDUCTOR DEVICE, UNITIZED ) |
Demand History | NSN 5961-01-276-5674
Part Number | Request Date | QTY | Origin |
---|---|---|---|
5961-01-276-5674 | 2015-01-15 | 10 | DIBBS |
5961-01-276-5674 | 2014-12-363 | 10 | DIBBS |
5961-01-276-5674 | 2014-12-351 | 10 | DIBBS |
5961-01-276-5674 | 2013-12-345 | 18 | DIBBS |
5961-01-276-5674 | 2013-11-330 | 18 | DIBBS |
5961-01-276-5674 | 2013-11-309 | 18 | United States |
5961-01-276-5674 | 2012-11-334 | 18 | DIBBS |
5961-01-276-5674 | 2012-10-278 | 25 | DIBBS |
5961-01-276-5674 | 2012-09-260 | 15 | DIBBS |
5961-01-276-5674 | 2012-08-226 | 4 | DIBBS |
5961-01-276-5674 | 2012-03-75 | 41 | DIBBS |
5961-01-276-5674 | 2012-02-55 | 13 | DIBBS |
Request a Quote
What Our Customers Say
Compare
Related Products | NSN 5961-01-276-5674
Technical Data | NSN 5961-01-276-5674
Characteristic | Specifications |
---|---|

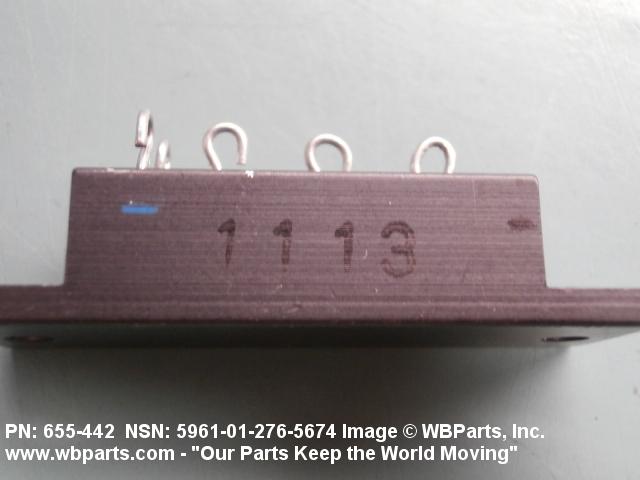

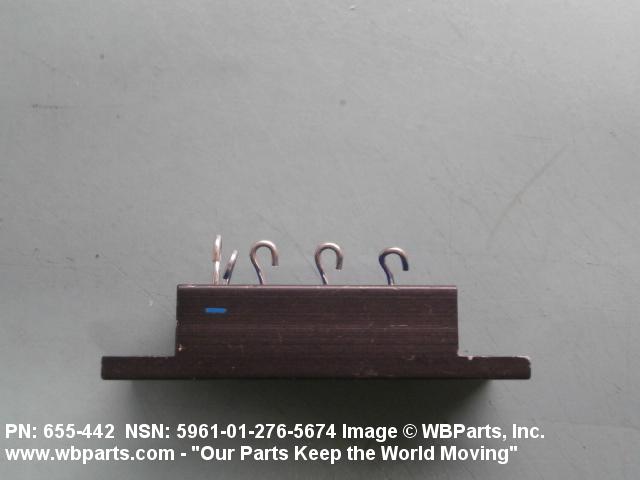

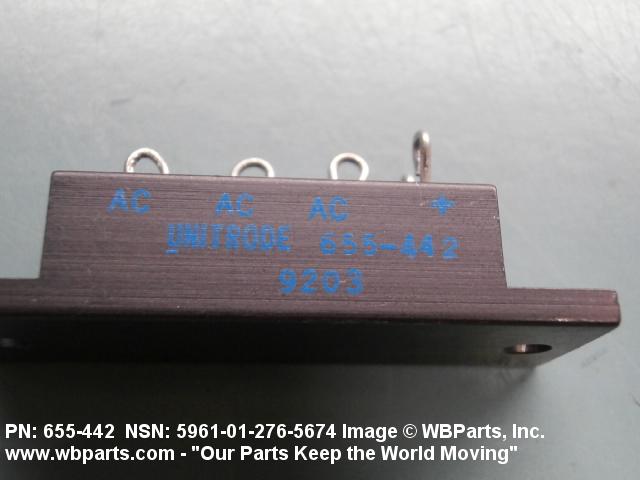

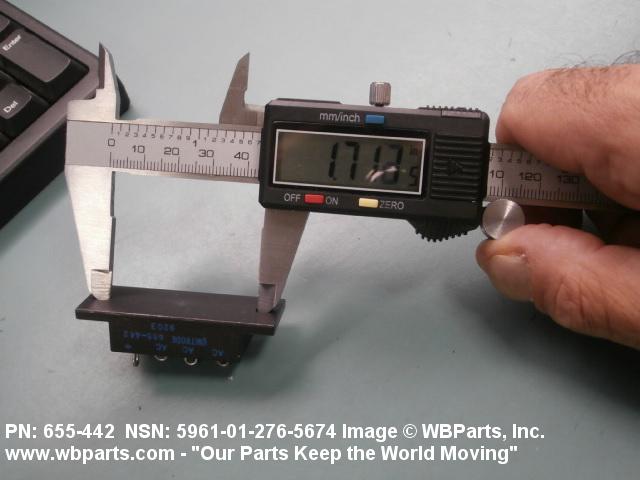

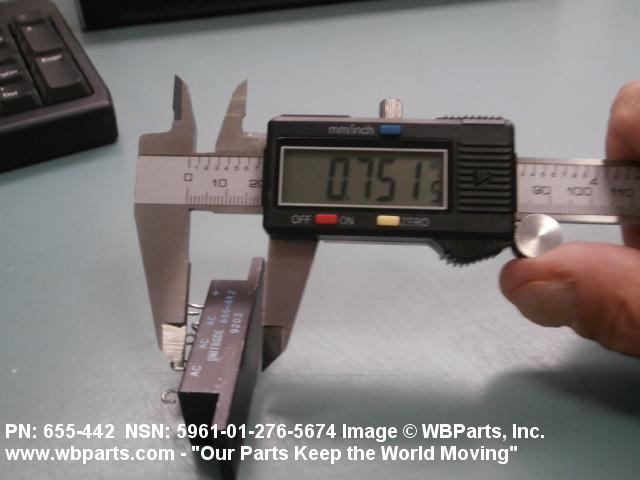

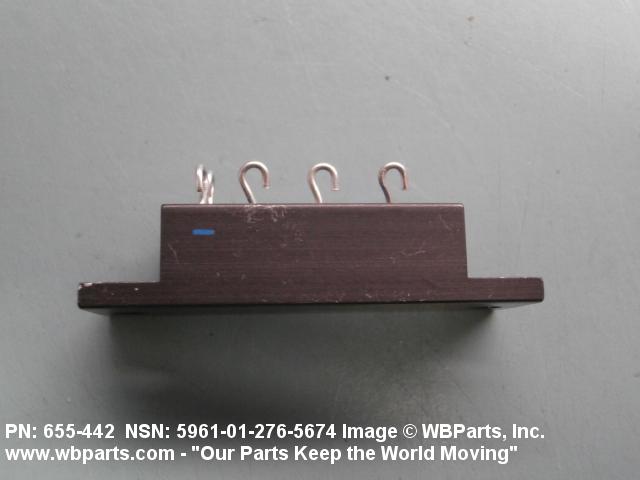

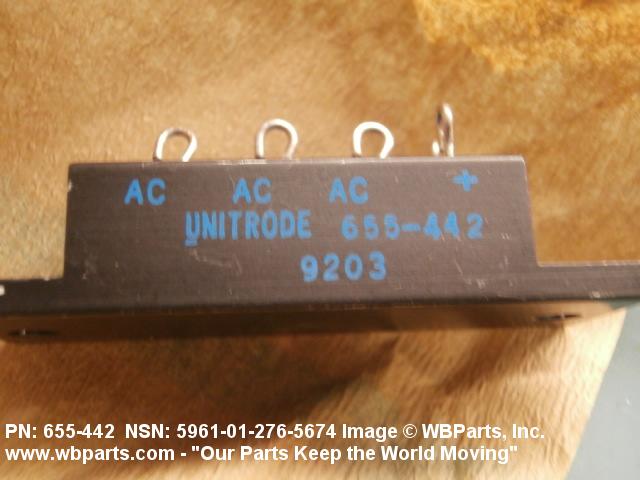

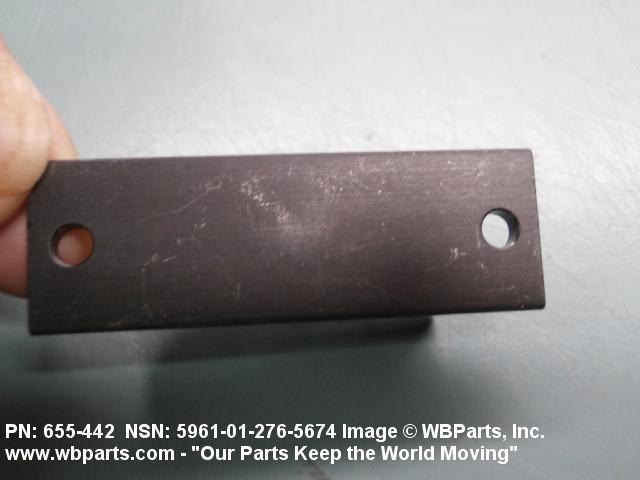

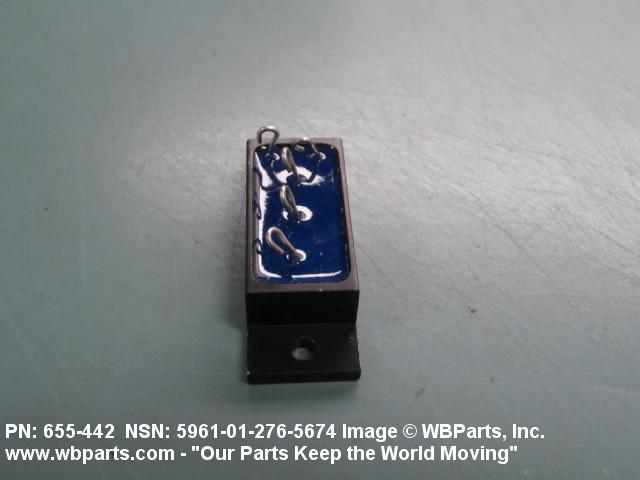

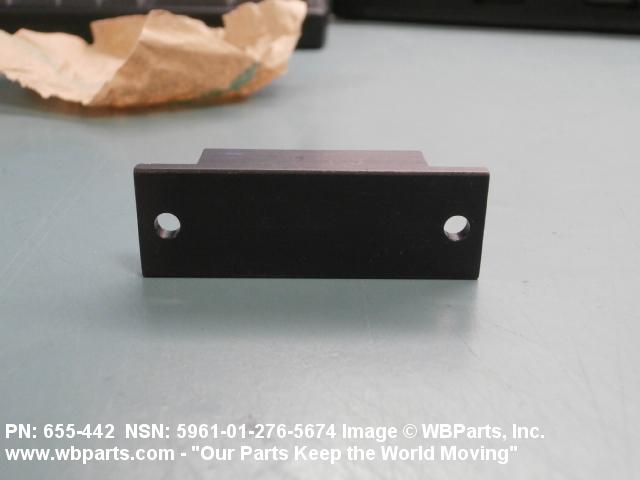

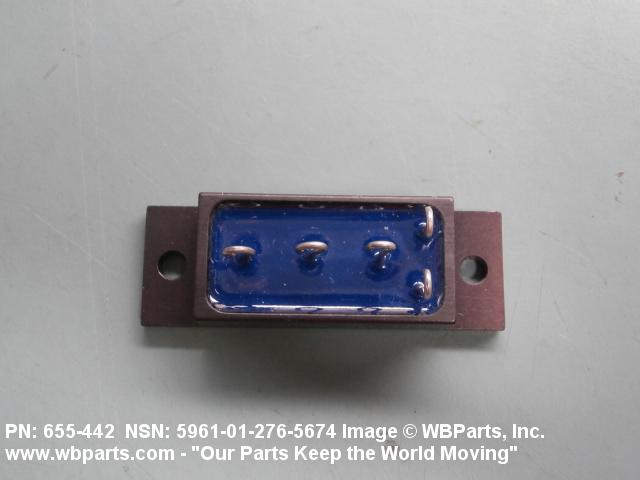

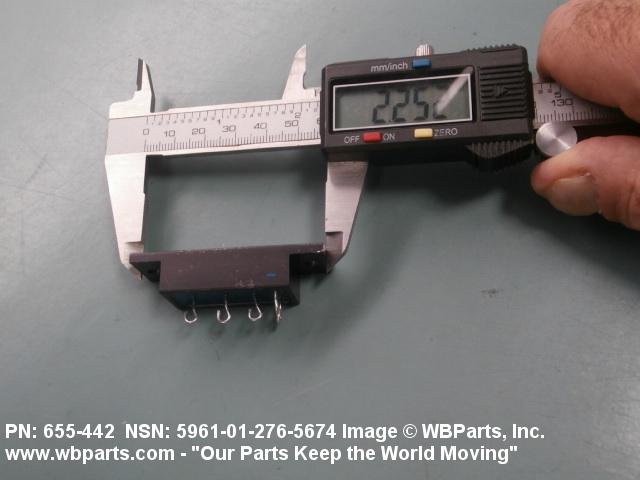

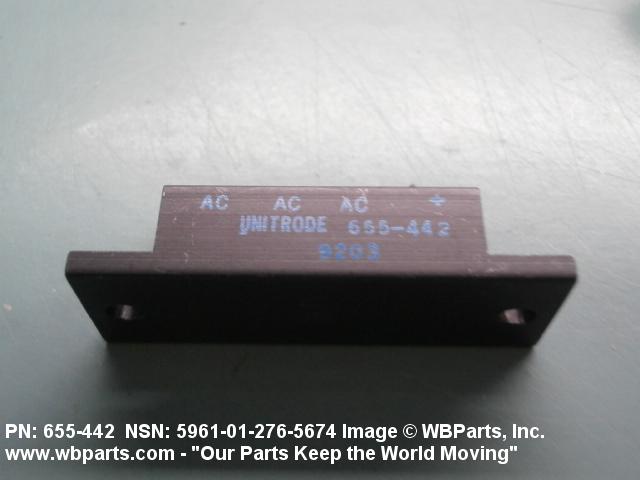

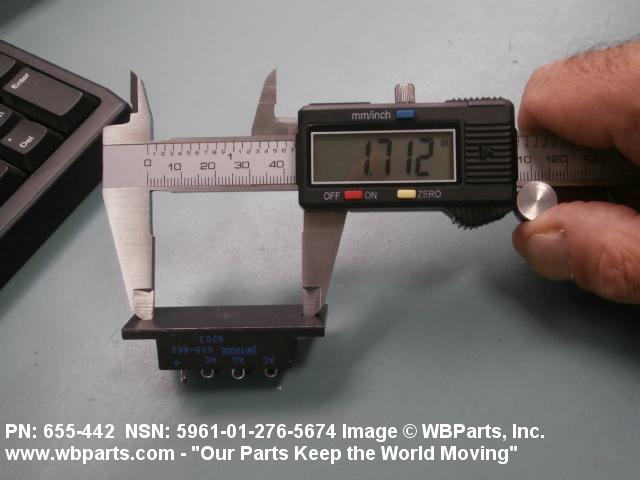

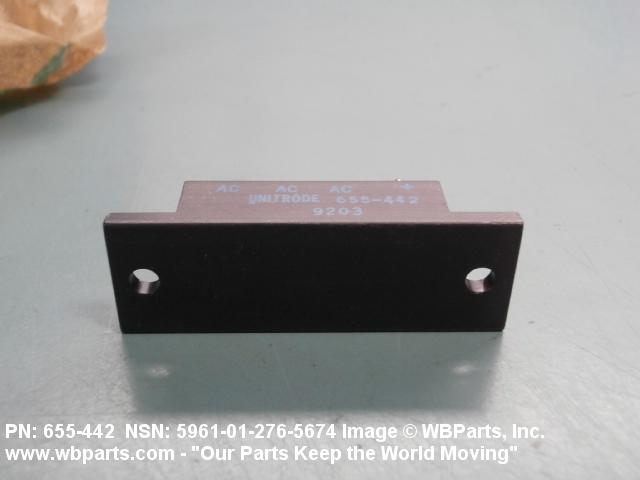

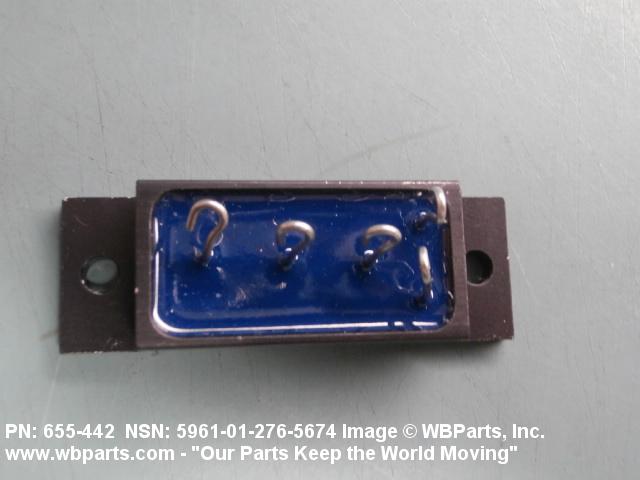

SPECIAL FEATURES | FULL WAVE BRIDGE-3 PHASE;5 LEAD TERMINALS;2.240 IN. MIN TO 2.260 IN. MAX OVER ALL LG;0.820 IN. MAX H;0.740 IN. TO 0.760 IN. MAX W;TWO 0.164 IN. MIN TO 0.174 IN. MAX DIA MTG HOLES SPACED 1.870 IN. MIN TO 1.880 IN. MAX C TO C;600.0 PEAK INVERSE VOLTAGE EACH DIODE;10.0 MICRO AMPS MAX REVERSE CURRENT;M65.0 TO P150.0 DEG C OPERATING TEMP |
