NSN 5961-00-553-5458 K5268, K526-8, 581R445H02
Product Details | UNITIZED SEMICONDUCTOR DEVICE RECTIFIER
5961-00-553-5458 Two or more diode semiconductor devices designed to function as a unit in changing alternating current to direct current. The diode devices are internally connected in series, and are permanently cased, encapsulated, potted, or molded together to form an inseparable unit. These units may be designed as either half-wave or full-wave rectifiers and may be mounted to form either single phase or three phase bridges. For interconnected items arranged in stack(s), see RECTIFIER, SEMICONDUCTOR DEVICE. For items fabricated in the form of a monolithic or thin film structure that perform the function of a circuit, see INTEGRATED CIRCUIT (as modified). Excludes SEMICONDUCTOR DEVICES, UNITIZED; SEMICONDUCTOR DEVICE ASSEMBLY; and RECTIFIER NETWORK, UNITIZED.
Part Alternates: K5268, K526-8, 581R445H02, 5961-00-553-5458, 00-553-5458, 5961005535458, 005535458
Electrical and Electronic Equipment Components | Semiconductor Devices and Associated Hardware
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 30 OCT 1974 | 00-553-5458 | 62108 ( RECTIFIER, SEMICONDUCTOR DEVICE, UNITIZED ) |

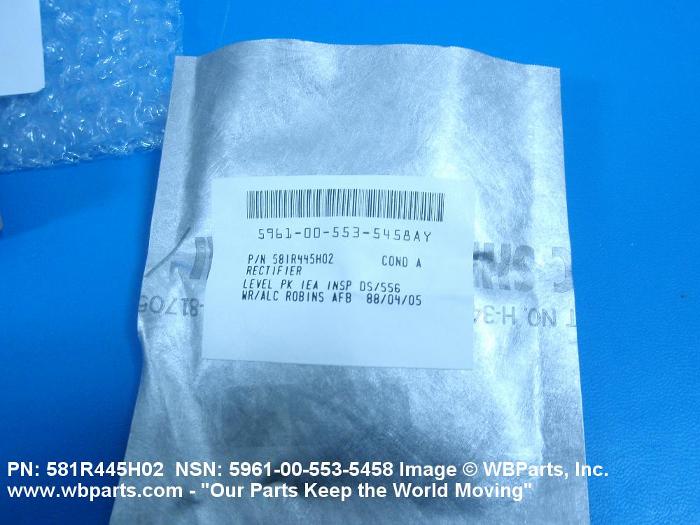

Drawings & Photos | NSN 5961-00-553-5458
Demand History | NSN 5961-00-553-5458
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5961-00-553-5458 | 2008-10-298 | 1 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5961-00-553-5458
Technical Data | NSN 5961-00-553-5458
| Characteristic | Specifications |
|---|---|
| TERMINAL TYPE AND QUANTITY | 4 PIN |
| OPERATING TEMP RANGE | -55.0 TO 150.0 DEG CELSIUS |
| OVERALL LENGTH | 0.620 INCHES NOMINAL |
| OVERALL WIDTH | 0.420 INCHES NOMINAL |
| OVERALL HEIGHT | 0.200 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5961-00-553-5458
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Electro-static Discharge Susceptible: | B | ESD sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063025 | SEMICONDUCTORS/DEVICES NOI ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TA | Sacramento Air Logistics Center McClellan AFB, CA 95652-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | 3 | Electrostatic Sensitive Device (ESD), subject to damage caused by electrostatic discharge. (See DoD 4500.32-R, Volume 1, Appendix A, Section I for additional information on ESD devices). |
