Product Details | ELECTRON TUBE SHIELD
5960-00-686-8087 An item specifically designed to be placed partially or completely around an electron tube for the purpose of shielding against electrical or mechanical interference or physical damage. May include mounting facilities. See also COVER (as modified); HOUSING (as modified) and VISOR (as modified).
Part Alternates: MS242335, MS24233-5, HTS11, P7770822P6, TR6602004H, TR6-6020-04H, 694006-102, 7478042, 747804-2, 815689, 831781, 8836616, 9010394, 3081059P5, 308-1059P5, 4180550-12, 587C3567, 587C35-67, 5960-00-686-8087, 00-686-8087, 5960006868087, 006868087, 418055012, 694006102
Electrical and Electronic Equipment Components | Electron Tubes and Associated Hardware
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-686-8087 | 10195 ( SHIELD, ELECTRON TUBE ) |
Drawings & Photos | NSN 5960-00-686-8087
Cross Reference | NSN 5960-00-686-8087
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 308-1059P5 | 3B150 | RAYTHEON TECHNICAL SERVICES COMPANY LLC |
| 308-1059P5 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
| 4180550-12 | 05869 | RAYTHEON COMPANY DBA RAYTHEON |
| 4180550-12 | 82577 | RAYTHEON COMPANY DBA RAYTHEON |
| 587C35-67 | 94033 | CARDWELL CONDENSER CORP LAPOINTE-ADMIRAL DIV |
| 694006-102 | 12436 | BAE SYSTEMS NATIONAL SECURITY SOLUTIONS INC. |
| 747804-2 | 56232 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN |
| 815689 | 19203 | PICATINNY ARSENAL |
| 831781 | 19203 | PICATINNY ARSENAL |
| 8836616 | 19203 | PICATINNY ARSENAL |
| 9010394 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| HTS11 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS24233-5 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| P7770822P6 | 24446 | GENERAL ELECTRIC CO |
| TR6-6020-04H | 03829 | GENERAL SCIENTIFIC CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5960-00-686-8087
Related Products | NSN 5960-00-686-8087
Technical Data | NSN 5960-00-686-8087
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY 172 |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-C-533 FED SPEC SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | ANODIZE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625 MIL SPEC SINGLE TREATMENT RESPONSE |

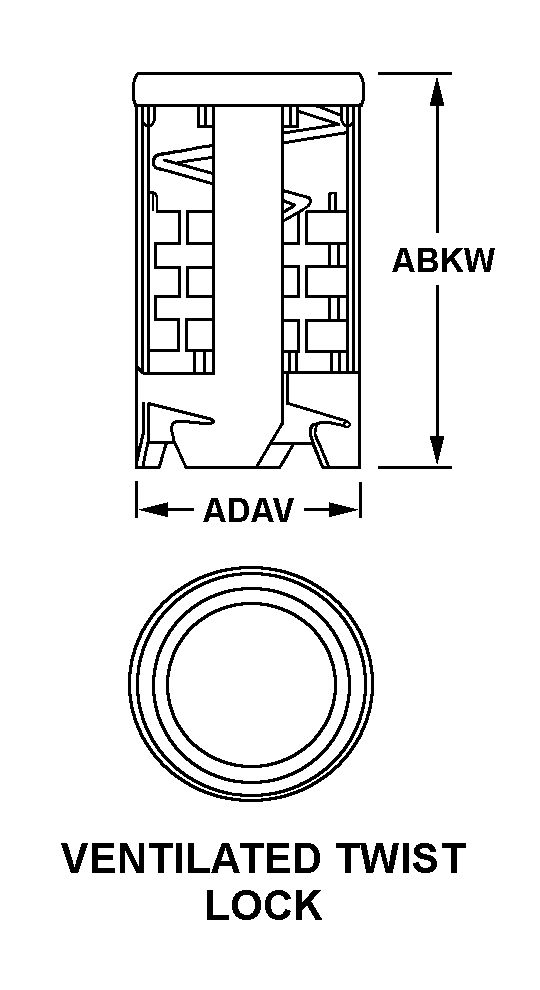

| STYLE DESIGNATOR | 33A VENTILATED TWIST LOCK |
